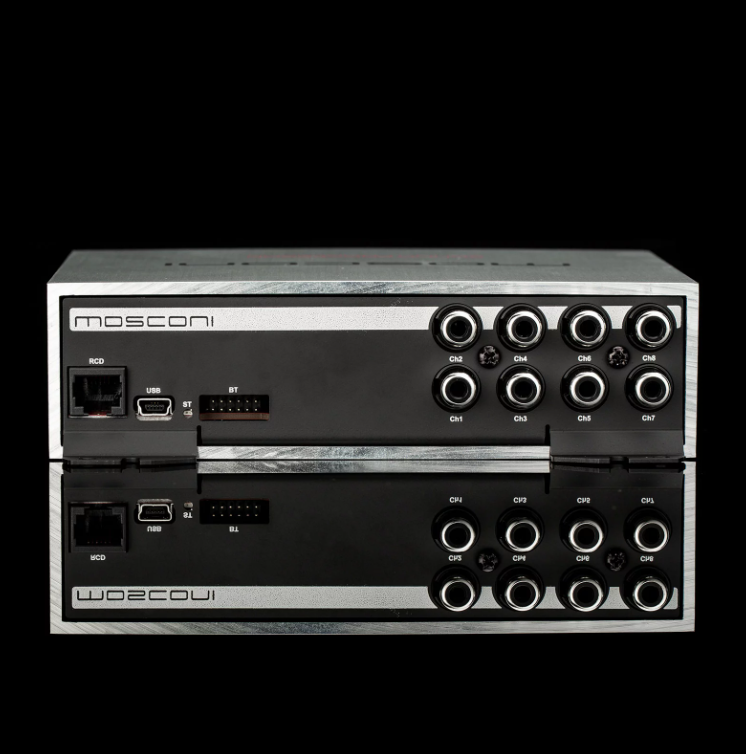

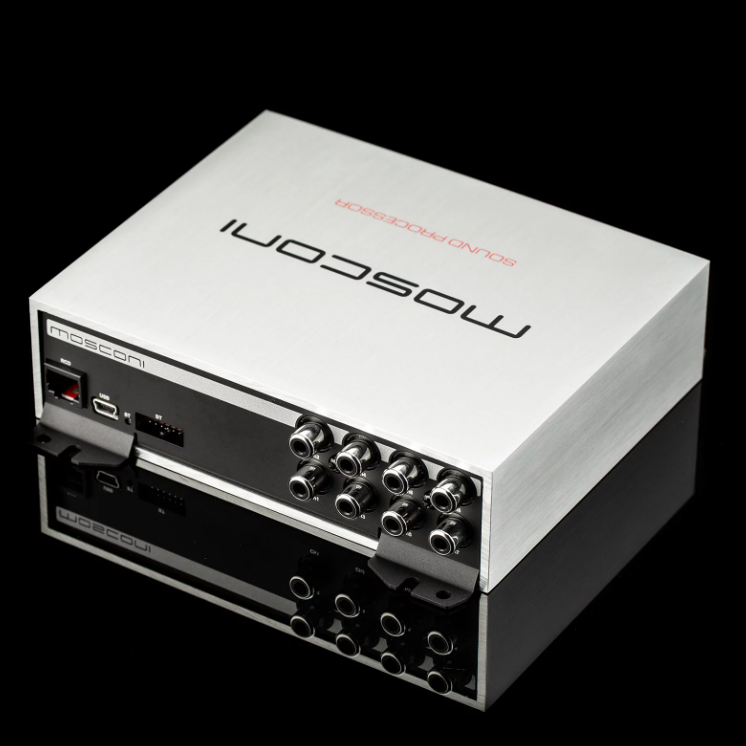

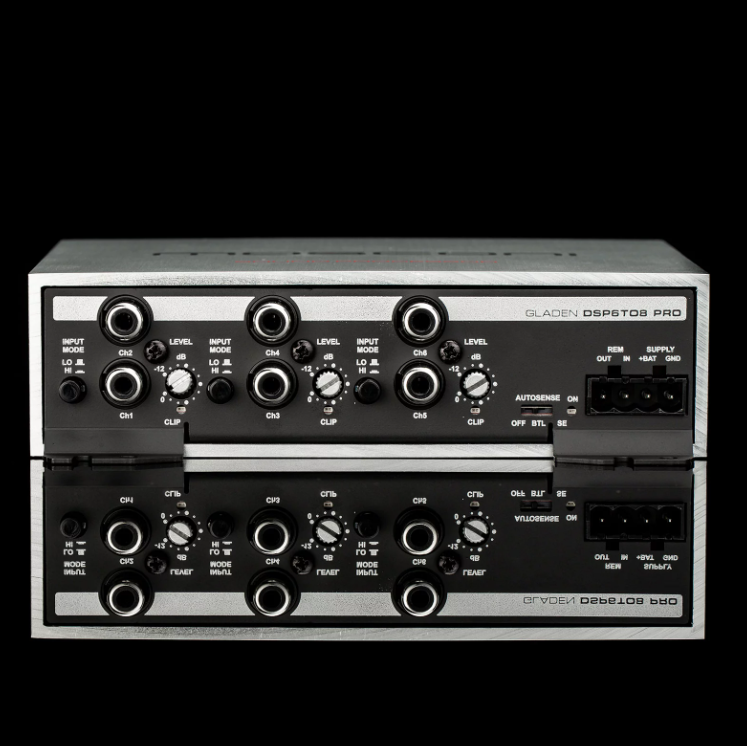

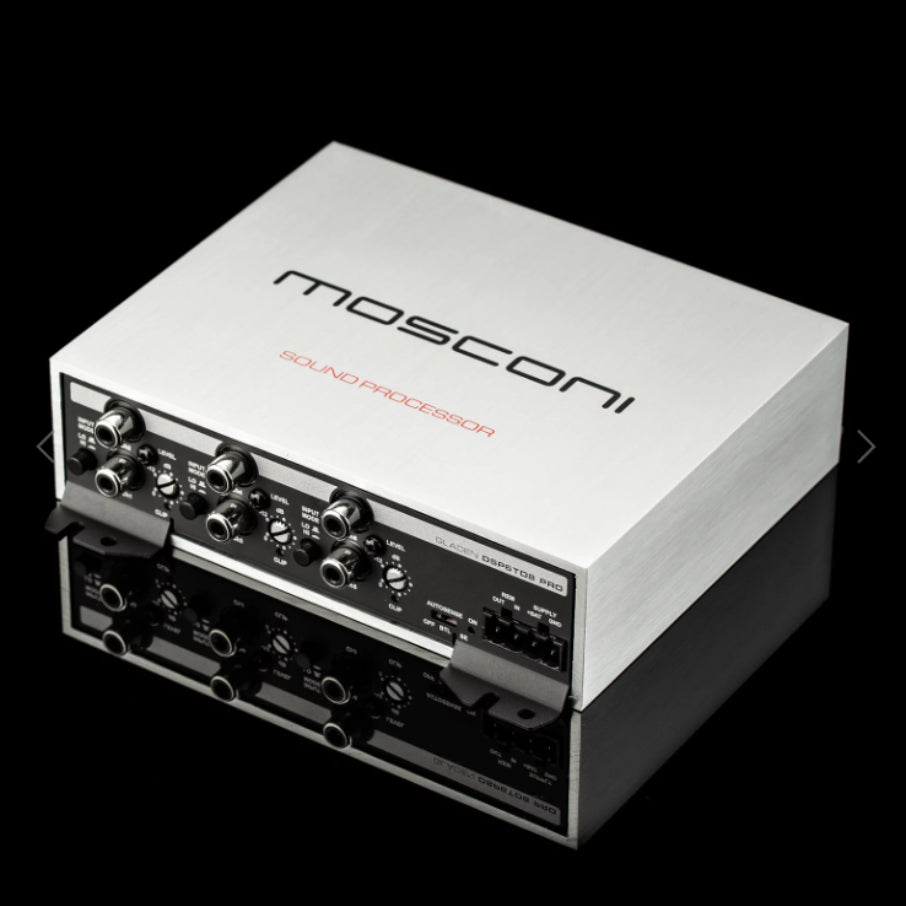

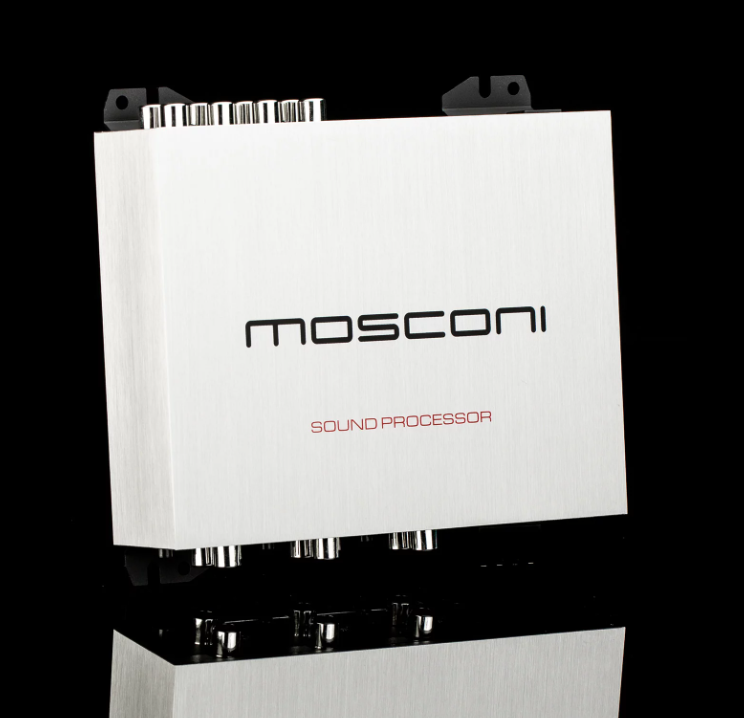

Mosconi DSP 6to8 Pro Digital Sound Processor

Technical Data Mosconi DSP 6to8 Pro

Inputs:

• 6 x RCA (Cinch), switchable high/low level with autosense

• 1 x BT interface, (only compatible with BTM)

• 2 of them freely selectable as prioritized auto-fade/aux

Outputs:

• 8 x RCA analog

• 12 V remote-out / autosense at high level signal

Equalizer:

• Fully parametric 30 band EQ, can also be used graphically, + 12 to - 12 dB, Q: 0.5 - 40

• Fixed: Channels Front (1 - 4)

• Assignable channels: 5 + 6 = front, rear 7 + 8 = sub, center, free

Filter:

• 5 per channel freely configurable

• Highpass, lowpass, shelf, notch, allpas, peak EQ

• Slope 6 - 120 dB/oct, variable Q, time and level

Other:

• Time correction 0 - 12 ms (0.020 ms steps)

• Input delay (channels 1 - 6) for correction of run-time delayed factory systems

• Phase shift 0 - 180°

• Level adjustment outputs (0.5 - dB steps)

• Mute function

• 4 x preset memory (switching without sound interruption)

• Dimensions: 150 x 125 x 40 mm (incl. mounting flange)
