99-5816 08-11 FORD FOCUS MULTI DIN DASH KIT

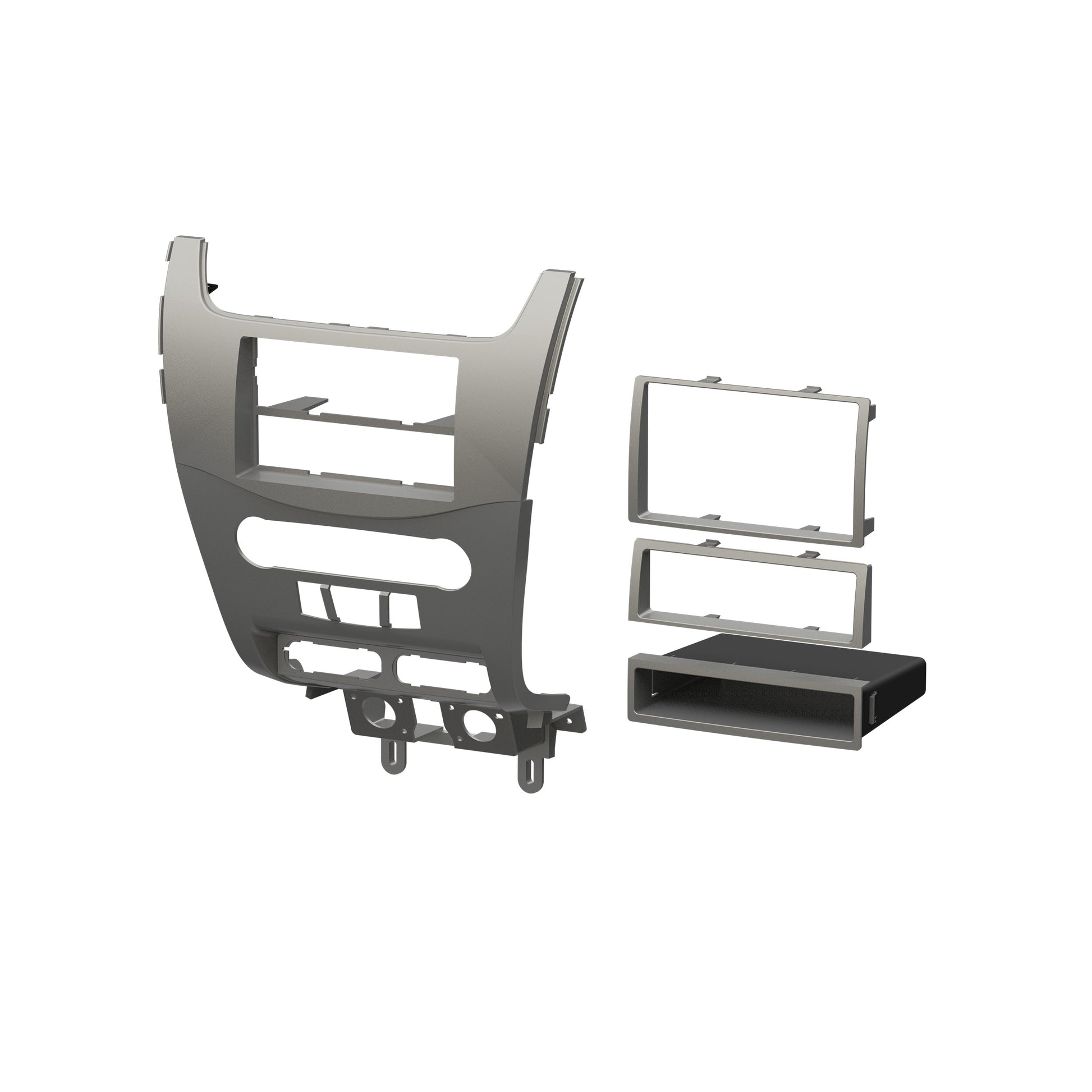

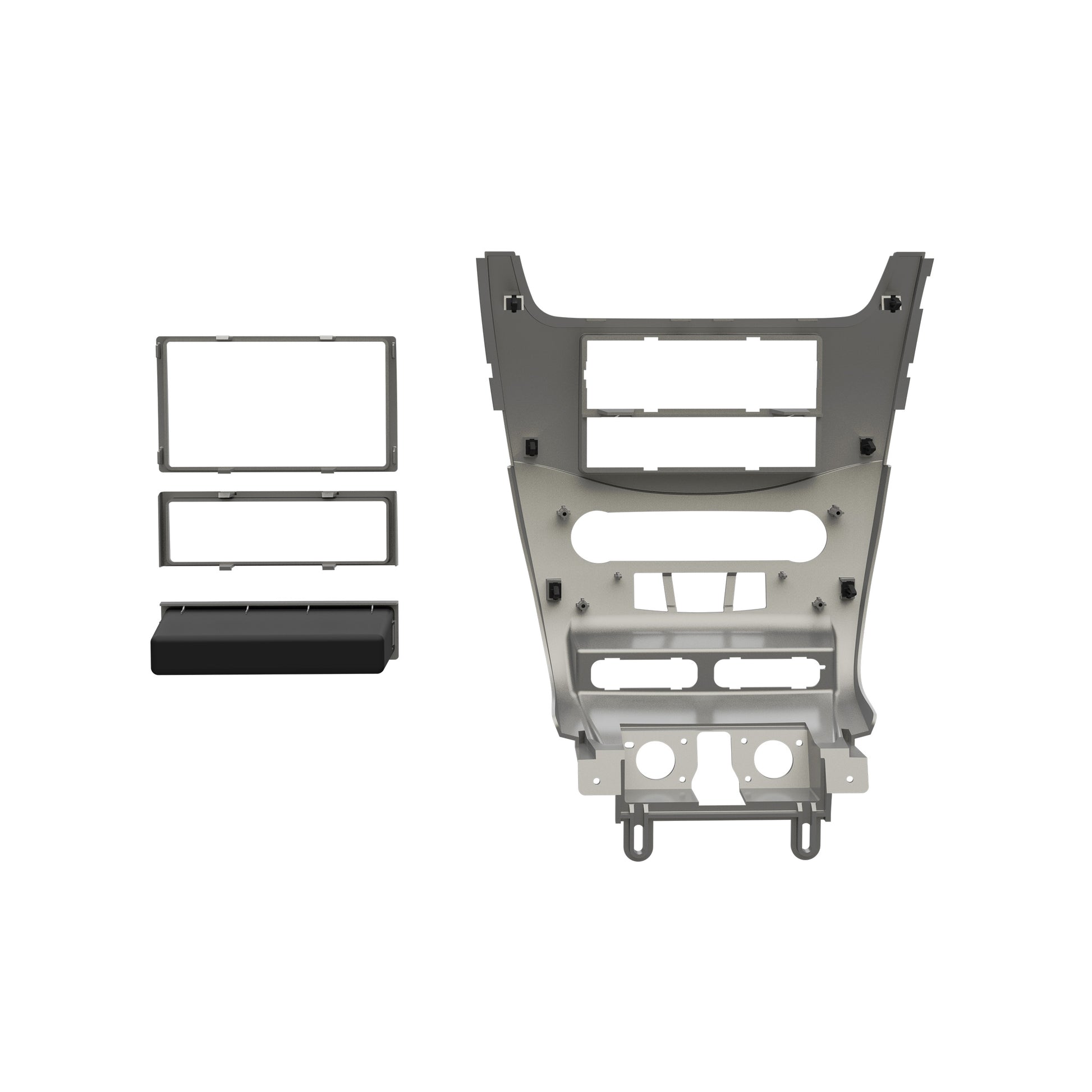

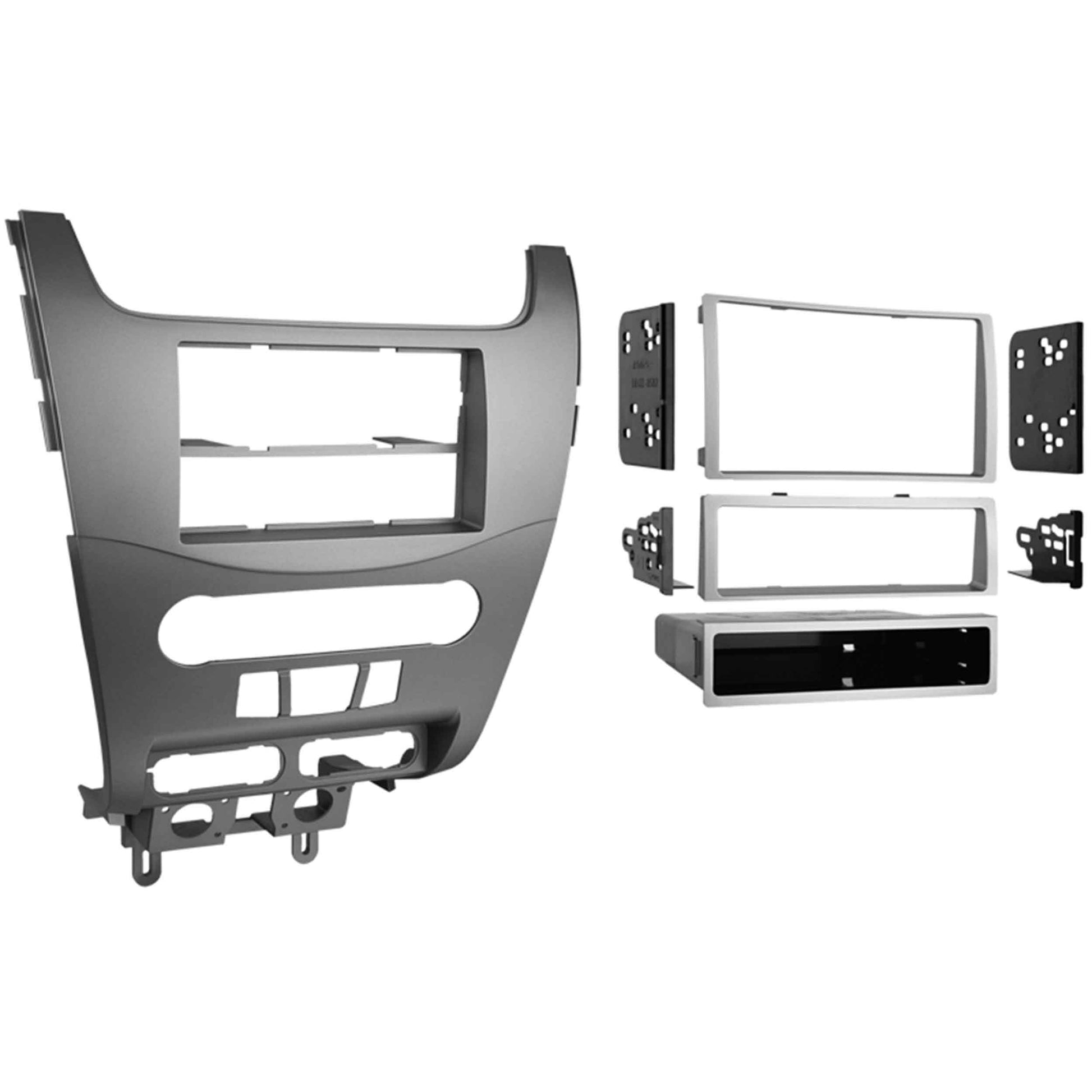

This stereo installation kit has been engineered to help you install either a 2” tall (Single-DIN) or a 4” tall (Double-DIN) aftermarket radio into the original vehicle dashboard. This dash kit makes radio replacement simple and comes with a pocket that is installed below the 2” radio to fill the extra space in the radio opening, which can be used for storage. The pocket is not needed when installing a 4” tall radio. The dash kit is contoured and painted silver to match the original look and feel of the vehicle’s dashboard. Installing an aftermarket radio can upgrade the sound quality and provide additional features the original factory radio couldn’t offer but requires this dash kit to make it fit.

• Stereo installation kit designed to fit any standard 2” or 4” tall aftermarket radio utilizing our patented quick-release, snap-in ISO mount system with custom trim ring
• Contoured and painted silver
• Custom design allows for the retention of the factory air vents in their original location
• Made from the highest quality ABS plastic for an original factory-like fit and finish
• Includes brackets and hardware parts needed with detailed installation instructions
• A tech support number is available for installation help 7 days a week

Wiring and Antenna Connections:

Harness

• XSVI-5520-NAV (sold separately)
• XSVI-5521-NAV (sold separately)

Antenna Adapter

• 40-CR10 (sold separately)
• 40-CR20 (sold separately)

Steering Wheel Control Retention

• ASWC-1 (sold separately)

• 2008-2011 Ford Focus
