Automobility Distribution Inc.

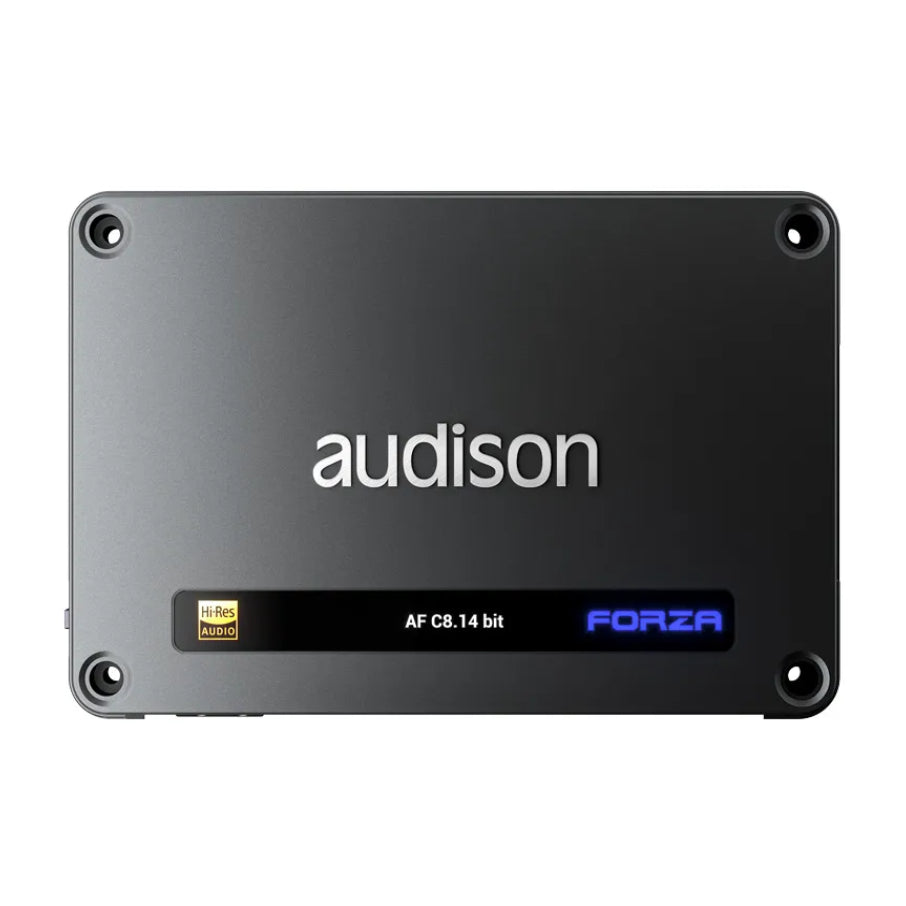

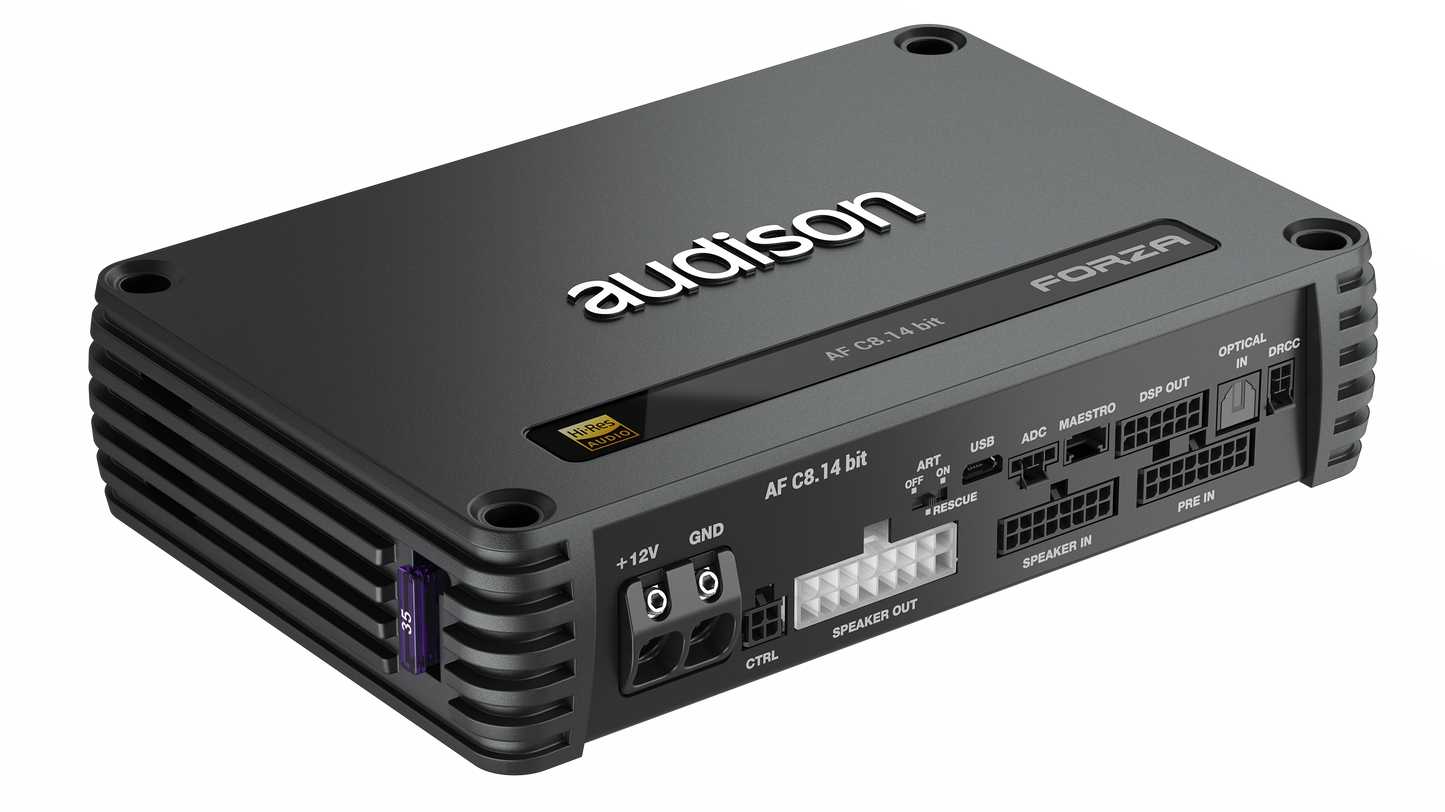

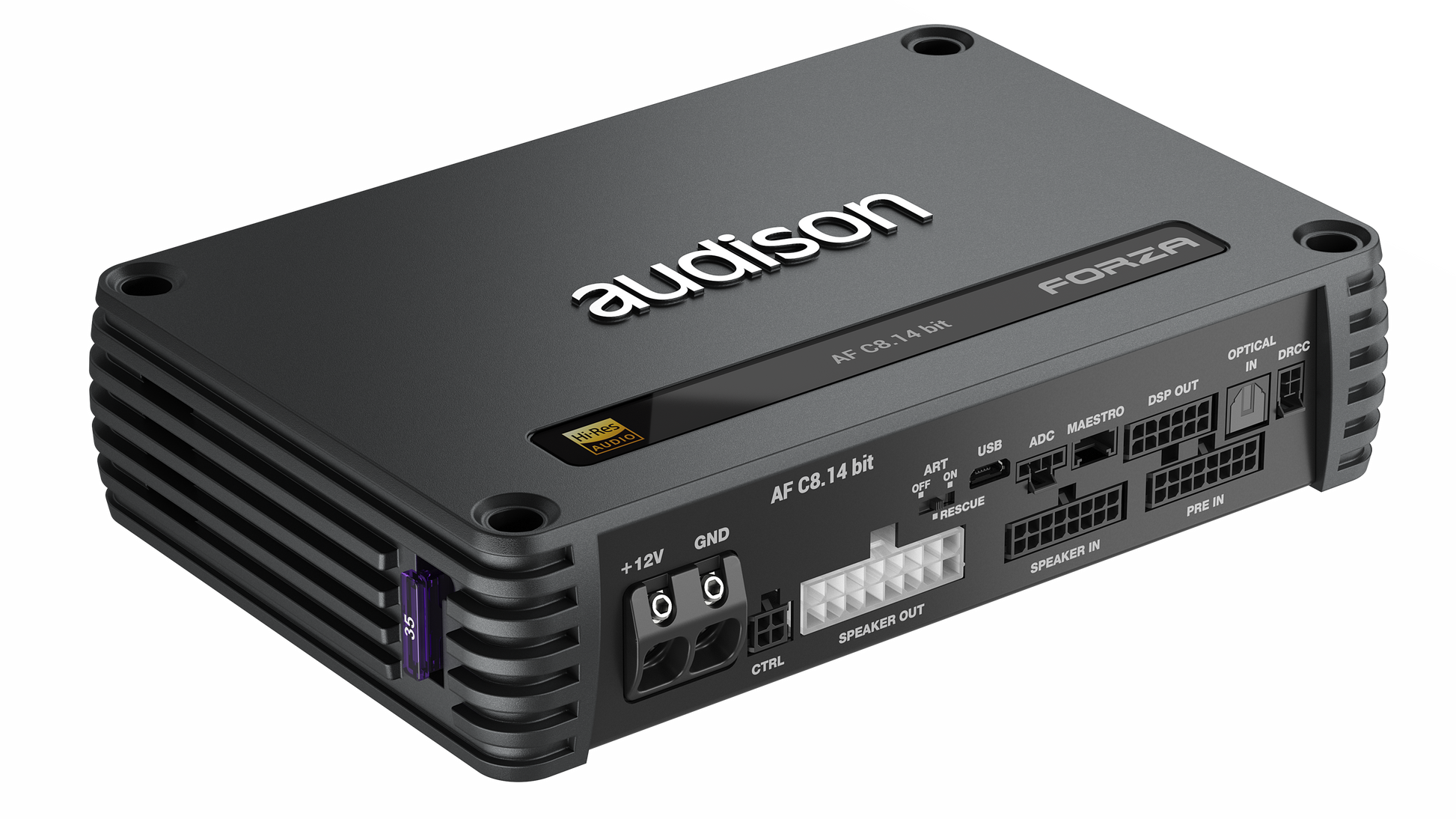

AUDISON FORZA 8CH DSP AMPLIFIER

Regular price $2,249.99 CAD
Regular price Sale price $2,249.99 CAD
Sale Sold out
Shipping calculated at checkout.

AF C8.14 bit boasts eight high-fidelity amplified channels 65W x 8 @4Ω*, 100W x 8 @2Ω*, with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package! This is combined with native DSP working at 24 bit/96 kHz, extending the audio band up to 40 kHz and earning the coveted High-Resolution certification. Bridging channel pairs results in 200W x 4 @4Ω*, guaranteeing flexible and powerful performance.

Support for the Audison B-CON’s Absolute Volume function guarantees maximum bit depth, even with wireless connections!*Output Continuous Power (RMS) @14.4 VDC, 1% THD, all channels driven.

Amplifier Tech Data

Channels 8
Class D-Class
Power supply voltage / fuse 11 ÷ 15 VDC / 1 x 35A
Operating power supply voltage 6.5 ÷ 17.5 VDC
Idling current 1.3 A
Standby Current Draw 1 mA
Consumption @ 14.4 VDC, 2Ω, Max Musical Power 34 A
Remote IN 4 ÷15 VDC (1 mA)
Remote OUT 6.5 ÷15 VDC (150 mA)
ART - Automatic Remote Turn on/ off from OUTPUT BTL speakers 1.5 VDC
Efficiency Rated Power 81%

Amplifier Stage

Distortion - THD @ 1 kHz, 4Ω, 70% Rated Power 0.05%
Bandwidth @ -1.5 dB 10 Hz ÷ 42 kHz
Damping factor @ 1 kHz, 4Ω, 2 VRMS 85
S/N ratio (A weighted @ 1 V Input) Master Input 98.5 dBA
S/N ratio (A weighted @ 1 V Input) Optical Input 105
Total Power RMS 800 W
Minimum load impedance
Output Continuous Power (RMS) @14.4 VDC, 1% THD 8 Ch @ 4Ω: 65 W x 8

8 Ch @ 2Ω: 100 W x 8

4Ch (Bridge 1/2; 3/4; 5/6; 7/8) @ 4Ω: 200 W x 4
Adjustable Crossover Yes

CEA Specifications

Output power @ 4Ω, 1% THD+N, 14.4 V 55 W x 8
SN ratio (ref. 1W output) 80 dB

Inputs / Outputs

Pre-In Inputs 0.6 ÷ 6 VRMS (15 kΩ Imp.)
Digital Input Yes
Pre Outputs 6
Hi Level Inputs 8
Low Level Inputs 8
Speaker-In Inputs 2.2 ÷ 22 VRMS (5 Ω Imp.)
Digital IN 1 x Optical S/PDIF; Max 192 kHz / 24 bit + 1 x Optical/Coaxial S/PDIF with optional F2O card
Input Optical IN 1 x Optical S/PDIF; Max 192 kHz / 24 bit + 1 x Optical/Coaxial S/PDIF with optional F2O card

Digital Signal Processor

Audio DSP Converter Analog Devices ADAU1467 automotive qualified audio processor processing @ 96 kHz.

Analog Devices 3 x ADAU1978 (4ch) and ADAU1966A (16ch) A/D and D/A converters (24 bit/192 kHz) providing very high level performance.
Filter type Full / High-Pass / Low-Pass / Band-Pass
Filter mode and slope Linkwitz-Riley @ 12/24/36/48 dB/Oct.

Butterworth @ 6/12/18/24/30/36/42/48 dB/Oct.

Bessel @ 6/12/18/24/30/36/42/48 dB/Oct.

Chebyshev @ 6/12/18/24/30/36/42/48 dB/Oct.

QLP @ 6 dB/Oct.
Crossover frequency 20 Hz ÷ 20 kHz
Phase control 0° / 180°, All-Pass filters
Analog Input Equalizer (20 ÷ 20k Hz) 12 Biquad + Delay
Output Equalizer Parametric/Graphic Biquad: 15 poles, 20 Hz ÷ 20 kHz
Time Alignment Distance 0 ÷ 510 cm / 0 ÷ 200.8 inches
Time Alignment Delay 0 ÷ 15 ms
Input Output Real Time Audio Monitor RTA

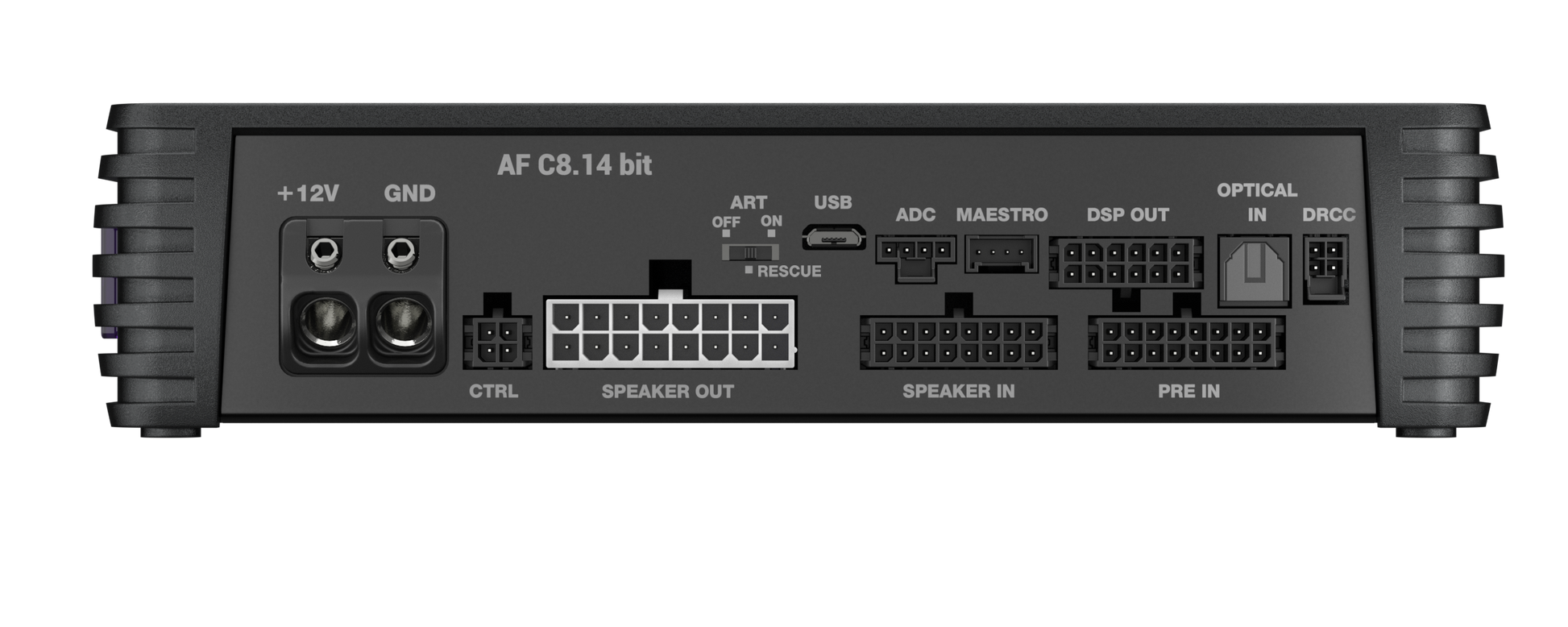

Control Connections

DRC Port Input for DRC AC remote control (Optional)
ADC Port Manage other Audison devices that support this standard
1 Wire Customizable functions (+ 12 V activated)
2 Wire Customizable functions (+ 12 V activated)

General Requirements

PC connections Micro USB 1.1 / 2.0 / 3.0 Compatible
Software/PC requirements Windows 10, Windows 11
Video Resolution with screen resize (min. res. 1024 x 768)
Ambient operating temperature range 0 °C to 55 °C (32 °F to 131 °F)

Dimensions

AF C8.14 bit
Dimension A 200 mm
Dimension B 134 mm
Dimension C 47 mm
