Alpine 7-inch Ultra-Shallow Digital Multimedia Receiver

The iLX-W670-M features a vibrant 7-inch touchscreen in a sleek double-DIN design, giving your dash a modern, streamlined look. Its user-friendly interface makes it easy to control your music, apps, and navigation on the go. Now with the added iDatalink® Maestro® compatibility, you can seamlessly integrate with your factory controls.

• Elevated OEM Experience: Get an enhanced, integrated experience with the new iDatalink® Maestro® connection point on the iLX-W670-M. Coupled with the ultra-shallow chassis for expanded fitment options and the sleek, responsive6.75-inch touchscreen, get added customization and data visualization in a screen that feels like an elevated factory screen.

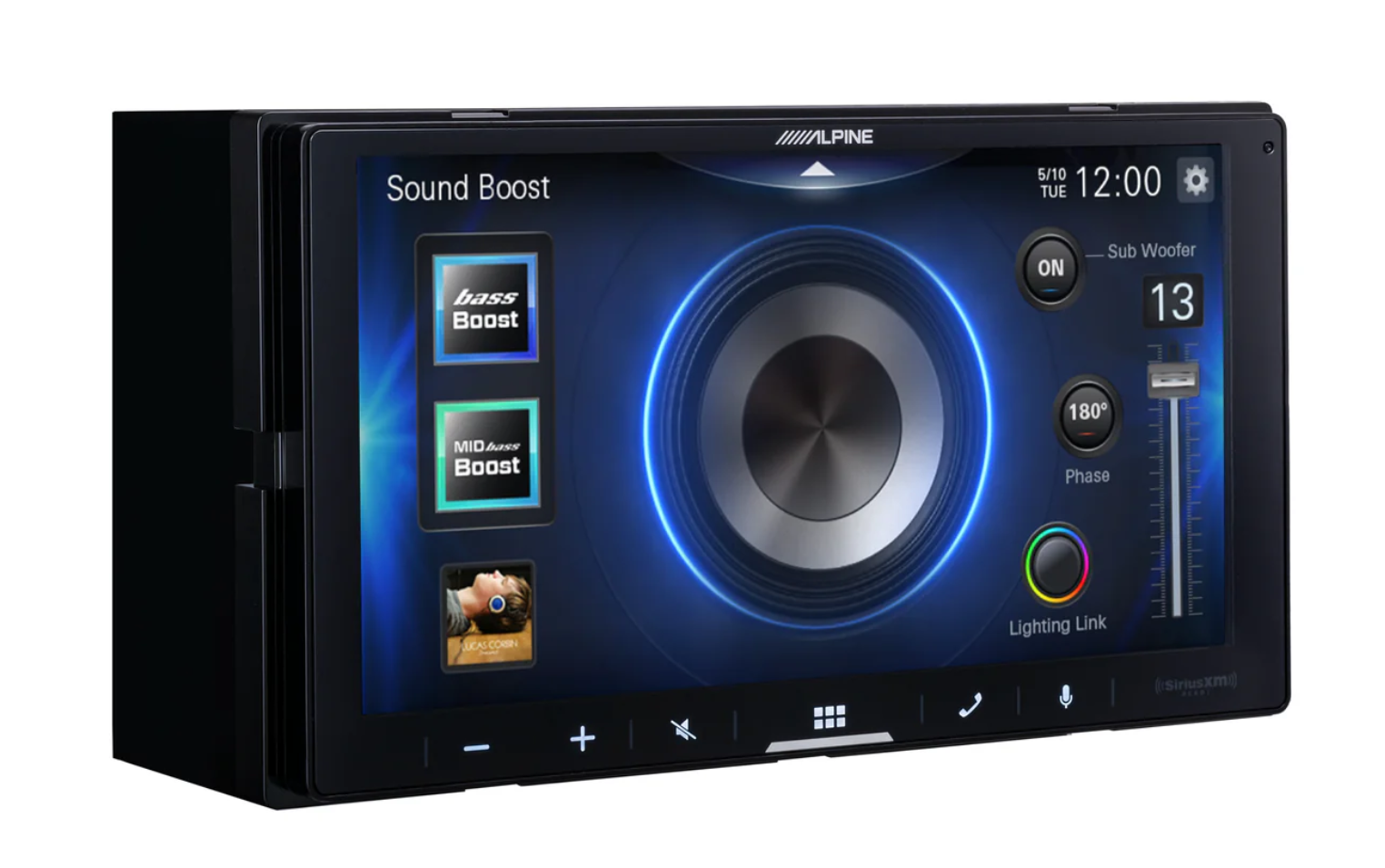

•  Enhanced Audio & Ambiance: Access the Sound Boost menu for tuning options like expanded Bass Boost, Mid-Bass controls, and dedicated subwoofer settings. Dial in your ideal audio experience with 13-band graphic EQ, 6-channel time correction, and independent crossovers for the front, rear, and subwoofer channels. Plus, create a light show that’s sure to dazzle with the built-in Lighting Link Feature, compatible with Alpine’s Prisma Link Subwoofer Enclosure Line!
• Seamless Smartphone Integration: Keep your favorite apps and features right at your fingertips with wired Apple CarPlay® and Android Auto™ compatibility. Whether you're navigating, streaming music, or staying in touch, the iLX-W670-M brings the convenience of your smartphone to your dash, all while keeping you focused on the road.

OVERVIEW FEATURES

• 6.75” Capacitive Touchscreen Display with AM/FM Tuner
• Mech-Less (Does not play discs)

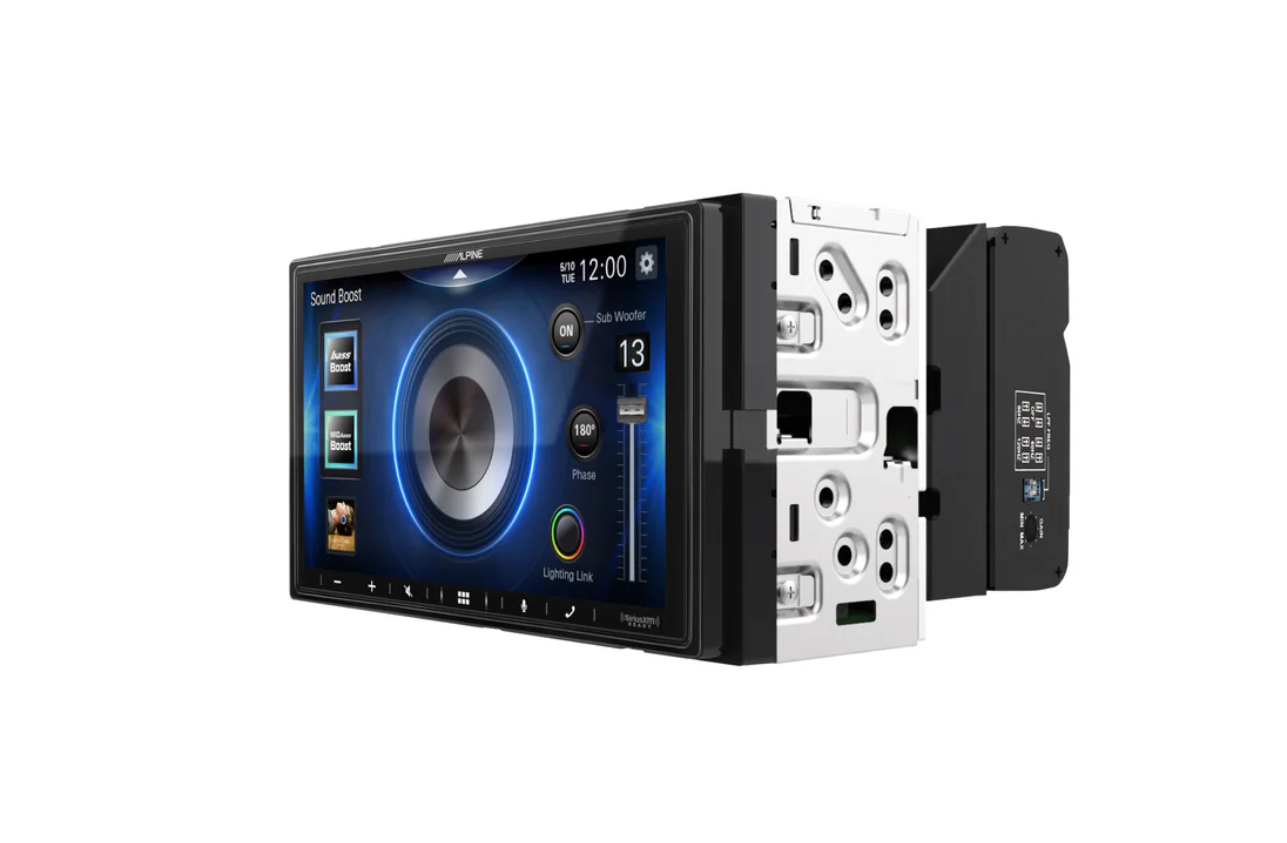

• Standard Double-Din Fitment (4” tall dash openings)
• 5-Color Key Illumination (Red, Green, Blue, Amber, White)
• Customizable Home Screen (Add your own background image)

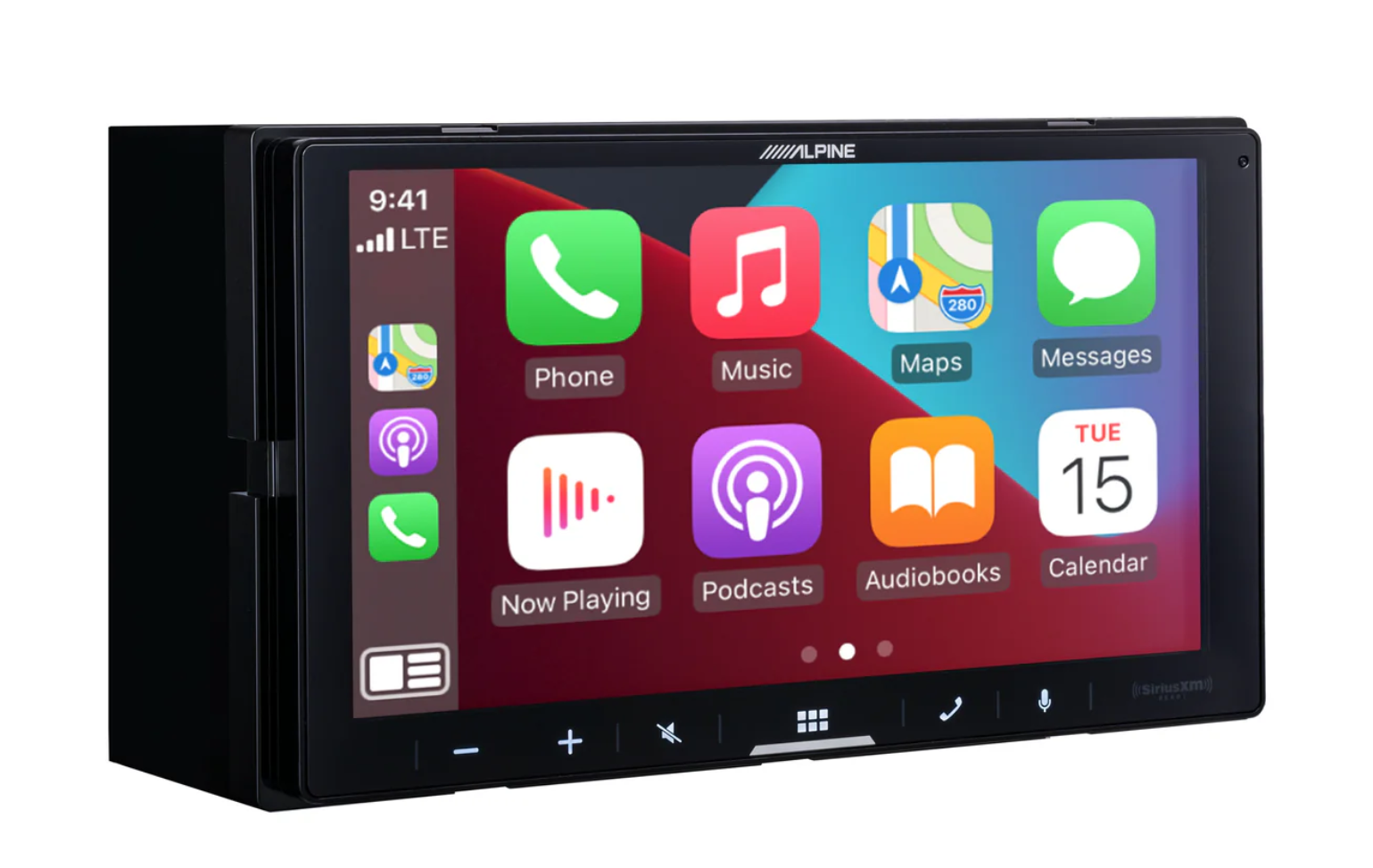

• Apple CarPlay® (Wired)
• Android Auto (Wired)
• Bluetooth® Hands-Free(Calling and Audio Streaming)
• SiriusXM-Ready® (requires SXV300 Tuner; Sold separately)
• Power Stack Capable (Mount the Alpine KTA-200M or KTA-450 amplifiers directly to the back)
• Lighting Link Control (Compatible with Alpine Prisma Link Subwoofer Enclosures (S2-SB8, S2-SB10, & S2-SB12)
• Sound Boost Menu (Bass Boost, Mid-Bass Boost, &Subwoofer Controls)
•  ***NEW! iDatalink® Maestro® Compatibility (module sold separately)

SYSTEM TECH SPECS

• Screen Size: 6.75”
• Screen Resolution: 800 x 480 px
• Aux Input: 1

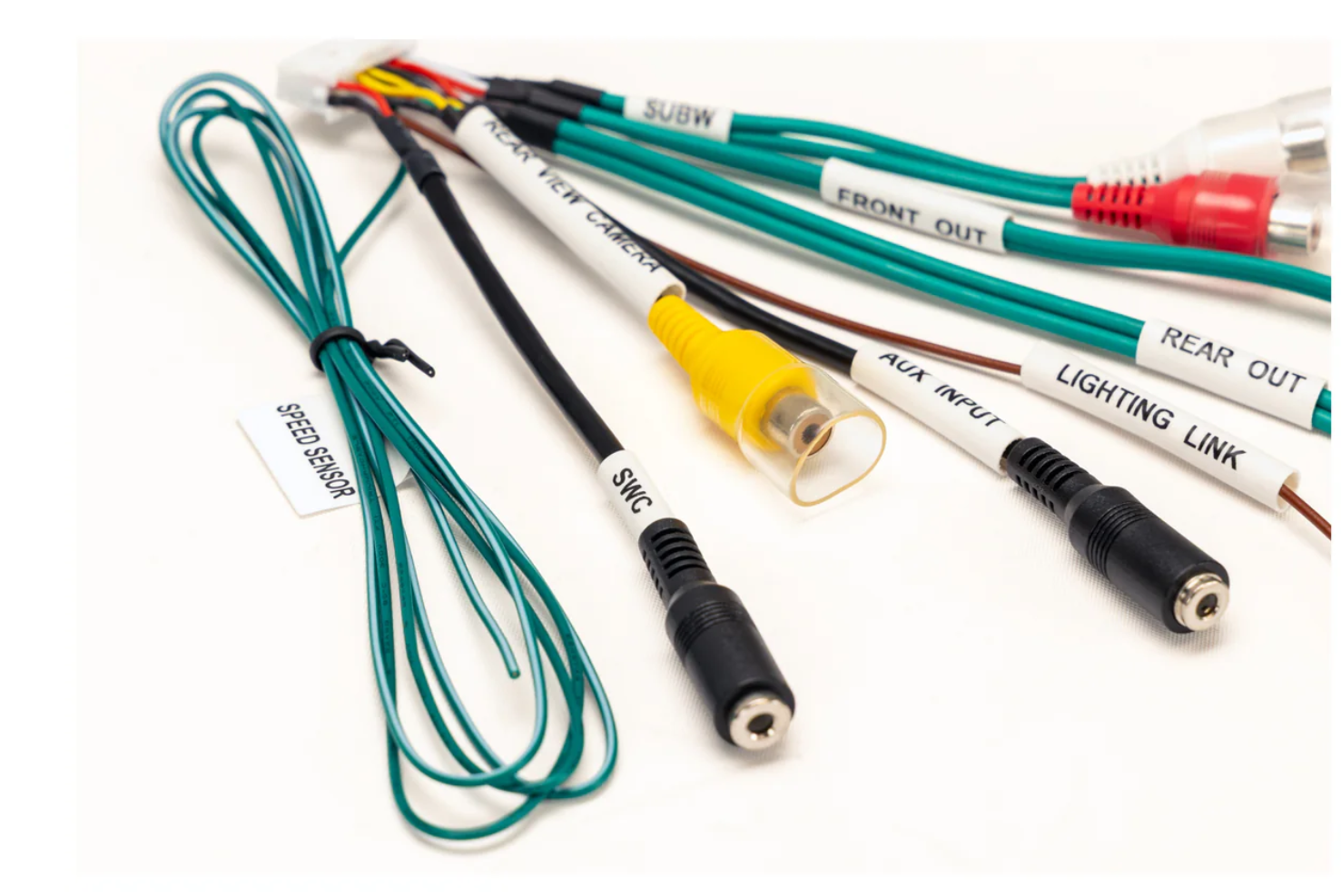

•  ***NEW! Updated SWC Adapter (Uses 3.5mm Mini Jack)

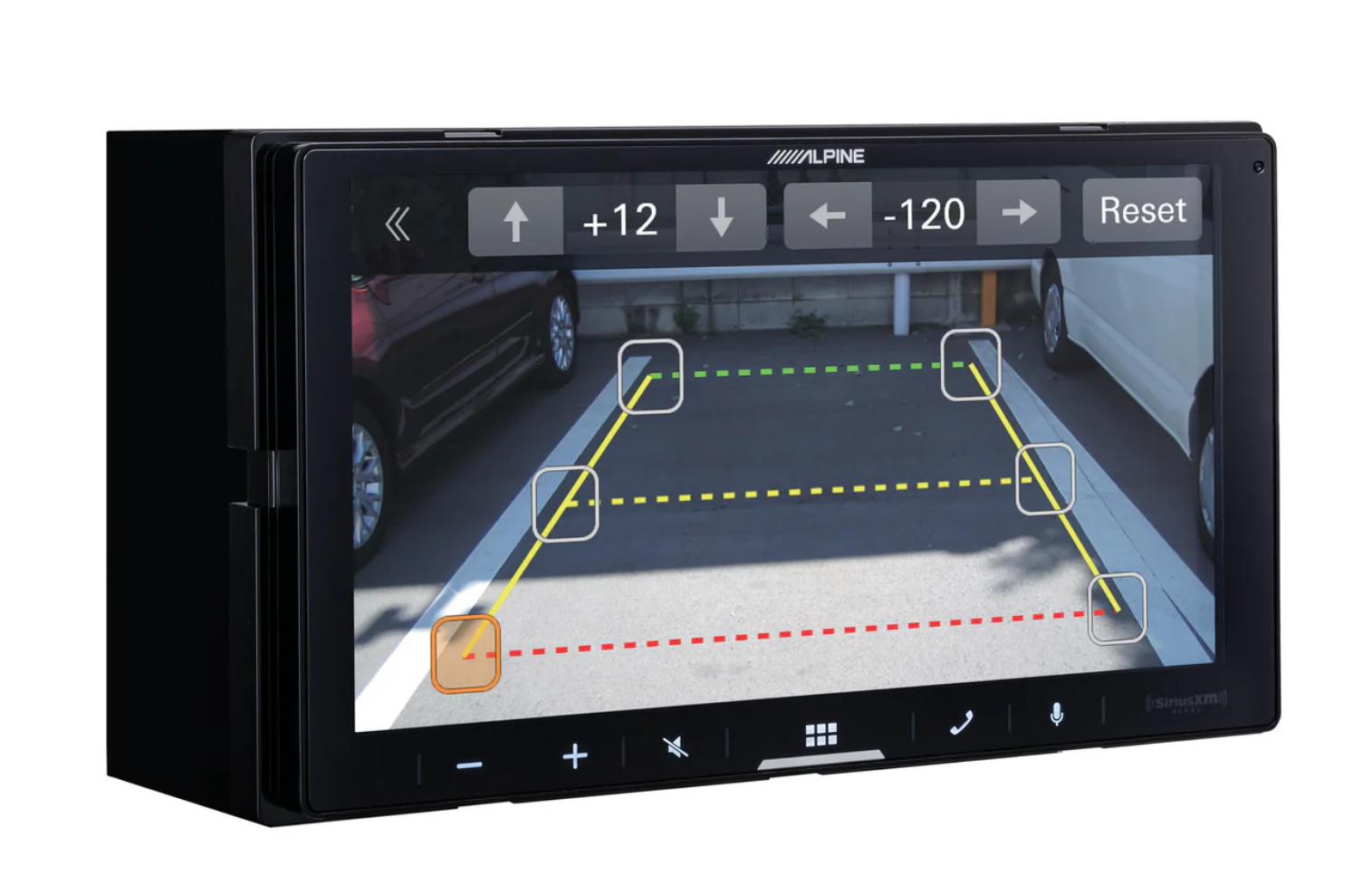

• Camera Input: 1
• USB Input: 1
• 4V Pre-Outs: 3 (Front, Rear, and Subwoofer)
• Built-In Amplifier: 16W RMS / 50W Peak x 4
• EQ: 13-Band Graphic
• Time Correction: 6-Channel
• Crossovers: Front, Rear, and Subwoofer
• Audio Playback: AAC, FLAC, MP3, WMA
• Video Playback: AVC, FLV, H.264, MP4, MPEG-4, MKV, MOV
