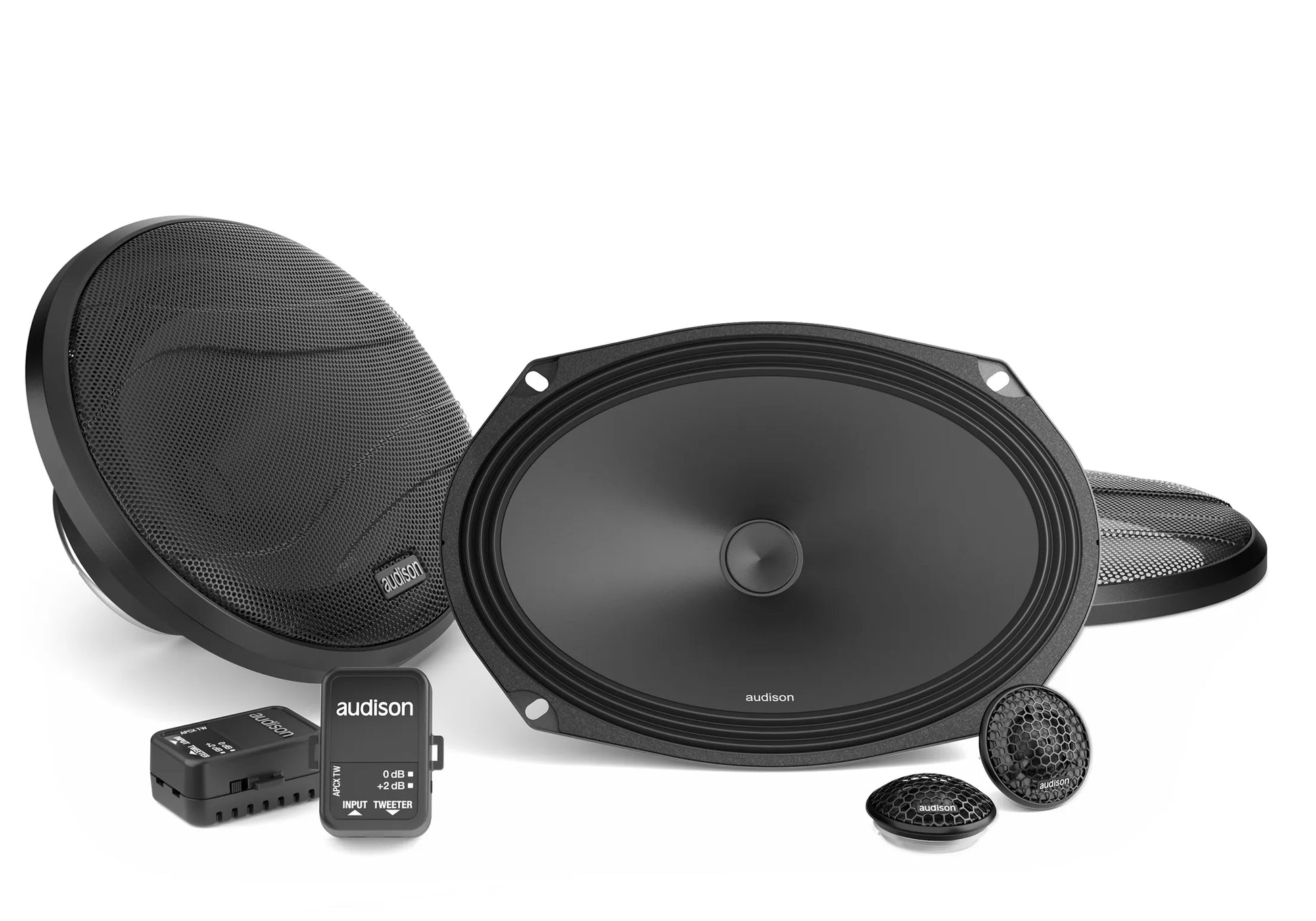

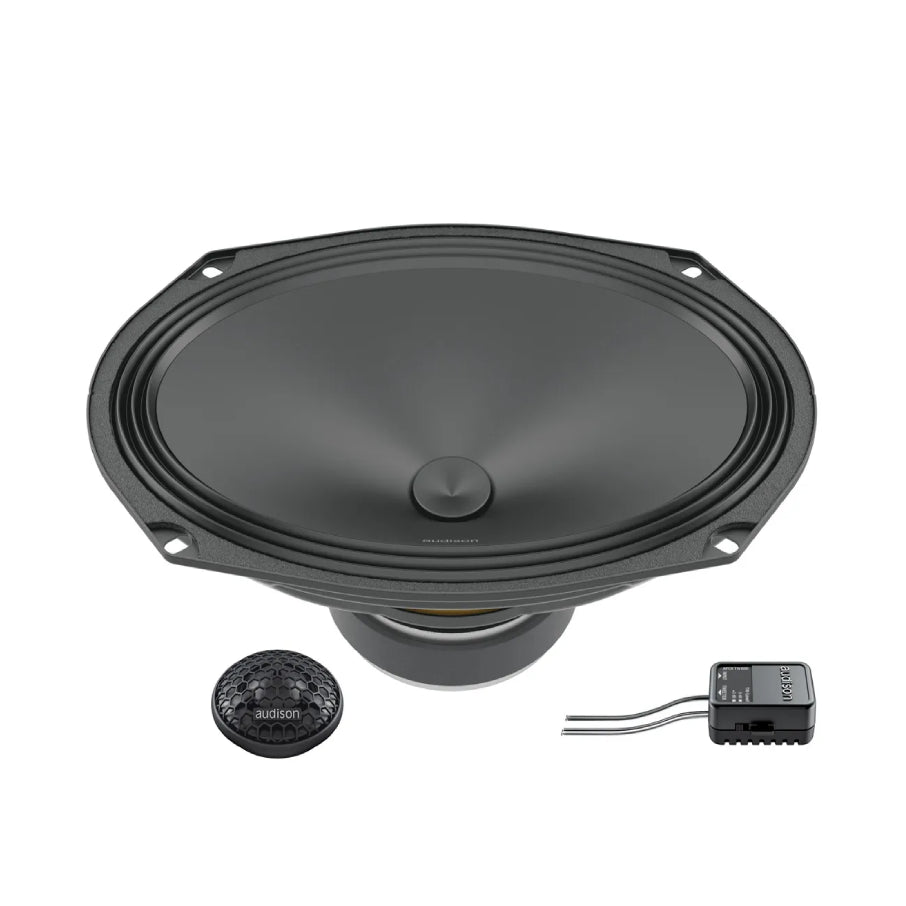

AUDISON PRIMA 6X9 COMPONENT SPEAKERS
Couldn't load pickup availability
APK 690 systems are ideal for car models with doors equipped to house elliptical speakers, featuring 6x9 in. woofers and AP 1 tweeter with dedicated crossovers APCX TW 690. The crossovers are ultra-compact to facilitate their installation, and include an attenuation of the tweeter output level for outstanding fine-tuning. The R & D team optimized the electro-acoustic parameters of the new woofers for installation in the car door, respecting all the characteristics of the Prima speakers, such as the compact size of the basket to facilitate installation. The mechanical cut-off of the woofer cone-dust cap system ensures they can be used without a filter, maximizing efficiency to be easily driven by any type of amplifier. The large voice coil ensures high power handling and impeccable control even in the most aggressive dynamic transients. The double Faston connectors with direct link to the tweeter speed up the speakers connection, always ensuring a perfect contact.
Technical Specs LF
Woofer Size | 690 mm |
Impedance | 4 Ohm |
Power Handling - Peak | 300 W |
Power Handling - Continuous | 100 W |
Frequency Response | 40 - 20 k |
Voice Coil Diameter | 25 mm (0.98 in) |
Magnet Size | 90 x 32 x 15 |
Crossover Type | HP 6 dB Oct - 3,3 kHz |
Technical Specs HF
Tweeter Size | 26 mm (1 in) |
Voice Coil Diameter | 20 mm (0.98 in) |
Electric-acoustic Specs LF
Re | 3.1 Ohm |
Fs | 55 Hz |
Mms | 17 g |
Cms | 0.5 |
BL | 5.3 |
Qms | 7 |
Qes | 2,78 |
Qts | 0.6 |
Vas | 37.1 l |
Le | 0.2 mH |
Spl | 95 dB |
Xmax | 4 mm (0.16 in) |
Kit Tech Data
Cone Diameter | 171 mm |
General
Weight Woofer | 1.17 kg |
Weight Tweeter | 0.04 kg |
