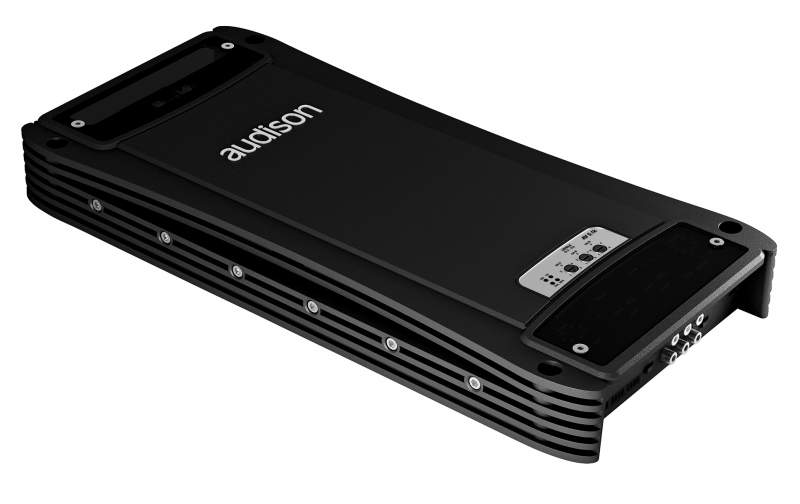

AUDISON 5-CHANNEL 1650W CLASS AB AMPLIFIER

AV 5.1k, 1650 W (RMS) max, five-channels: with its hybrid design, it is the specialist amplifier for front + rear + subwoofer or multi-amplified front + subwoofer systems.

Its high-quality AB Class output stage provides two channels with 250 W (RMS), combined with another pair of A class pure audio channels rated at 75 W (RMS), perfect for active two-way front speaker systems.

The D Class mono section provides 1000 W (RMS) for an efficiency and powerful subwoofer output. AMP (Amplifier Management Processor) constantly checks the operating status system and communicates with the user through 4 different colored LEDs, located on the top panel; ART (Automatic Remote Turn On-Off) allows automatic turn-on/off when a remote signal isn’t available from the source.

POWER SUPPLY

• Power supply voltage: 11 ÷ 15 VDC
• Idling current: 3 A
• Idling current when off: 0.02 mA
• Consumption @ 14.4 VDC (Max Musical Power): 110 A

AMPLIFIER STAGE

• Distortion - THD (1k Hz @ 4Ω ) A, B Ch: 0.05 %
• Distortion - THD (100 Hz @ 4Ω), C (sub) Ch: 0.3 %
• Bandwidth (-3 dB) A, B Ch: 4 ÷ 60k Hz
• Bandwidth (-3 dB) C (sub) Ch: 7 ÷ 350 Hz
• S/N ratio (A weighted @ 1V) A, B Ch: 100 dB
• S/N ratio (A weighted @ 1V) C (sub) Ch: 87 dB
• Damping factor (1k Hz @ 4Ω) A, B Ch: 100
• Damping factor (100 Hz @ 4Ω) C (sub) Ch: 80
• Input sensitivity: 0.3 ÷ 5 V RMS
• Input impedance: 15k Ω
• Speaker-In sensitivity: 1.4 ÷ 24 V RMS
• Speaker-In impedance: 5k Ω
• Minimum load impedance A / B / C Ch: 4Ω / 2Ω / 2Ω
• NOMINAL POWER (RMS) A + B + C Ch @ 12 VDC,
• THD 0,3%, 4Ω: 50 W x 2 + 120 W x 2 + 500 W x 1
• OUTPUT POWER (RMS) A + B + C Ch @ 14.4 VDC, THD 1%:
• 5 Ch: 75 W x 2 (4Ω) + 140 W x 2 (4Ω) + 600 W x 1 (4Ω)
• 5 Ch: 75 W x 2 (4Ω) + 140 W x 2 (4Ω) + 1000 W x 1 (2Ω)
• 5 Ch: 75 W x 2 (4Ω) + 250 W x 2 (2Ω) + 1000 W x 1 (2Ω)

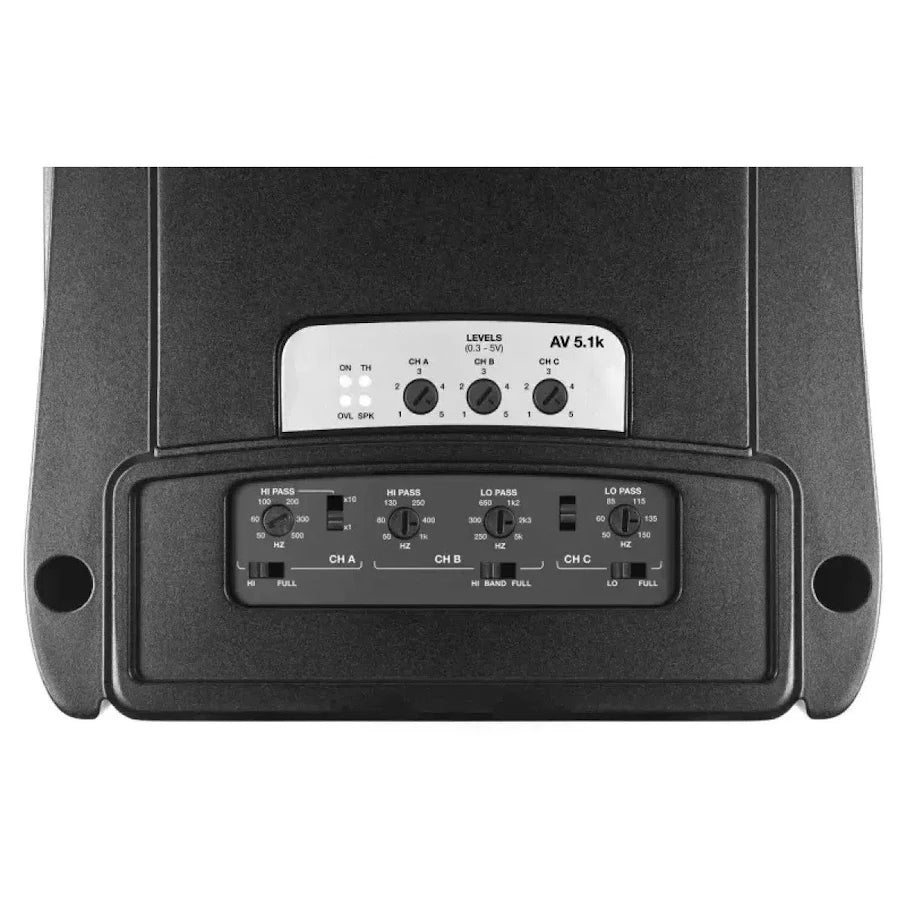

SIGNALS INPUTS / FILTERS

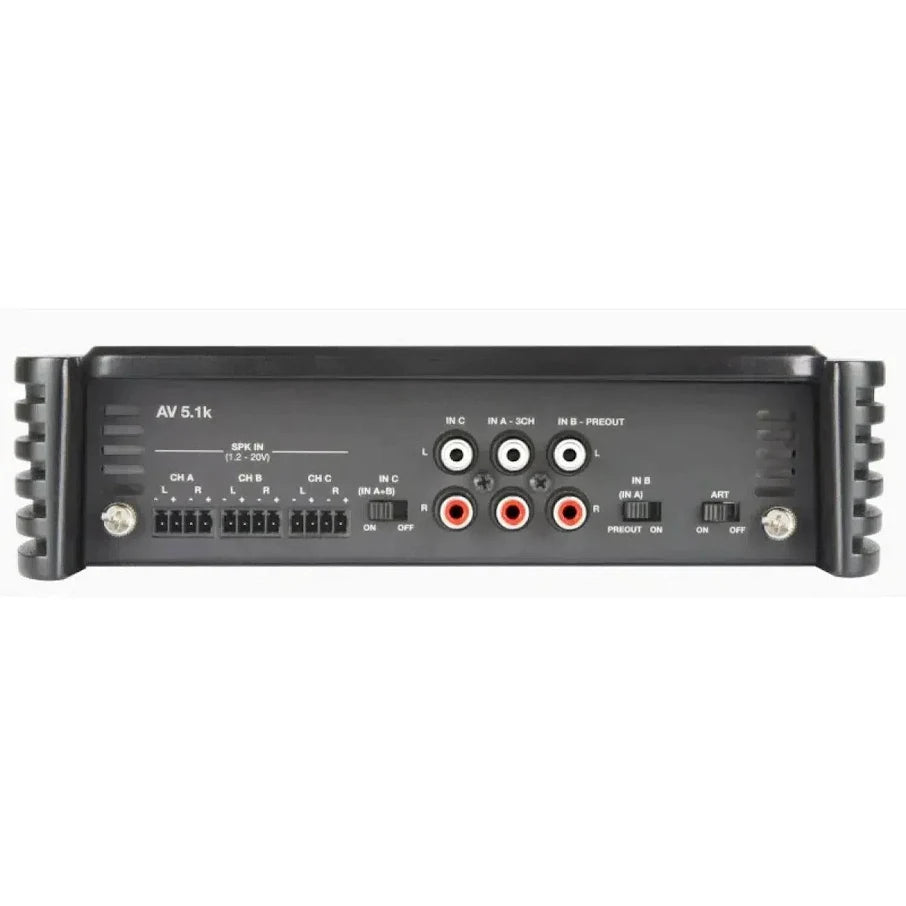

• Inputs: Pre IN / Speakers IN
• Outputs: Pre OUT Full Range
• A Ch Filters (Full / Hi-Pass):
• 50 ÷ 5k Hz (2 range) @ 12 dB/Oct.
• B Ch Filters (Full / Hi-Pass / Band-Pass):
• 50 ÷ 1k Hz (Hi) / 250 ÷ 5k (Lo) @ 12 dB/Oct.
• C Ch Filters (Full / Lo-Pass): 50 ÷ 150 Hz @ 24 dB/Oct.

OTHER FUNCTIONS

• Remote IN: 7 ÷ 15 VDC - 1mA
• Remote OUT: 12 VDC - 50mA
• Fuse (Strip type): 100 A
• Remote SUB volume adj.: (-50 ÷ 6) dB
• Speakers IN Turn-on (ART): Selectable

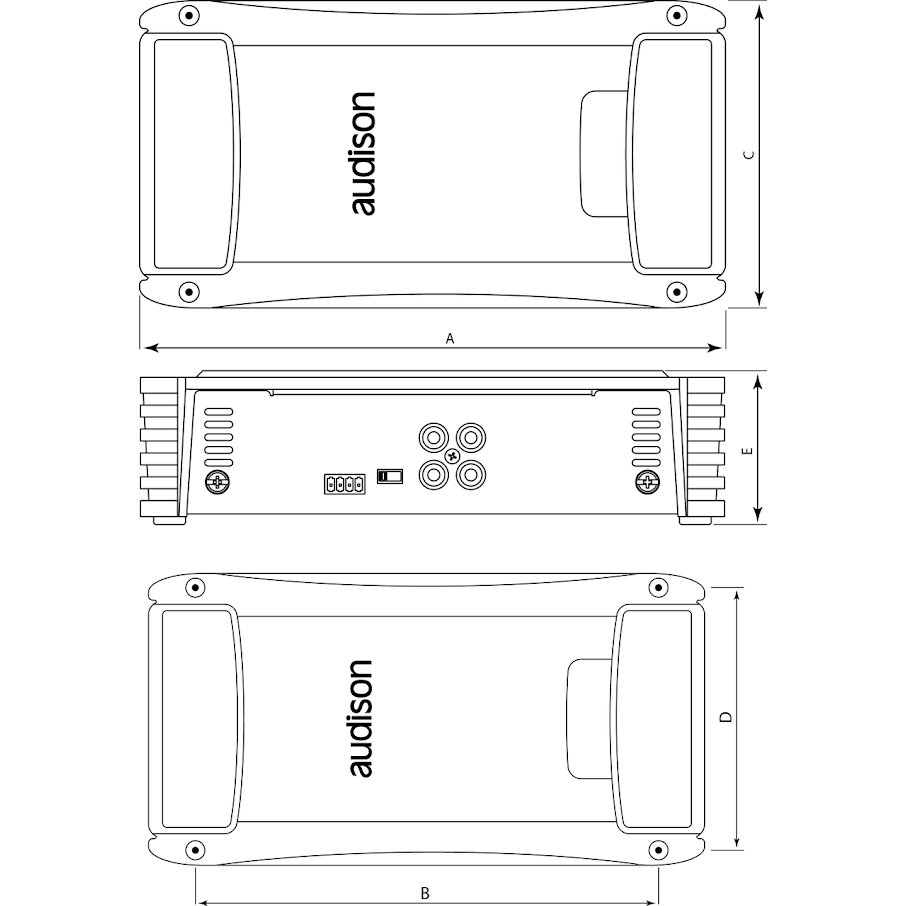

DIMENSIONS:

• Max size (mm/inches): 220 x 470 x 58 / 8,66” x 18,50” x 2,28”
