AUDISON VOCE II 6.5" COMPONENT SPEAKER SYSTEM
Couldn't load pickup availability

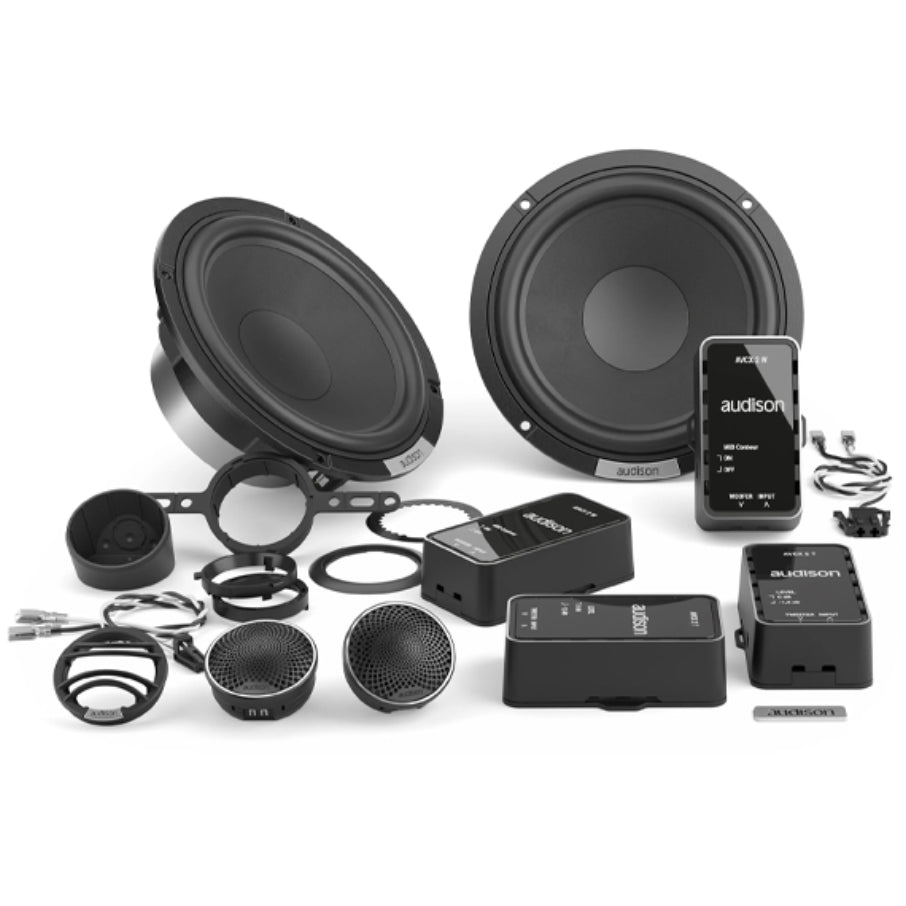

The Audison VOCE II AVK 6 S II system, equipped with the high-power AV 6.5 S II woofer and Hi-Res Audio certified AV 1.0 II tweeter, delivers superb performance. The integration of AVCX 2 W and AVCX 2 T crossovers simplifies installation while enabling advanced sound tuning, including bi-amplification and meticulous adjustments for tweeter level and mid contour. These crossovers, built with high-quality components, ensure a harmoniously balanced audio experience, enhancing durability and clarity. This setup achieves seamless integration and superior sound customization, making it an ideal solution for sophisticated car audio upgrades.

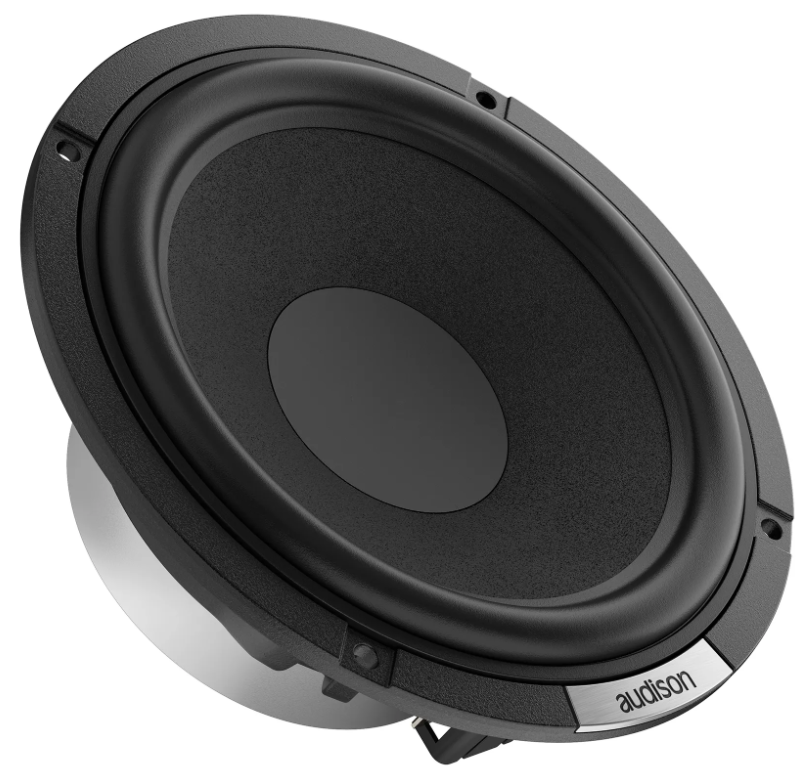

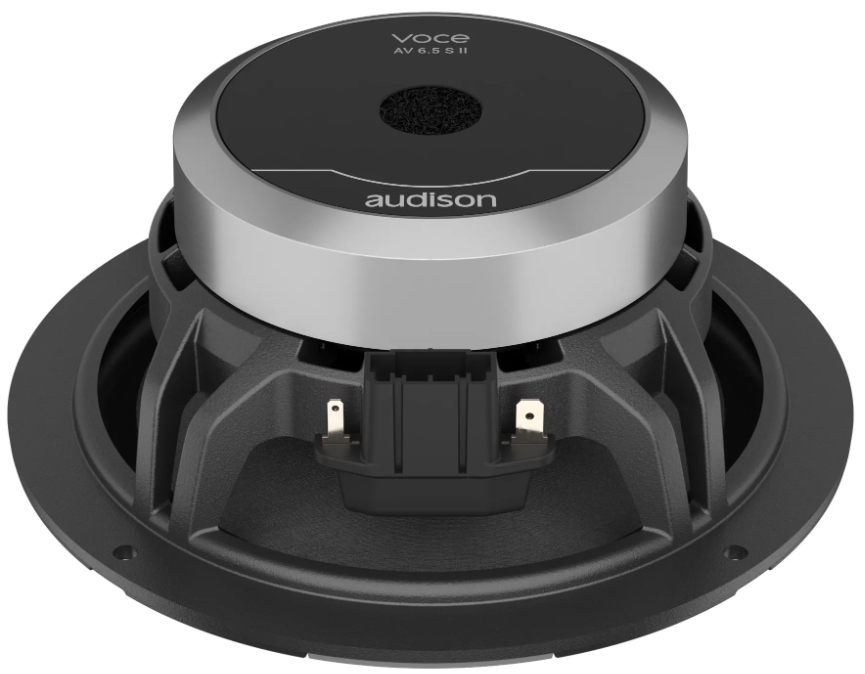

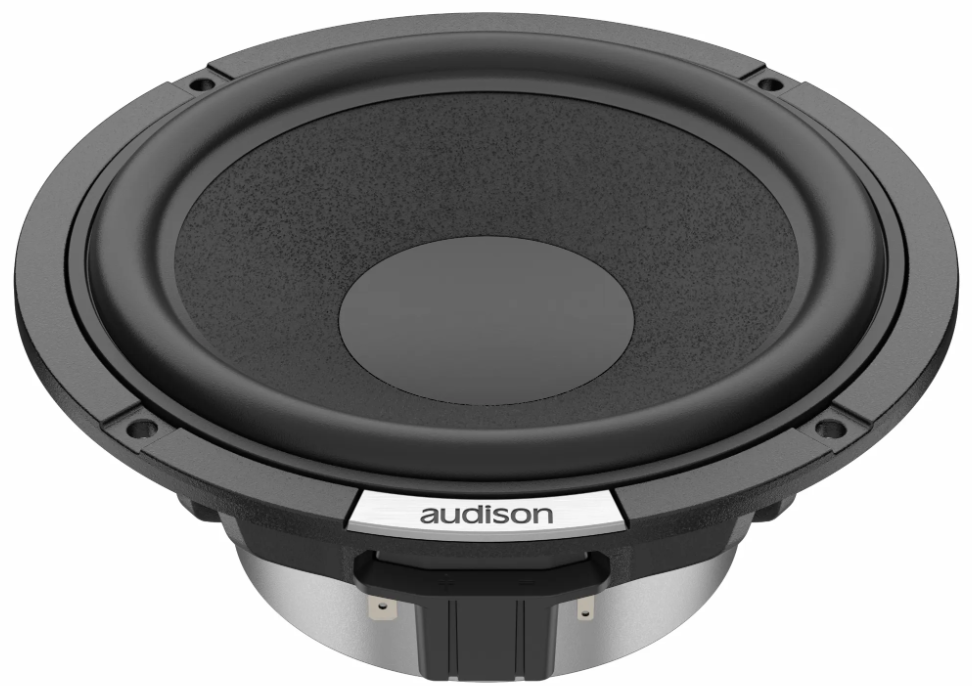

Technical Specs LF
| Woofer Size | 165 mm (6.5 in) |
| Impedance | 4 Ohm |
| Power Handling - Peak | 250 W |
| Power Handling - Continuous | 125 W |
| Frequency Response | 50 - 5500 Hz |
| Voice Coil Diameter | 36 mm (1.42 in) |
| Magnet Material | HIGH DENSITY FLUX FERRITE |
| Magnet Size | 92 x 42 x 15 mm |
| Cone Material | PRESSED PAPER CONE |
| Crossover Type | Two Way Separate case for Woofer (AVCX 2 W - Full/6dB Oct.) & Tweeter (AVCX 2 T - 12dB/Oct.) |

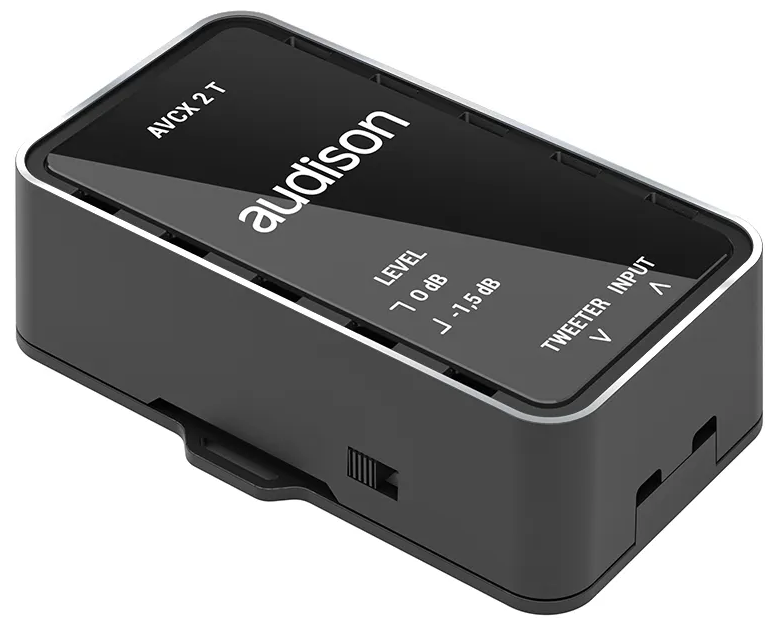

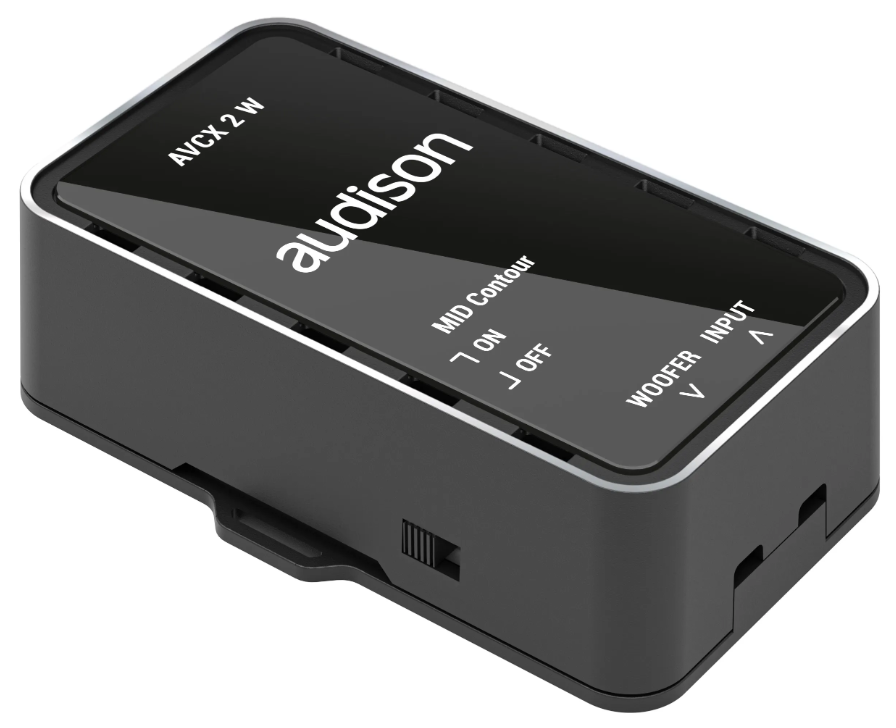

| Crossover Level Adjustment | AVCX 2 T: Tweeter Level: 0 / -1.5 dB; AVCX 2 W: Woofer Mid-Contour On / Off |

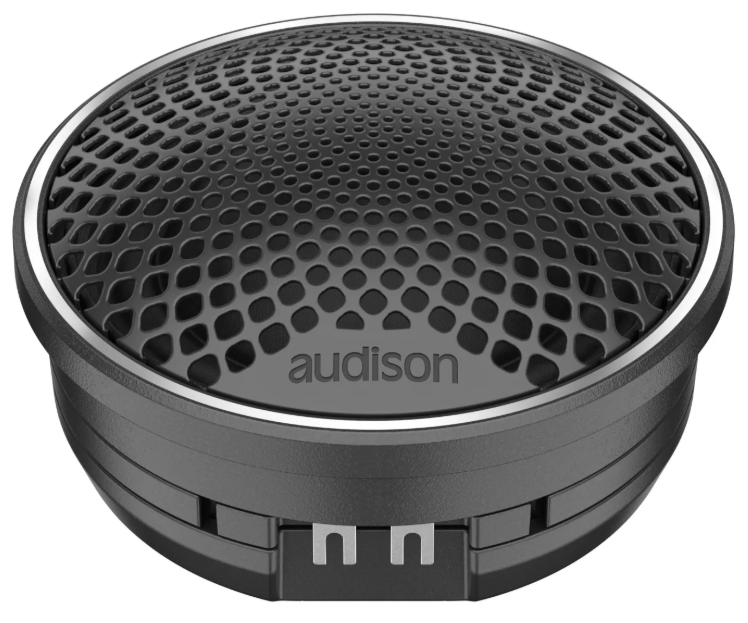

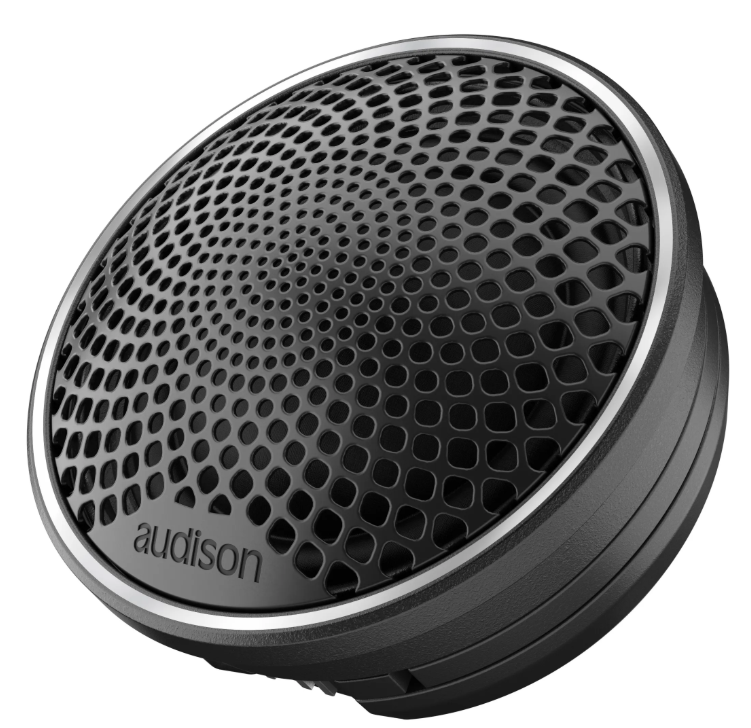

Technical Specs HF
| Tweeter Size | 25.4 mm (1 in) |
| Frequency Response | 1200 - 40000 Hz |
| Power Handling - Peak | 150 W |
| Voice Coil Diameter | 25 mm (1.42 in) |
| Dome Material | TETOLON FIBER |
Electric-acoustic Specs LF
| Re | 2.9 Ohm |
| Fs | 67 Hz |
| Mms | 13.2 g |
| Cms | 0.43 |
| BL | 4.9 |
| Qms | 6.76 |
| Qes | 0.67 |
| Qts | 0.61 |
| Vas | 10.28 l |
| Le | 0.3 mH |
| Spl | 91 dB |
| Xmax | 4.2 mm (0.17 in) |
Kit Tech Data
| Crossover Low-Pass | AVCX 2 W: Woofer, Full/6dB Oct. |
| Crossover Hi-Pass | AVCX 2 T: Tweeter, 12dB/Oct. |
| Crossover Cut Off | 3.5 kHz (Mid-Contour Off) |
| Cone Diameter | 128.35 mm |
General
| Weight Woofer | 1.3 kg |
| Weight Tweeter | 0.14 kg |
| Weight Crossover | 0.1 kg |
Dimensions
 |
|
| Dimension A | 165 mm (6.5 in) |
| Dimension A1 | 43.8 mm |
| Dimension B | 140.8 mm (5.54 in) |
| Dimension C | 65.6 mm (2.58 in) |
| Dimension D | 61 mm (2.4 in) |
| Dimension B1 | 40.8 mm |
| Dimension C1 | 25.5 mm |
| Dimension D1 | 16.1 mm |
Frequency Response
Tweeter
|
Woofer
|
