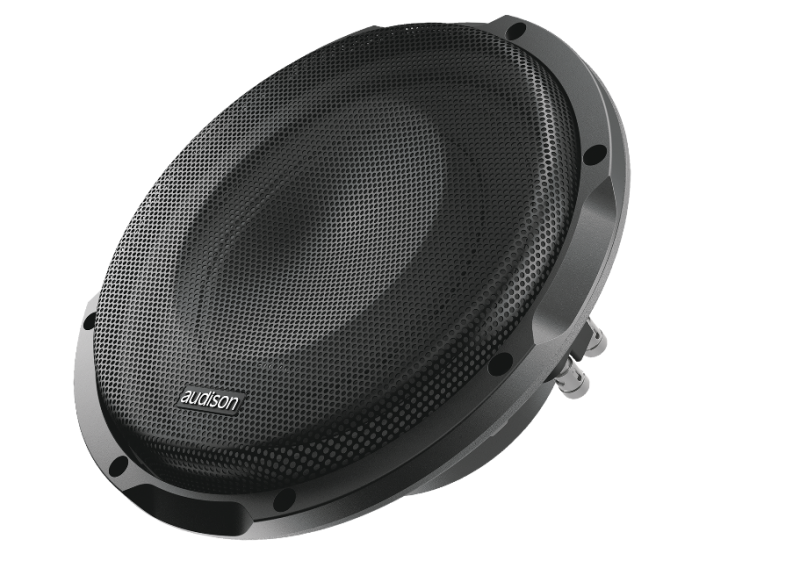

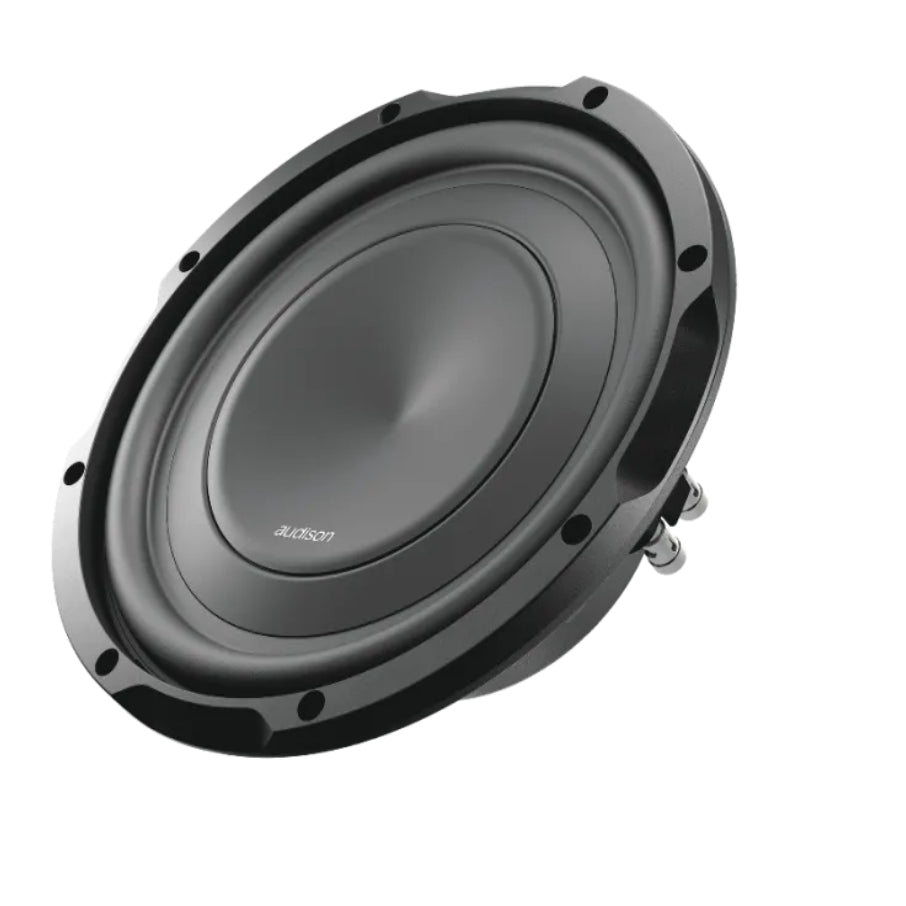

Audison Prima 10" Single Voice Coil Subwoofer
Couldn't load pickup availability
Prima’s compact subwoofer family expands with the introduction of the new 25 cm (10 in.) APS 10 S4S, optimized for enclosures with a reduced volume starting from 10 liters. The configuration of the single 4Ω voice coil makes it ideal to be driven by the new AP F8.9 bit amplifier with built-in DSP that delivers an outstanding 260 W RMS with two channels bridged. Also interesting is the possibility to create custom enclosures with two APS 10 S4S driven by the AP 1D amplifier using the 540 W RMS delivered on the 2Ω load resulting from the drivers connection in parallel.
Technical Specs
| Nominal diameter | 250 mm (10 in) |
| Impedance | 4 Ohm |
| Power Handling - Peak | 800 W |
| Power Handling - Continuous | 400 W |
| Sensitivity | 83.5 dB |
| Voice Coil Ø | 60 mm |
| Magnet Material | HIGH DENSITY FLUX FERRITE |
| Magnet size D x d x h | 140 x 70 x 30 mm (in.) |
| Cone Material | WATER REPELLENT PRESSED PAPER |
| Xmax | 12.6 mm (0.5 in) |
| Xmech | 18 mm (0.71 in) |
| Driver Displacement Volume | 1.12 l (0.04 ft) |
Electric-acoustic Specs
| Re | 3.7 Ohm |
| Fs | 28.5 Hz |
| Le | 1.9 mH |
| Vas | 39.62 l (1.399 ft) |
| Mms | 160 g (5.644 oz) |
| Cms | 0.2 mm/N |
| BL | 12.9 T•m |
| Qts | 0.68 |
| Qes | 0,75 |
| Qms | 6.9 |
General
| Weight | 5.24 kg |
Dimensions
| Dimension A | 270 mm (10.63 in) |
| Dimension B | 233 mm (9.17 in) |
| Dimension C | 105 mm (4.13 in) |
| Dimension D | 88 mm (3.46 in) |
| Dimension C1 | 119 mm |
