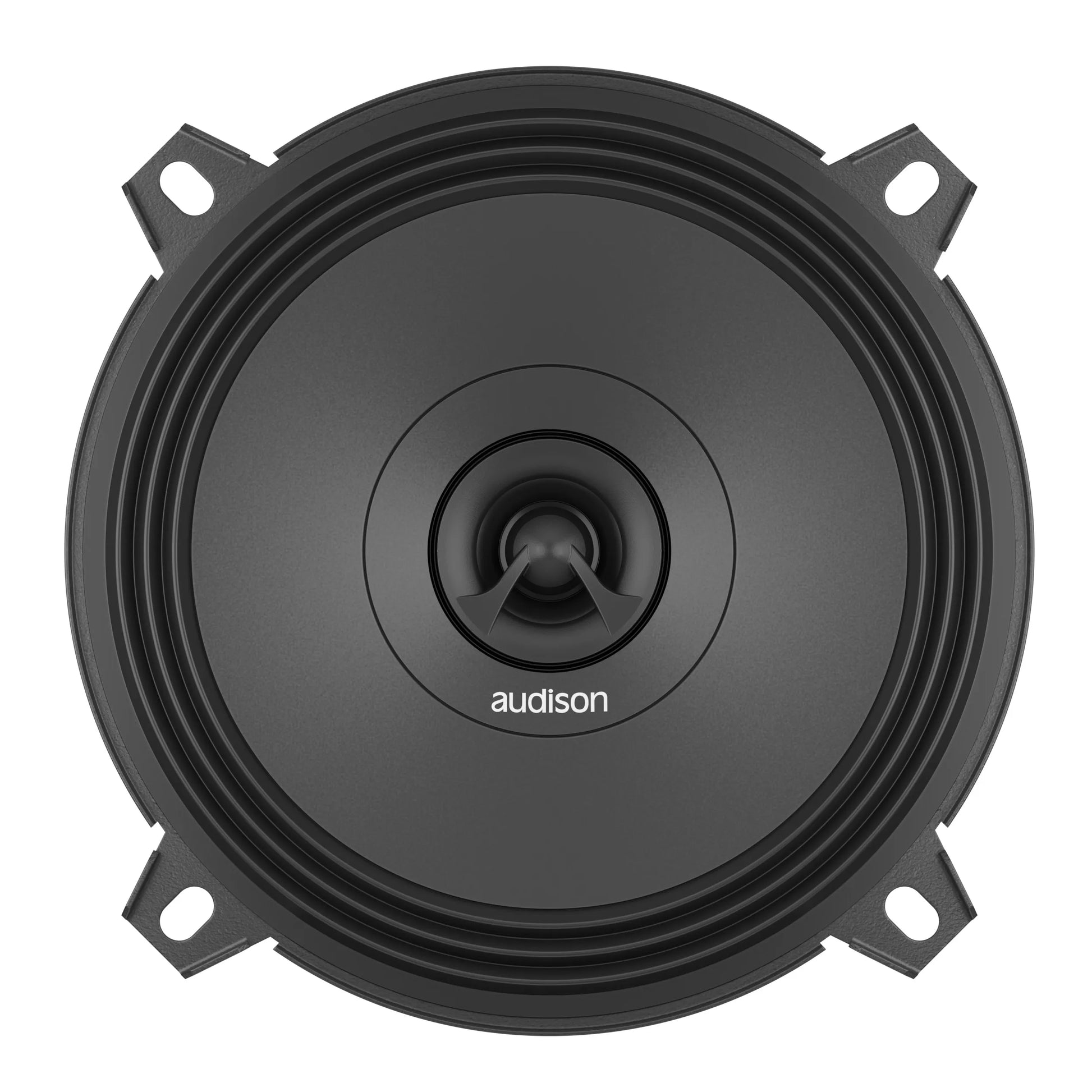

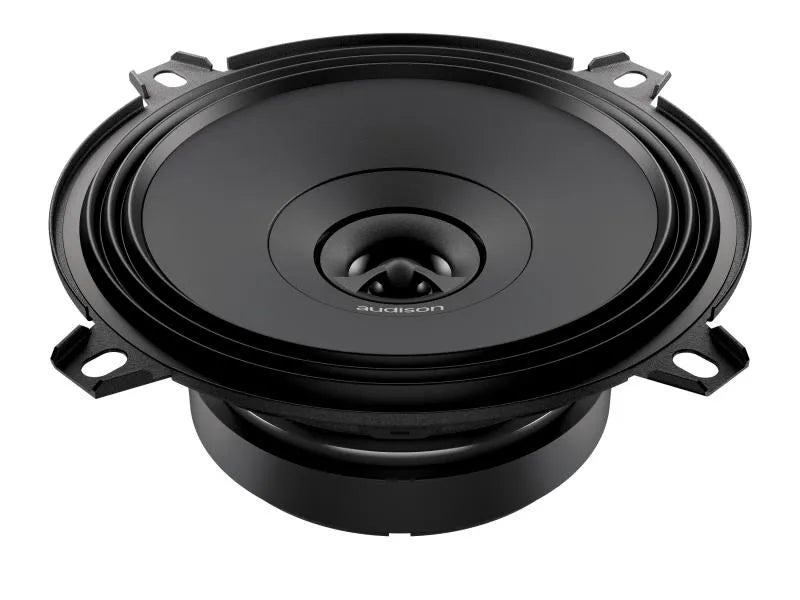

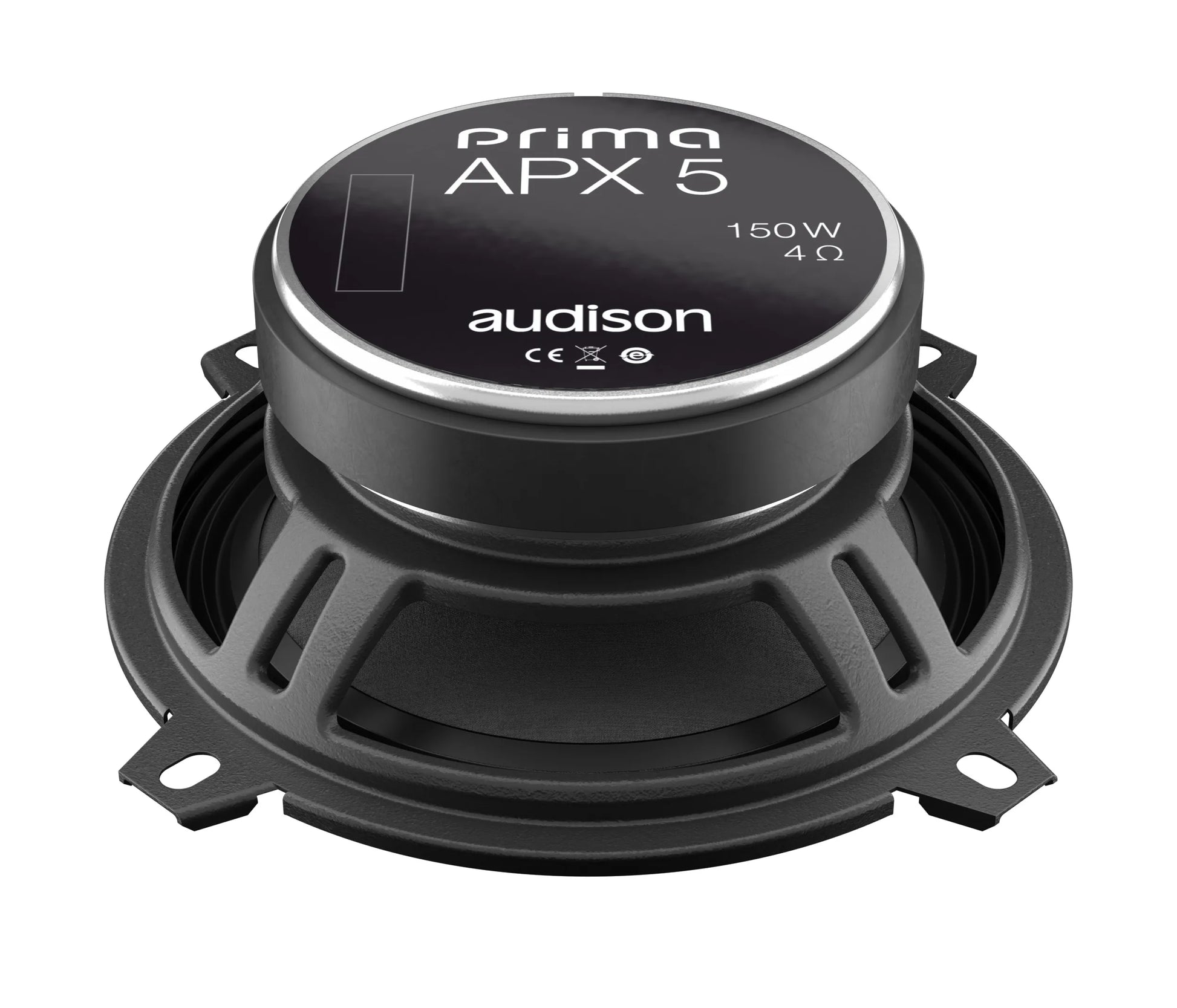

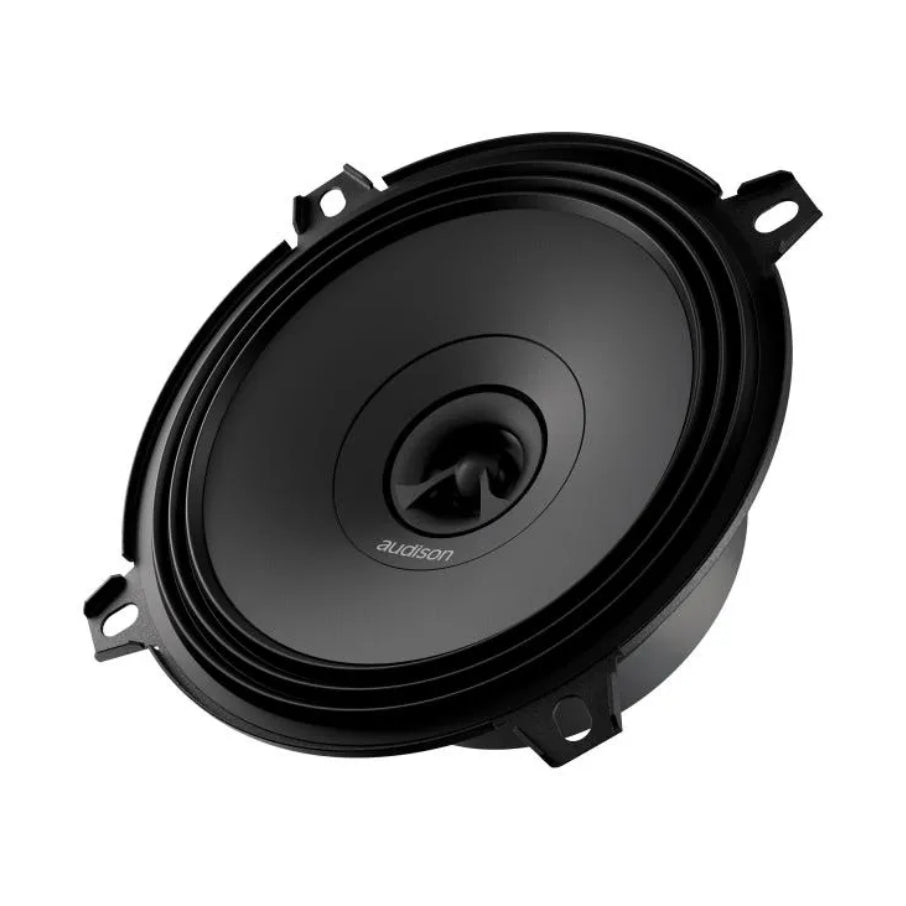

Audison Prima 2-Way 5" Coaxial Speakers
Regular price
$349.99 CAD
Regular price
Sale price
$349.99 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
APX 5 features a concentric coaxial tweeter: with one single point of sound emission it is possible to obtain a consistent in-phase response, with consequent reconstruction of the acoustic scene comparable to a system of separate woofer + tweeter. The 5" cones surround features the exclusive shallow Triple Wave profile, for maximum excursion linearity.
Technical Specs LF
| Woofer Size | 130 mm (5 in) |
| Impedance | 4 Ohm |
| Power Handling - Peak | 150 W |
| Power Handling - Continuous | 50 W |
| Sensitivity | 93 dB |
| Frequency Response | 70 ÷ 23k |
| Voice Coil Diameter | 32 mm (0.59 in) |
| Magnet Size | 85 x 40 x 13 |
| Xmax | 2 mm (1.26 in) |
Technical Specs HF
| Tweeter Size | 24 mm (0.94 in) |
| Voice Coil Diameter | 15 mm (0.59 in) |
Electric-acoustic Specs
| Re | 3.1 Ohm |
| Fs | 90 Hz |
| Mms | 8.2 g (0.29 oz) |
| Cms | 0.33 |
| Bl | 4.6 |
| Qms | 10.6 |
| Qes | 0,75 |
| Qts | 0.7 |
| Vas | 3.8 l (0.13 ft) |
| LE | 0.07 mH |
General
| Weight | 0.74 kg |
Dimensions
 |
|
| Dimension A | 130 mm (5.12 in) |
| Dimension A3 | 150 mm |
| Dimension B | 119 mm (4.69 in) |
| Dimension C | 51 mm (2.01 in) |
| Dimension D | 48 mm (1.89 in) |
