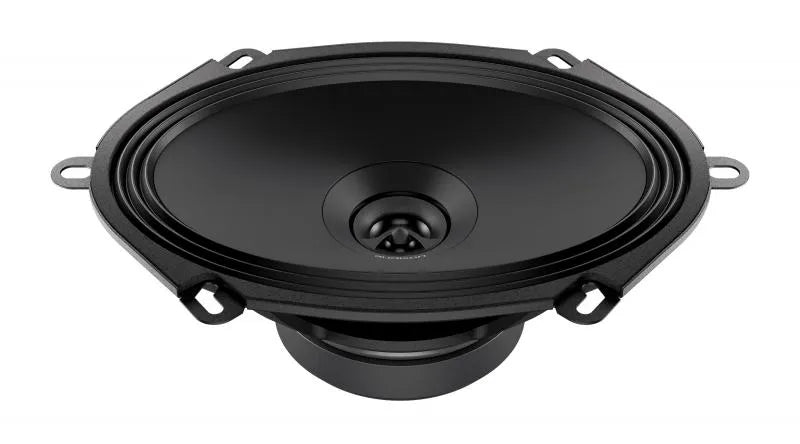

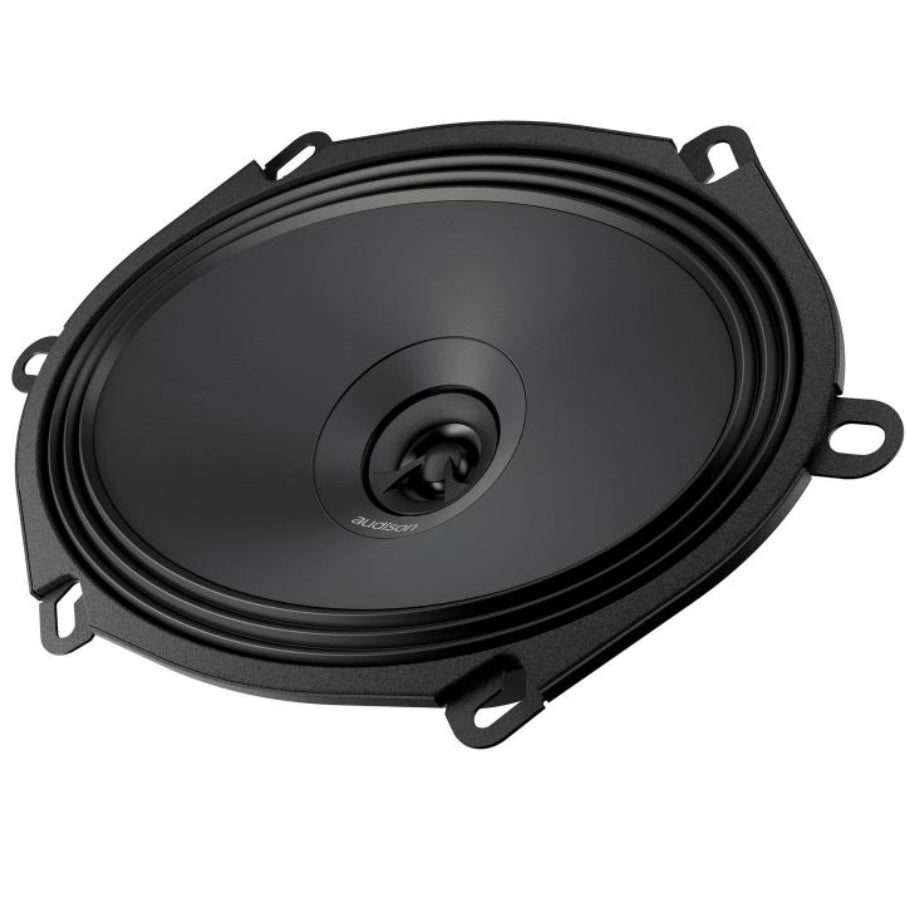

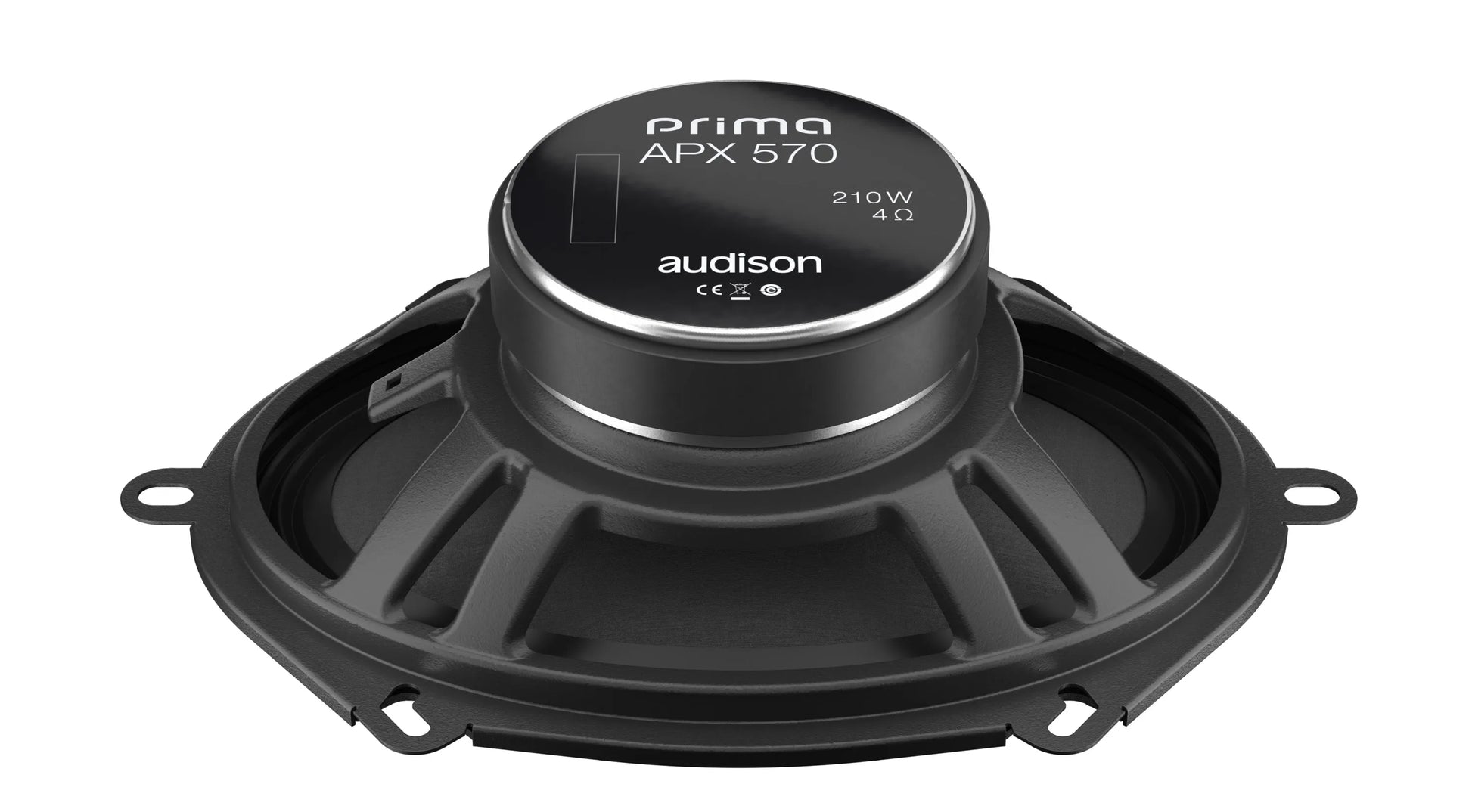

Audison Prima 2-Way 5"x7" Coaxial Speakers
Regular price
$539.99 CAD
Regular price
$539.99 CAD
Sale price
$539.99 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
APX 570 features a concentric coaxial tweeter: with one single point of sound emission it is possible to obtain a consistent in-phase response, with consequent reconstruction of the acoustic scene comparable to a system of separate woofer + tweeter. The 5x7" cones surround features an exclusive shallow Triple Wave profile, for maximum excursion linearity.
Technical Specs LF
| Woofer Size | 570 mm |
| Impedance | 4 Ohm |
| Power Handling - Peak | 210 W |
| Power Handling - Continuous | 70 W |
| Elliptical Size | 5 x 7 |
| Sensitivity | 93 dB |
| Frequency Response | 60 ÷ 23k |
| Voice Coil Diameter | 32 mm (0.59 in) |
| Magnet Size | 85 x 40 x 15 |
| Xmax | 2 mm (1.26 in) |
Technical Specs HF
| Tweeter Size | 24 mm (0.94 in) |
| Voice Coil Diameter | 15 mm (0.59 in) |
Electric-acoustic Specs
| Re | 3.1 Ohm |
| Fs | 70 Hz |
| Mms | 12 g (0.42 oz) |
| Cms | 0.4 |
| Bl | 4.2 |
| Qms | 8.4 |
| Qes | 0,9 |
| Qts | 0.8 |
| Vas | 12.5 l (0.44 ft) |
| LE | 0.12 mH |
General
| Weight | 0.885 kg |
| Elliptical B1 | 182 mm |
| Elliptical B2 | 126 mm |
| Elliptical Dimension A1 | 221 mm |
| Elliptical Dimension A2 | 140 mm |
Dimensions
 |
|
| Dimension A1 | 221 mm |
| Dimension A2 | 140 mm |
| Dimension C | 67 mm (2.64 in) |
| Dimension D | 63 mm (2.48 in) |
| Dimension B1 | 182 mm |
| Dimension B2 | 126 mm |
