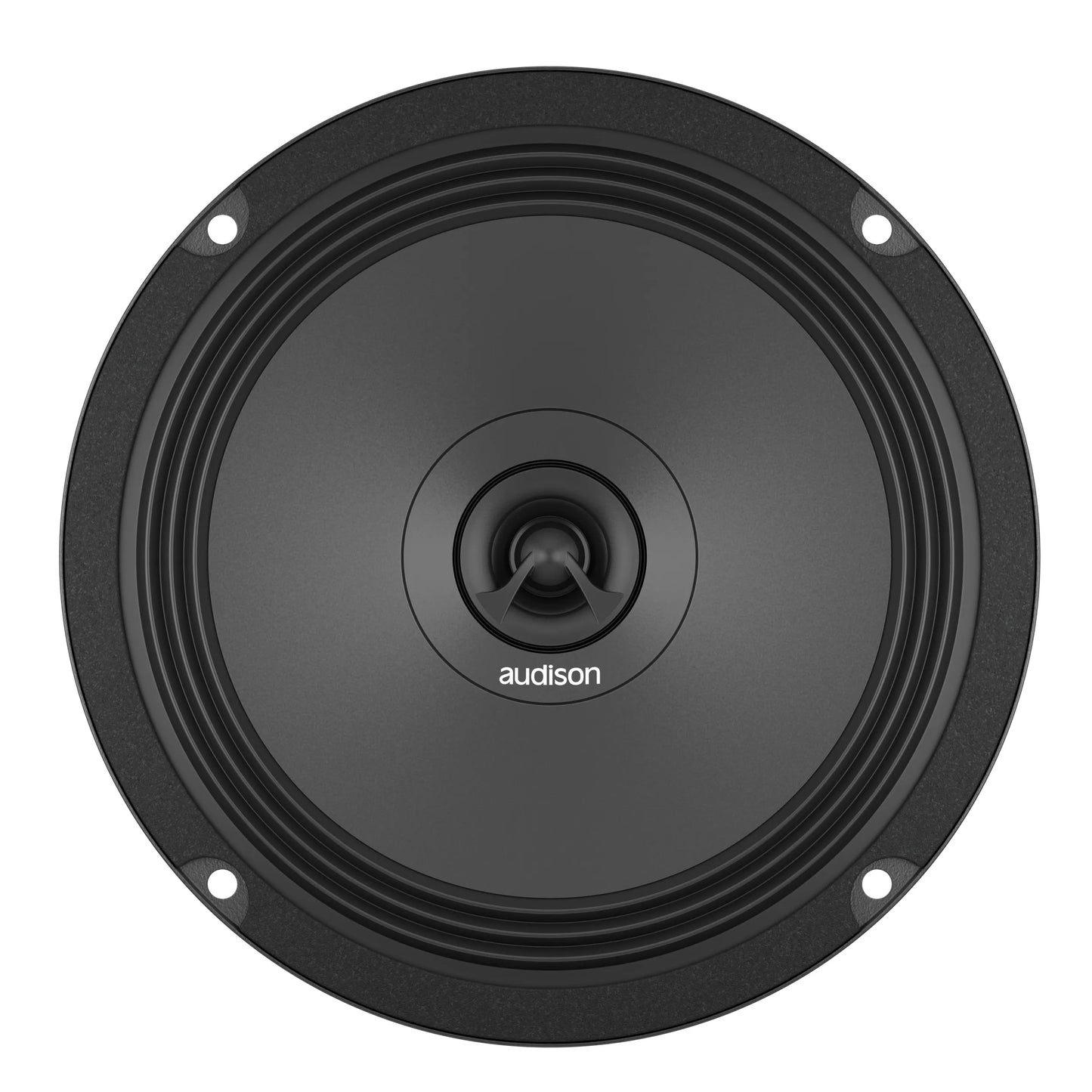

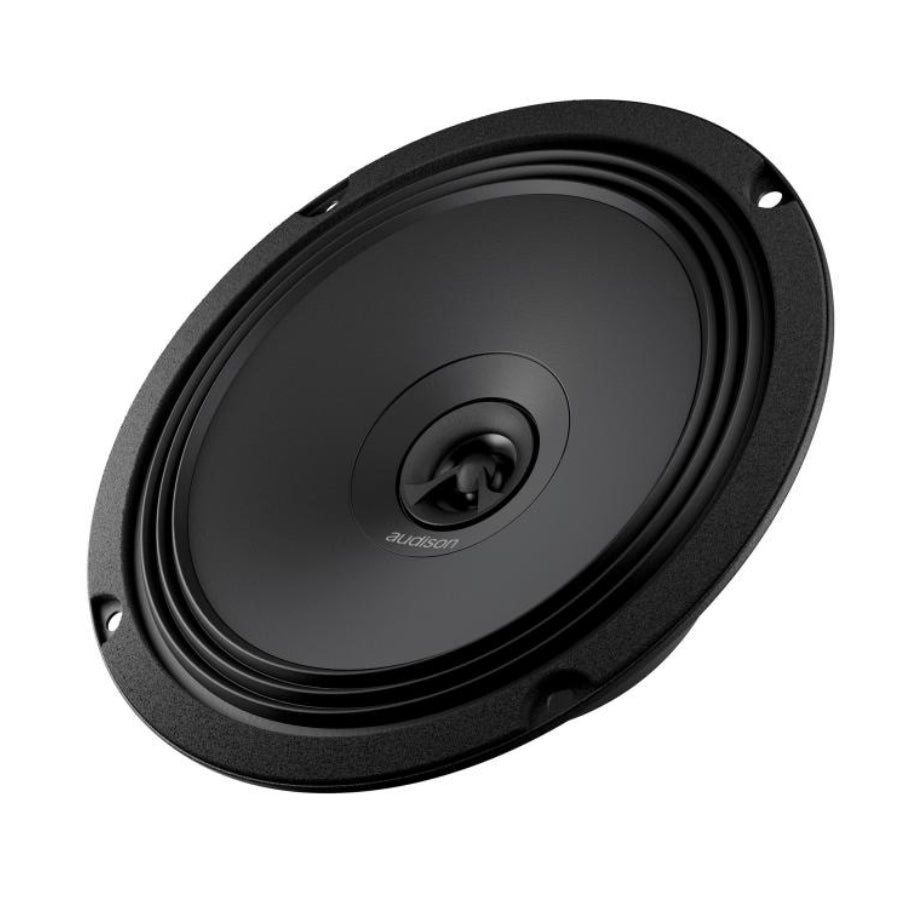

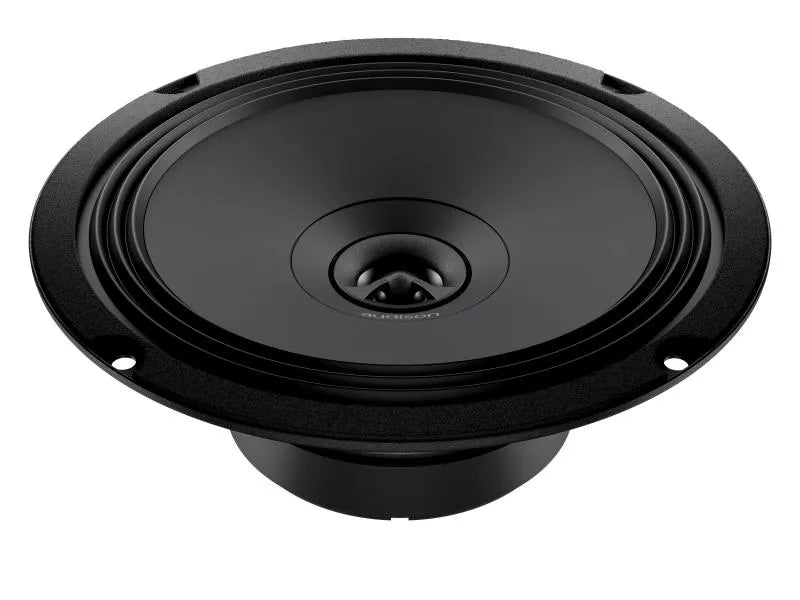

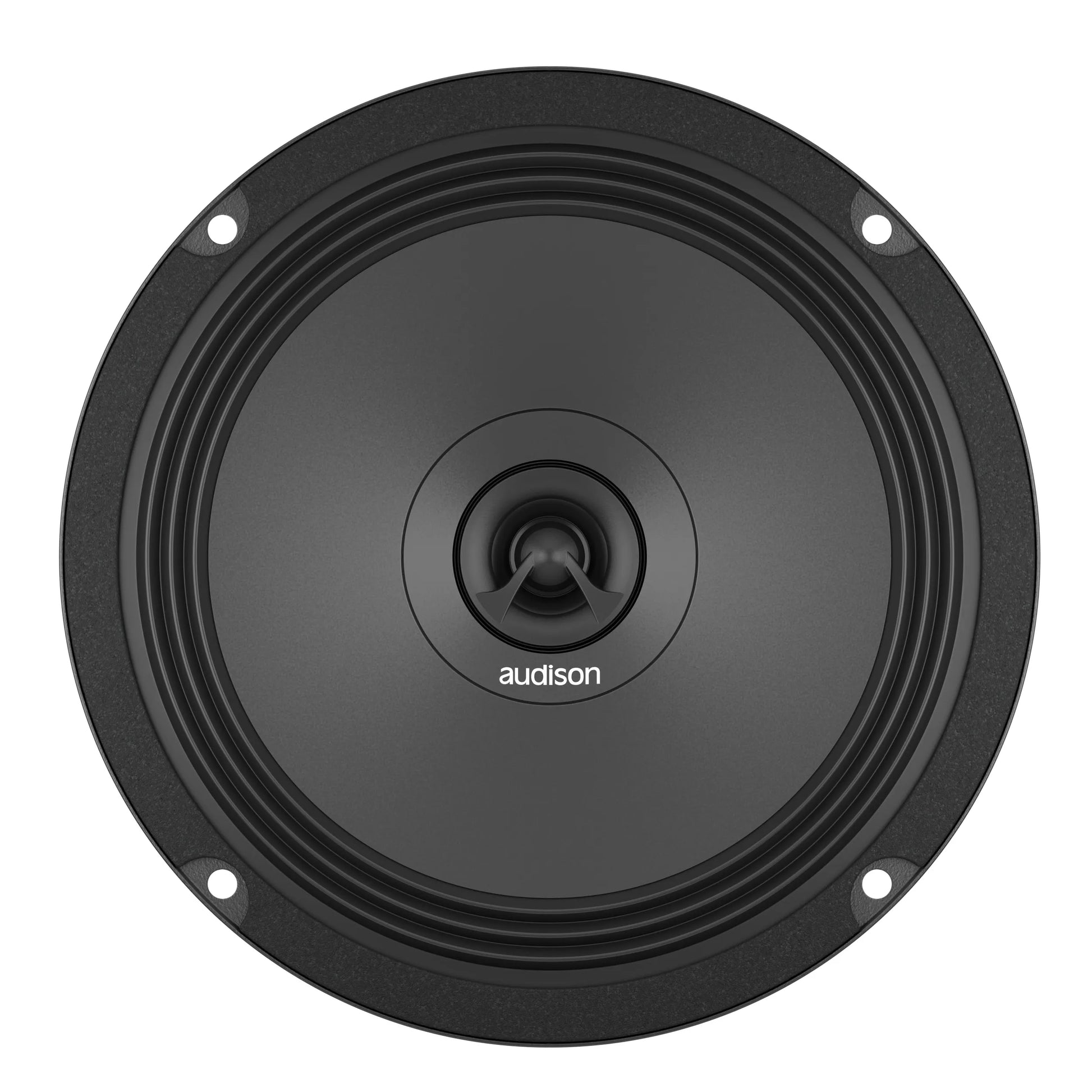

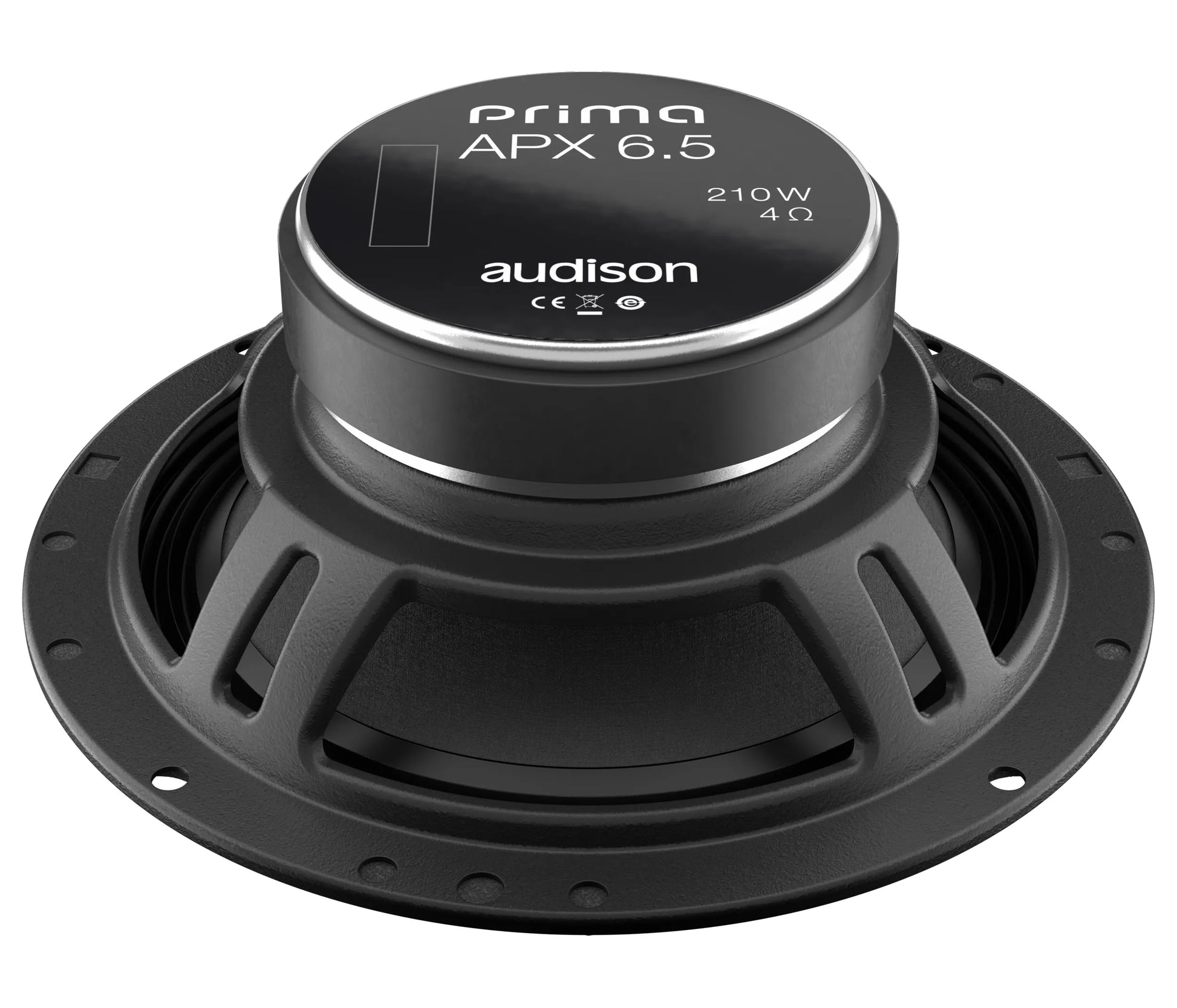

Audison Prima 2-Way 6.5" Coaxial Speakers

APX 6.5 features a concentric coaxial tweeter: with one single point of sound emission it is possible to obtain a consistent in-phase response, with consequent reconstruction of the acoustic scene comparable to a system of separate woofer + tweeter.
The 6.5″ cones surround features the exclusive shallow “Triple Wave” profile, for maximum excursion linearity.

Technical Specs LF

Woofer Size	165 mm (6.5 in)
Impedance	4 Ohm
Power Handling - Peak	210 W
Power Handling - Continuous	70 W
Frequency Response	60 ÷ 23k
Voice Coil Diameter	32 mm (0.59 in)
Magnet Size	85 x 40 x 15
Xmax	2 mm (1.26 in)

Technical Specs HF

Tweeter Size	24 mm (0.94 in)
Sensitivity	94 dB
Voice Coil Diameter	15 mm (0.59 in)

Electric-acoustic Specs

Re	3.1 Ohm
Fs	80 Hz
Mms	11.5 g (0.41 oz)
Cms	0.33
Bl	4.6
Qms	5.4
Qes	0,84
Qts	0.73
Vas	8.1 l (0.29 ft)
LE	0.1 mH

General

Weight

0.87 kg

Dimensions

Dimension A	165 mm (6.5 in)
Dimension B	141 mm (5.55 in)
Dimension C	60 mm (2.36 in)
Dimension D	57 mm (2.24 in)
