AUDISON 2-CHANNEL 1000W CLASS A AMPLIFIER

Thesis amplifiers are born with the know-how and experience achieved with the HV venti, improved by the innovation of digital technology. The result is a perfect combination between the highest level of analog technology and the advanced features of the digital technology in one unique product. The precious synergy with Full DA HD technology takes the in-car listening experience to a new level of excellence; the synthesis of a unique know-how employed in mobile audio reproduction.

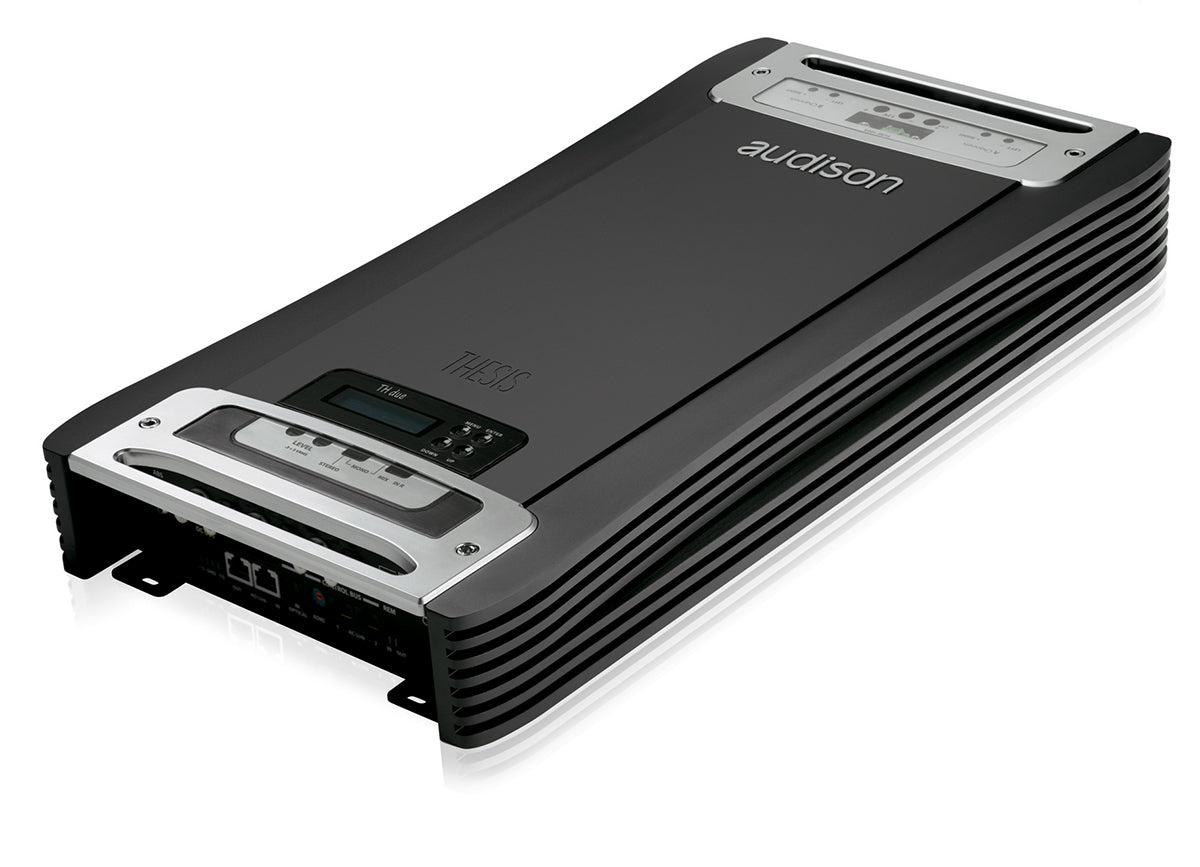

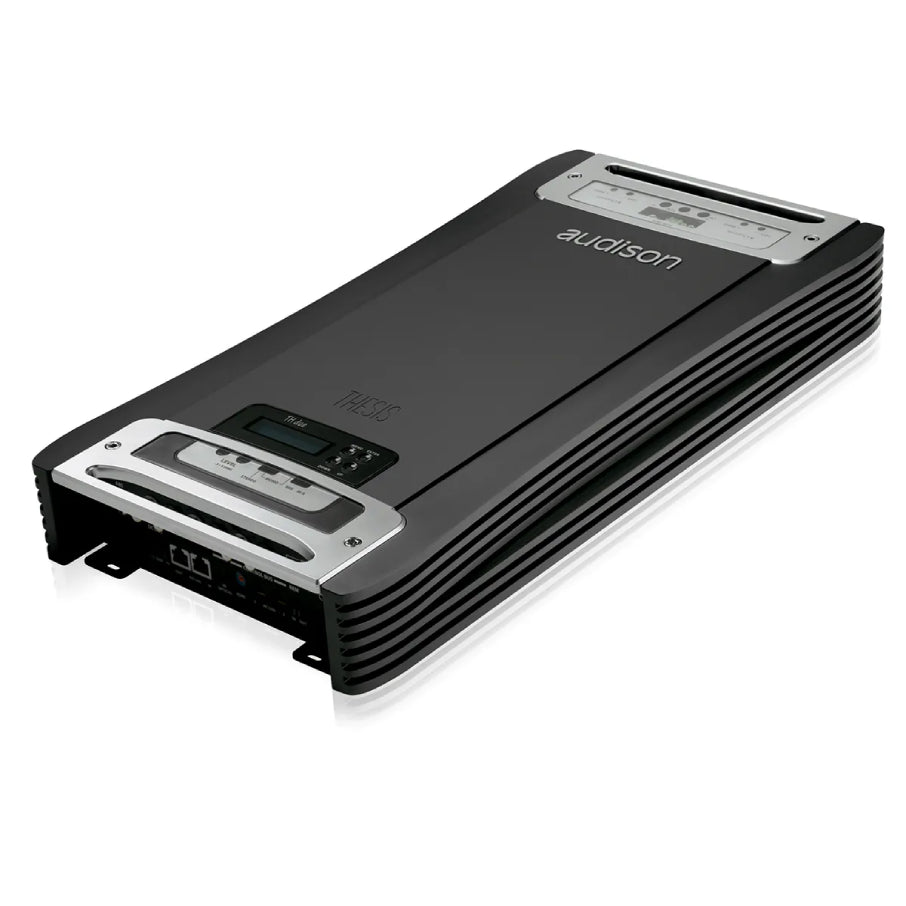

TH due is a bridgeable stereo amplifier: a logical choice and natural partner for systems where versatility, power and quality are the main parameters. The ultimate stereo amplifier.

Features and Specifications:

• Nominal power (RMS) @ 12 VDC, 1% THD
• Dual Power Mode - Hi-Current:
• 2 Ch @ 4 Ω 230 W x 2
• Dual Power Mode - A Class:
• 2 Ch @ 4 Ω 55 W x 2
• Output power (RMS) @ 14.4 VDC, 1% THD:
• Dual Power Mode - Hi-Current:
• 2 Ch @ 4 Ω 300 W x 2
• 2 Ch @ 2 Ω 500 W x 2
• 2 Ch @ 1 Ω 750 W x 2
• 1 Ch @ 4 Ω 1000 W x 1
• 1 Ch @ 2 Ω 1500 W x 1
• Dual Power Mode - A Class:
• 2 Ch @ 4 Ω 80 W x 2
• Voltage: 11 ÷ 15 VDC
• Idling current (@ Dual Power Setting): 2.0 ÷ 7.4 A
• Idling current when off: 0.04 mA
• Consumption @ 14.4 VDC, 1 Ω,
• Max Musical Power: 105 A
• Remote In: 7 ÷ 15 VDC (1 mA)
• Remote Out: 12 VDC (20 mA)
• Fuse (AFS): 100 A
• Distortion -THD@1kHz,4Ω;90%Power: 0.02 %
• Bandwidth @ -3 dB, 2 VRMS, 4 Ω: 5 ÷ 70k Hz
• S/N ratio@Aweighted,1V,MaxPower: 106 dBA
• Damping factor @ 1 kHz, 2 VRMS, 4 Ω: 100
• Pre-In sensitivity: 0.3 ÷ 4.8 VRMS
• Pre-In impedance: 15 kΩ
• Load impedance (Min@DualPowerMode- Hi-Current):
• • 2 Ch 1 Ω
• • 1 Ch 2 Ω
• Filters: (Hi-pass / Lo-pass / Bandpass 12/24dB)
• CEA Specification: Output power @ 4 Ω, 1% THD+N,
• 14.4 V: 300 W x 2 Ch
• SN ratio (ref. 1 W output): 80 dBA
• Max size (mm/inches): 259 x 510 x 67 / 10”1/4 x 20”1/8 x 2”11/16
