Audison Voce 300mm (12") Subwoofer - 500W RMS

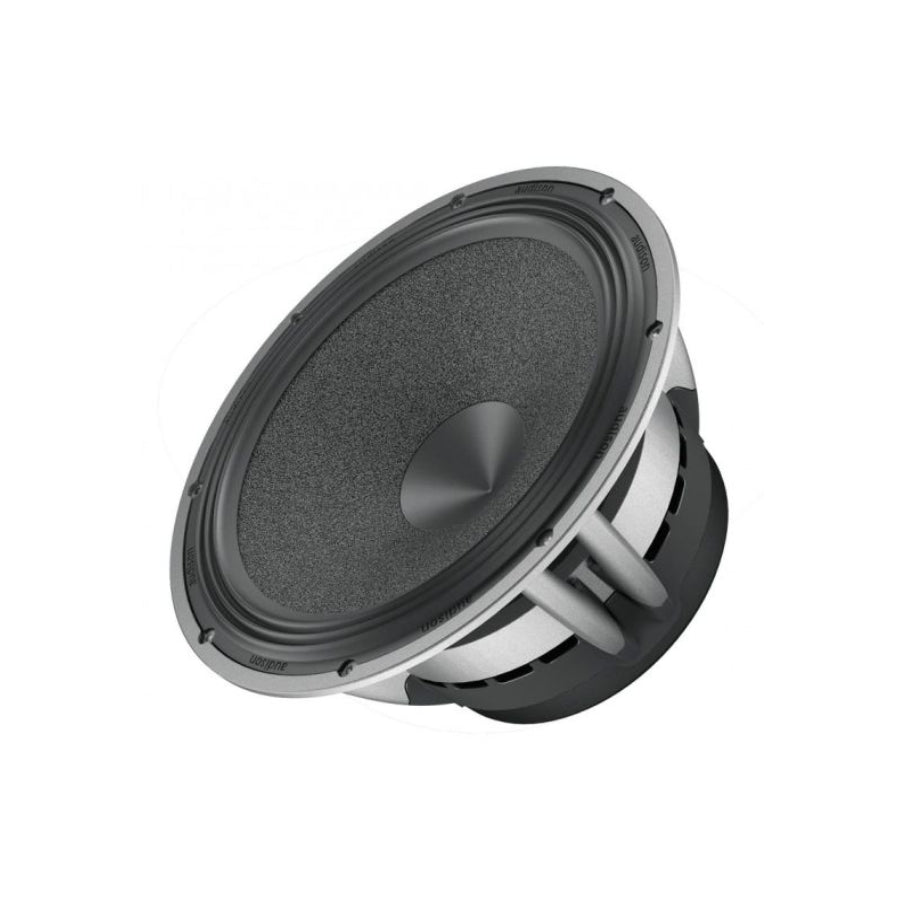

VOCE AV 12 Subwoofer
AV 12 is the Voce subwoofer, developed with the same original features of the woofer, an aluminum basket with a great aerodynamic structure, a cotton-fiber paper pressed cone with Light Damping treatment, a Triple Wave surround in butyl rubber and extremely light copper-clad aluminum Wire coils.

Features:

• The profile of the aerodynamic basket’s spokes along with the “open-air” design ensures a drastic reduction of back-wave reflections.
• The exclusive Butyl rubber “Triple Wave” surround profile provides full linearity as well as reliable performance under extreme conditions.
• Extremely lightweight and compact, the CCAW (Copper-Clad Aluminum Wire) voice coils wound on a double layer provide very high efficiency and neat, dynamic sound.
• Cotton-fibre pressed paper cone with “Light Damping” treatment.
• The Radial Venting System ensures high thermal capability, power handling, and reliability.

Specifications:

• Component: Subwoofer
• Size: 300mm (12”)
• Power Handling:
  Peak: 1000W
  Continuous: 500W
• Impedance: 4Ω
• Frequency Response: 25 ÷ 1kHz
• Sensitivity: 91dB/SPL
• Magnet Size: 180mm x 85mm x 20mm
• Total Driver Displacement (Cu. Ft): 2.8 (0.1)
• Voice Coil Ø: 60mm
• Magnet: High-Density Flux Ferrite
• Cone: Cotton-Fiber Pressed Paper with Light Damping Treatment
• Xmech: 22mm
• Weight: 8.40kg
