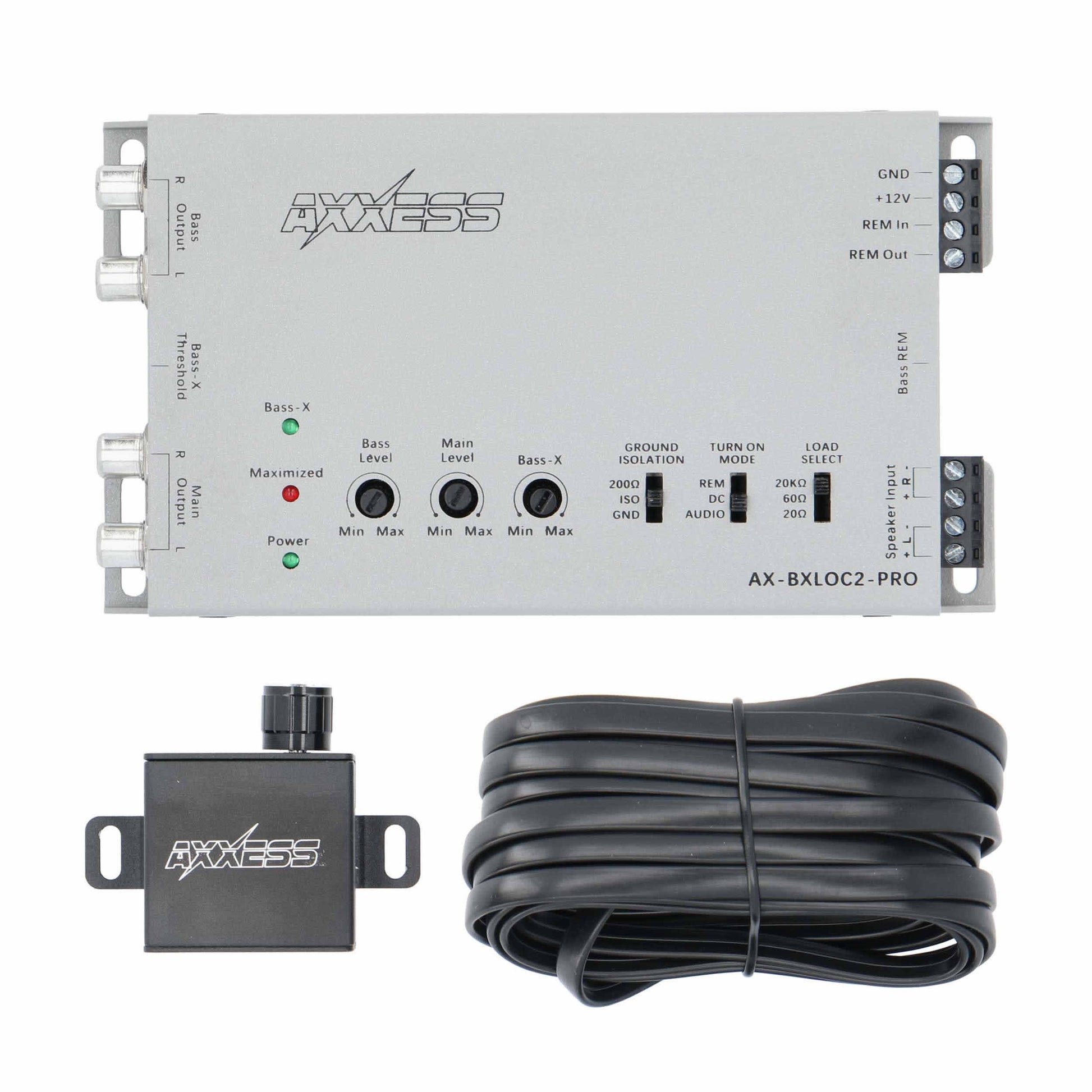

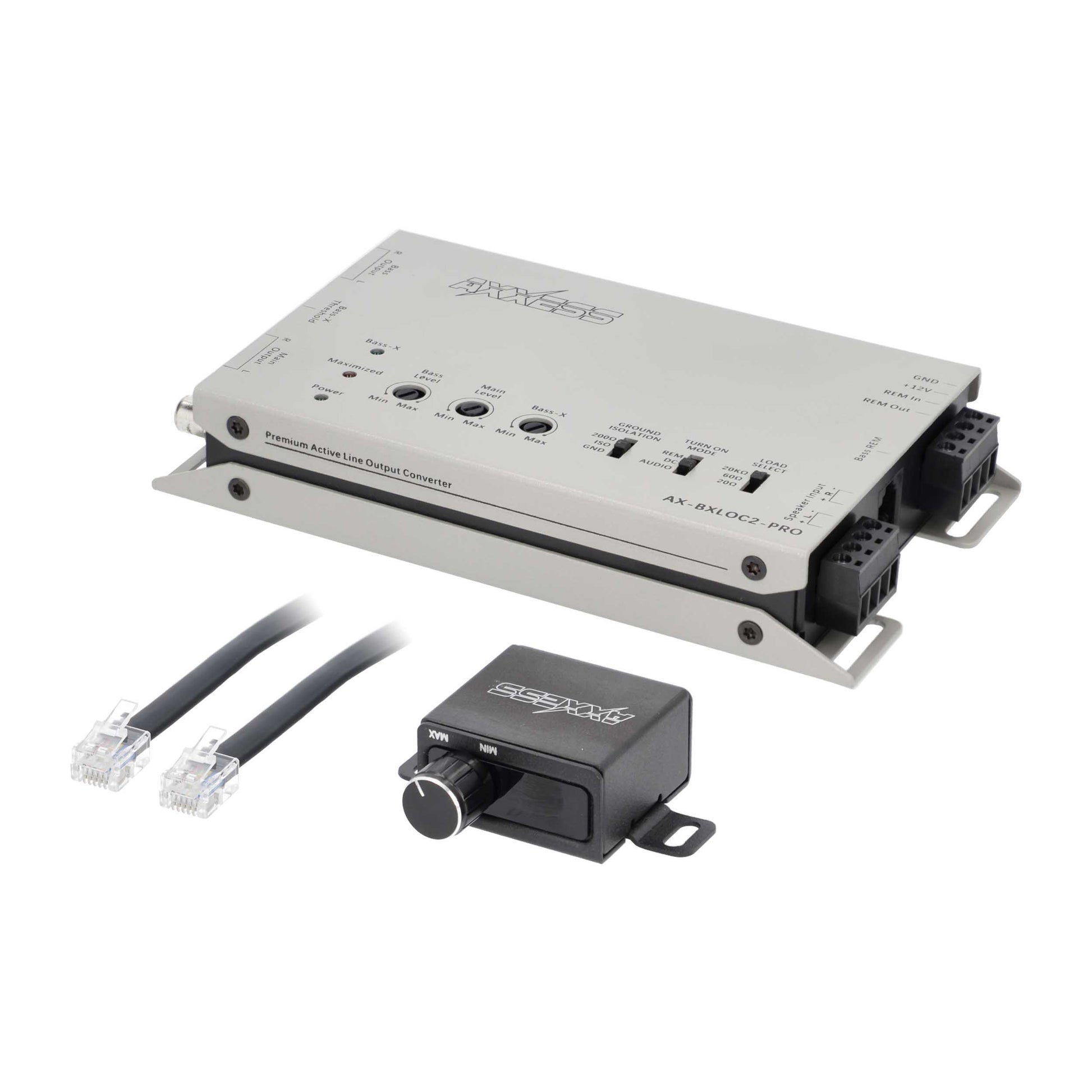

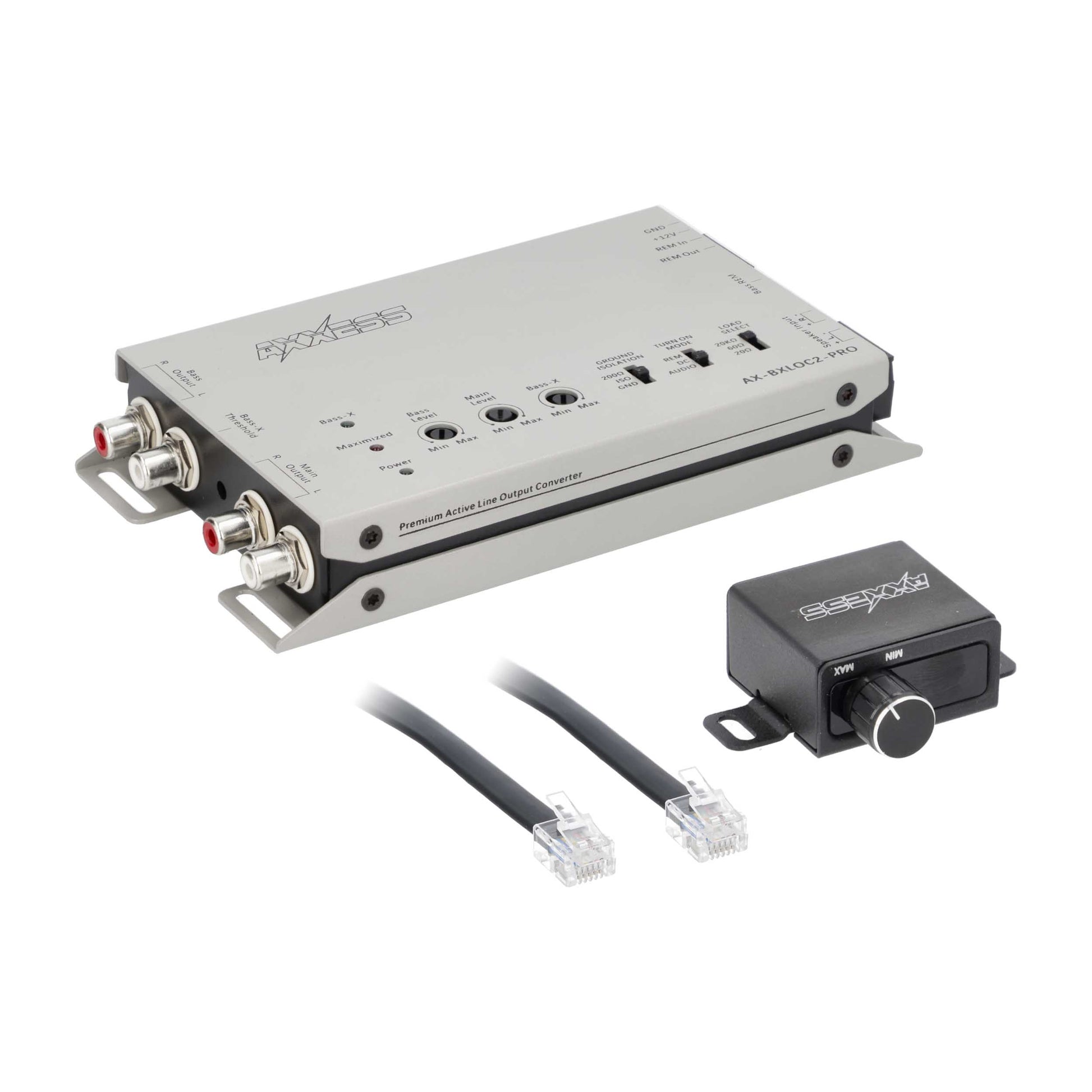

AX-BXLOC2-PRO | Axxess PRO Active LOC w/Bass Restoration + Bass Boost (4 Channel)

The AX-BXLOC2-PRO from Axxess prevents factory audio systems from attenuating low frequencies and reducing bass output as volume increases. A Bass-X restoration circuit in the LOC allows users to enjoy their music as it was recorded while maintaining factory volume and steering wheel controls. This compact line output converter with active input circuitry accepts speaker-level signals of up to 400 watts per channel from factory-installed source units or amplifiers. They convert them to high-quality preamp signals that can be directed to aftermarket amplifiers. Unfortunately, some factory radios or amplifiers stop passing audio when OE speakers are disconnected – the AX-BXLOC2-PRO fixes this problem with built-in load resistors. A bass remote control with a digital voltmeter is also included to help prevent equipment damage.

Features:

• 4-channel: 2 in, 4 out
• Max input level: 40V / 400W @20K Ohm
• Operating voltage: 9V-16V
• Trigger selection: REM / DC / AUDIO
• Remote Output Rating 500mA
• Turn on trigger (DC): 3V-7V
• Output max @13.8V: 9.5V RMS
• Input impedance selection: 20 / 60 / 20k Ohm
• Ground selection: GND / ISO / 200 Ohm
• Gain adjustment: – 28dB to +1dB
• Input sensitivity: 0.5V-20V
• Signal to noise: >110dB @6.4V output
• THD+N (Total Harmonic Distortion): <0.01%
• Frequency response: 20Hz – 20kHz
• Bass boost: 0dB + 12dB
• Built-in load resistors
• Plug-n-play remote bass knob with voltmeter included
