DAX800XR Monitor with Receiver 8” Digital Multimedia Receiver

Kenwood Excelon DAX800XR 8" HD Touchscreen Double Din Direct Replacement Digital Multimedia Receiver

Direct Replacement

With the introduction of Direct Replacement Category and the adaptation of Maestro APX Parts, the Receiver is Designed to fit seamlessly into OEM dashboards with retaining OEM receiver controls and features.

Separated Display and Chassis

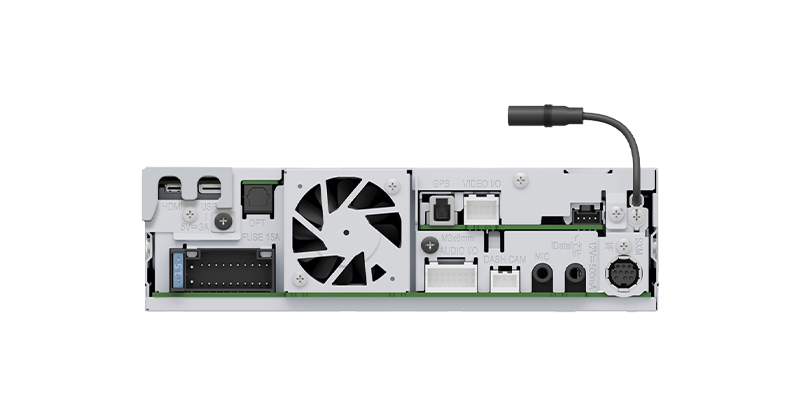

The display and chassis are separated, and the chassis can be placed either vertically or horizontally, allowing for flexible installation in a variety of vehicles.

High Definition

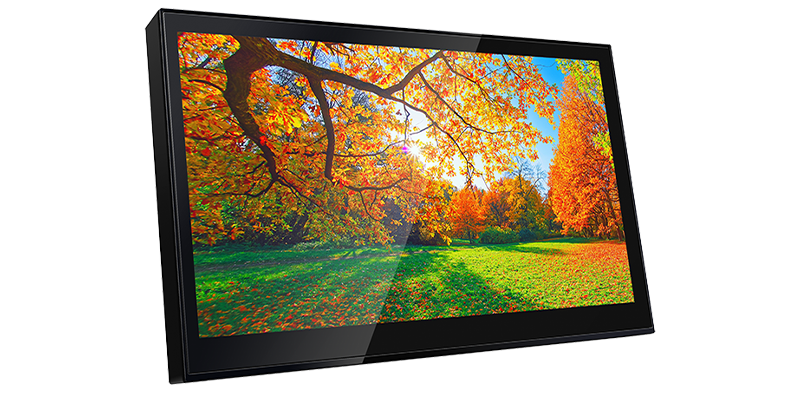

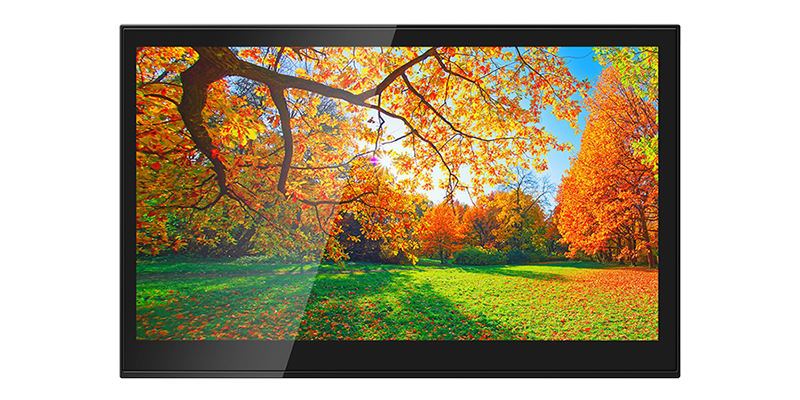

8" Display features an electrostatic capacitive touch panel and HD 1280 x 720 pixel LCD panel with high luminance white LED backlight and superior wide viewing angles.

Wider Viewing Angle

The AAS display technology of the LCD panel assures you a wider viewing angle of 170° for both horizontal and vertical directions. Together with the protective film which minimizes reflection and glare from sunlight, you can enjoy clear images even from the passenger or back seats.

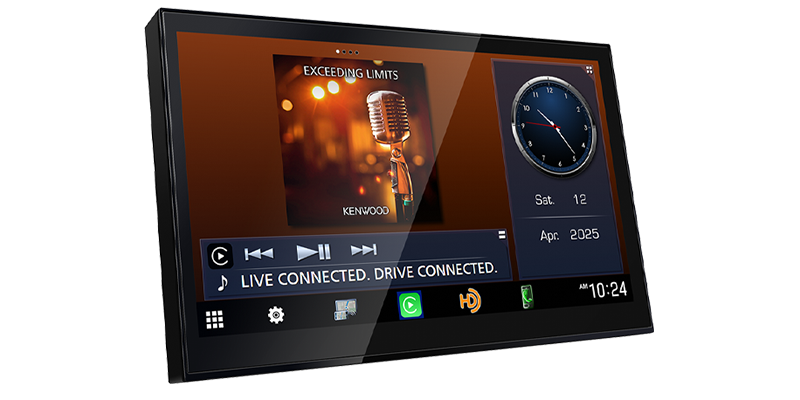

Apple CarPlay® – Connect Wirelessly or via USB

A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.

Apple CarPlay – Split Screen Support

You can view and operate both Apple CarPlay and KENWOOD source in the same screen.

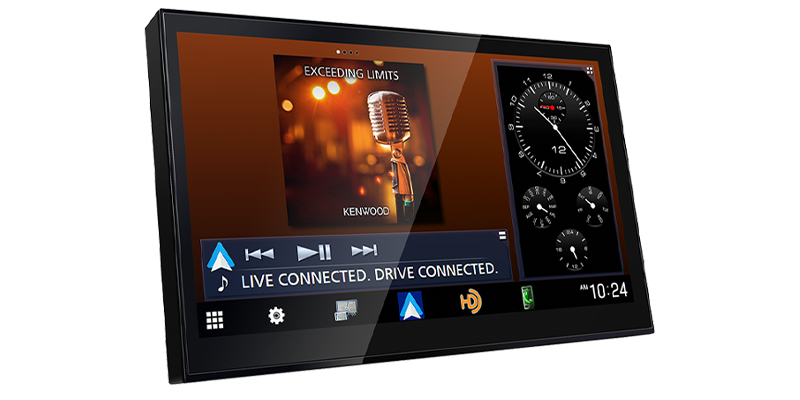

Android Auto ™ – Connect Wirelessly or via USB

Android Auto was designed with safety in mind. With larger touch targets, a split-screen interface, and easy-to-use voice actions, it's designed to minimize distraction so you can stay focused on the road.

*Compatible Android phone and compatible active data plan required.
*Some features and devices may not be available in all countries. Subject to availability.

*Selected mobile phones only

Android Auto – Split Screen Support

You can view and operate both Android Auto and KENWOOD source in the same screen

Wireless Mirroring for Smartphone

Solution for seamlessly displaying and controlling your smartphone apps on a screen without cables on select Smartphone devices.

*Selected smartphones only

HDMI Mirroring for Smartphones

Display your smartphone screen or other device via an HDMI cable (and third party adapter as applicable) on the 8" monitor. KCA-HD200 optional HDMI cable sold separately.

KENWOOD Portal App

Display image files stored in your iPhone or Android on the receiver's photo frame widget and/or wallpaper.

High-Resolution Audio Wireless

High-Resolution Audio is high-quality sound that exceeds CD standard. High-Resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality listening experience. Select KENWOOD receivers now support Hi-Resolution Audio Wirelessly via LDAC. LDAC is an audio coding technology that enables the transmission of High-Resolution Audio over a Bluetooth connection.

Parametric Equalizer

You can fine-tune advanced sound properties to achieve professional audio sound quality in your vehicle. It allows you to set parameters of Q factor, slope, frequency and gain at 14 points separately (Common: 9 / Front: 2 / Rear: 2 / Subwoofer: 1). With adjustments such as high and low shelving filters, more realistic sound can be delivered.

Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment

Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance.

High Quality Audio Parts Supporting High-Resolution Audio Reproduction

To ensure the best possible sound quality, the receivers use custom-made and carefully selected parts, such as audio quality power supply capacitors, high quality coupling capacitors. These parts are further optimized through meticulous tuning of the component values and circuit paths.

Digital Optical Output

Connect your favorite DSP amplifiers to create the optimal sound space.

Playable Video & Audio Files

You can play back from USB devices audio and video files compressed in various formats.

Enhanced Vehicle Integration

Enhance your vehicle integration with the iDatalink Maestro RR/RR2 (sold separately). This system allows you to retain your factory steering wheel audio controls, factory amplifier, and secondary displays. Additionally, it can display crucial vehicle information, such as performance data, climate controls, and battery voltage, when connected to compatible vehicles. For added convenience, radar detector information can be shown on the screen when paired with a compatible K40 radar detector system (sold separately). With the iDatalink Maestro RR2, you can also integrate an Escort radar detector system (sold separately) for a seamless driving experience.

*Available features vary by vehicle

Rear View Camera Input with Parking Guidelines

An optional rear view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.

HD Front / Rear Camera Input

The optional CMOS-740HD camera can be connected to the receiver’s front and/or rear camera input, displaying the image in true 1280 x 720 (720P) High Definition on compatible receivers. The camera’s built in High Dynamic Range technology further helps to overcome the negative effects of dark or bright conditions, making it the safest front or rear camera option available.

4 Camera Inputs

To enable a smarter driving experience, receivers featuring 4 camera inputs allow for the utmost in convenience, flexibility, and safety. With 4 camera inputs, you can connect a rear camera, side (blind spot) cameras, and a KENWOOD dashboard camera (DRV-N520 sold separately).  Alternatively, 4 camera inputs can support several other configurations, including the connection of 2 side cameras, a front HD camera, and a rear HD camera (CMOS-740HD sold separately). Camera switching is available using on screen controls, or automatically for side cameras when an optional iDatalink Maestro RR is connected (supported vehicles only).

Dash Cam Link Ready

Full HD video recording is available with a DRV-N520 compact windshield mount camera that can record every event in front of you while you drive. High Dynamic Range (HDR) allows flawless recording regardless of extreme bright light or very dark conditions. With a built-in gyro sensor, if an accident occurs it will be saved in a separate portion of memory within the 8GB SD card for viewing. Additional safety and warning features can be activated to avoid frontal collisions or remind you if traffic has moved in front of you.

Driving Widget Home Screen

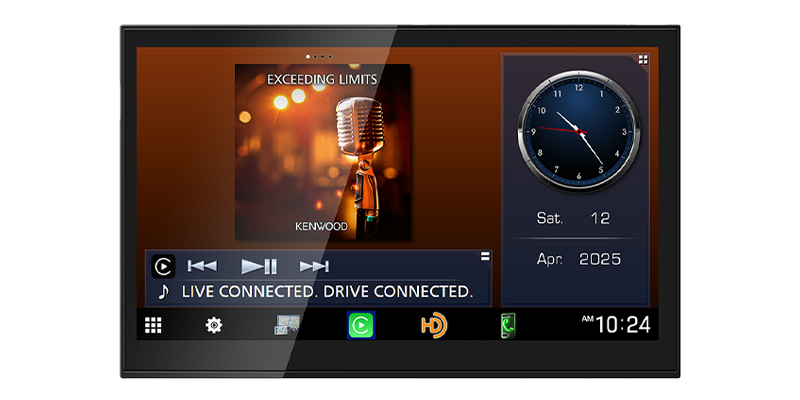

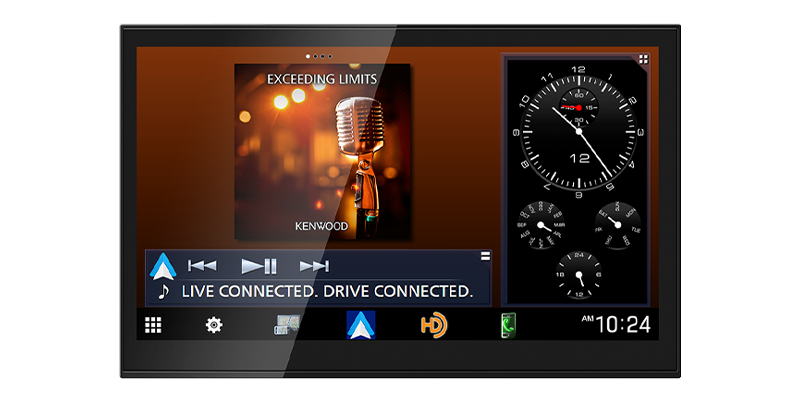

The 8" home screen is composed of a Driving Widget as well as a Source Control Widget overlaid on the background. You can move the Driving Widget from side to side or enlarge the Source Control Widget to optimize the screen for your intuitive operation. The Driving Widget allows selection of a clock, compass, or equalizer setting, etc., while the background allows selection of album art, audio visualizer, or photo.

SiriusXM 360L Ready

SiriusXM 360L is the latest-generation audio platform from SiriusXM, combining satellite radio with internet streaming. SiriusXM 360L offers over 100 music channels, a vast library of on-demand content, and a live sports category where you can listen to game broadcasts and sporting events. It also features personalized "For You" recommendations, a Spotlight section, and easy access to related content.

*To enjoy 360L contents, it is necessary that the device is connected to the internet and H/U is connected with the device by Wi-Fi.
In addition, “360L IP Connection” in SETUP has to be set to ON.
*SiriusXM 360L requires a dedicated WiFi connection. Other Apps that require a WiFi connection may not work while SiriusXM 360L is in use.

Built-in HD Radio Tuner

HD Radio has the best selection of local radio with amazing features and no monthly fees. HD Radio provides CD sound quality from digital FM stations and FM sound quality from digital AM stations. You can even access additional HD multicasting stations that are not available on traditional analog radio.

USB Type-C

USB Type-C cable and USB Type-A adapter are included to the set. Rapidly charge your compatible Android smartphone with the USB port, up to a maximum of 3.0A

General features:

• Direct Replacement digital multimedia receiver
• works with iDatalink Maestro APX kits for select vehicles
• requires the iDatalink Maestro RR or RR2 interface module
• requires direct plug-in wiring harness (receiver includes no wiring for power, ground, and signal)
• plays media loaded with MP3, WMA, and AAC music files (plus high-res WAV and FLAC)
• 8" electrostatic capacitive touchscreen HD display
• HD Radio tuner built-in
• Waze-ready with Apple CarPlay or Android Auto
• modular chassis design

Smartphone features:

• wired and wireless Android Auto compatible
• compatible with Google Assistant voice control when using Android Auto
• wired and wireless Apple CarPlay compatible
• Siri voice control for select iPhones
• wireless mirroring for select Android devices
• built-in Bluetooth with dual phone connection for hands-free calling and music streaming
• supports smartphones with LDAC codec for wireless high-res audio streaming
• rapid Android charging via USB port

Audio features:

• 13-band parametric EQ
• digital time alignment
• digital signal processing
• Drive EQ boosts frequencies in your music to help overcome road noise
• Stage EQ virtually raises the sound from speakers mounted in low door locations for better staging
• Sound Restoration restores more natural sound from compressed music
• 2- or 3-way crossover

Expandability:

• compatible with SiriusXM's aftermarket satellite radio tuner (sold separately, subscription required)
• works with SiriusXM with 360L for satellite and streaming content using receiver's WiFi (streaming not available if Apple CarPlay or Android Auto are in use)
• compatible with Kenwood CMOS-740HD HD backup camera
• inputs (chassis): USB-C input, four camera inputs (HD front or rear), HDMI Type-D input
• outputs: 6-channel preamp outputs (5-volt front, rear, sub), digital optical output to connect select digital signal processors

Other information:

• built-in amplifier (22 watts RMS/50 peak x 4 channels)
• works with iDatalink Maestro RR or RR2 modules
• retains factory features in a wide selection of vehicles

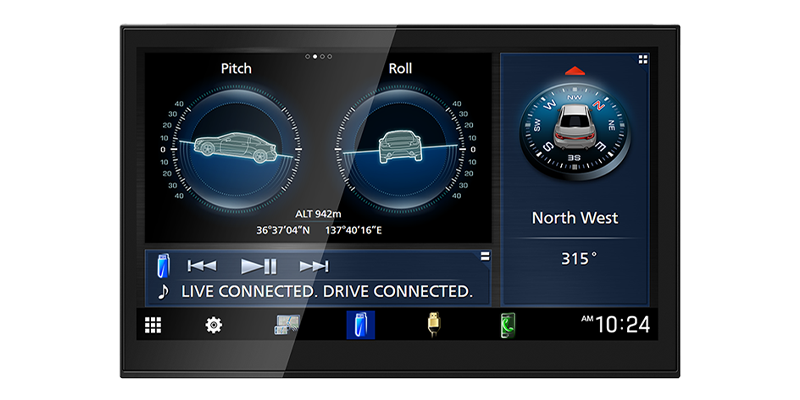

• displays engine performance and pitch-and-roll data on display

What's in the box:

• 8" Touchscreen monitor
• Source unit
• Remote control (RC-DV240)
• CR2025 3V battery (pre-installed in remote)
• Preout/Aux harness
• Vide/Camera harness
• USB-C to USB-A adapter
• 40" USB-C extension cable
• GPS antenna (attached 11.5' cable terminated by a proprietary connector)
• Microphone w/ bracket (attached 10' cable terminated by a right-angle mono 3.5mm connector)
• 57" IR receiver cable
• Self-adhesive pad
• Two-side tape
• Screw
• Startup Guide
• JVC Support Card
