DB DRIVE EUPHORIA MONO 5000W CLASS D AMPLIFIER

Power Up Your Sound with the EX5K: Where Compact Meets Colossal!

Introducing the XPERT AMPLIFIERS EX5K, the ultimate full-range Class D monoblock amplifier designed for audiophiles who crave uncompromised performance. With a staggering 5000 watts of power at 1Ω and a signal-to-noise ratio of less than 95dB, this compact powerhouse delivers crystal-clear sound that will elevate your audio experience. Featuring audiophile-grade Tiffany RCA connectors, selectable crossovers, and high-efficiency Class D technology, the EX5K is engineered for precision and versatility. Its robust design includes direct connect speaker terminals, large gauge power wire inputs, and extensive protection features like speaker short circuit protection and a moisture-resistant PCB. The EX5K's chassis heat management ensures reliable operation even under the most demanding conditions. Whether you're looking for a compact design or extensive power, the EX5K has it all. Elevate your sound game with the XPERT AMPLIFIERS EX5K today!

Features:

• Perfect for Powersports applications
• Audiophile Grade tiffany RCA connectors
• Selectable Low-Pass, Band-Pass or High-Pass x-over
• High efficiency full range Class D Technology

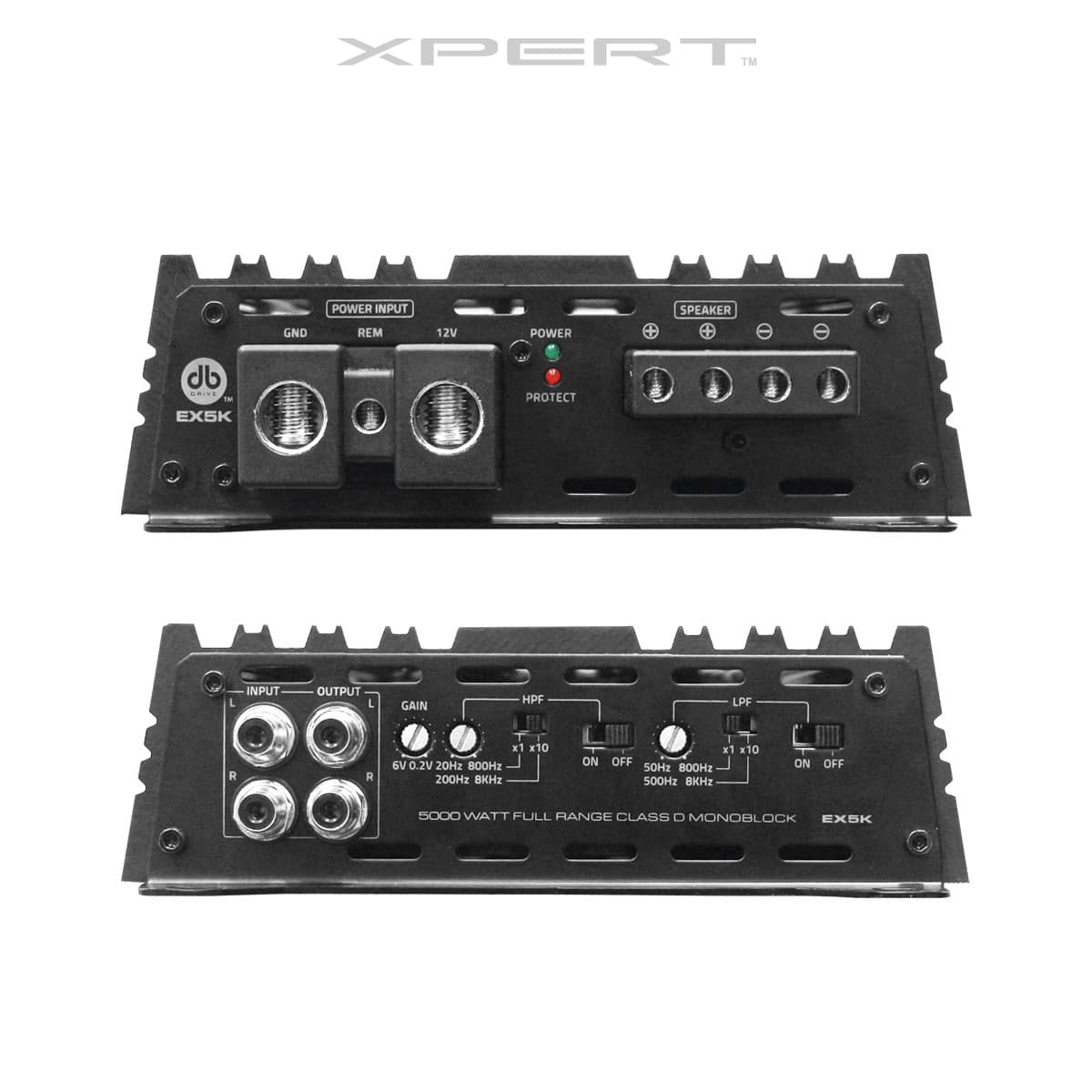

• Direct Connect Speaker terminals
• Large Gauge Power Wire Inputs
• Speaker Short Circuit Protection
• Conformal coated moisture resistant PCB

Rated Power:

• 4 Ohm @ 14.4 Volts: 1 x 1250 Watts
• 2 Ohm @ 14.4 Volts: 1 x 2500 Watts
• 1 Ohm @ 14.4 Volts: 1 x 5000 Watts

Specs:

• RMS: 3500 Watts @ 1 Ohm
• Working Voltage: 10 ~ 16Volts
• Frequency Response: 20Hz ~ 35kHz
• Signal to Noise Ratio: <95dB
• Damping Factor: 150 dB<
• Low Level Input: 6V ~ 0.2V
• High Pass Filter Variable: 20Hz ~ 8kHz
• Low Pass Filter Variable: 50Hz ~ 8kHz
• Minimum Working Impedance: 1 Ohm Mono

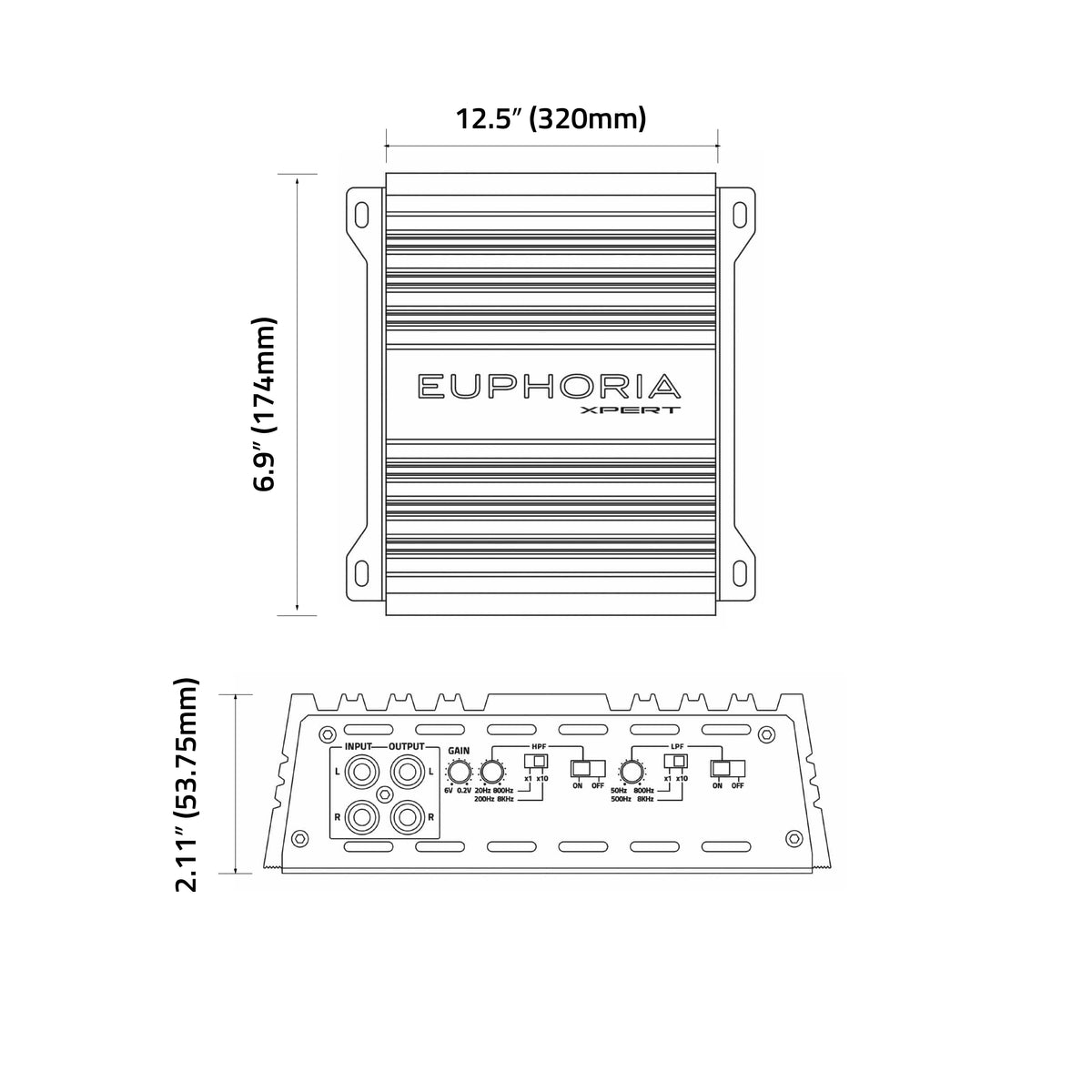

Dimensions:

• 6.86" W x 12.5" L x 2.11" H
