6.8 Inch WVGA Touchscreen (Capacitive)
Upgrade your ride with a capacitive WVGA touchscreen The Display with built-in LED backlight, color customization, and illumination timer, dimmer setting, and brightness control.

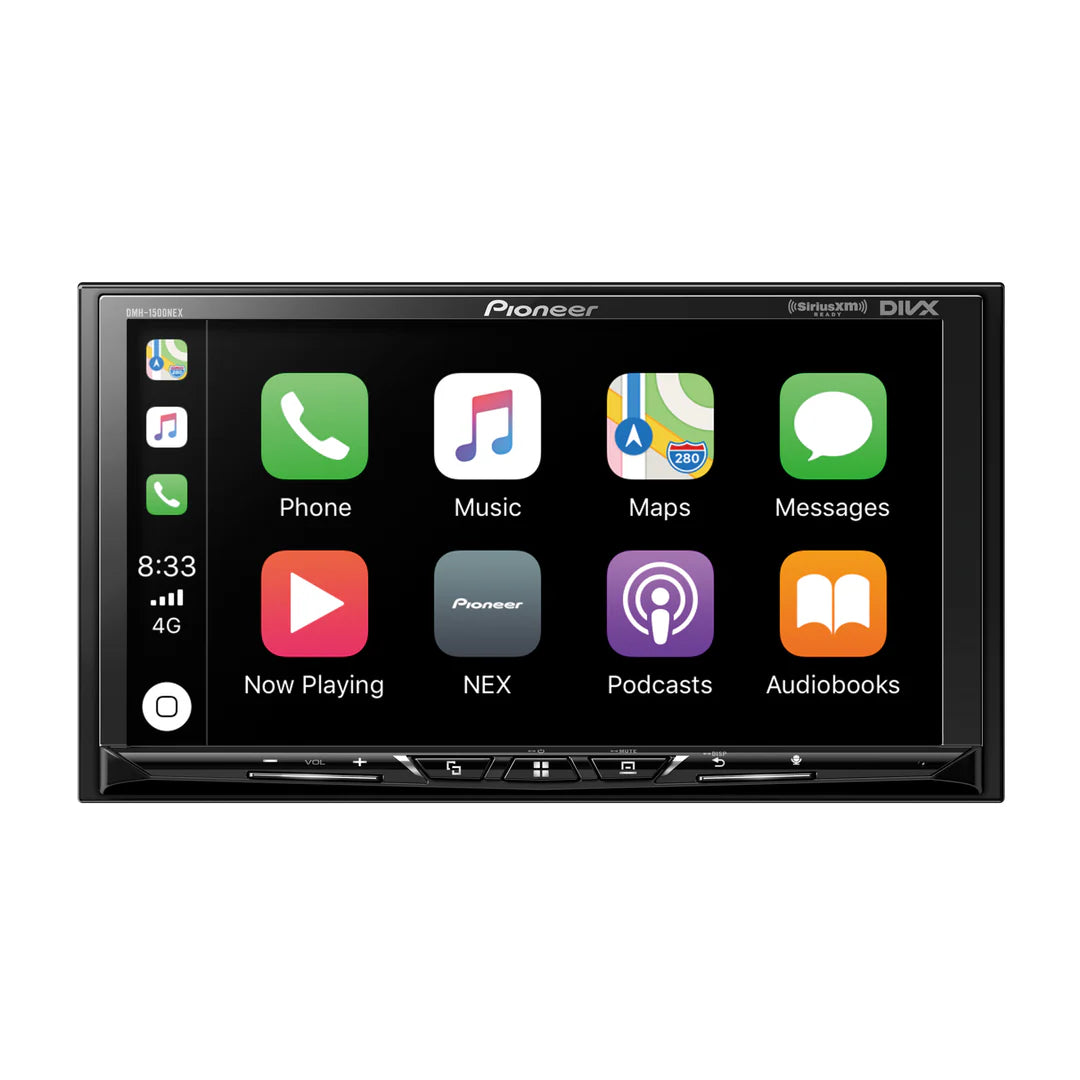

Apple CarPlay (Wired)
This receiver features Apple CarPlay, the smarter, safer and more fun way to use your iPhone® in the car. Apple CarPlay gives iPhone users an incredibly intuitive way to make calls, use Maps, listen to music, and verbally send and listen to messages with just a word or a touch. Apple CarPlay requires iPhone 5 device or newer with the latest version of iOS.

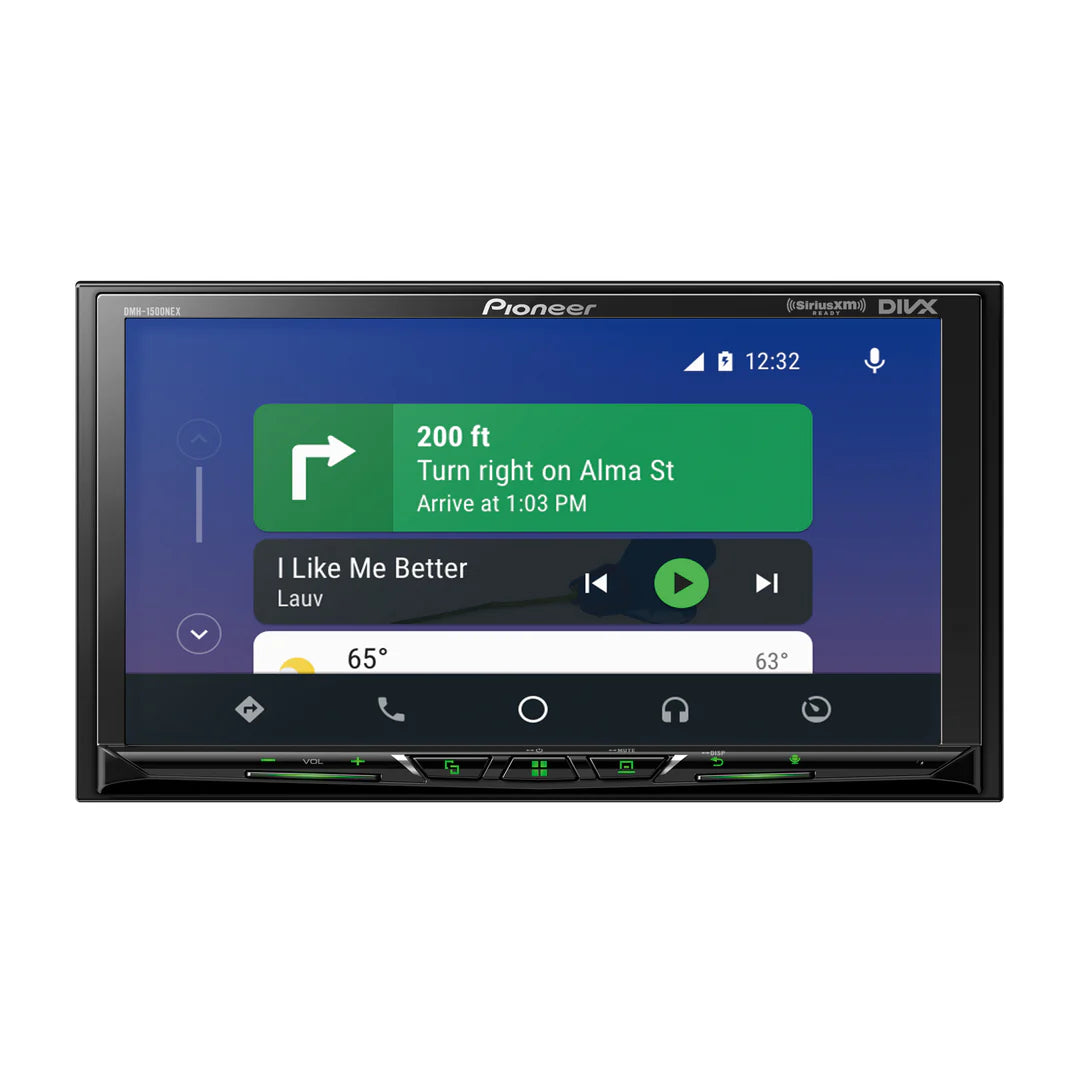

Android Auto™ (Wired)
This receiver features Android Auto, which extends the Android platform into the car in a way that’s purpose-built for driving. Android Auto automatically brings you useful information and organizes it into simple cards that appear just when they’re needed. It’s designed to minimize distraction so you can stay focused on the road ahead. Android Auto is compatible with Android phones running Android 5.0 (Lollipop) or later. Android Auto may not be available on all Android smartphones.

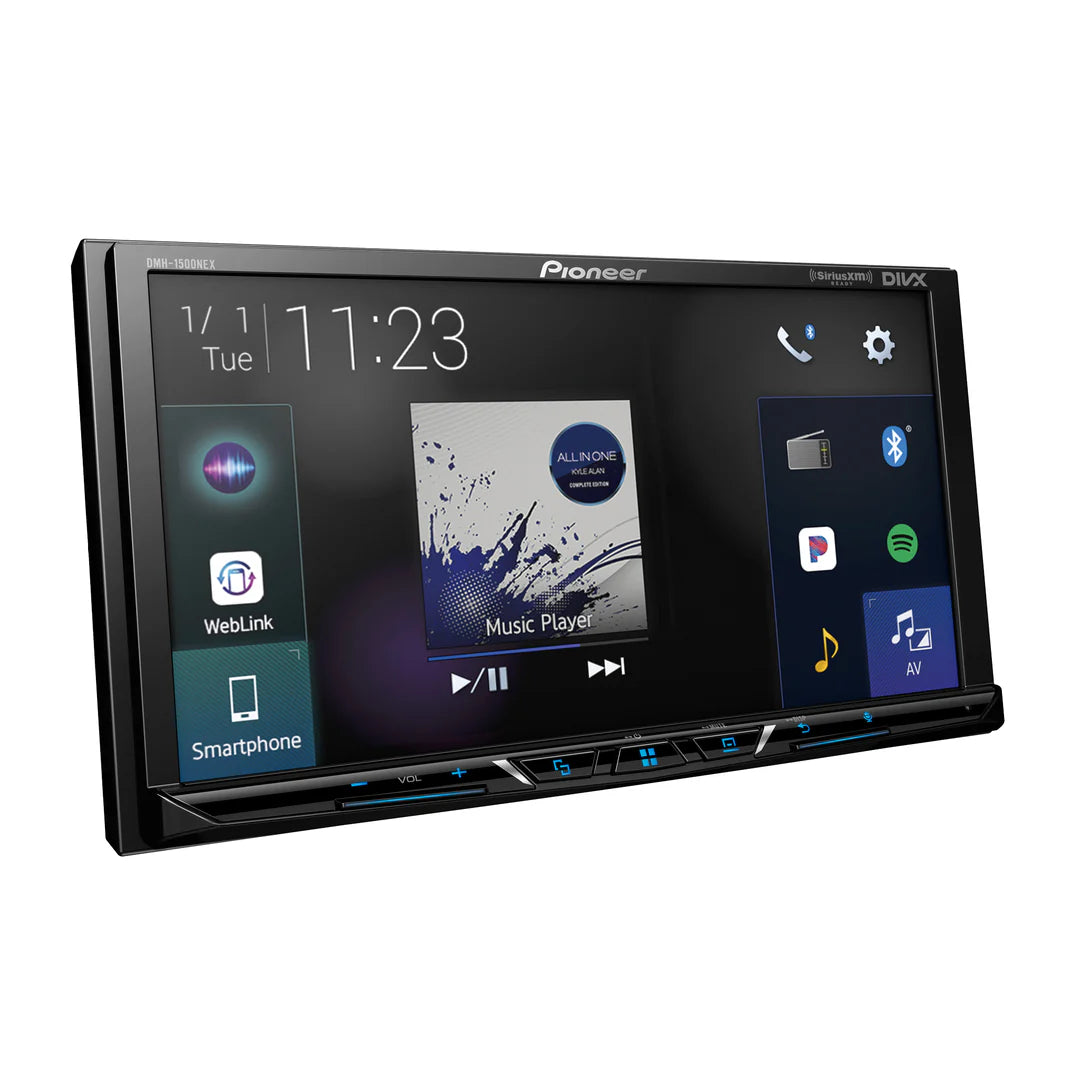

Weblink® Smartphone Interface (Wired)
WebLink enables smartphone app projection from many popular Android® and iOS® devices to in-vehicle touch displays. WebLink for Pioneer AV receivers expands in-car entertainment with an amazing array of apps.
Pioneer Vozsis with Alexa app
Invite Amazon's versatile voice assistant into your car with a WebLink-compatible Pioneer in-dash multimedia receiver and the Vozsis with Alexa app. With a tap of the touchscreen and your voice, access your Amazon Prime Music, Audible audiobooks, Kindle library, Flash Briefings, and more to stay informed and entertained during your drive.
Bluetooth
This receiver makes hands-free phone calls simple. Pioneer’s included external microphone provides crystal clear sound. Stream music, podcasts, audiobooks, and more from your compatible phone or other Bluetooth® devices.
Siri® Eyes Free - touchscreen
Simply touch a NEX touchscreen and Siri listens through the NEX unit's external microphone and answers requests over the vehicle's speakers, helping you keep your eyes on the road and your hands on the wheel. (For select iPhones.)
SiriusXM Ready
Your Favorite Stations Wherever You Go, Wherever you are, this Receiver is SiriusXM- Ready® so you can get over 140 channels, including commercial-free music, plus the best sports and live events, comedy, news, exclusive talk, and entertainment. SiriusXM programming is received through the SiriusXM Connect Vehicle Tuner (SiriusXM SXV300 Tuner sold separately, SiriusXM subscription required). To learn more or to purchase the tuner, visit SiriusXM.
Back up camera input (2-camera)
Back up safely in any crowded parking area. Install a rear-view camera to use the receiver’s built-in parking guides for easy parking, with adjustable parking lines and full screen image for ease of use.
Wired Remote Input
This receiver integrates an input specifically designed to connect a third-party interface (optional) which will allow you to keep the key functions from the steering wheel control buttons of your vehicle. (if applicable)
iDataLink Maestro (RR & RR2)
Universal Radio Replacement Interface. The Maestro RR and RR2 connect to iDatalink-compatible radios to enhance your multimedia experience with exclusive gauges, vehicle information, parking assistance, climate control, and radar detection screens. They retain the factory infotainment features you love, such as steering wheel controls, voice commands, and more (sold separately).
FLAC
Your love of high-res audio does not need to stop at the front door. Enjoy FLAC files in your vehicle without the need to convert. Pioneer's NEX in-dash receivers were the first in the industry to offer playback of files encoded as high-res FLAC up to 192kHz/24 bit and provide playback output at CD quality. With Pioneer, your high-res FLAC is no longer confined to your home hi-fi system - put your music on the move.
Pioneer Advanced Sound Retriever
Hear more detail, warmth, and clarity that the artist originally intended, even from compressed audio files. Whether from USB or streaming services, and regardless of the level of audio compression from your lossy music sources, Pioneer's ASR enhances audio playback of compressed audio files, such as MP3s, by applying an algorithm to the audio signals. This counteracts the compression effects, providing a more detailed and natural sound.
Flexible Audio Output Management
The Pioneer Standard (2-Way) / Network (3-Way) function allows you to divide the audio signal into different frequency bands. You can then make precise adjustments with low-pass, high-pass, and band-pass filters, as well as level, phase, and other parameters to match the characteristics of each speaker unit. Select STD for a Sub/Rear/Front setup, or NTW for a Low/Mid/High setup.
Audio Equalizer
The 13-band equalizer allows for detailed adjustments to your acoustic settings. This lets you tailor the equalization to match your car's interior acoustics and speaker characteristics as desired. Multiple EQ presets ensure that even users with basic acoustic knowledge can learn and enjoy the benefits of using an equalizer.
Time alignment
This feature allows for delay time and synchronizing from each speaker to be adjusted to correct any phase mismatches in the sound resulting from the listening position. No need for any acoustics degree to do the job, simply measure the distance between your listening position and the speakers, then enter these measurements into the Pioneer receiver.
| PRODUCT PERFORMANCE | |
|---|---|
|
Continuous Power Output
22 W x 4-Channel
|
Load Impedence Allowance
4 Ohm (4 Ohm to 8 Ohm Allowable)
|
|
Max Power Output
50 W x 4-ch 4 ohm ,50 W x 2-ch 4 ohm 70 W X 1-ch (subwoofer) 2 Ohm
|
RCA Preamp Outputs
6-ch
|
|
RCA Preout Voltage
4V
|
RMS Power Output (CTA-2006)
14 W RMS x 4-ch 4 ohm
|
| GENERAL | |
|---|---|
|
Detachable Face Security
Fixed
|
Multi-Language Display
English, French, Spanish Portuguese, Chinese (Simplified)
|
|
Music Browser
USB
|

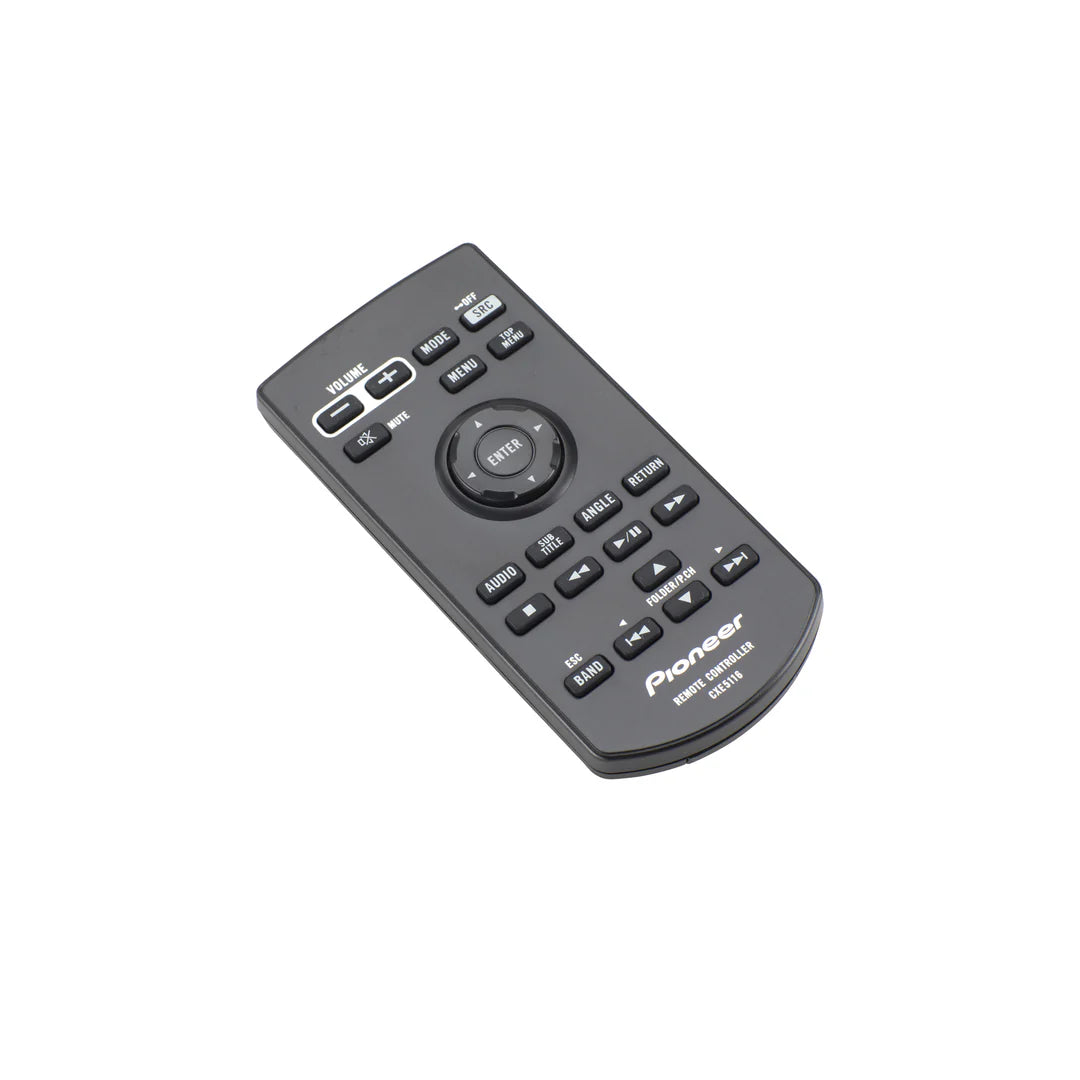

Remote Control
Optional
|
|
Steering Wheel Control Ready (Adapter Sold Separately)
Yes
|
|
| DISPLAY | |
|---|---|
|
Back Light
LED
|
Brightness Control
Yes
|
|
Color Customization
5 display colors, 112 key colors
|
Device (Non-DIN/Modular Unit)
2-DIN
|
|
Dimmer
Automatic with vehicle illumination, Timer Controlled, Manual
|
Display Off Mode
Yes
|
|
Home Screen Customization
Yes
|
Monitor Mechanism
Fixed
|
|
Resolution
WVGA (800 x 480)
|
Screen Size/Aspect Ratio
7"/16:9
|
|
Touch Screen
Resistive
|
|
| BLUETOOTH | |
|---|---|
|
Advanced Audio Distribution Profile (A2DP)
Yes
|
AVRCP
1.6
|
|
Built-in Bluetooth®
Yes
|
Dual Phone Connection
Yes
|
|
Hands-Free
Yes
|
Microphone Included
Included
|
|
Phone Registation
5-phone
|
Secure Simple Pairing (SSP)
Yes
|
|
Serial Port Profile (SPP)
Yes
|
Sound Retriever Air
Mode 1/Mode 2/Off
|
| TUNER | |
|---|---|
|
Best Station Memory
Yes
|
Local Seek tuning
Yes
|
|
Presets
18 FM, 6 AM
|
RDS
Yes
|
|
SiriusXM-Ready™ (Tuner Sold Separately)
Yes
|
|
| INTEGRATION | |
|---|---|
|
Amazon Alexa
Paired with Pioneer Vozsis
|
Android Auto™
Wired USB Connection
|
|
Apple® CarPlay
Wired USB Connection
|
Mobile Operating System
Android,Apple iOS
|
|
Music Playback (MTP)
Yes
|
Pandora®
Source through iPhone/Android
|
|
Pioneer App Compatibility
Vozsis Android, Vozsis iPhone
|
Siri® Eyes Free (VR) (Internet Required)
iPhone Only
|
|
Spotify
Streaming audio through iPhone/Android via Bluetooth or AUX input
|
Voice Control
Yes
|
|
Weblink
Yes
|
|
| DIGITAL MEDIA PLAYBACK | |
|---|---|
|
Audio Playback via USB
MP3 Audio Playback,WMA Audio Playback,WAV Audio Playback (Hi-Res),AAC Audio Playback,FLAC Audio Playback (Hi-Res)
|
Audio Video Playback via USB
H.263,H.264,.avi,.mpg/mpeg,.divx,.mp4,.3gp,.mkv,.mov,.flv,.wmv/.asf,.m4v,.ts/.m2ts/.mts
|
|
Image Display Via USB
JPEG,BMP,PNG
|
|
| AUDIO | |
|---|---|
|
Advanced Sound Retriever
Mode-1/Mode-2/Off
|
Audio Bass Boost
Yes
|
|
Auto EQ (CD-MC20 Microphone sold separately)
Yes
|
Automatic Level Control
Mode-1/Mode-2/Off
|
|
Balance
Yes
|
Built-in Amplifier
MOSFET 50 W x 4
|
|
Crossover Network Mode
HPF/Band Pass/LPF
|
Crossover Standard Mode
HPF/LPF
|
|
Customizable Graphic Equalizer
13 Band
|
DA Converter
24 Bit
|
|
Digital Signal Processor
Built In
|
Easy EQ (EEQ) Preset Equalizer
Yes
|
|
Listening Position Selector
Yes
|
Loudness
High/Mid/Low/Off
|
|
Speaker Output
4-ch
|
Spectrum Analyzer
Yes
|
|
Subwoofer Control
Yes
|
Time Alignment
Auto,Manual
|
| EXPANDABILITY | |
|---|---|
|
Audio Video Inputs
Input 1 - Backup Camera Dedicated,Input 2 - AUX (Minijack),Input 3 - A/V or 2nd Camera
|
OEM Integration
iDatalink Maestro RR
|
|
Parking Assist Lines
Yes
|
RCA-Video-Output
Yes
|
|
USB
Single Rear Type-A (5V, 1-1/2 A)
|
USB Direct Control for iPhone®
5s and newer
|
