Automobility Distribution Inc.

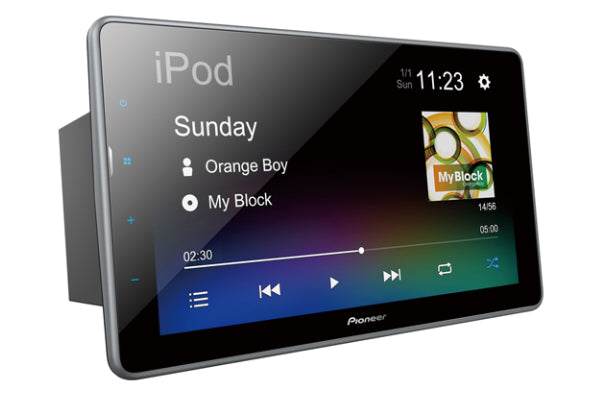

PIONEER 9" DOUBLE DIN RECEIVER W/ AM/FM/BT/USB/AUX
Couldn't load pickup availability
Floating display
The floating display configuration allows a large display to be installed using a universal 2-DIN chassis. The floating screen offers horizontal, vertical, and tilt adjustability to ensure the best fit and usability in the vehicle's dash.
Weblink® Smartphone Interface (Wired)
WebLink enables smartphone app projection from many popular Android® and iOS® devices to in-vehicle touch displays. WebLink for Pioneer AV receivers expands in-car entertainment with an amazing array of apps.
Pioneer Vozsis with Alexa app.
Invite Amazon's versatile voice assistant into your car with a WebLink-compatible Pioneer in-dash multimedia receiver and the Vozsis with Alexa app. With a tap of the touchscreen and your voice, you can access Amazon Prime Music, Audible audiobooks, your Kindle library, Flash Briefings, and more to stay informed and entertained during your drive.
Bluetooth
This receiver makes hands-free phone calls simple. Pioneer’s included external microphone provides crystal clear sound. Stream music, podcasts, audiobooks, and more from your compatible phone or other Bluetooth® devices.
Back up camera input (1-camera)
Back up safely in any crowded parking area. Install a rear-view camera to use the receiver’s built-in parking guides for easy parking, with adjustable parking lines and full screen image for ease of use.
Wired Remote Input
This receiver integrates an input specifically designed to connect a third-party interface (optional) which will allow you to keep the key functions from the steering wheel control buttons of your vehicle. (if applicable)
FLAC
Your love of high-res audio does not need to stop at the front door. Enjoy FLAC files in your vehicle without the need to convert. Pioneer's NEX in-dash receivers were the first in the industry to offer playback of files encoded as high-res FLAC up to 192kHz/24 bit and provide playback output at CD quality. With Pioneer, your high-res FLAC is no longer confined to your home hi-fi system - put your music on the move.
Audio Equalizer
The 13-band equalizer allows for detailed adjustments to your acoustic settings. This lets you tailor the equalization to match your car's interior acoustics and speaker characteristics as desired. Multiple EQ presets ensure that even users with basic acoustic knowledge can learn and enjoy the benefits of using an equalizer.
| PRODUCT PERFORMANCE | |
|---|---|
|
Continuous Power Output
22 W x 4-Channel
|
Load Impedence Allowance
4 Ohm (4 Ohm to 8 Ohm Allowable)
|
|
Max Power Output
50 W x 4-ch 4 ohm
|
RCA Preamp Outputs
5-ch
|
|
RCA Preout Voltage
2V
|
RMS Power Output (CTA-2006)
14 W RMS x 4-ch 4 ohm
|
| GENERAL | |
|---|---|
|
Detachable Face Security
Fixed
|
Multi-Language Display
English, French, Spanish Portuguese, Chinese (Simplified)
|
|
Music Browser
USB
|
Steering Wheel Control Ready (Adapter Sold Separately)
Yes
|
| DISPLAY | |
|---|---|
|
Anti Glare/Reflection
Yes
|
Back Light
LED
|
|
Brightness Control
Yes
|
Color Customization
5 key colors,3 Preset Background Images
|
|
Device (Non-DIN/Modular Unit)
2-DIN
|
Dimmer
Automatic with vehicle illumination, Manual
|
|
Display Off Mode
Yes
|
Monitor Mechanism
Fixed
|
|
Resolution
WVGA (1024 x 600)
|
Screen Size/Aspect Ratio
9"/16:9
|
|
Touch Screen
Capacitive
|
|
| BLUETOOTH | |
|---|---|
|
Advanced Audio Distribution Profile (A2DP)
Yes
|
AVRCP
1.6
|
|
Built-in Bluetooth®
Yes
|
Hands-Free
Yes
|
|
Microphone Included
Included
|
Phone Registation
5-phone
|
|
Secure Simple Pairing (SSP)
Yes
|
Serial Port Profile (SPP)
Yes
|
| TUNER | |
|---|---|
|
Best Station Memory
Yes
|
Local Seek tuning
Yes
|
|
Presets
18 FM 12 AM
|
PS (Preset Scan)
Hide or display radio station name
|
|
RDS
Yes
|
|
| INTEGRATION | |
|---|---|
|
Amazon Alexa
Paired with Pioneer Vozsis
|
Mobile Operating System
Android,Apple iOS
|
|
Pandora®
Bluetooth Audio Source
|
Pioneer App Compatibility
Vozsis Android, Vozsis iPhone
|
|
Siri® Eyes Free (VR) (Internet Required)
iPhone Only
|
Spotify
Bluetooth Audio Source
|
|
Voice Control
Yes
|
Weblink
3.0
|
| DIGITAL MEDIA PLAYBACK | |
|---|---|
|
Audio Playback via USB
AAC Audio Playback,FLAC Audio Playback (Hi-Res),MP3 Audio Playback,WAV Audio Playback (Hi-Res),WMA Audio Playback
|
Audio Video Playback via USB
.avi,.mpg/mpeg,.mp4,.mkv,.mov,.flv,.m4v,.ts/.m2ts/.mts,H.263,H.264
|
|
Image Display Via USB
BMP,JPEG,PNG
|
|
| AUDIO | |
|---|---|
|
Audio Bass Boost
Yes
|
Balance
Yes
|
|
Built-in Amplifier
MOSFET 50 W x 4
|
Crossover Standard Mode
HPF/LPF
|
|
Customizable Graphic Equalizer
13 Band
|
DA Converter
24 Bit
|
|
Digital Signal Processor
Built In
|
Easy EQ (EEQ) Preset Equalizer
Yes
|
|
Loudness
High/Mid/Low/Off
|
Speaker Output
4-ch
|
|
Subwoofer Control
Yes
|
|
| EXPANDABILITY | |
|---|---|
|
Audio Video Inputs
Input 1 - Backup Camera Dedicated,Input 2 - AUX (Minijack)
|
Firmware upgradability
Yes
|
|
RCA-Video-Output
Yes
|
USB
Single Rear Type-A (5V, 1-1/2 A)
|
|
USB Direct Control for iPhone®
5s and newer
|
|
