JBL 8-CHANNEL DSP AMPLIFIER
Couldn't load pickup availability

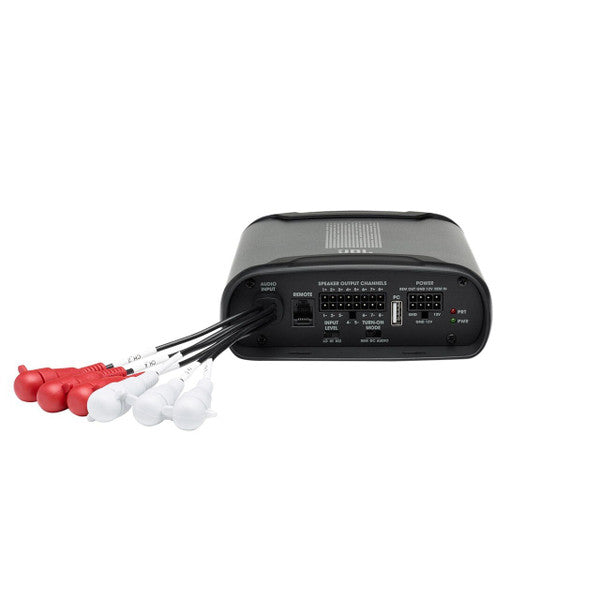

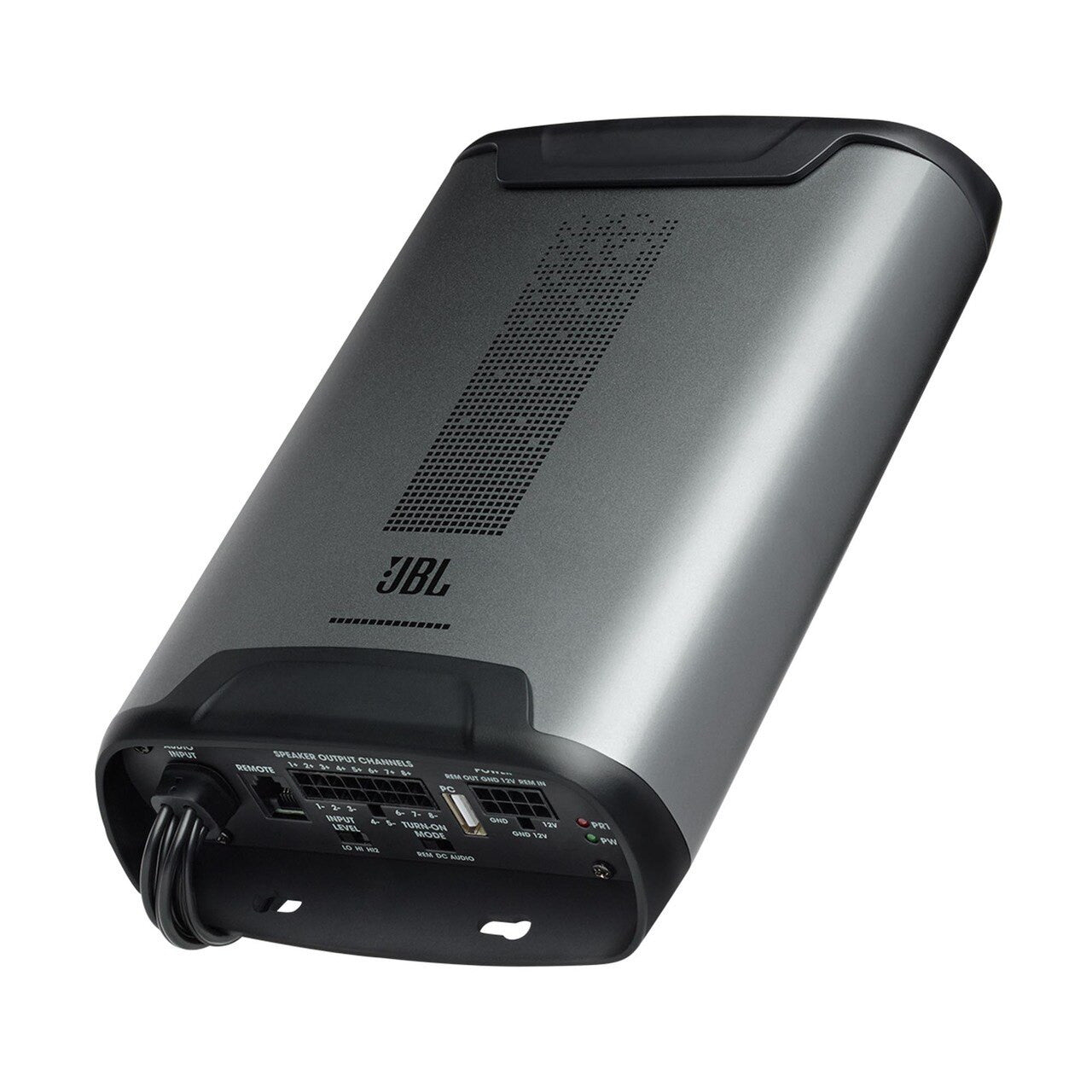

JBL DSP4086AM 8-Channel Car Amplifier with Digital Signal Processing
JBL DSP Amplifier is an audio processor for fine-tuning of aftermarket audio systems. It is a self-contained audio system with 6-channel audio inputs, 8-channel powered audio outputs, an easy to use tuning interface a novice can understand and detailed tuning capabilities to satisfy even experienced installers.
With a USB connection to access the tuning interface using a Windows PC, you can control fully variable crossovers, selectable 0-to-48dB slopes, time delay, 31-band parametric or graphic EQ adjustment, assignable input to output mixer with input channel summing, channel gain, master volume control, clipping indicator to ensure the audio output is not distorted and ability to save up to 10 presets.

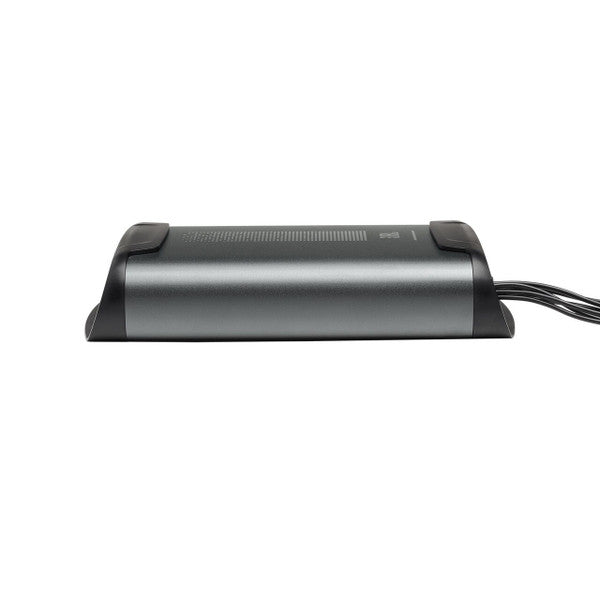

Small footprint, All-in-One Class D Amplifier with DSP Control
JBL DSP Amplifier has everything you need to create a professional sound quality audio system with the ability to mount your amplifier in tight spaces.
Everything You Need to Get Started
JBL DSP Amplifier has everything you need to create an audio system, or expand your existing one, plus the ability to add more power by using it as a line driver when you are ready for your next power upgrade.
Simple Tuning Interface with Complex Features
Easy-to-use tuning interface anyone can understand, learn and control with enough horsepower to satisfy experienced installers. The Windows PC user interface includes variable crossover control, 0-to-48dB selectable slopes, 31-band parametric or graphic EQ adjustment, time delay in 0.2ms, output clipping indicator, assignable input to output mixer with input channel summing, output channel gain, master volume control, clipping indicator and ability to save up to 10 presets.

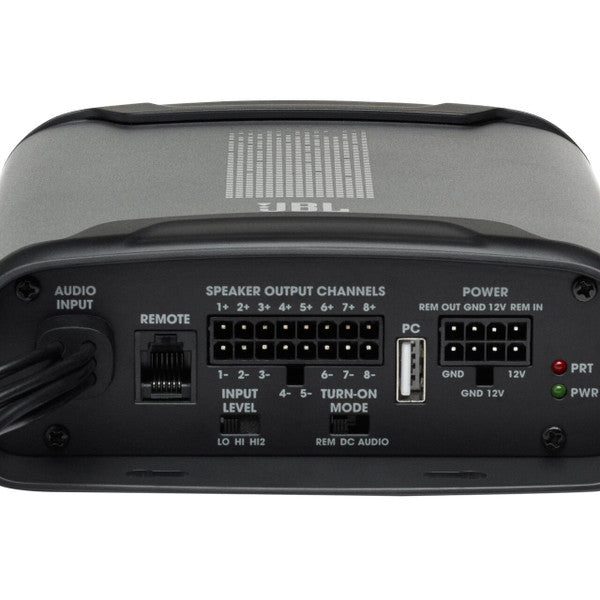

Versatile Connectivity

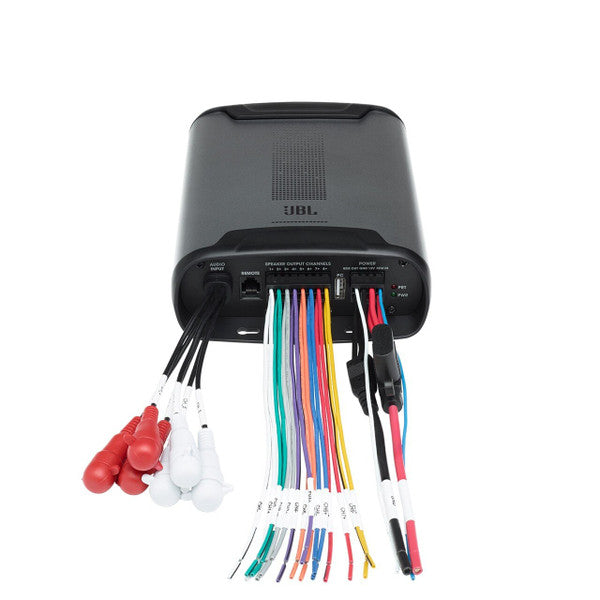

This amplifier has balanced differential inputs to provide you with the best sound quality & noise rejection, can accept RCA or speaker-level inputs so it'll work in almost any system, and the package includes screw-on RCA-to-bare wire adapters for the speaker-level signal. Plus, all wire connections are conveniently labeled to make installation a cinch.
Convenient Bass Control
Wired remote control allows for quick adjustment of low frequency output with -30 to +6dB adjustment directly from the driver's seat.
Conformal Coated PCB
Your JBL DSP Amplifier is engineered to withstand harsh conditions present in a wide variety of applications, using conformal coated circuit boards to ensure flawless power delivery, year after year.
Product Highlights:
-
8-channel car amplifier with digital signal processing
- 40 watts RMS x 8 at 4 ohms
- 60 watts RMS x 8 at 2 ohms
-
DSP and EQ tuning tool adjustments made via USB connection to a Windows PC
- Save up to 10 presets
- Inputs: 6 assignable preamp and speaker-level (RCA adapters included)
- Outputs: 8 powered and processed
Adjustment Details:
- 32-band EQ (selectable parametric or graphic)
-
Adjustable high-, low-, and band-pass filters (20-20,000 Hz)
- Selectable filter slopes 6, 12, 18, 24, 30, 36, 42, 48 dB/octave)
- Adjustable delay: 0 to 12ms in 0.2ms increments
- Phase adjustment: 0 or 180°
- Programming done by a Windows-run PC
Other Features:
- Includes wired remote for ch 7/8
- Fuse rating: 40A x 1
-
Wiring and hardware not included with amplifier
- 8-gauge power and ground leads recommended
- Dimensions (W x H x D): 5-11/16" x 2" x 9-3/8"
What's in the Box:
- 8-Channel DSP amplifier w/ attached 6" 6-RCA input harness
- Remote bass level control
- 16.5' Remote level control cable (RJ-12 connectors both ends)
- 8" Power/ground/Rem harness (inline 40A ATO fuse)
- 8" 16-Pin speaker output harness
- 70" USB Cable (type-A both ends / 2.0)
- 6 Input adapters (RCA to set-screw)
- Spare 40A ATO fuse
- Four 15mm screws
- Two 10mm screws
- 4 Large flat-washers
- 4 Small flat-washers
- 4 Lock-washers
- Four 6-1/2" wire ties
- Owner's manual (Eng/Span/Fren/Others)
