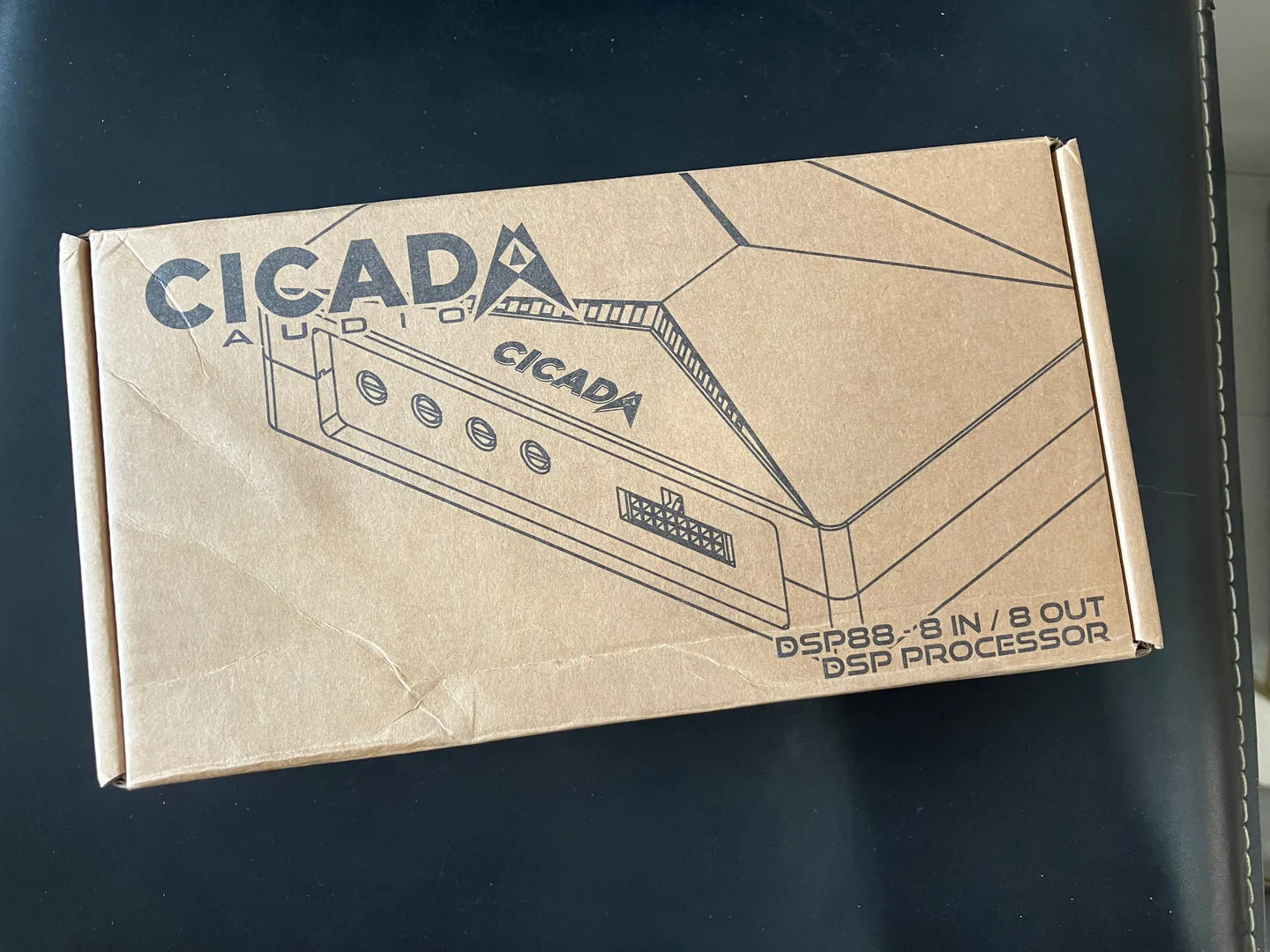

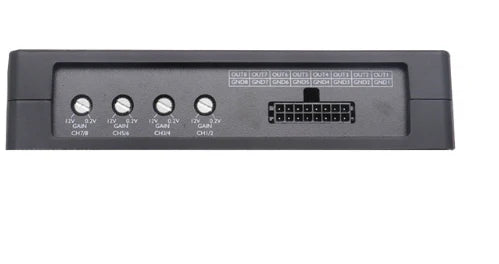

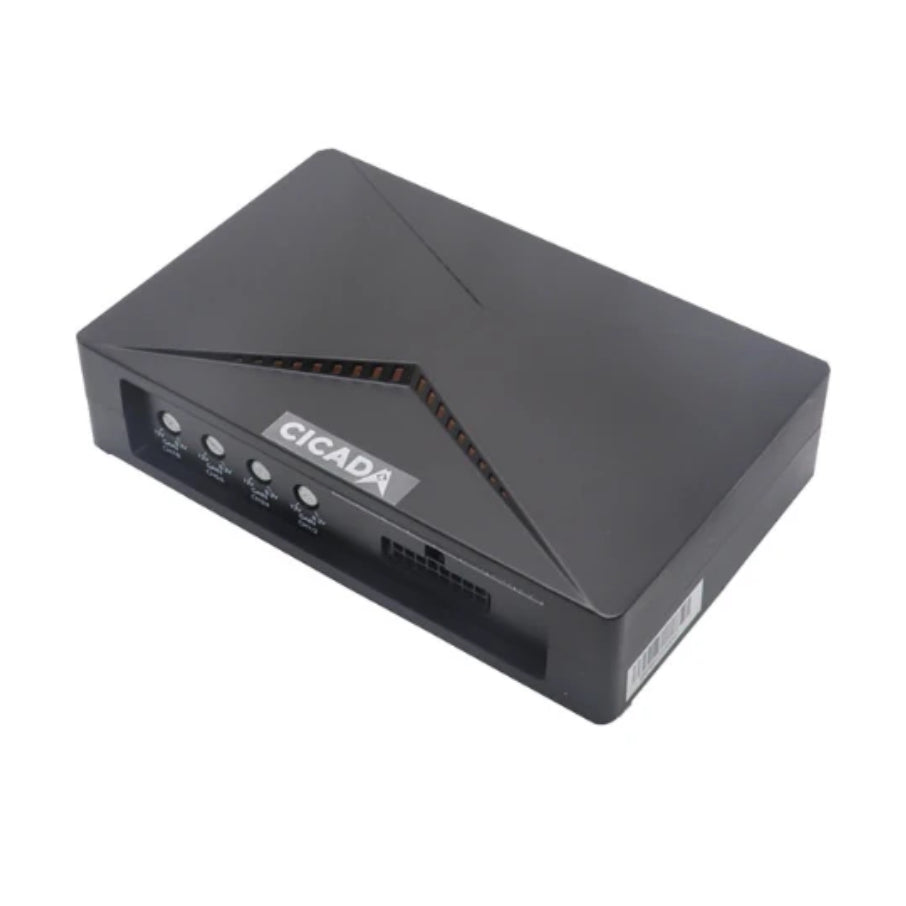

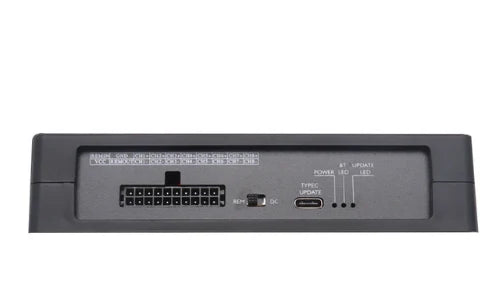

CICADA AUDIO 8IN/8OUT DSP PROCESSOR

$549.99 CAD
$549.99 CAD
Sale Sold out
Shipping calculated at checkout.

DSP88 – 8 CHANNEL DSP PROCESSOR – 8 IN/8 OUT

  • Signal Input:  8 High-Low Level Inputs
  • Signal Output:  8 RCA Outputs
  • Output Impedance: 200 Ohms
  • Frequency Response:  20Hz – 20kHz +/- 0.5Db
  • Input Voltage:  0.02V –  12V
  • Input Impedance:  20k Ohms
  • Output Voltage: Up to 8V (Unity gain 4V gets UP to 4 V out, 2 V in gets UP to  2 V out, etc.)
  • THD+N:  <1.0%
  • Signal-to-Noise:  >100 dBA (A-weighted)
  • Digital Signal Processing (DSP):
    Speed: 147 MIPS    Precision: 32-Bit    Accumulators: 72-bit
  • Digital to Analog (DAC):  Precision: 24-Bit
  • Dynamic Range: 108 dB
  • THD+N: -98 dB
  • Analog to Digital (ADC):  Precision: 24-Bit
  • Dynamic Range: 105 dB
  • THD+N: -98 dB
  • Operating Voltage:  9 – 16 VDC
  • Crossover Frequency:  Variable: 20 Hz to 10 kHz
  • Crossover Slope:  Selectable Slope: 6/12/18/24/36/48 dB/Octave
  • EQ Frequency Controls:  Selectable Q: 0.05 to 20.0
  • Dimensions (H x W x D): 1.26″ x 4.04″ x 5.12″ (32 mm x 102.5 mm x 130 mm)
