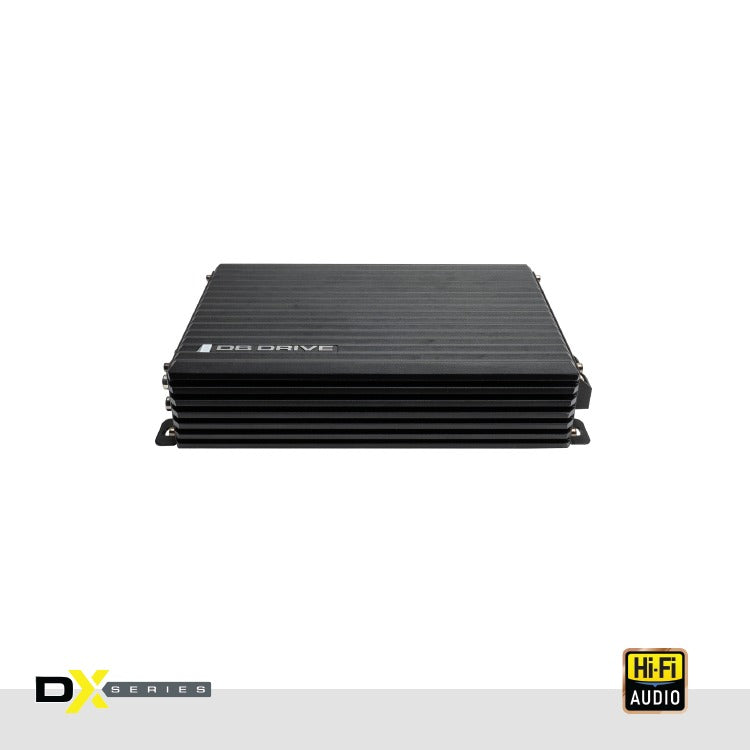

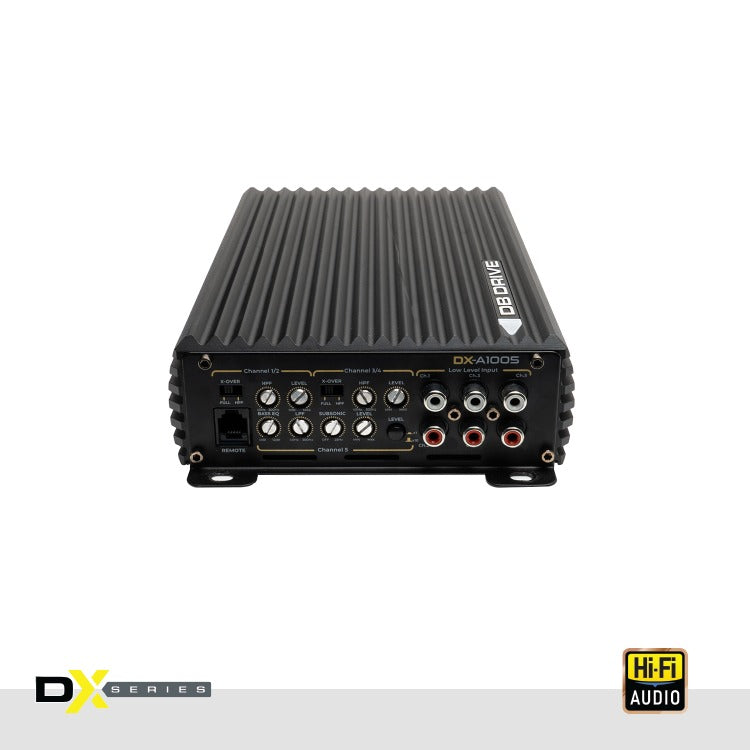

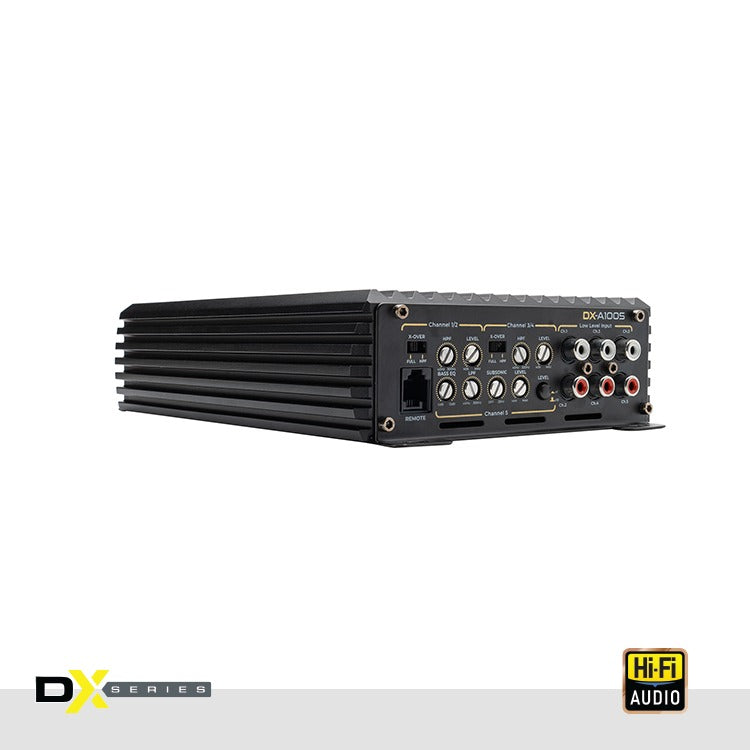

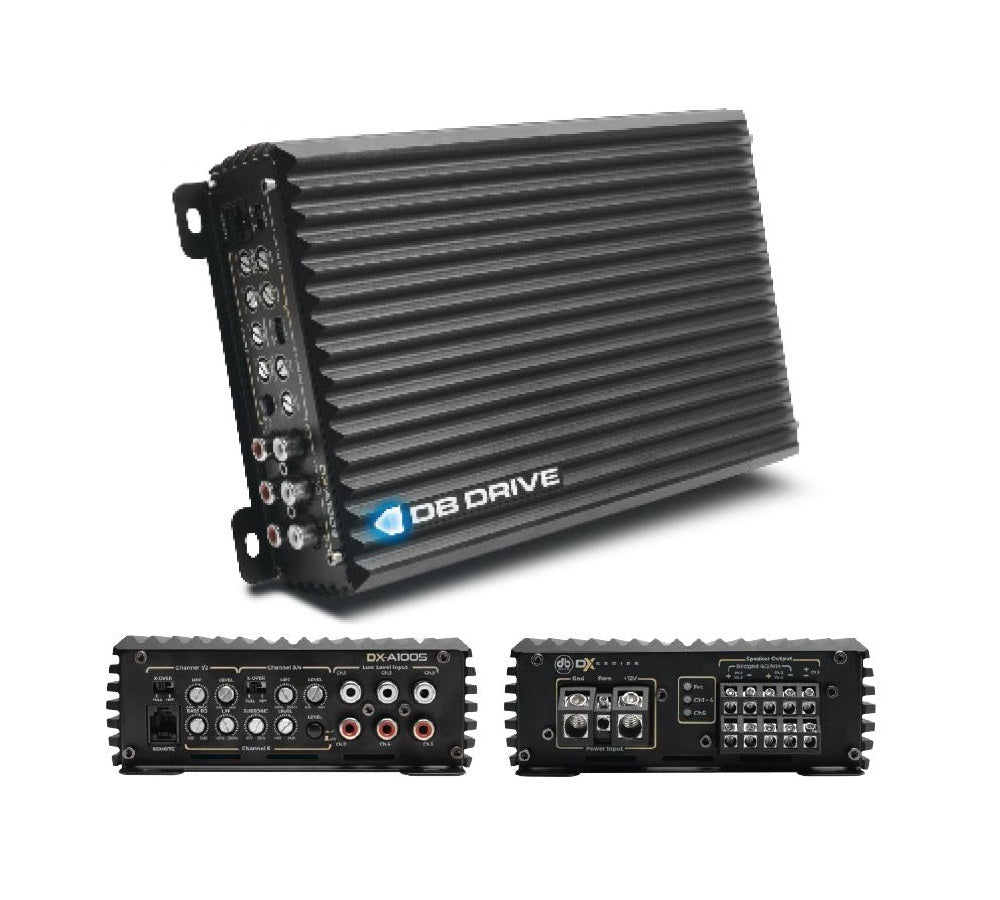

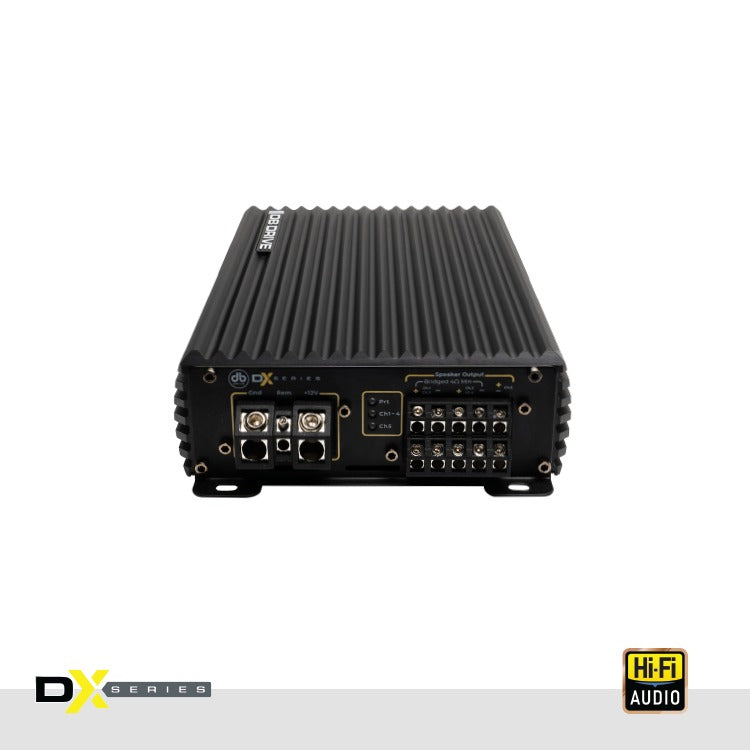

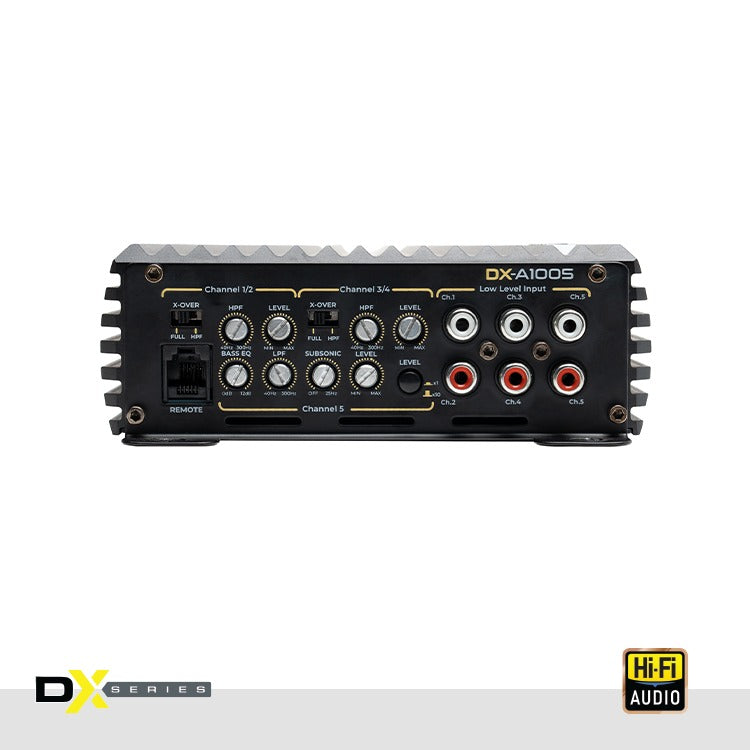

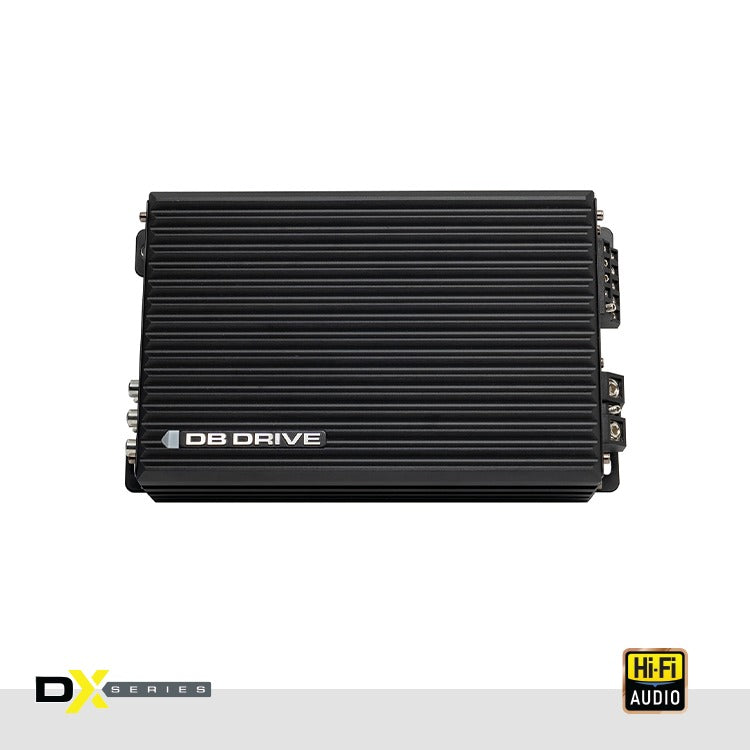

DX-A1005 DB Drive DX Amplifier (4 x 80W + 1 x 200W Rated - Class D 5-Channel)
Couldn't load pickup availability
The DB DRIVE DX-A1005 delivers powerful, dynamic sound for both audiophiles and casual listeners. Key Features: Powerful Output: 90W x 4 at 4 ohms + 350W for the subwoofer at 2 ohms, ensuring deep, precise sound. High-Efficiency Design: Perfect for modern electrical systems and compact vehicles. Adaptive Crossover: Fine-tune your bass for optimal sound. Hi-Fi Playback: Delivers distortion-free, high-resolution audio. Precision Tuning: Metal potentiometers for stable settings. 4-Layer PCB: Provides cleaner, more accurate sound. Compact Design: Easy installation in tight spaces. Transform your car into a high-performance sound system with the DB DRIVE DX-A1005. Experience superior sound today.
Features
- Class D Technology

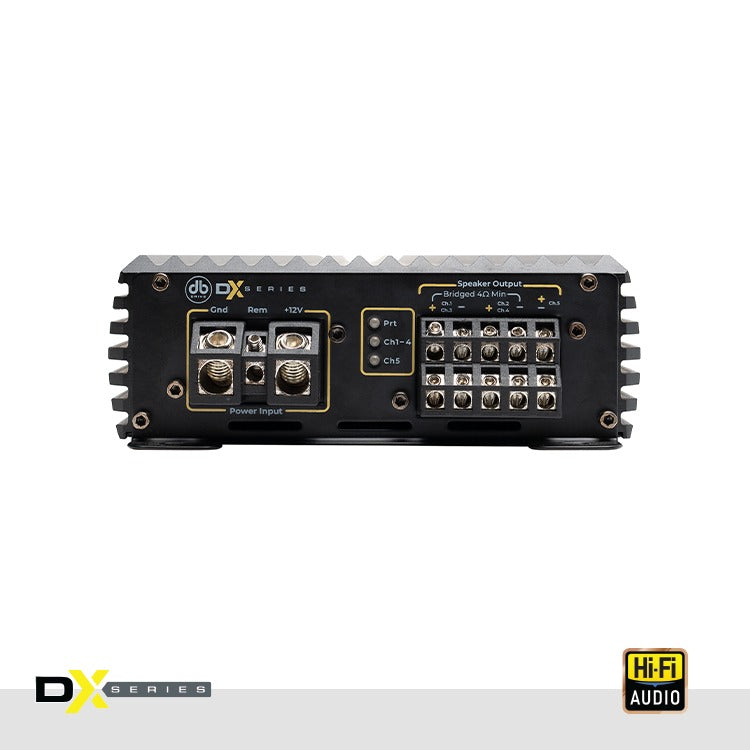

- Direct Connect Speaker Terminals
- Large Gauge Power Wire Inputs
- PWM Mosfet Regulated Power Supply
- APC - Audio Protection Circuit
- SESI - Signal Evaluation Status indicator
- CHM - Collective Heat Management
- 2Ω stereo / 4Ω Bridged capability
- Remote Bass Control Included
Specifications
- Dynamic Power: 4 x 90 Watts + 250 Watts @ 4Ω
- Dynamic Power: 4 x 150 Watts + 500 watts @ 2Ω
- Rated Power: 4 x 80 Watts + 200 Watts @ 4Ω
- Rated Power: 4 x 140 Watts + 450 watts @ 2Ω
- Ch 1-2 High Pass Crossover: 40Hz - 300Hz
- Ch 3-4 High Pass Crossover: 40Hz - 300Hz
- Ch 5 Low Pass Crossover: 40Hz - 300Hz
- Subsonic Filter: 0 - 25 Hz
- Crossover Slope @ 12 dB
- Bass Boost @ 45Hz : 0-12dB
- Input Sensitivity: 250Mv - 6V
- Signal to Noise ratio : >92dB
- Frequency Response:10Hz-22KHz
