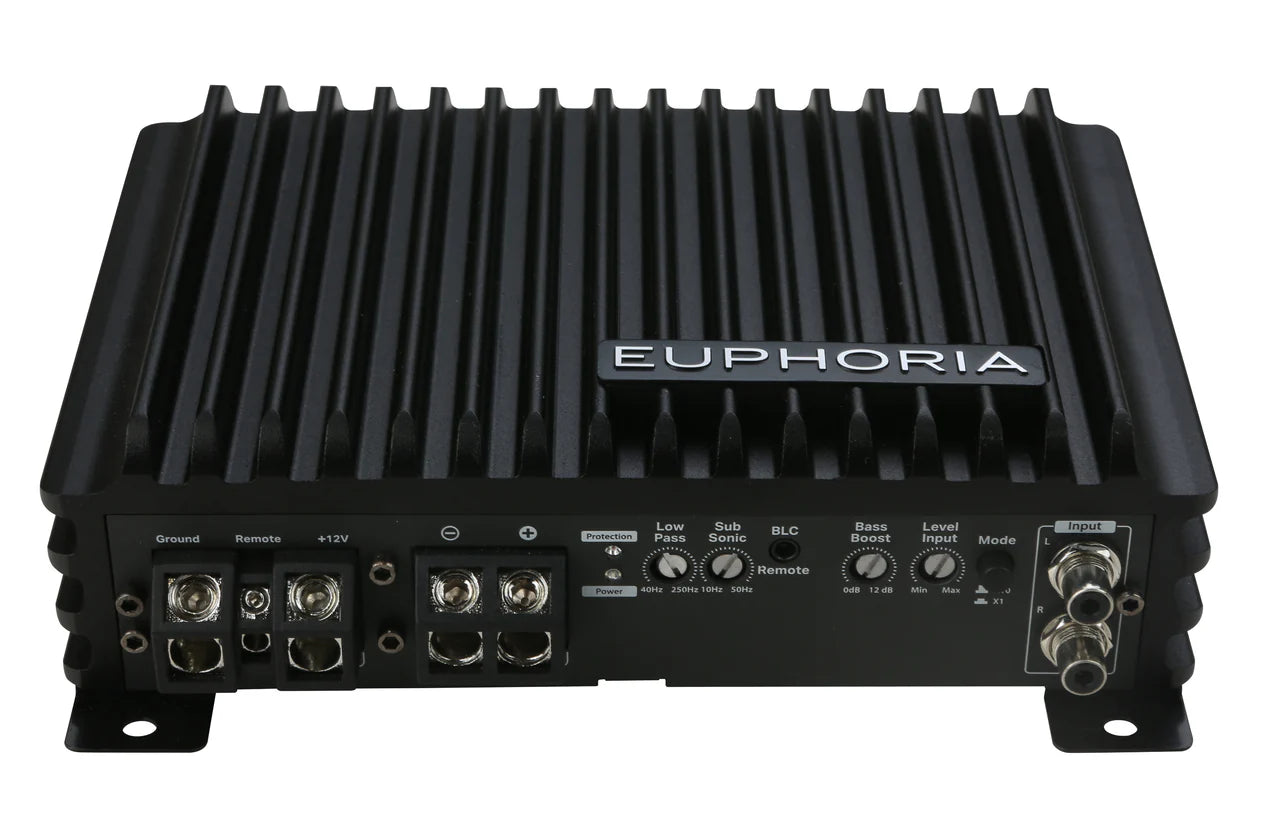

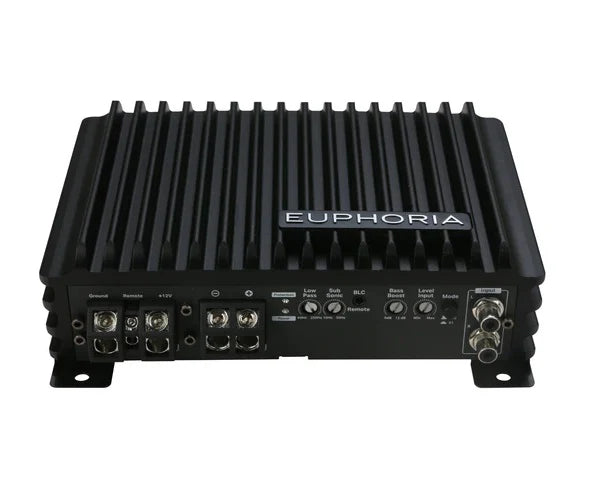

EA1.1200 Euphoria Mono Class D Amplifier

High-efficiency Class D engineering delivers controlled bass performance with electrical efficiency for modern vehicle systems.

1200 watts at 1 ohm delivers deep, controlled bass for serious subwoofer system performance.

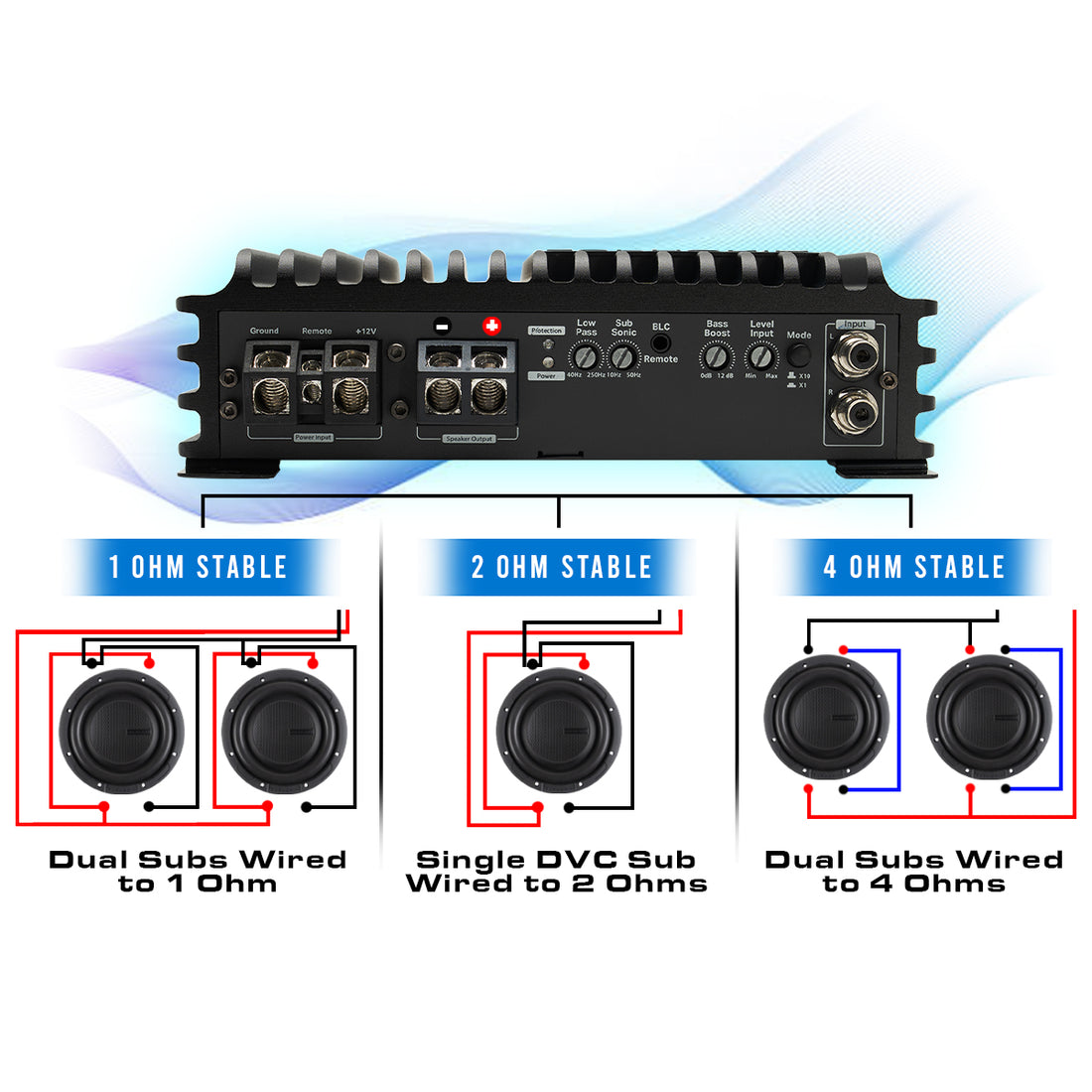

Stable 1, 2, and 4-ohm operation gives you more freedom across a wide range of subwoofer setups.

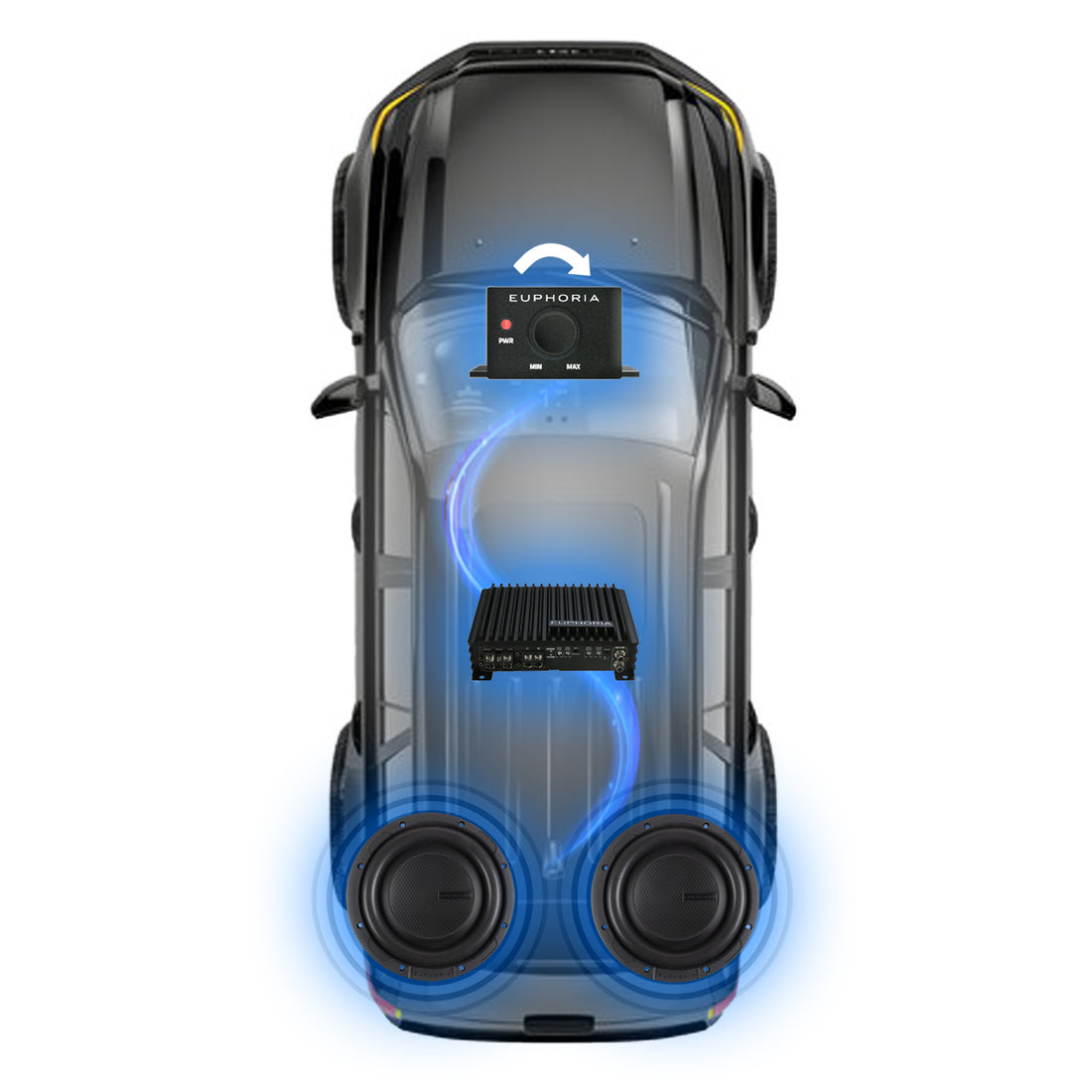

Included remote gain control lets you adjust bass output directly from the dash with ease.

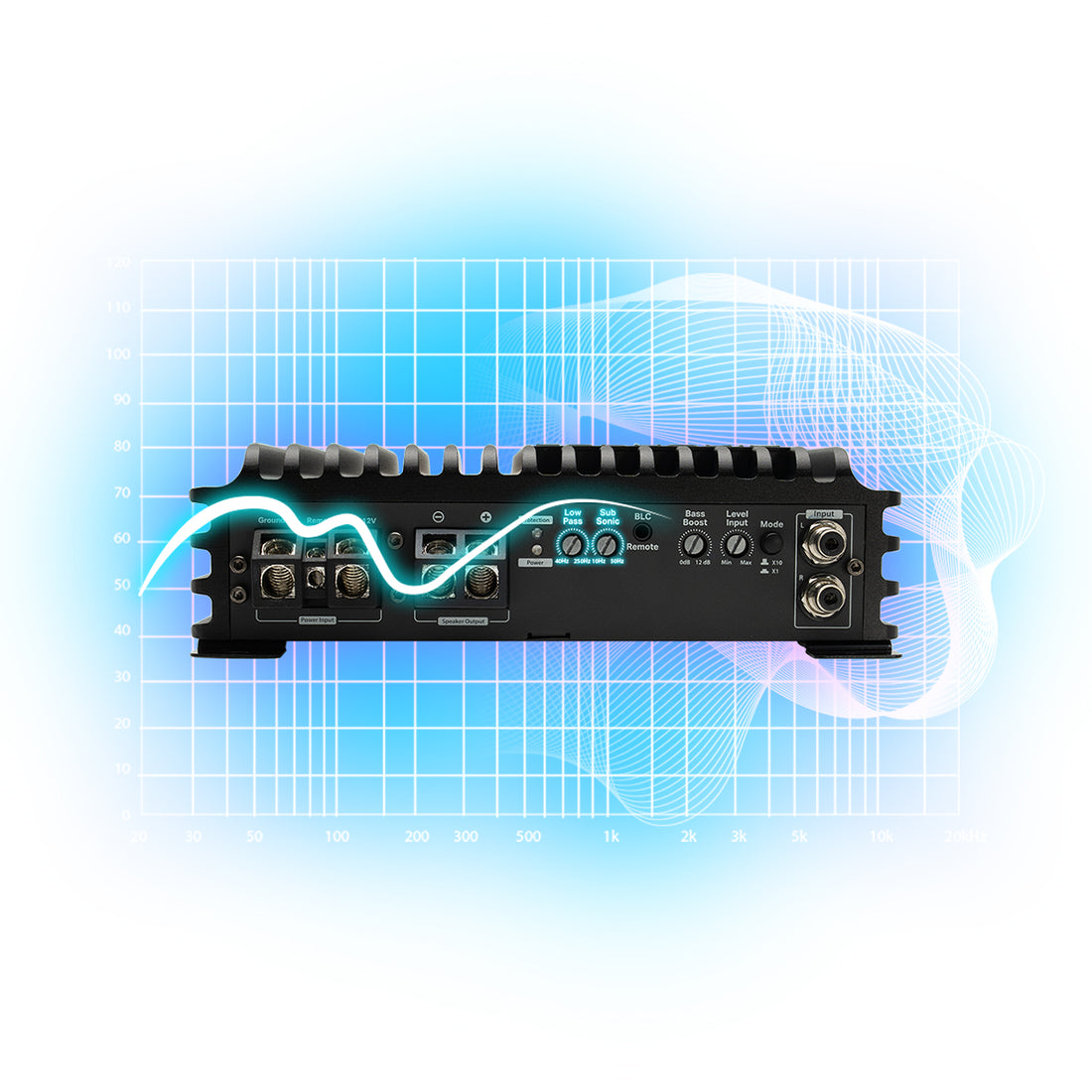

Adjustable low-pass and subsonic filtering help shape cleaner, tighter bass for better subwoofer integration.

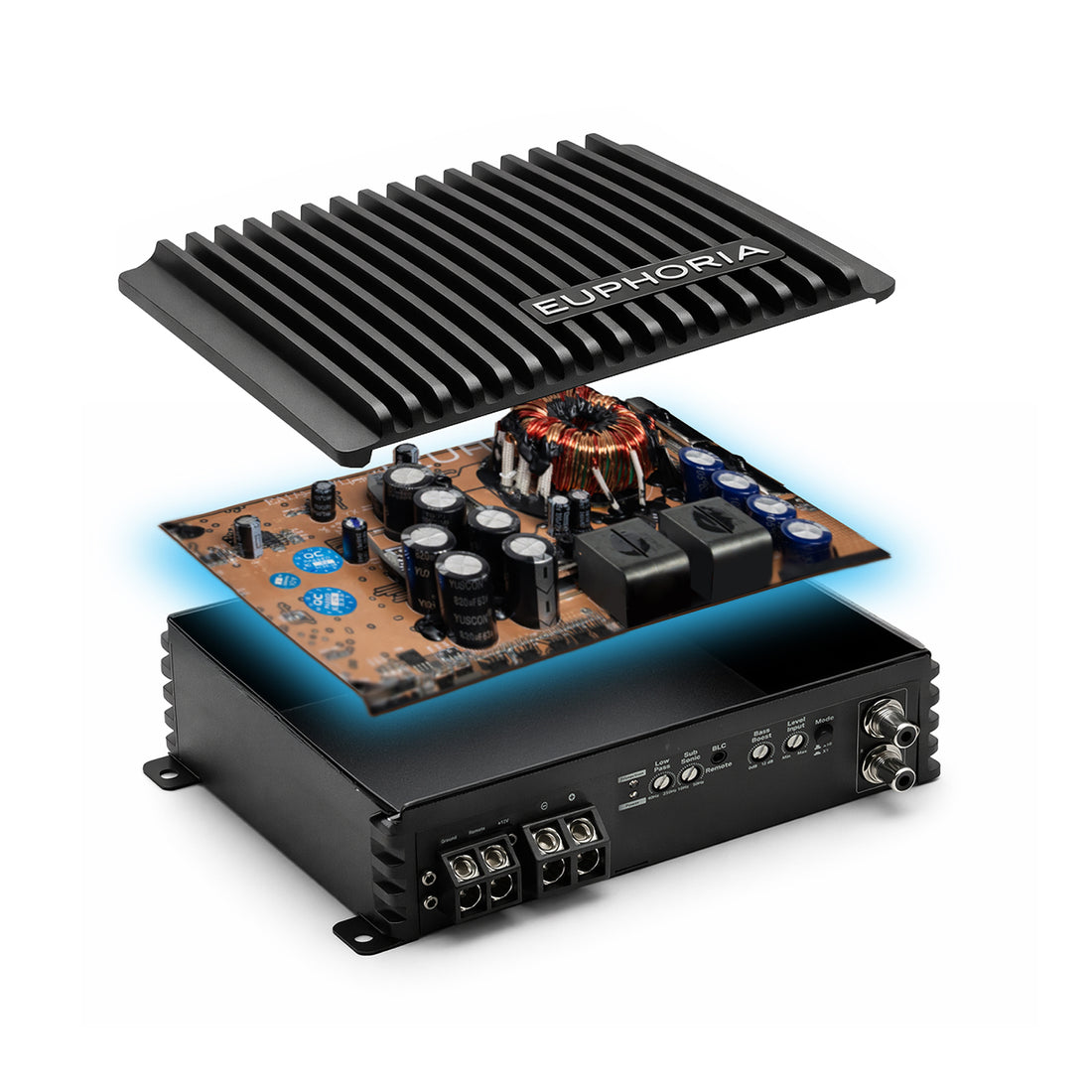

Tiffany RCA connectors, metal potentiometers, and a 4-layer PCB support cleaner signal handling and accurate tuning.

 Features

• High efficiency full range Class D Technology

• Audiophile Grade tiffany RCA connectors

• ACT- adaptive Low-Pass filter

• ACT- adaptive Subsonic filter

• SESI- Operation status indicator

• Bass optimization EQ

• Direct Connect Speaker Outputs

• Large Gauge Power Wire Inputs

• APC - Audio Circuit Protection

• Remote gain control (Included)

• 1 x 1200 Watts @ 1 ohm

• 1 x 600 Watts @ 2 ohms

• 1 x 300 Watts @ 4 ohms

• Low Pass Filter : 40 Hz - 250 Hz

• Sub Sonic Filter: 10 Hz - 50 Hz

• Bass EQ @ 45Hz : 0dB -12 dB

• Working Voltage: 9-16 Volts

• Frequency Response: 20 Hz - 250K Hz

• Signal to Noise Ratio: <85dB

• Damping Factor @ 100Hz - 4volts/4-ohms <400

• Selectable Low Level Input ranges: 350MV - 6.75V
