Euphoria 2 Channel Full Range Class D Amp
Couldn't load pickup availability
Optimize your sound system with the XPERT EX9.2, a full-range Class D amplifier delivering precision, clarity, and dynamic power in a compact design. Engineered for audiophiles and high-performance setups, this two-channel powerhouse ensures efficient amplification and seamless integration.
Key Features:
- Delivers powerful and distortion-free sound output.
- Wide Frequency Response: 20Hz – 30KHz for balanced, high-fidelity audio reproduction.
- High-Pass & Low-Pass Filters: 20Hz – 5KHz (HPF) / 50Hz – 5KHz (LPF) for precise speaker tuning.
- Low-Level Input: 6V – 0.2V – Ensures optimal signal compatibility.
- Damping Factor: 100dB – Provides tight, controlled bass performance.
- Real-Time Signal Processing: <62dB S/N Ratio, maintaining clean and clear sound output.
SPECIFICATIONS:
| Rated Power @ 14.4 Volts | 750 x 2 @ 2 Ω |
| 325 x 2 @ 4 Ω | |
| 1500 x 1 @ 2 Ω bridged | |
| Frequency Response | 20Hz – 30KHz |
| S/N Ratio | <62dB |
| Working Voltage | 10-16 Volts |
| Damping Factor | 100dB |
| Low Level Input | 6V – 0.2V |
| High Pass Filter | 20Hz ~ 5KHz |
| Low Pass Filter | 50Hz ~ 5KHz |

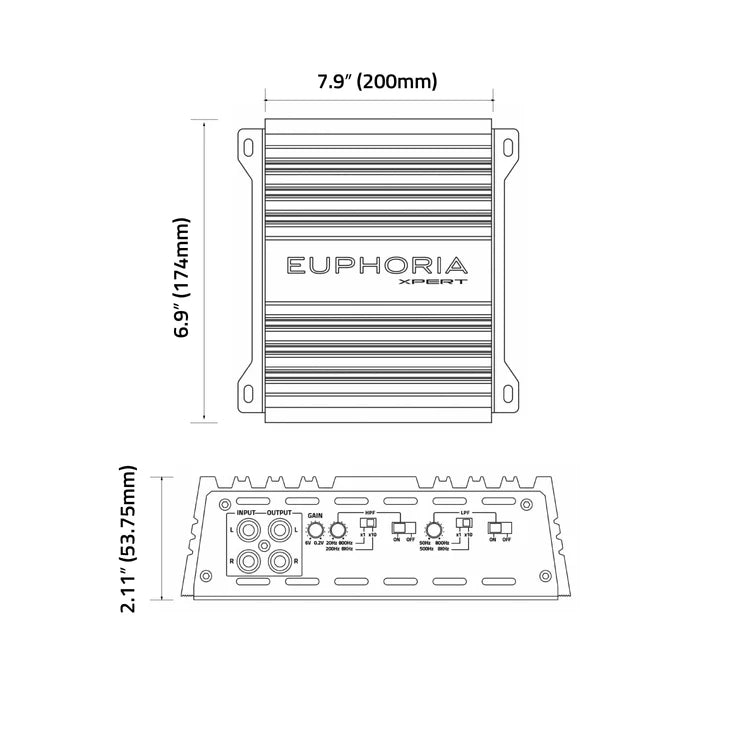

DIMENSIONS:
| Length | 7.9"/ 200 mm |
| Width | 6.9"/ 174 mm |
| Height | 2.11"/ 53.75 mm |
Designed for high-output setups, the XPERT EX9.2 delivers precision, reliability, and immersive sound clarity. Order yours today and experience next-level audio performance!
