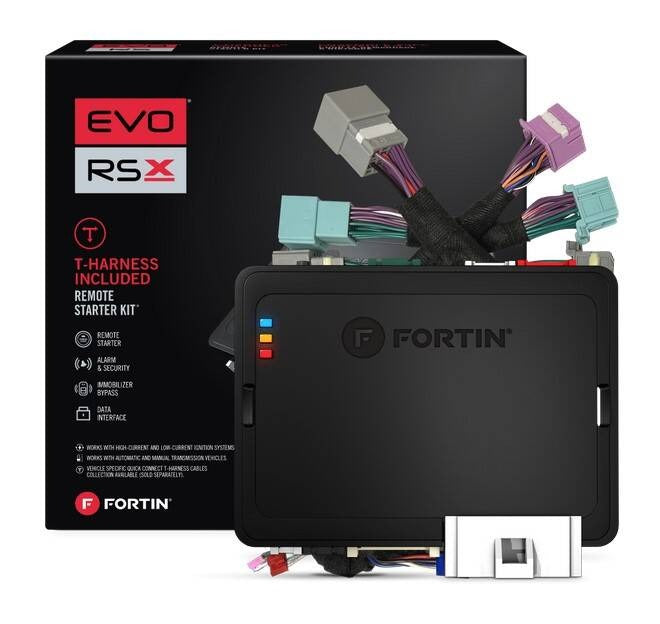

EVO-X-ONE-GM8 Module & T-Harness combo for select Buick, Cadillac, Chevrolet and GMC vehicles

Module & T-Harness combo for select Buick, Cadillac, Chevrolet and GMC vehicles. The EVO-X-GM8 is the ultimate Factory Fit, ALL-IN-ONE data immobilizer bypass, door lock, alarm & remote start interface for select GM vehicles.

It raises the standard of hassle-free installation convenience to a whole new level.

Specs:

• 5 x High power Onboard relay.
• 3 x CAN-Bus controllers.
• 3 x General purpose controllers (J1850, LIN, Class 2, encrypted key etc.).
• 1 x On-board relay (DPDT).
• 1 x Analog controller 0-12VDC @ 20mV steps (Passlock, Parking lights, MUX).10 x Data I/O controllers.
• 1 x Dual zone shock sensor input.
• 2 x Datalink RS232 ports. [4]
• 3 x On-board LEDs for simplified programming and diagnostics.
• 1 x Harness part bag.
• 2 x 2-way datalink port for data-to-data (RS-232) communication with compatible external devices such as smartphones & GPS telematic units. [4]
• Self-Learning algorithm automatically detects the vehicle during programming and adjusts accordingly.
• 1 x TB-X.

What's In The Box:

• 1 x EVO-X-ONE Control Module
• 1 x THAR-X-GM8 Harness
• 1 x TB-X

Legend:

• [1] A firmware update is required
• [2] Updated firmware and installation guides are posted on a regular basis. We recommend that you update this module to the latest firmware and download the latest installation guide(s) prior to the installation of this product.
• [3] Refer to vehicle compatibilty page. Some vehicles may still require a key for remote starter installation.
• [4] Using the 2-way datalink port with an equipped telematic unit greatly increases range and user integration.

NOTE:

• RFK-3641 is NOT compatible with EVO-X-ONE.

NOTE:

• R-LINK2 is required for key programming. (Sold Separately - See Related Products Below).
• Please click here for additional information.
