Focal Flax Evo 6.5" Coaxial Speakers
Couldn't load pickup availability
Equipped with the Flax cone, the woofers from the PC 165 FE kit deliver a very dynamic, natural sound without coloration. In addition, the TMD (Tuned Mass Damper) surround they incorporate stabilizes the surround to achieve better control, and even greater neutrality and linearity.
The ‘M’-profile inverted dome coaxial tweeter, in the center of the speaker driver, offers greater sound definition, without directionality, for an even more detailed listening experience.
Finally, with its engraved aluminum basket and meticulous finishes, PC 165 FE combines style, discretion and modernity for a premium installation in your vehicle.

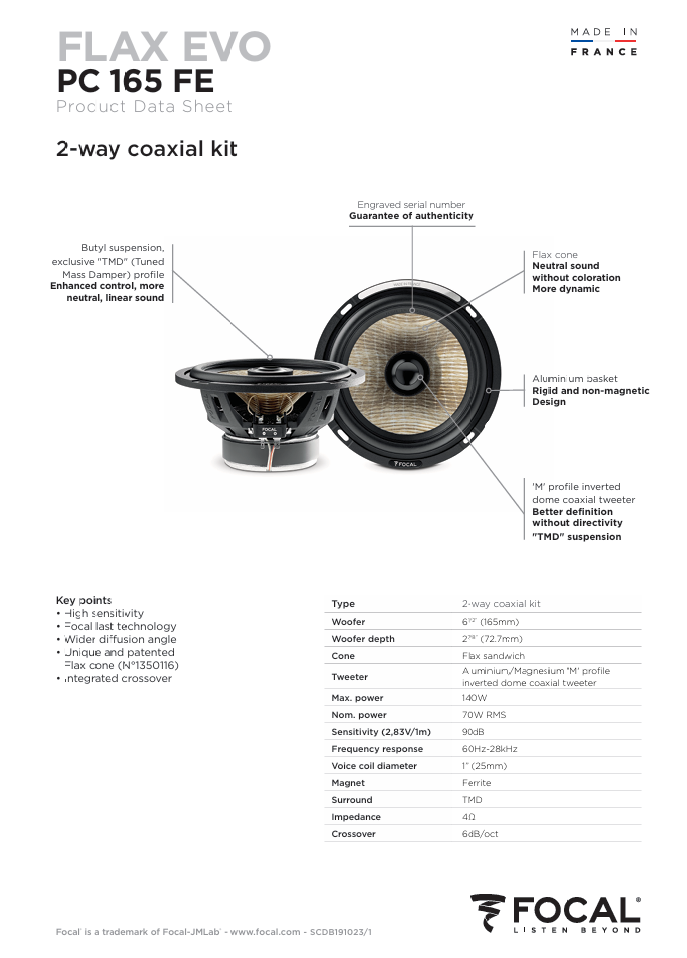

KEY POINTS
- Unique, patented Flax cone
- Butyl surround with exclusive 'TMD’ profile
- Al/Mg ‘M’-profile inverted dome coaxial tweeter
- Made in France in the Focal workshops
- High sensitivity
- Great definition
- Natural, precise sound

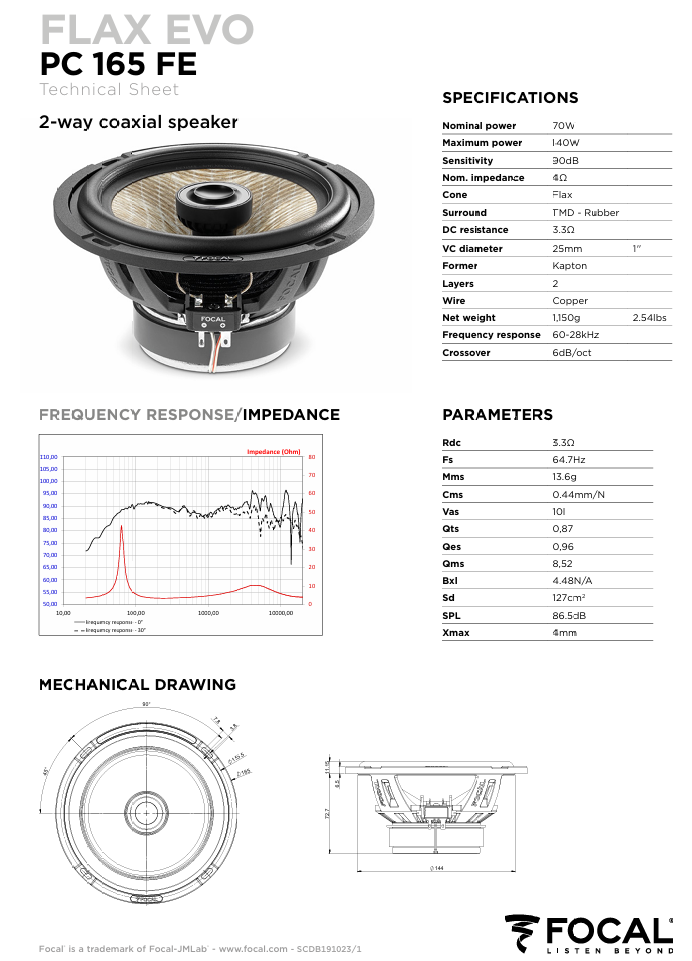

| Mounting Diameter | mm | 144 |
| Mounting Depth | mm | 72.8 |
| Voice Coil Diameter | mm | 25 |
| Nominal Power (RMS) | W | 70 |
| Maximum Power | W | 140 |
| Nominal Impedance (Znom) | Ω | 4 |
| Frequency Response | Hz | 60-28k |
| DC Resistance (Re) | Ω | 3.3 |
| Resonance Frequency (Fs) | Hz | 64.7 |
| Equivalent Volume (Vas) | L | 10 |
| Moving Mass (incl. Air Load) (Mms) | g | 13.6 |
| Suspension Compliance (Cms) | μm/N | 0.44mm |
| Force Factor (BL) | NA | 4.48 |
| Mechanical Q Factor (Qms) | 8.52 | |
| Electrical Q Factor (Qes) | 0.96 | |
| Total Q Factor (Qts) | 0.87 | |
| Sensitivity (2,83 V/1m) | dB | 90 |
| Net Weight (per Speaker/Component) | lbs | 2.54 |
