Audio Concepts

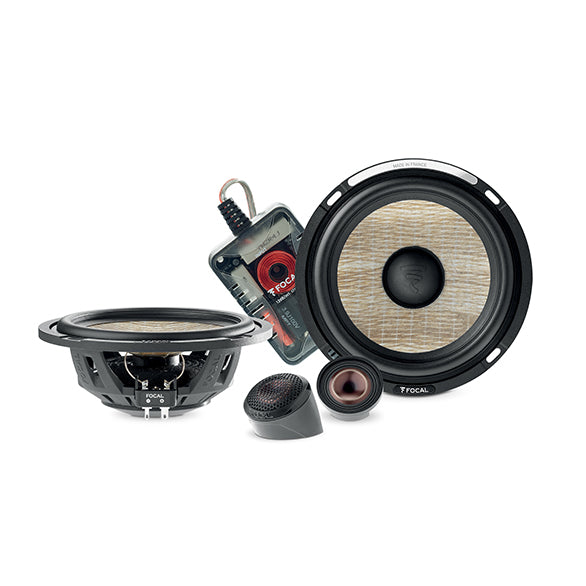

Focal Flax Evo 2-Way 6.5" Shallow Component Speaker Kit
Couldn't load pickup availability
This flax cone has been exclusively made in France by Focal since 2013. With its original design, it is 100% geared towards acoustic performance. This sandwich cone is formed of a flax fibre core placed between two thin sheets of glass fibre. Flax is a fibre with the unique ability to reproduce a very natural sound without coloration, with a rich reproduction in the midrange and clear bass strokes. Its lightness offers great dynamics, while its rigidity sustains the bass and provides good damping to deliver a faithful listening experience. Flax fibre is twice as light as glass fibre as it is hollow. Its very low elasticity makes it ideal for increasing the flexural rigidity module of a sandwich structure.

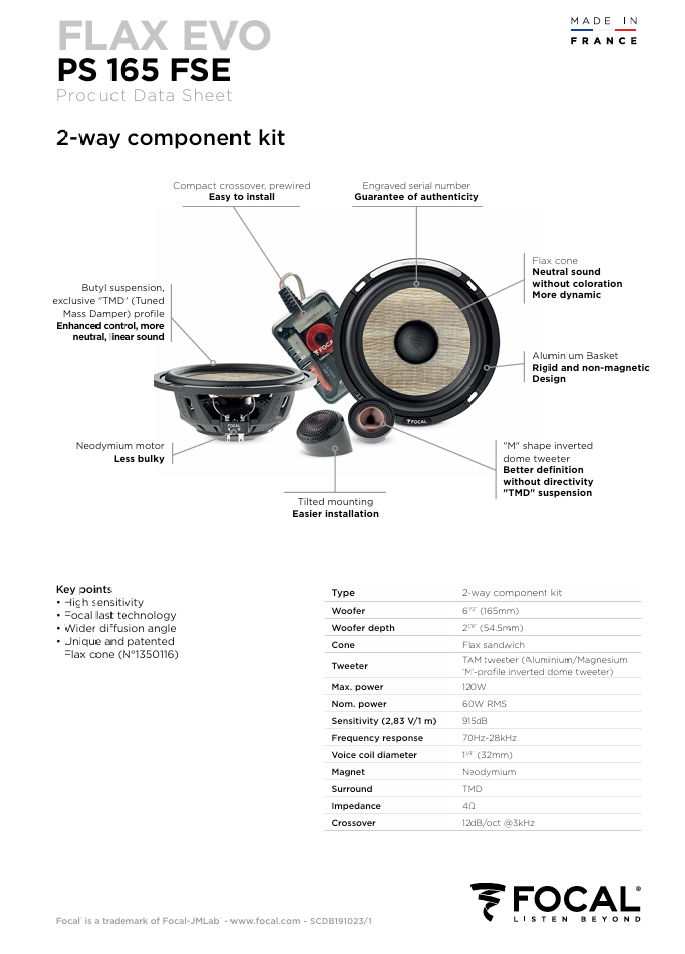

Product Features:
- Unique, patented Flax cone
- Butyl surround with exclusive 'TMD’ profile
- Al/Mg ‘M’-profile inverted dome TAM tweeter
- Made in France in the Focal workshops
- High sensitivity
- Slim design: easy installation
- Wider diffusion angle
- Natural, precise sound
- Easy installation

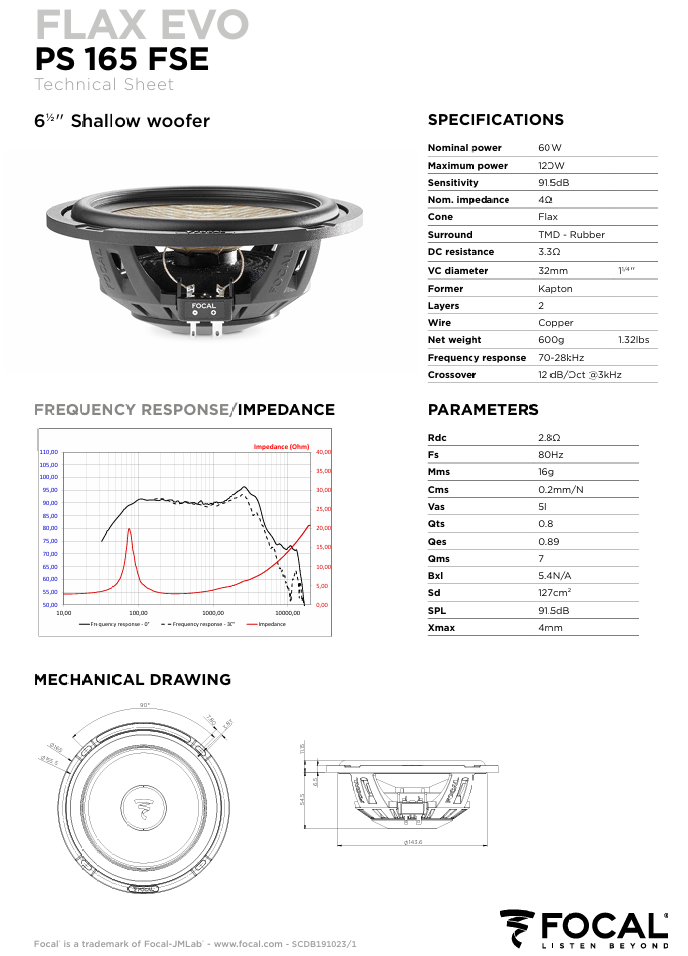

| 6.5" Woofer Specifications: |
- Nominal power: 60W
- Maximum power: 120W
- Sensitivity (2,83V/1m): 91.5dB
- Cone: Flax
- Surround: TMD
- Nom. impedance: 4 Ohms
- DC resistance: 3.3 Ohms
- VC diameter: 32mm
- Former: Kapton
- Layers: 2
- Wire: Copper
- Woofer Diameter: 6.5"
- Woofer Depth: 2-3/16"
- Frequency Responce: 70Hz-28kHz
- Crossover 12dB/Oct @ 3kHz
| 6.5" Woofer Parameters: |
- Rdc: 2.8Ω
- Fs: 80Hz
- Mms: 16g
- Cms: 0.2mm/N
- Vas: 5l
- Qts: 0.8
- Qes: 0.89
- Qms: 7
- Bxl: 5.4N/A
- Sd: 127cm2
- SPL: 91.5db
- Xmax: 4mm

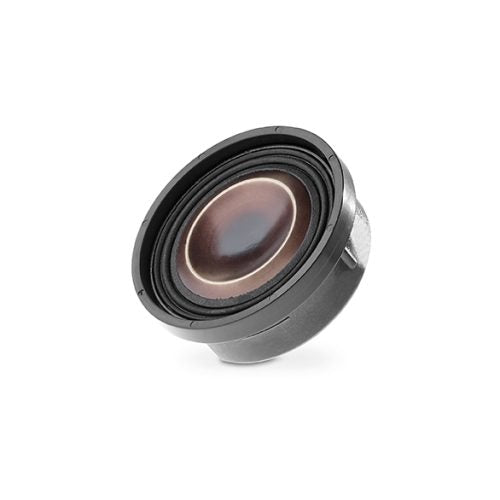

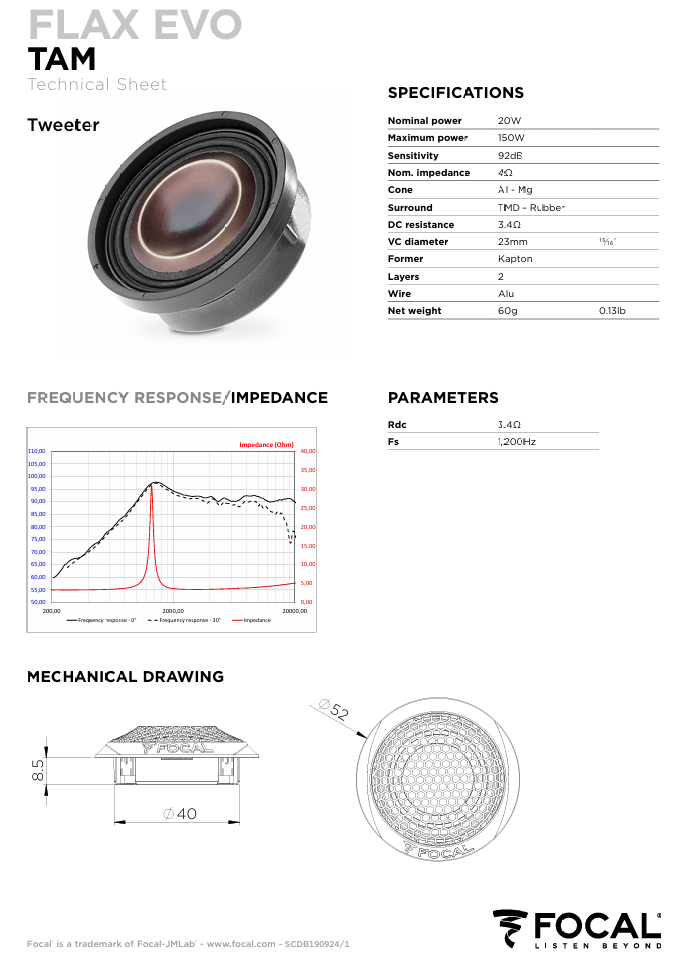

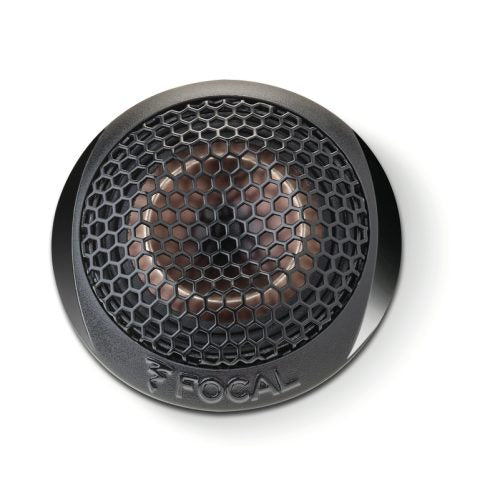

| Tweeter Specifications: |
- Nominal power: 20W
- Maximum power: 150W
- Sensitivity (2,83V/1m): 92dB
- Cone: Al - Mg
- Surround: TMD - Rubber
- DC resistance: 3.4 Ohms
- VC diameter: 23mm
- Former: Kapton
- Layers: 2
- Wire: Alu
- Net weight: 60g
| Tweeter Parameters: |
- Rdc: 3.4Ω
- Fs: 1,200Hz
