Focal Kevlar 6.5" Coaxial Speakers (Display Model)
Couldn't load pickup availability

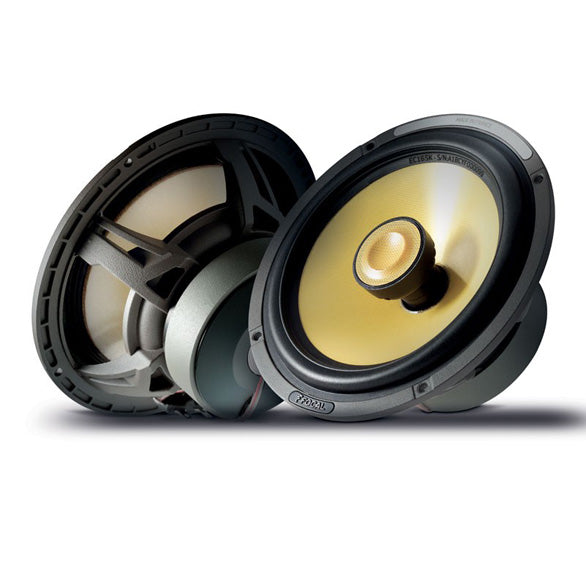

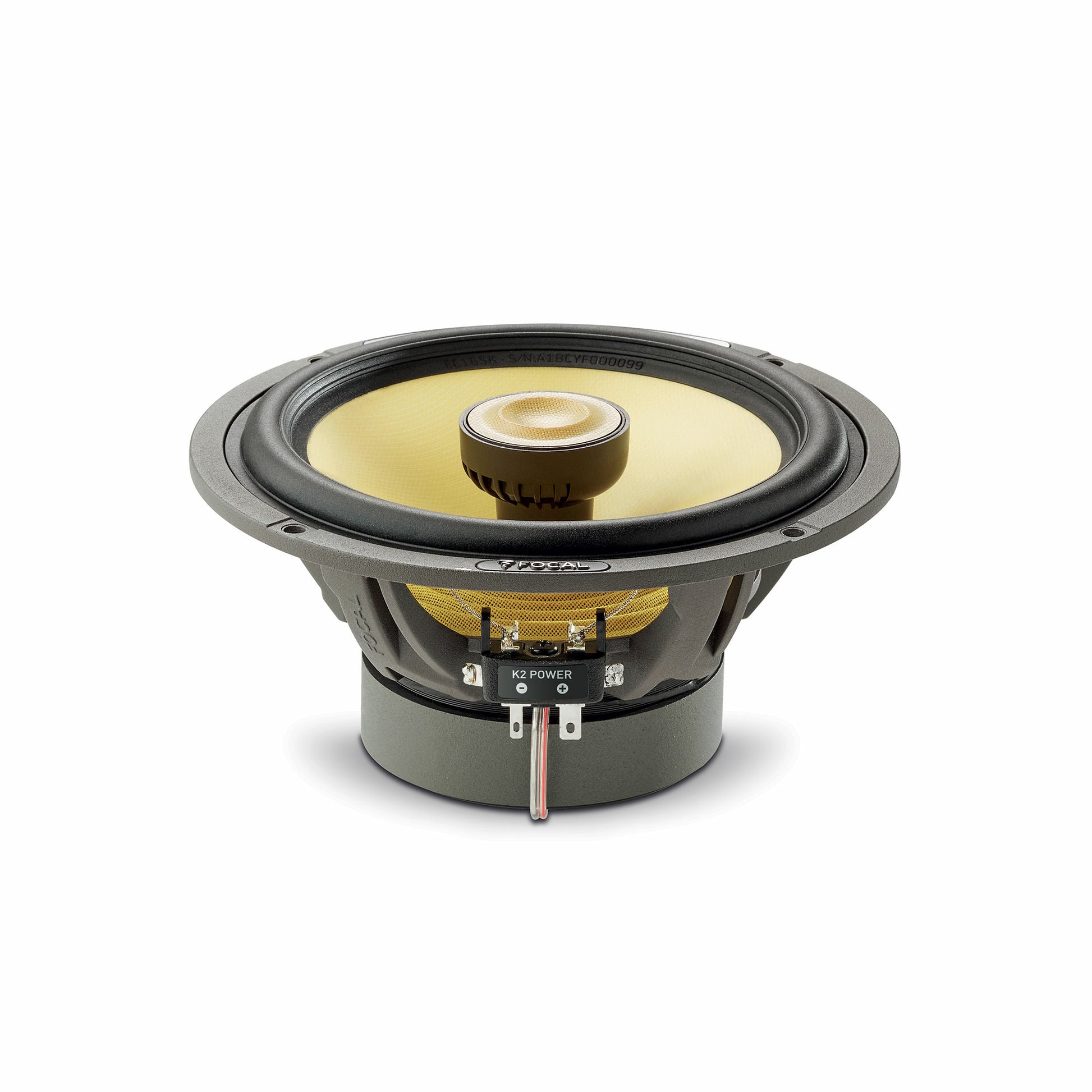

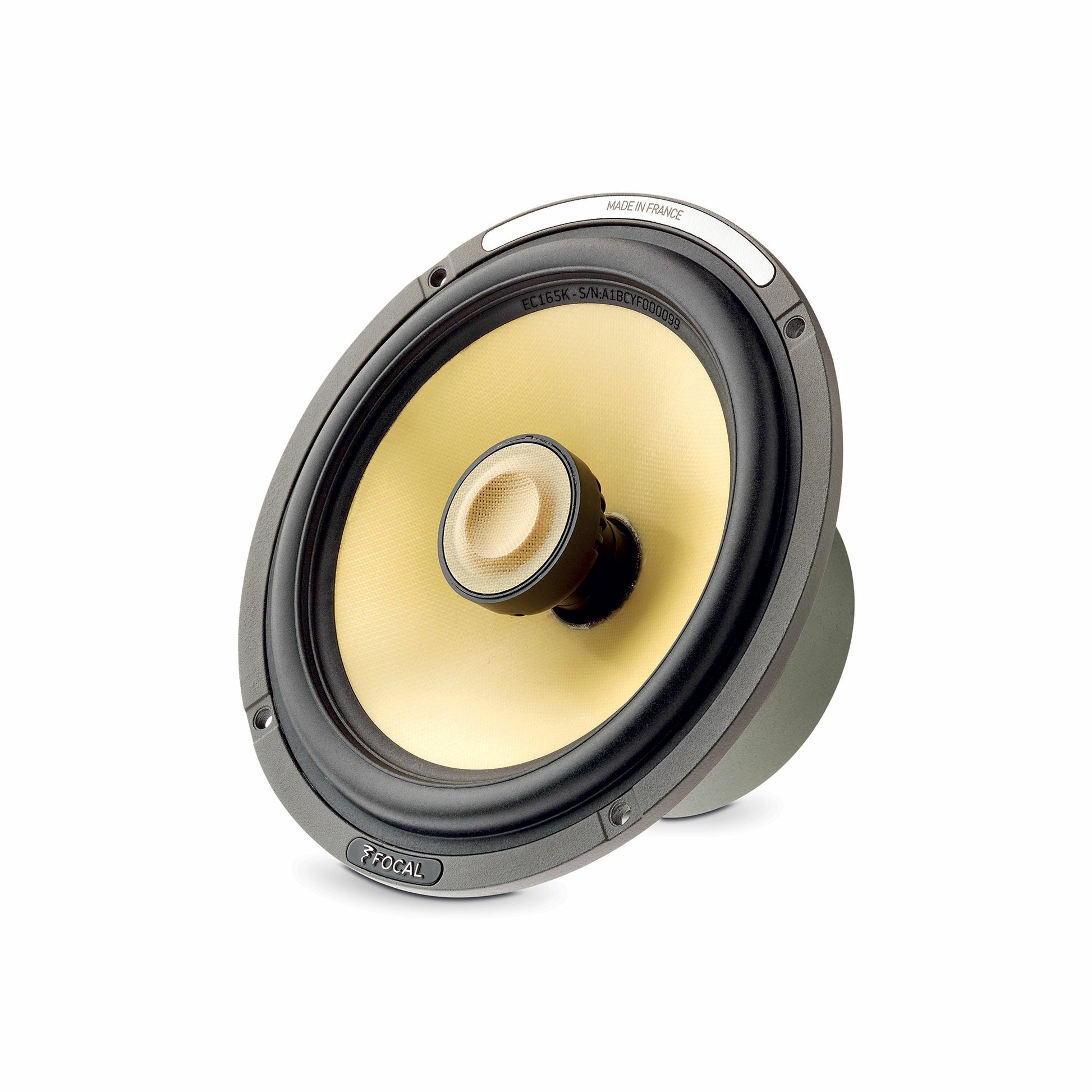

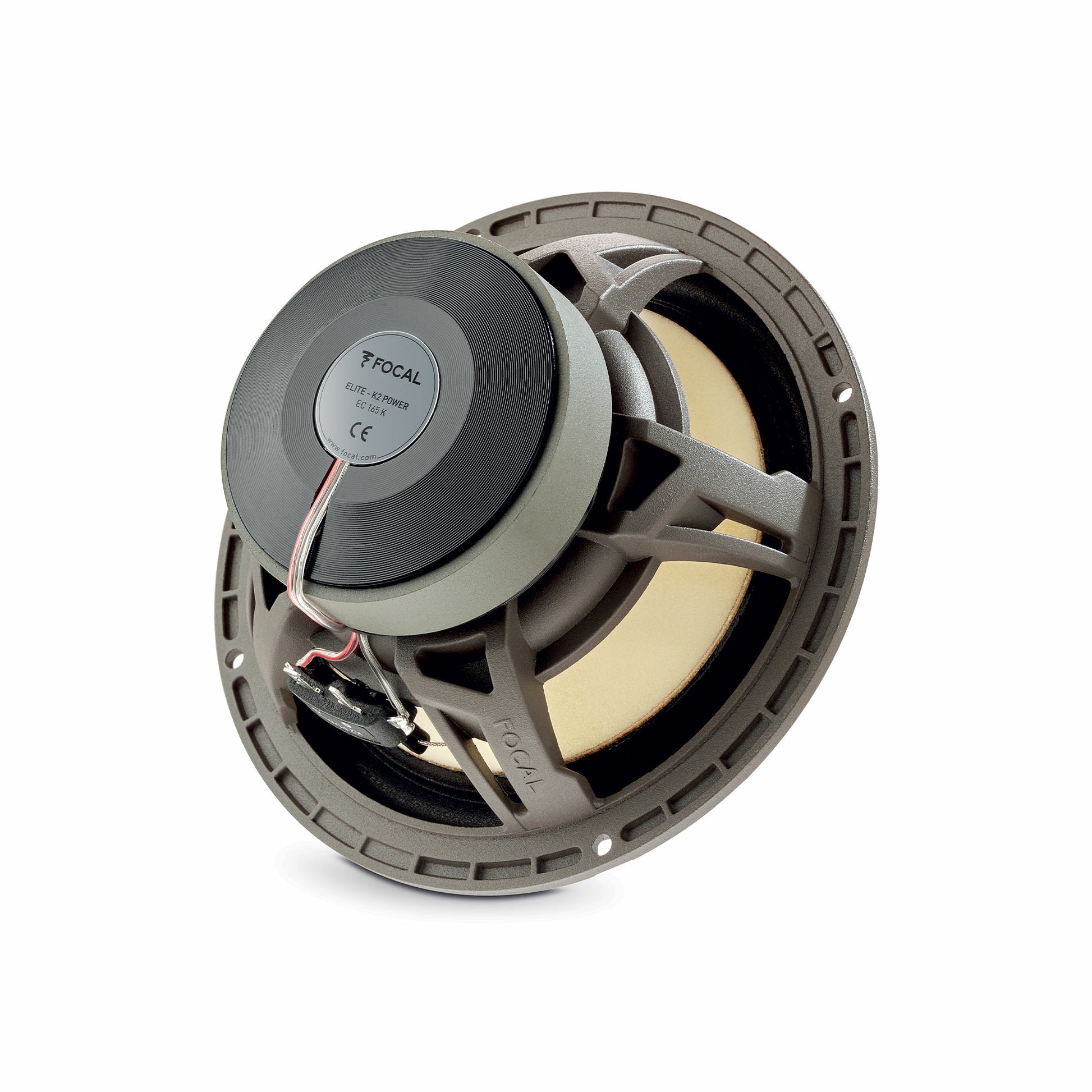

The EC 165 K audio kit consists of 2 165 mm (6.5") woofers with coaxial tweeters. Like all speakers in the K2 Power range, the coaxial woofers of the EC 165 K kit are equipped with Kevlar® membranes. These yellow membranes with ideal characteristics: lightness, rigidity and damping diffuse a dynamic, faithful and perfectly defined sound. They are supported by TMD suspensions with an exclusive profile making it possible to control the resonances generated and reduce the effects of distortion. The 2 TKM tweeters with inverted dome are made of aramid fibers. Their exclusive "M" shaped profile allows better control of dome deformation and smooth and precise reproduction of high frequencies up to 22 kHz. Their supports have been redesigned for more robustness and reduced height. The height requirement is thus reduced to its maximum: 74 mm. These tweeters are equipped with integrated filters. The kit is supplied with aluminum and mesh grilles.
Product Features:
- 2-Way Coaxial Kit
- Inverted dome “M”-shaped tweeter
- Reinforced tweeter post
- Flush tweeter (compact)
Specifications:
- Diameter: 6-1/2″ (165mm)
- Voice Coil Diameter: 1″ (25mm)
- Voice Coil Height: 0-9/16″(15mm)
- Motor: Magnet
- Tweeter: TKM (“M” profile aramid fiber inverted dome)
- Cone: Composite K2 Power “W” sandwich cone
- Surround: Tuned Mass Damper (TMD)
- Max Power: 160W
- Nominal Power: 80W RMS
- Sensitivity (2.83V/1m): 93dB
- Frequency Response: 60Hz-22kHz
- Impedance: 4 Ω
Mounting Diameter | mm | 142 |
---|---|---|
Mounting Depth | mm | 74 |
Voice Coil Diameter | in | 1 |
Nominal Power (RMS) | W | 80 |
Maximum Power | W | 160 |
Nominal Impedance (Znom) | Ω | 4 |
Frequency Response | Hz | 60-22k |
DC Resistance (Re) | Ω | 3 |
Resonance Frequency (Fs) | Hz | 65 |
Equivalent Volume (Vas) | L | 10 |
Moving Mass (incl. Air Load) (Mms) | g | 13.9 |
Suspension Compliance (Cms) | mm/N | 0.43 |
Force Factor (BL) | NA | 5.3 |
Mechanical Q Factor (Qms) | 7 | |
Electrical Q Factor (Qes) | 0.6 | |
Total Q Factor (Qts) | 0.55 | |
Sensitivity (2,83 V/1m) | dB | 93 |
Net Weight (per Speaker/Component) | lbs | 2.43 |
