HERTZ CENTO SERIES MONO 1700W CLASS D AMPLIFIER
Couldn't load pickup availability

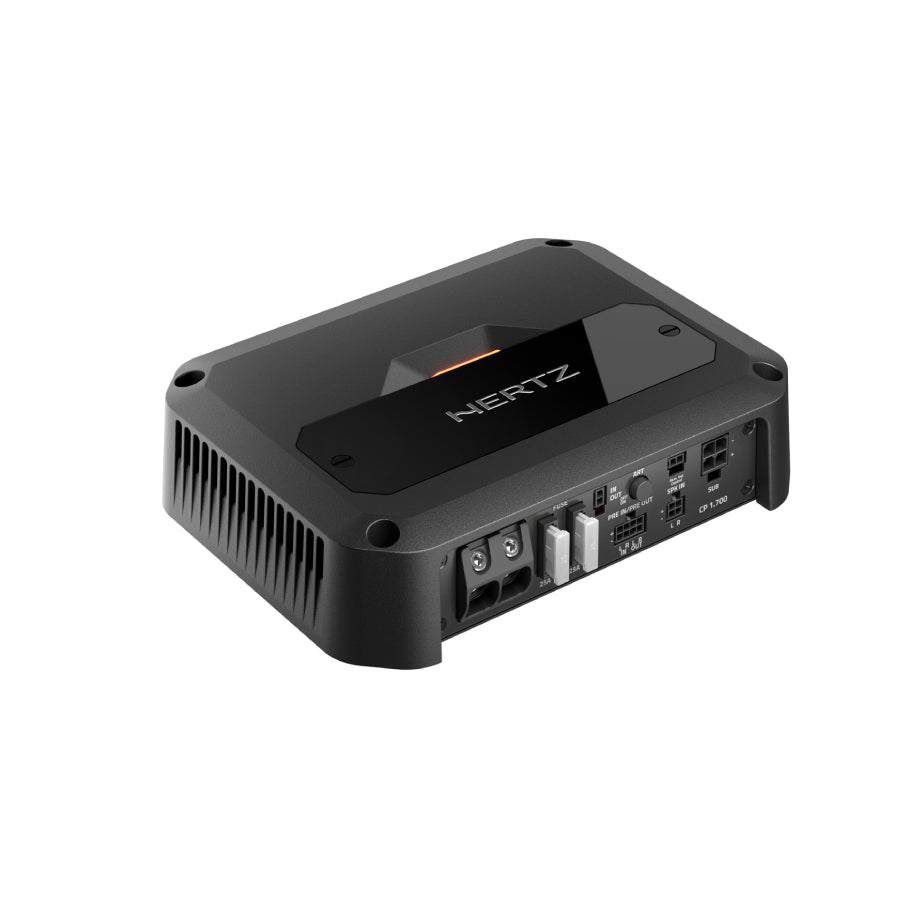

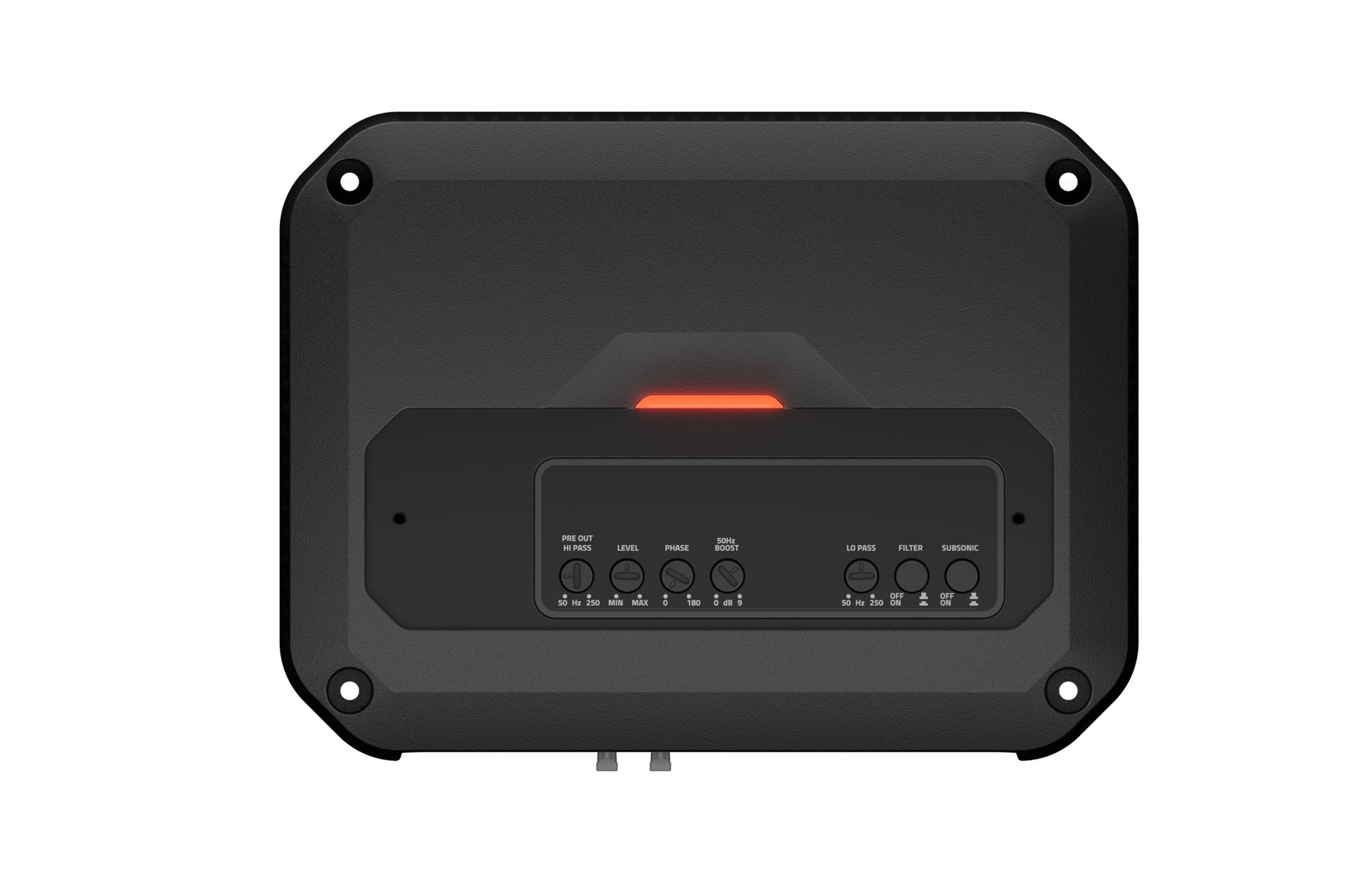

Enhance your audio system with the Hertz CENTO POWER CP 1.700, a mono amplifier that combines superior power handling and sophisticated sound control technologies. Boasting a superior power-to-size ratio with an efficiency of over 89%, this amplifier accommodates a broad voltage range, suitable for both conventional and electric vehicles. The CP 1.700 steps up with additional sound customization features, including a variable phase control to fine-tune the audio output to your preferences. Its high-noise rejection and balanced input circuitry maintain the integrity of the sound, while the inclusion of a full-range pre-out ensures flexible system expansion. Designed for durability and performance, the CP 1.700's elegant design and accessible top panel controls make it a top choice for audiophiles looking to push the limits of their car's audio system.
Channels | 1 |
Amp class | D |
POWER SUPPLY | |
Nominal power supply voltage (fuse) | 11 ÷ 15 VDC (2 x 25 A) |
Operating power supply voltage | 9 ÷ 18 VDC |
Idling current | 1.10 A |
Standby current draw | 4.5 uA |
Consumption, MIN load impedance (Max Musical Power) | 33 A |
Remote IN | 4 ÷ 17 VDC (1 mA) |
ART - Automatic Remote Turn on/off from SPK-IN (BTL radio only) | 1.5 VDC |
Efficiency | 89% |
AMPLIFIER STAGE | |
Distortion - THD @ 100 Hz, 70% Rated Power | 0,01 % |
Damping factor @ 1 kHz, 1W | 350 |
Bandwidth @ -3 dB | 10 Hz ÷ 500 Hz |
S/N ratio (A-weighted @ 1 V Input) | 113 dBA |
Minimum load impedance | |
@ 1 Ch: | 2 Ω |
Adjustable Crossovers | yes |
Output power (RMS) @ 1% THD: | |
1Ch @ 4Ω | 400 W x 1 |
1Ch @ 2Ω | 700 W x 1 |
Total Power | 700 W |
Inputs | Pre-In / Speaker-In |
Pre Out | Hi-Pass 50 ÷ 250Hz @ 12 dB/Oct. |
Pre-In sensitivity | 0.32 ÷ 8 VRMS |
Speaker-In sensitivity | 1.6 ÷ 40 VRMS |
Sub Ch Lo-Pass | OFF / 50 ÷ 250 Hz @ 24 dB/Oct. |
Bass Boost 50Hz | 0 ÷ 9 dB |
Subsonic Hi-Pass | OFF / 25 Hz @ 24 dB/Oct. |
Sub Remote Volume Control | -20 ÷ 6 dB (Active on Rear Ch with LPF ON) |
Weight | Kg | lbs |
2.44 | 5.37 |
