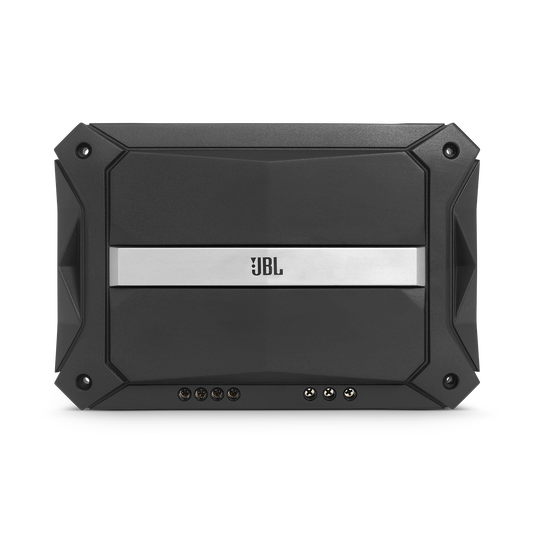

JBL High-Performance Mono Class D 600@2ohm Amplifier

Uncover Great Sound (The Unveiling of Sound)

Stadium mono and full-range, multi-channel amplifiers deliver the efficiency and power you expect from Class D amplifiers – and the performance you expect from JBL. The comprehensive all new E.A.R.L terminal and power adapter (5-channel & mono block) enables easy installation and optimized performance. For the 5-channel and mono amplifier models, the remote bass control allows the user to increase and decrease bass output independent of head unit tone controls. The industrial design not only provides an elegant look, but also enhances power dissipation to ensure long term reliability. Stadium amplifiers give you power to shape your car audio experience in new ways.

Technical Specifications
Operating voltage 9-16 volts
RMS power @ 4 ohms 380W
RMS power @ 2 ohms 600W
Total peak power 1500W
Frequency response 10Hz – 320Hz @ -3dB
Crossover filter LPF 32Hz – 320Hz Variable 12dB/Oct
Bass EQ 70Hz Fix 0-9dB
THD + N at rated power ≤0.1%
High input maximum signal level 20V
High input maximum sensitivity 2V
Line input maximum signal level 2V
Line input maximum sensitivity 0.2V
Line-in signal-to-noise ratio (reference to 1 watt) ≥80dB
Quiescent current draw ≤1.7A
Fuse size 2 x 35A
Dimensions (H x W x D) 54.20 x 179.60 x 265.30mm
Weight 2.72kg
