KENWOOD EXCELON KFC-XW1200F 12 INCH 4 OHM SVC SUBWOOFER
Couldn't load pickup availability

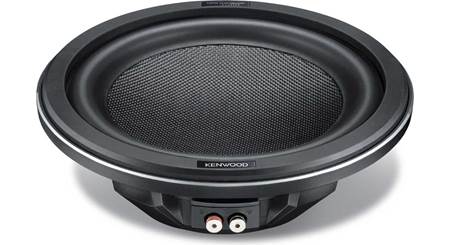

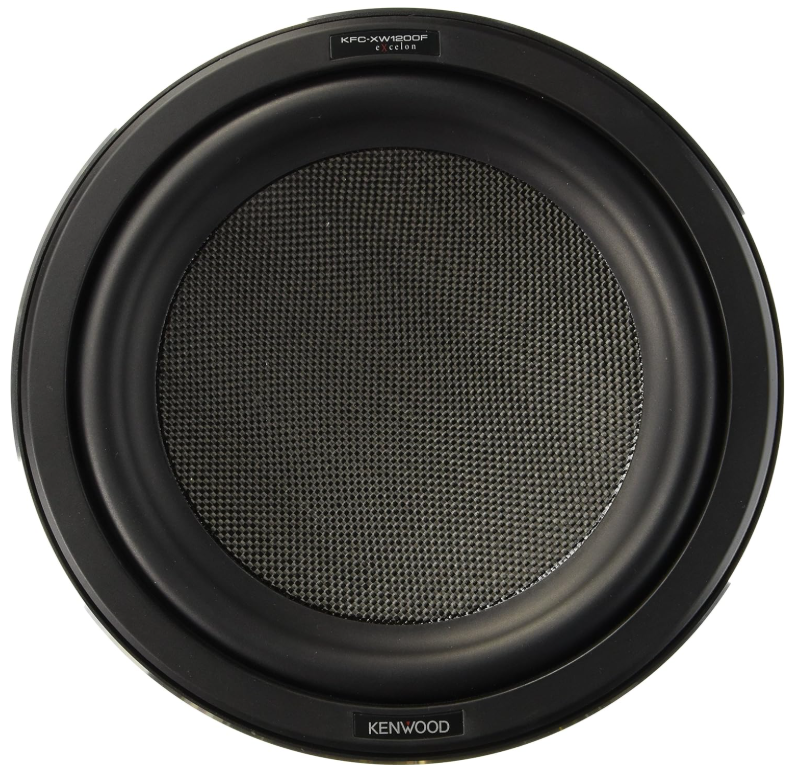

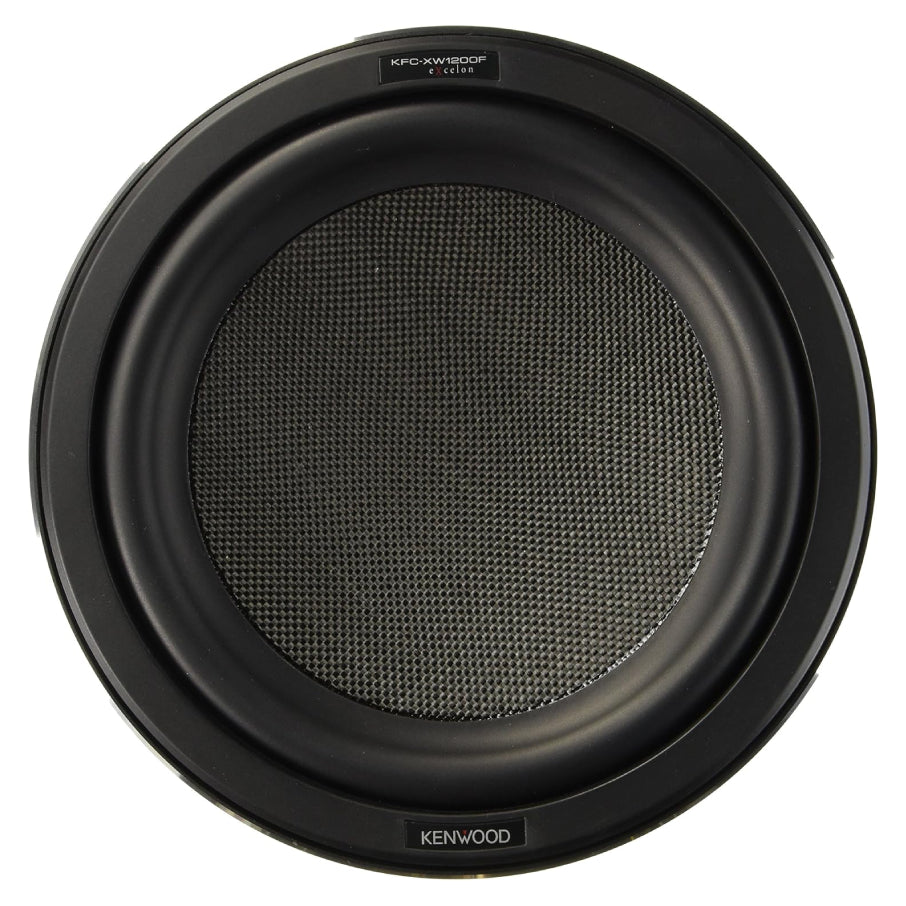

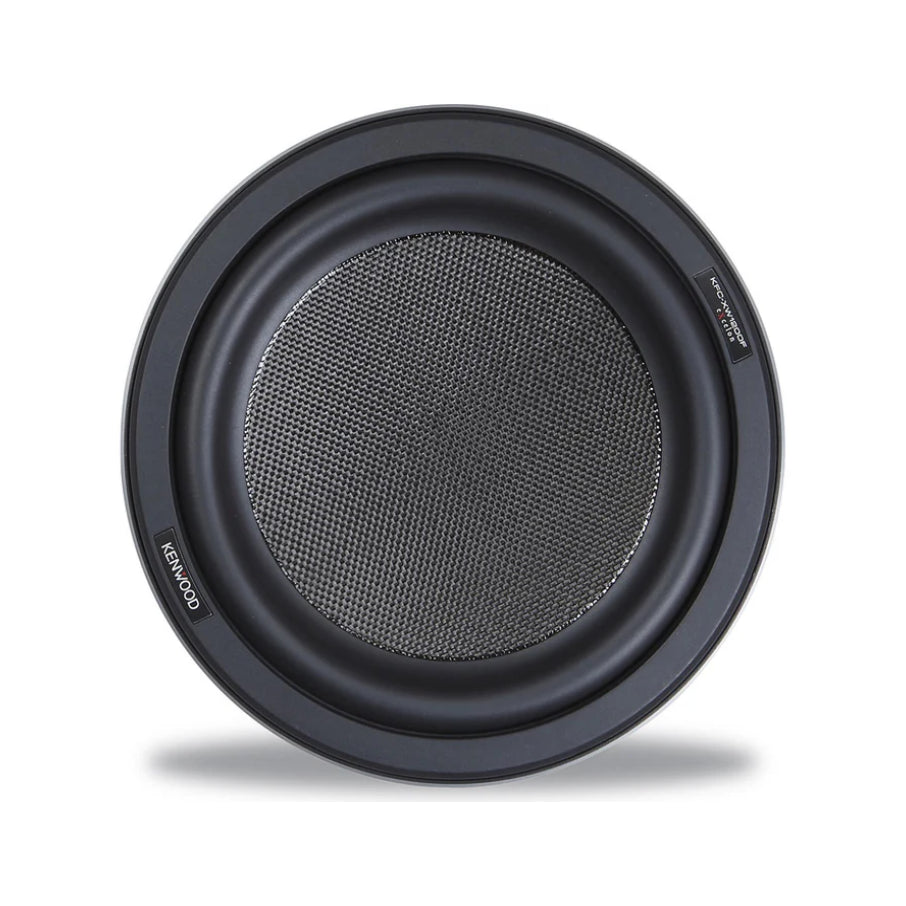

The Kenwood Excelon KFC-XW1200F 12" "flat" subwoofer produces serious bass output in the hard-to-fit areas of your compact car or truck. And this shallow-mount sub measures less than 4" deep, so you can get creative with your installation.
The carbon-glass fiber cone employs a honeycomb pattern to deliver quick response in demanding conditions without flexing. The beefed-up rubber surround maintains control over the cone, minimizing distortion caused by resonance. A die-cast aluminum basket offers a rock-solid housing with plenty of venting to keep the heat down. The silver-plated push terminals offer convenient connections and provide excellent signal transfer.
Product highlights:
- 12" 4-ohm shallow-mount subwoofer
- carbon-glass fiber composite cone with butyl rubber surround

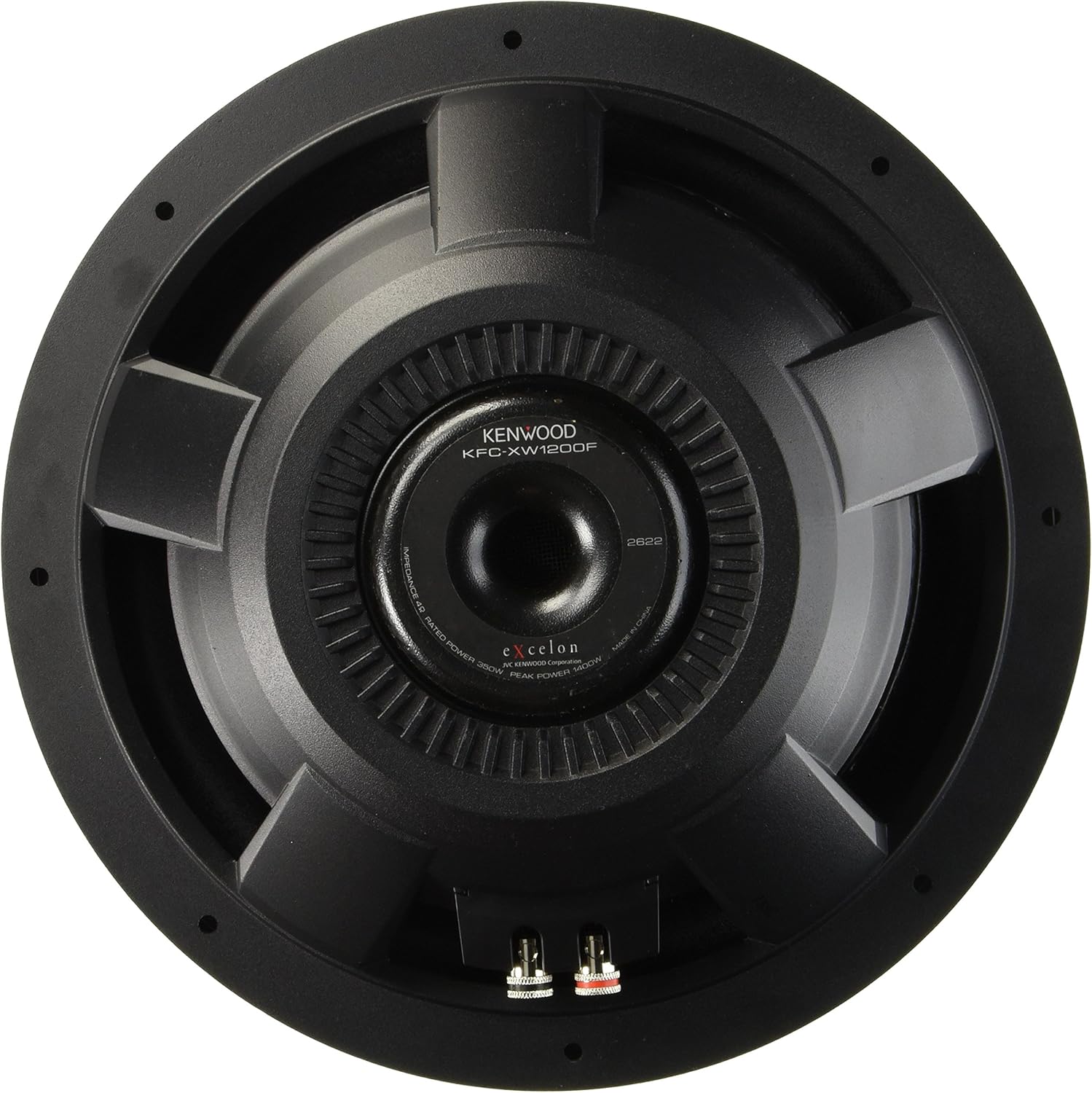

- cast aluminum basket
- power range: 50-350 watts RMS
- peak power: 1,400 watts
- frequency response: 30-700 Hz
- sensitivity: 91 dB
- mounting depth: 3-15/16"
- sealed box volume: 0.8 cu. ft.
- ported box volume: 0.8 cu. ft.
- grille not included
Dimmensions
Recommended Enclosures
■SEALED
■PORTED
| Type | Volume | W | H | D1 | D2 | Mounting Hole | Port Diameter d | Port Length I | Displacement (cm.ft) |
|---|---|---|---|---|---|---|---|---|---|
| SEALED | 0.8 cu.ft (22.6L) |
30-7/16" 773mm |
14-1/4" 362mm |
4-3/16" 107mm |
6-3/4" 172mm |
11-1/8" 282mm |
- | - | 0.061 cu.ft (1.740L) |
| PORTED | 3"(76mm) | 14"(355mm) |
Enclosure Volume and Frequency Response graphs are measured from 9/16 inch MDF.
General Specifications
| Subwoofer | 12" (300mm) |
|---|---|
| Cone | Carbon-Glass Fiber Honeycomb Cone |
| Nominal Impedance | 4Ω |
| Peak Input Power | 1400W |
| Rated Input Power | 350W |
| Sensitivity | 91 dB/W at 1m |
| Free Air Resonance | 25Hz |
| Frequency Response | 30-700Hz |
| Mounting Depth | 3-15/16" (100mm) |
| Recommended Sealed and Ported Box Volume | 0.8 cft (22.6L) |
| Weight of Magnet | 3.0lbs (1370g) |
| Net Weight | 15.4lbs(7000g) |
Techinical Specifications
| SYMBOL | UNIT | VALUE | |
|---|---|---|---|
| Nominal Impedance | Z | Ω | 4 |
| DC Resistance | Revc | Ω | 3.2 |
| Voice Coil Inductance | Levc | mH | 2.8 |
| Piston Area | Sd | sq.m | 0.049 |
| Force Factor | BL | Tm | 12.93 |
| Volume Acoustic Compliance | VAS | liter | 62.69 |
| cu.ft | 2.214 | ||
| Moving Mass | Mms | 9 | 224.0 |
| Resonance Frequency | Fs | Hz | 24.8 |
| Mechanical Q Factor | Qms | 2.897 | |
| Electrical Q Factor | Qes | 0.67 | |
| Total Q Factor | Qts | 0.544 | |
| Peak Excusion | Xmas | mm | 8.5 |
| Displacement | cc | 1740 | |
| cu.ft | 0.061 | ||
| Mounting Depth | in.(mm) | 3-15/16 (100) | |
| Weight of Magnet | lbs(g) | 3.0 (1370) | |
| Net Weight | lbs(g) | 15.4(7000) | |
| Voice Coil Diameter | in.(mm) | 2-9/16 (65) |
