Kenwood 4" Coaxial 2-Way Coaxial Speakers
Couldn't load pickup availability

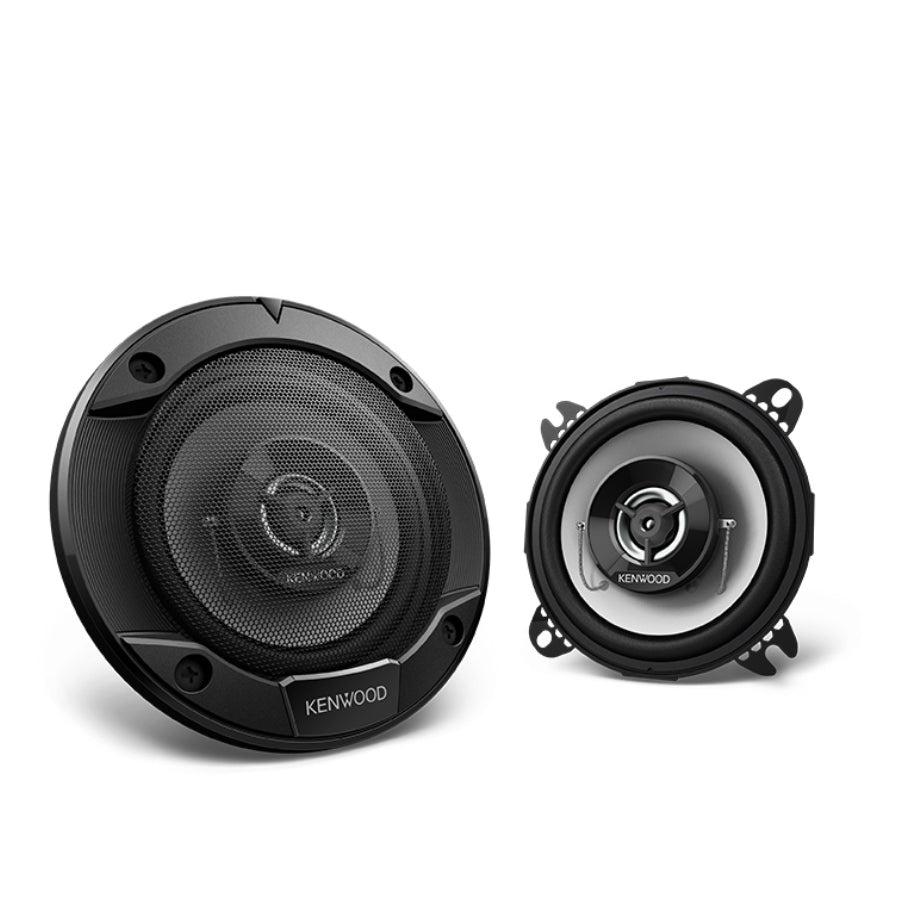

The KFC-1066S 4" 2-way speakers feature polypropylene cones that will enrich your music with solid midbass oomph and dynamic midrange, while the 1" balanced-dome tweeters will bring new life to the high range. Kenwood also includes sharp-looking grilles in case you're doing a custom installation in your vehicle. Best of all, you can safely power these with your car stereo and still enjoy your music the way it was meant to be heard, with clarity and emotion.
Product highlights:
- 4" 2-way speakers (pair)
- polypropylene woofer with treated cloth surround
- 1" PEI balanced dome tweeter
- grilles included
- handles up to 21 watts RMS (220 watts peak power)
- impedance: 4 ohms
- frequency response: 50-22,000 Hz
- sensitivity: 88 dB
- top-mount depth: 1-11/16"
Electrical | ||
---|---|---|
Impedance (Ω) | 4Ω | |
Peak Input Power (W) | 220W | |
RMS Input Power (W) | 21W | |
Sensitivity (dB at 1m) | 88dB | |
Frequency Response (Hz) | 50-22000Hz | |
Woofer | ||
Diaphragm | PP | Silver |
Size | 100mm | 4in |
Surround | Cloth | |
Magnet | Ferrite | φ70xt10 |
Tweeter | ||
Diaphragm | Balanced Dome | Silver |
Size | 25mm | 1 in. |
Magnet | Neodymium | |
Dimension | ||
Width (w_Gr) | 134.0 mm | 5-1/4 in. |
Width (w/o_Gr) | 104.0 mm | 4-1/8 in. |
Height (w_Gr) | 134.0 mm | 5-1/4 in. |
Height (w/o_Gr) | 104.0 mm | 4-1/8 in. |
Cutout Diameter | Φ92.6 | Φ3-5/8 |
Tweeter Height | 8 mm | 5/16 in. |
Mounting Depth | 43 mm | 1-11/16 in. |
Weight | ||
with Grille (pc.) | 437 g | 1.0 lbs. |
without Grille (pc.) | 391 g | 0.9 lbs. |
Weight of Woofer Magnet | 160 g | 5.6 oz. |
Gross Weight | 930 g | 2.0 lbs. |

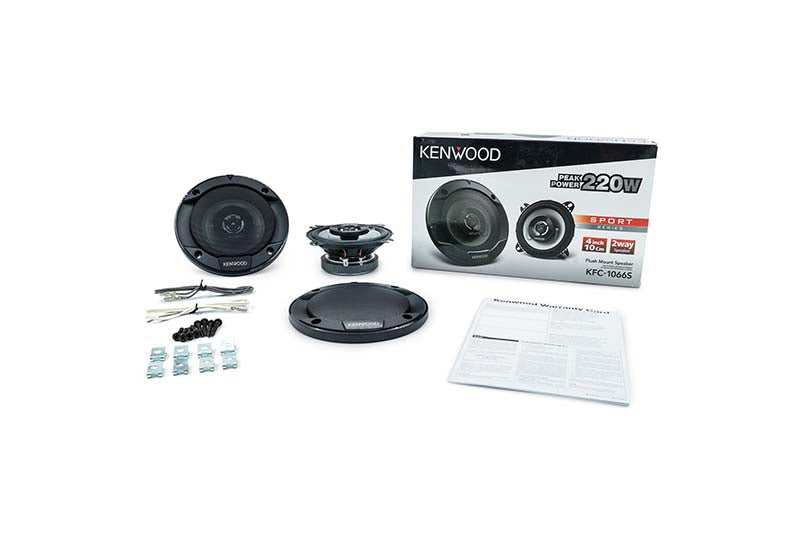

Accessory | ||
Grille Assy | 2pcs | |
Screw sets | Tapping Screw | φ4x25*8pcs |
Speed Nut | 8pcs | |
Speaker Cord | 0.3m*2pcs | |
Warranty Card | 1pcs |
