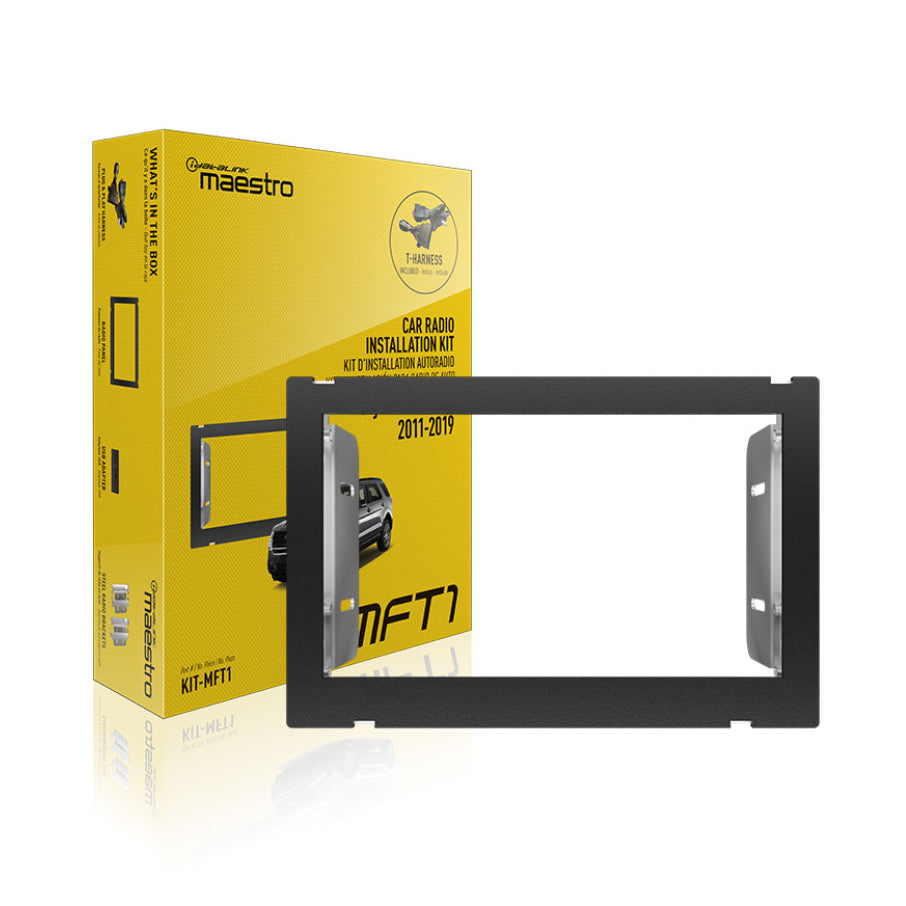

KIT-MFT1 IDATALINK MAESTRO FOR 11-19 FORD EXPLORER DASH KIT AND HARNESS (MAESTRO MODULE NOT INCLUDED)
Regular price
$329.99 CAD
Regular price
Sale price
$329.99 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
iDatalink Maestro KIT-MFT1 Dash and Wiring Kit for select Ford Vehicles
Dash kit and T-harness solution for select Ford vehicles 2011+ with the "My Ford Touch" Radio. Features factory grade fit & finish and includes media hub replacement with 1 USB Type-A, and 1 USB Type-C ports. Includes head unit adapter ready T-harness, radio panel and steel radio brackets. Maestro RR and iDatalink-compatible aftermarket radio are required and sold separately. Head unit adapter for plug and play installation is also sold separately.
Specifications:
- Allows you to install an iDatalink-compatible, double-DIN radio in select MyFord Touch-equipped Ford vehicles
- Also requires the Maestro ADS-MRR module
- Includes dash kit, wiring harness, and other wiring
- Includes replacement media hub with one USB-A and one USB-C port
- Retains Ford steering wheel audio controls, backup camera, and factory amp
- Works with Apple CarPlay and Android Auto
- Retains control of factory customization options for lighting, door locks, and other features
- Retains factory amp fader control and DSP
- Retains rear-seat entertainment system
Vehicle Application:
Lincoln
- MKX: 2011 - 2015
Ford
- C-Max "My Ford Touch" (8" Screen): 2013-2018
- Edge "My Ford Touch" (8" Screen): 2011 - 2014
- Edge "My Ford Touch" (8" Screen -With Sony Amplified System): 2011 - 2014
- Edge (8" Screen -KIT-MFT1 and shallow radio -With Sony Amplified System): 2015 - 2020
- Edge (8" Screen -KIT-MFT1 and shallow radio -Without Sony Amplified System): 2015 - 2020
- Escape "My Ford Touch" (8" Screen -With Sony Amplified System): 2013 - 2016
- Escape "My Ford Touch" ((8" Screen) / Without Amplifier): 2013-2016
- Escape "My Ford Touch" ((8" Screen) / Without Amplifier With CD Player): 2017-2019
- Escape "My Ford Touch" ((8" Screen) / Without Amplifier Without CD Player): 2017-2019
- Expedition " My Ford Touch" ((8" Screen) -With Sony Amplified System): 2015-2017
- Expedition "My Ford Touch" ((8" Screen) / Without Amplifier): 2015-2019
- Explorer (8" Screen -KIT-MFT1 and shallow radio - With Sony Amplified System): 2011-2017
- Explorer (8" Screen - KIT-MFT1 and shallow radio / Without Amplifier): 2011-2019
- F-150 "My Ford Touch" ((8" Screen) -With Sony Amplified System): 2013-2017
- F-150 "My Ford Touch" ((8" Screen) / Without Amplifier): 2013-2020
- F-250 "My Ford Touch" ((8" Screen) -With Sony Amplified System): 2016-2019
- F-250 "My Ford Touch" ((8" Screen) / Without Amplifier): 2017-2021
- F-250 "My Ford Touch" ((8" Screen) B&O Amplified System): 2019
- F-250 (8" Screen - KIT-MFT1 and shallow radio or ACC-KIT-SD1 -With Sony Amplified System): 2013-2016
- F-250 (8" Screen -KIT-MFT1 and shallow radio or ACC-KIT-SD1 / Without Amplifier): 2013-2016
- F-350 "My Ford Touch" ((8" Screen) -With Sony Amplified System): 2017-2019
- F-350 "My Ford Touch" ((8" Screen) / Without Amplifier): 2017-2021
- F-350 "My Ford Touch" ((8" Screen) B&O Amplified System): 2019
- F-350 (8" Screen -KIT-MFT1 and shallow radio or ACC-KIT-SD1 -With Sony Amplified System): 2013-2016
- F-350 (8" screen -KIT-MFT1 and shallow radio or ACC-KIT-SD1 / Without Amplifier): 2013-2016
- F-450 "My Ford Touch" ((8" Screen) -With Sony Amplified System): 2017-2019
- F-450 "My Ford Touch" ((8" Screen) / Without Amplifier): 2017-2021
- F-450 "My Ford Touch" ((8" screen) B&O Amplified System): 2019
- F-450 (8" Screen -KIT-MFT1 and shallow radio or ACC-KIT-SD1 -With Sony Amplified System): 2013-2016
- F-450 (8" Screen -KIT-MFT1 and shallow radio or ACC-KIT-SD1 / Without Amplifier): 2013-2016
- F-550 "My Ford Touch" ((8" Screen) -With Sony Amplified System): 2017-2019
- F-550 "My Ford Touch" ((8" Screen) / Without Amplifier): 2017-2021
- F-550 "My Ford Touch" ((8" Screen) B&O Amplified System): 2019
- F-550 (8" Screen -KIT-MFT1 and shallow radio or ACC-KIT-SD1 -With Sony Amplified System): 2013-2016
- F-550 (8" Screen -KIT-MFT1 and shallow radio or ACC-KIT-SD1 / Without Amplifier): 2013-2016
- Flex "My Ford Touch" (8" Screen): 2013-2019
- Flex "My Ford Touch" ((8" Screen) -With Sony Amplified System): 2013-2019
- Fusion "My Ford Touch" ((8" Screen) -With Sony Amplified System): 2013-2016
- Fusion "My Ford Touch" ((8" Screen) / Without Amplifier): 2013-2019
- Mustang "My Ford Touch" ((8" Screen) / Without Amplifier): 2015-2023
- Mustang "My Ford Touch" ((8" Screen) B&O Amplified System 12 Speaker Sound System): 2019-2020
- Mustang "My Ford Touch" ((8" Screen) With Amplifier): 2015-2019
- Mustang "My Ford Touch" ((8" Screen) With Amplifier 9 Speaker Sound System): 2019-2020
- Ranger "My Ford Touch" ((8" Screen) / Without Amplifier): 2019-2021
- Taurus (8" Screen -KIT-MFT1 and shallow radio -With Sony Amplified System): 2013-2019
- Taurus (8" Screen -KIT-MFT1 and shallow radio / Without Amplifier): 2013-2019

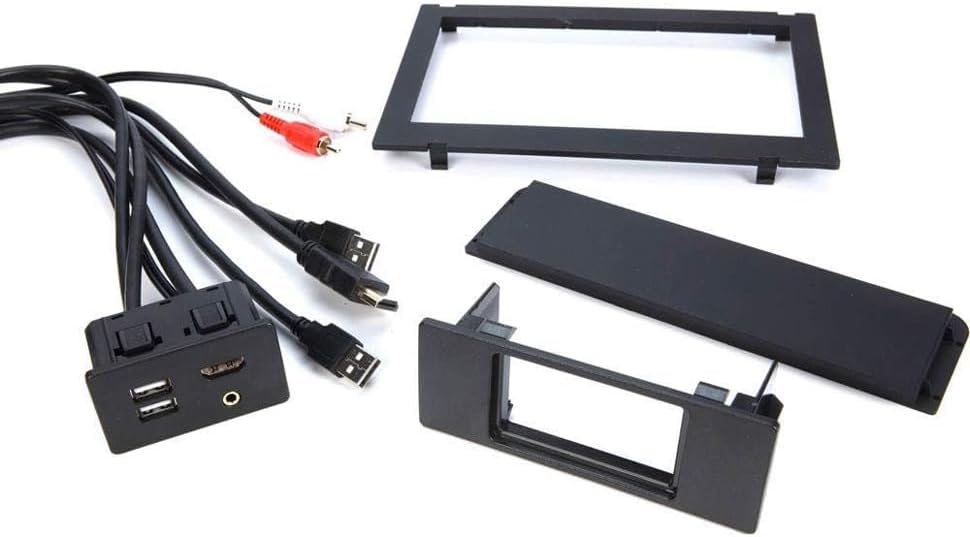

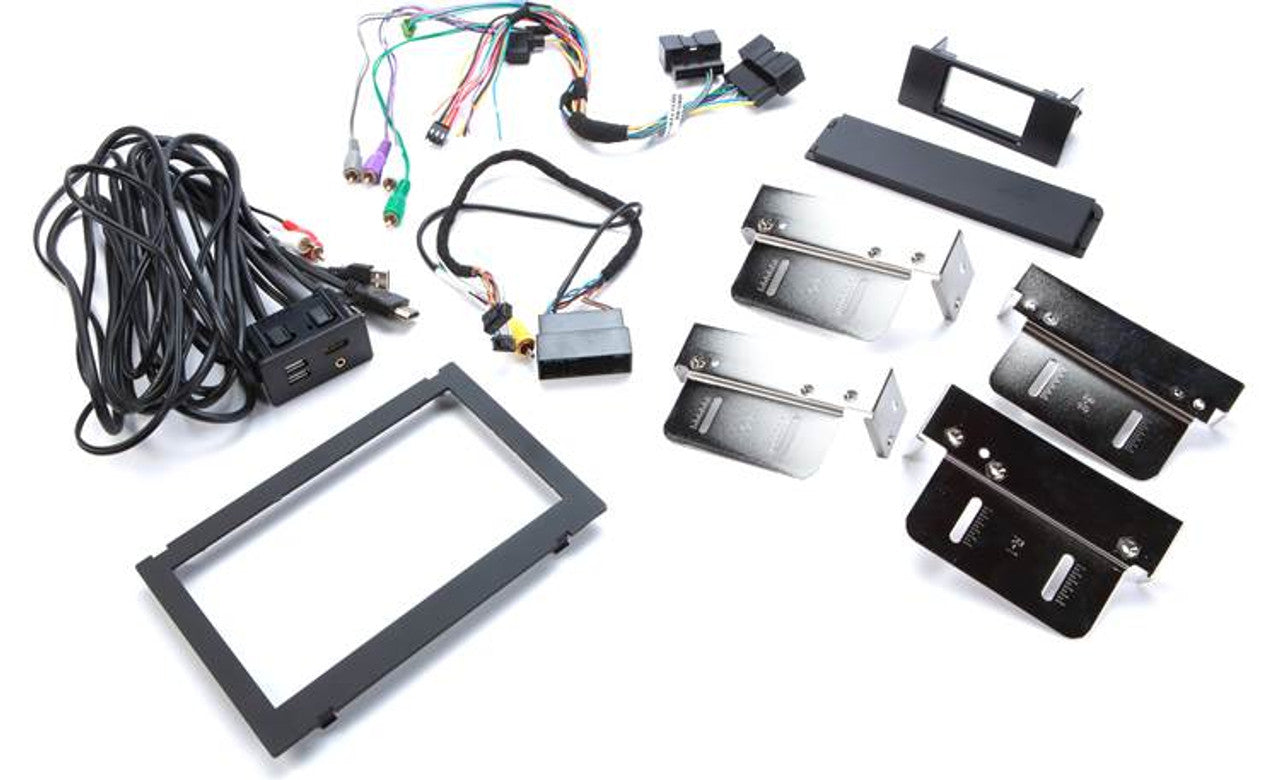

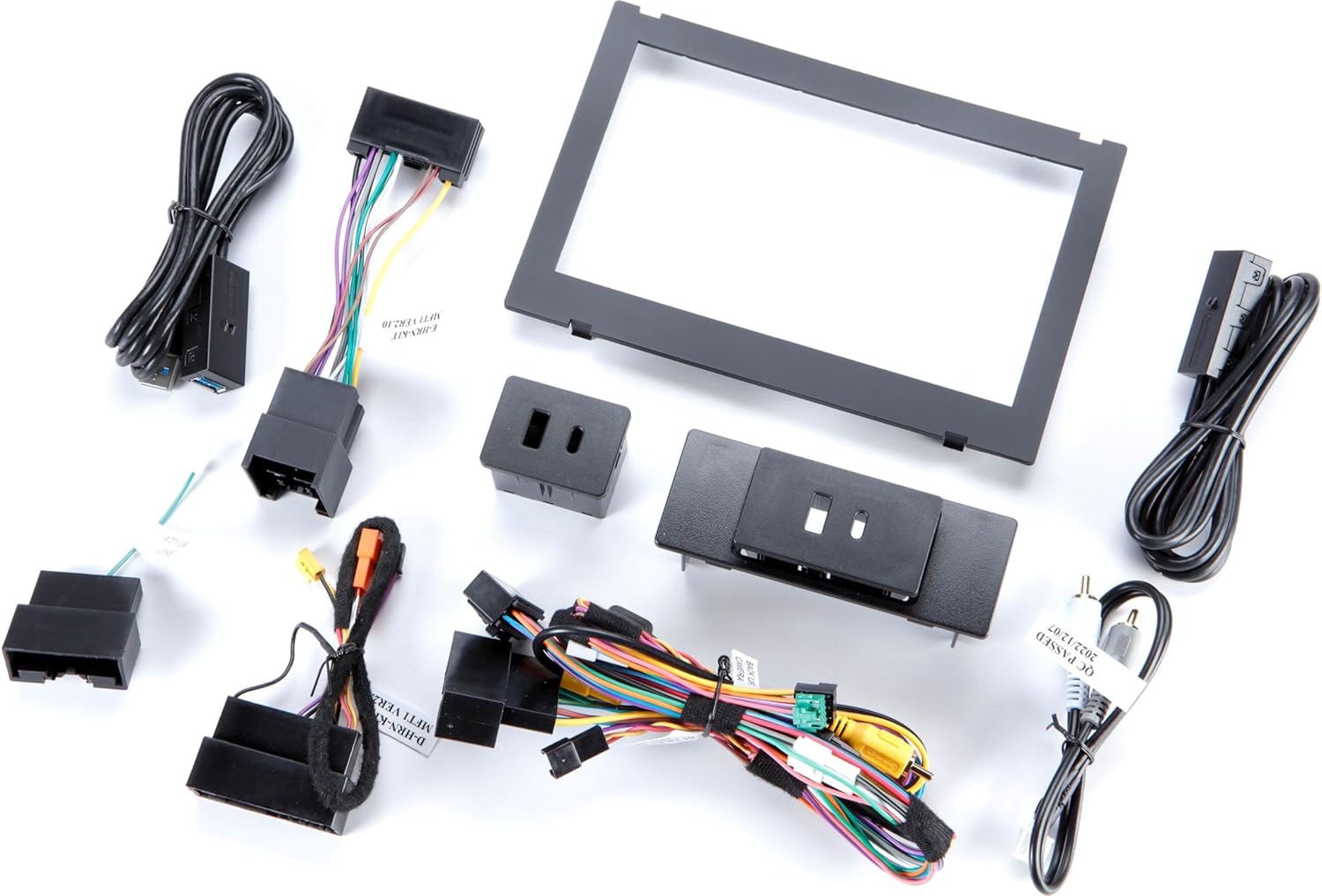

What's in the Box:

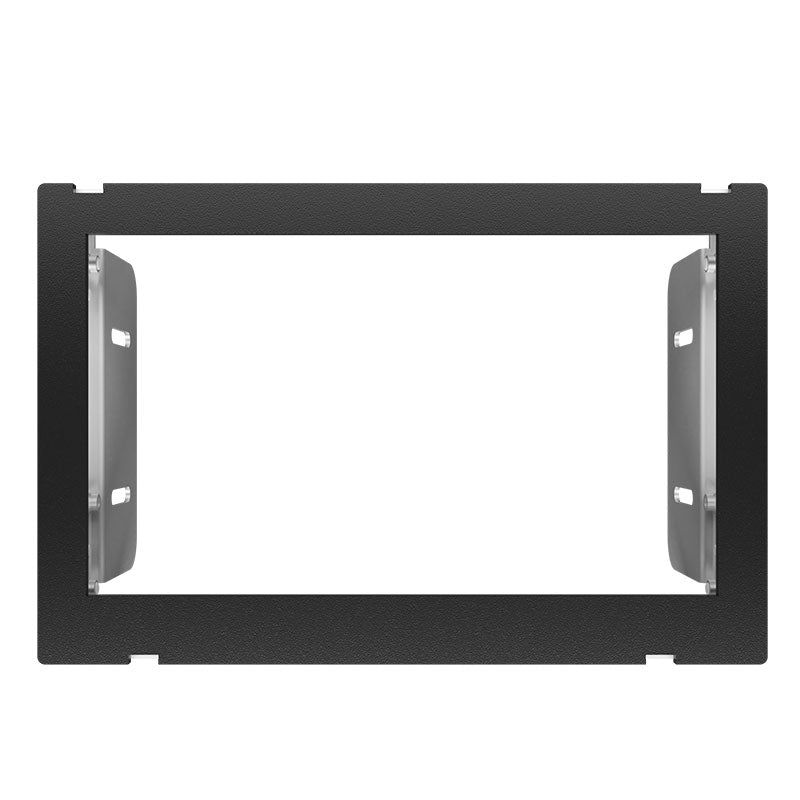

- Radio panel
- 4 Brackets
- Wiring harness
- Front preout harness
- Speaker harness
- 4-pin to 3-pin harness
- Blue/yellow wire harness
- Mic harness
- 5' USB-C cable
- 5' USB-A cable
- 2 USB housings
- 2 USB brackets
- Antenna adapter
- Single-DIN blank-panel
- 4 Counter-sunk machine screws
- 4 Pan-head machine screws
- 8 Pan-head course-thread screws
- Quick Start Guide
