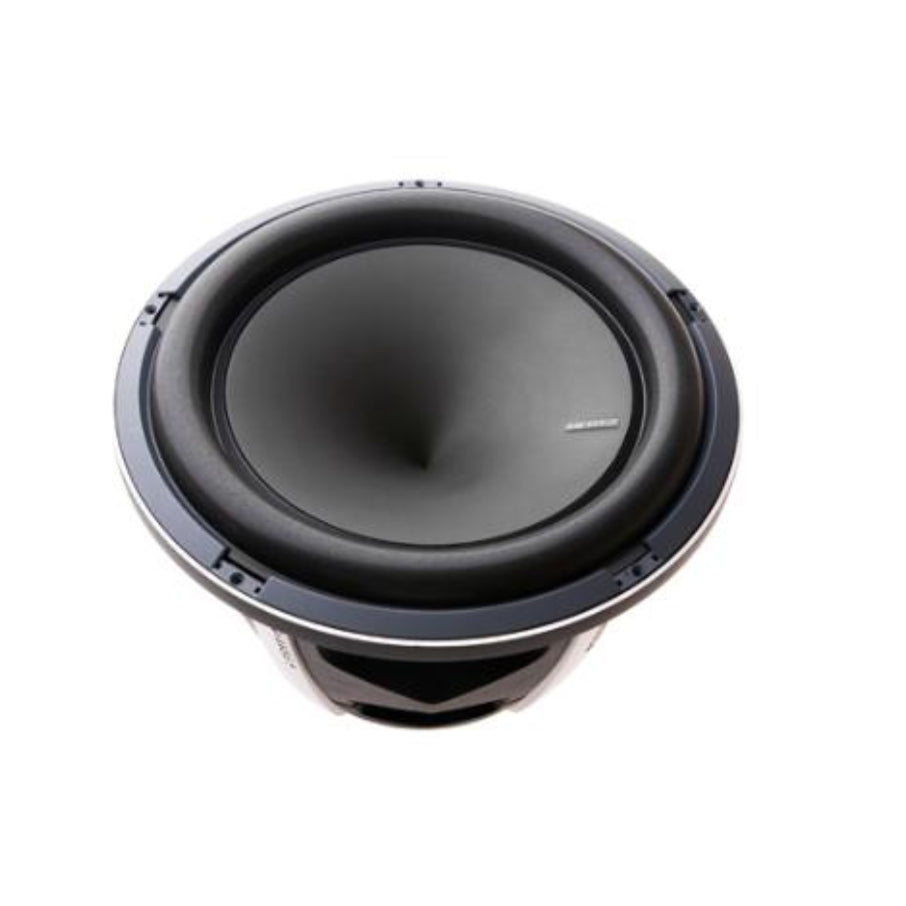

HERTZ MILLE 12" SUBWOOFERS

Powerful from the lowest octaves of the audio range. The ML subs set a new benchmark for low frequency reproduction with the impact, dynamics and pressure that only a reference component can achieve. Power and harmony in the anti-resonant aluminium alloy basket design, self-standing low incidence five-spokes structure, Front-Back Gasket, magnet protection. Ultimate technology in every detail: V-CONE with Polypropylene membrane stiffened with mineral dusts, high excursion surrounds, extended pole piece, dual layer mobile voice coil with copper covered aluminium wire (CCAW), oversize motor assembly with an exclusive forced ventilation circuit. A harder, deeper and more controlled bass for a unique enthralling experience.

The V-cone is applied to a Polypropylene membrane stiffened with mineral dusts. The exponential profile without dust cover gets very close to the ideal one and eliminates break-ups to provide the maximum undistorted performance.

Anti-Resonant Alloy Basket Reference in design: power and harmony in a mix of sharp lines and widely curved profiles. The anti-resonant aluminium alloy basket features five low incidence spokes and offers the minimum back radiation resistance, eliminating every distortion due to acoustic compression. The self-standing geometry of the structure contributes to total mechanical damping, performing a perfectly transparent sound.

Triple Venting System The combination of flared port with radial holes in the central pole in the bottom plate carries the air compressed by the cone movement directly to the mobile voice coil and outside the magnet assembly, producing a 30% fall of the speaker operation temperature. The improvement of the air flows inside the motor, with this peculiar channel geometry, creates a forced ventilation circuit that drastically reduces the dynamic compression, raising the applicable power over the top.

Specifications

• Subwoofer Size [inches]:12
• Peak Power Handling [Watts]:1500
• RMS Power Handling [Watts]:750
• Voice Coil(s):Single
• Impedance (per voice coil) [Ohm]:4
• Frequency Response [Hz]:25-900
• Top Mount Depth [inches]:7.05
• Cutout Diameter [inches]:11.19
• Xmax [millimeters]:19
• Subwoofer Design:Round
• Main Cone Color:Black
• Woofer Composition:Polypropylene with Talco Injection
• Woofer Surround:Butyl Rubber
