NAD C 3030 STEREO INTEGRATED AMPLIFIER

$1,299.99 CAD
$1,299.99 CAD
Sale Sold out
Shipping calculated at checkout.

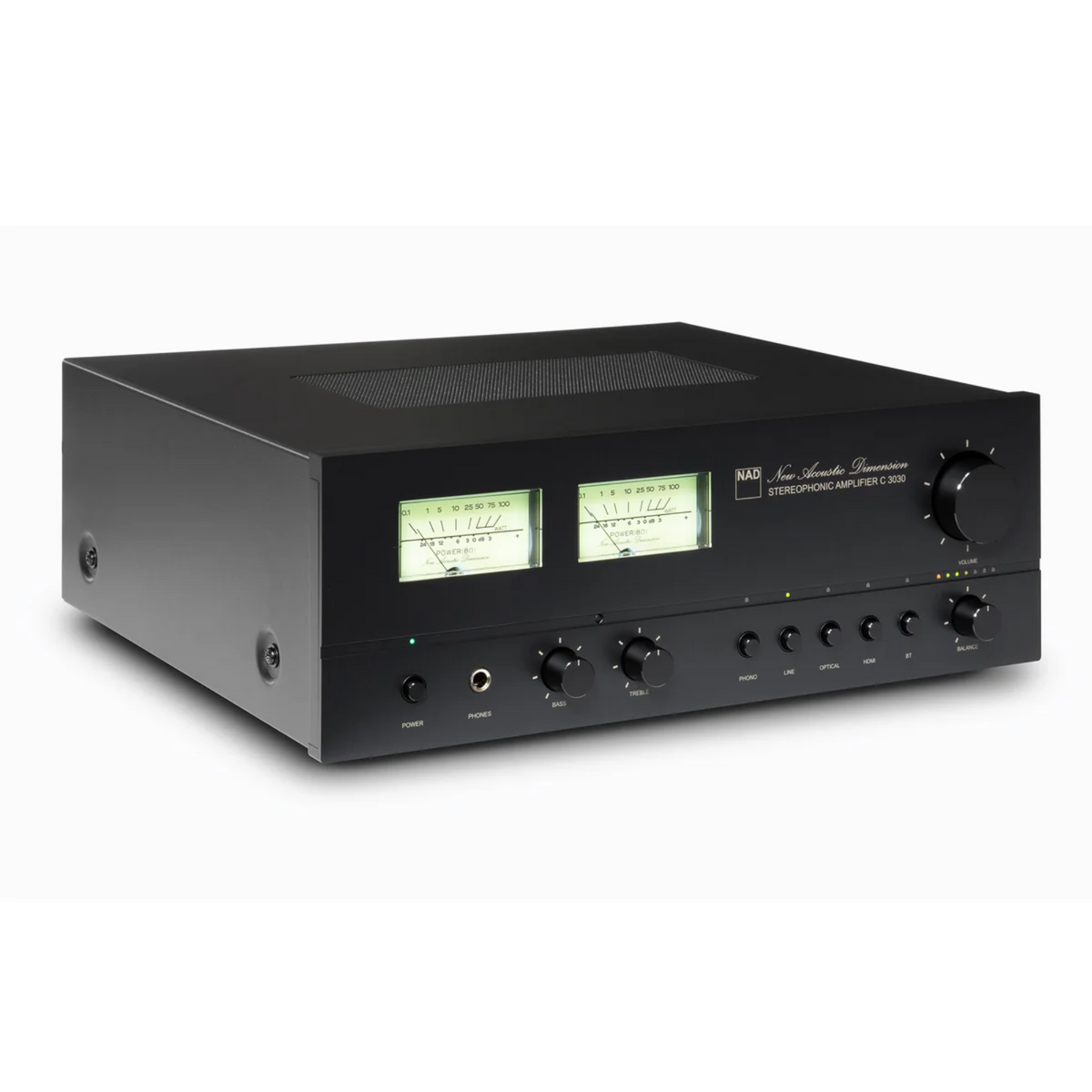

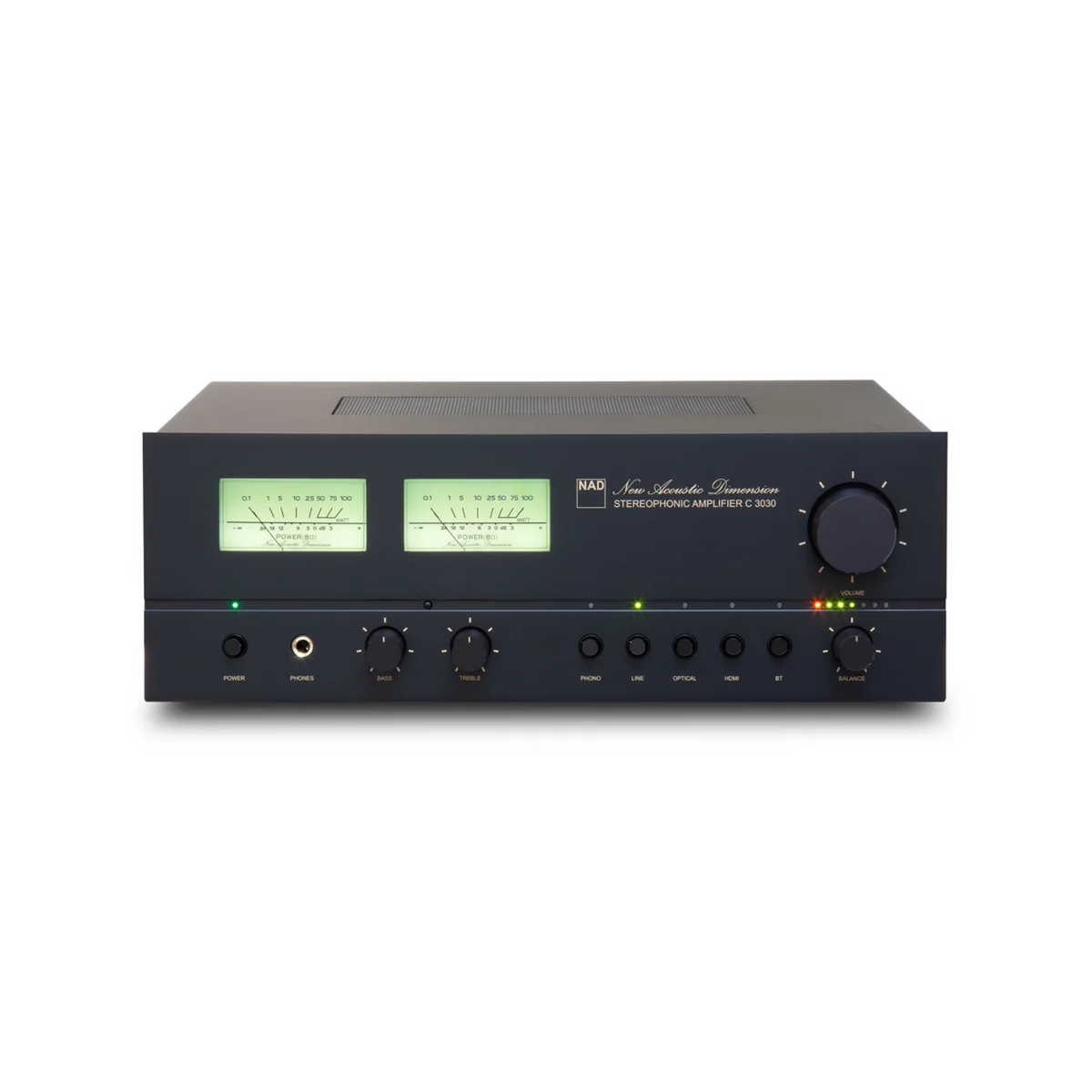

The NAD C 3030 Integrated Amplifier blends retro-inspired styling with modern connectivity in a compact design. Heritage details such as illuminated VU meters and a cursive NAD logo recall the original NAD 3030, while its proportions are carefully considered for today’s living spaces. Delivering 50 watts per channel of clean NAD amplification, it provides confident, musical performance with a wide range of loudspeakers. HDMI eARC and Bluetooth make the C 3030 easy to integrate into both music-focused and TV-based systems.

KEY FEATURES

  • 50 watts per channel of NAD amplification
  • Vintage-inspired design with illuminated VU meters and cursive NAD logo
  • HDMI eARC input for direct TV connection
  • Bluetooth for simple wireless music playback
  • Bass-managed subwoofer output with optional fixed 80Hz high-pass filter
  • Classic Series integrated amplifier with compact proportions
  • Phono input for turntable connection
  • Optical digital input for external digital sources
  • Front-panel headphone output for private listening
  • Supplied remote control for convenient system operation

PREAMPLIFIER SECTION

LINE INPUT, PRE-OUT (ANALOG BYPASS ON)
THD (20 Hz – 20 kHz) <0.005 % at 4V out
Signal-to-Noise Ratio >90 dB (IHF, A-weighted, 500 mV out, unity gain)
Input impedance (R and C) 28 kohms + 360 pF
Maximum input signal >5.7 Vrms (0.1 % THD)
Output impedance 345 ohms
Input sensitivity 100 mV (500 mV out, Volume maximum)
Frequency response 20 Hz – 20 kHz (±0.3 dB)
Maximum voltage output >5 V (0.1 % THD)

LINE IN, HEADPHONE OUT
THD (20 Hz – 20 kHz) <0.005 % at 1V out
Signal-to-Noise Ratio >90 dB (32 ohms load, A-weighted, 1V out, unity gain)
Frequency response 20 Hz – 20 kHz (±0.3 dB)
Channel separation >60 dB at 1 kHz
Output impedance 22 ohms

GENERAL SPECIFICATIONS

LINE IN, SPEAKER OUT
Continuous output power into 8 ohms and 4 ohms 50 W (20 Hz – 20 kHz at rated THD, both channels driven)
THD (20 Hz – 20 kHz) <0.03 % (250 mW to 50 W, 8 ohms and 4 ohms)
Signal-to-Noise Ratio >90 dB (A-weighted, 500 mV input, 1 W out in 8 ohms)
Clipping power 70 W (1 kHz 0.1 % THD, 4 ohms) >55 W (1 kHz 0.1 % THD, 8 ohms)
IHF dynamic power 8 ohms: 120 W 4 ohms: 250 W 2 ohms: 390 W
Peak output current >16 A (1 ohm, 1 ms)
Damping factor >52 (20 Hz to 6.5 kHz, 50 W, 8 ohms)
Frequency response 20 Hz – 20 kHz (±0.3 dB)
Channel separation >75 dB (1 kHz) >70 dB (10 kHz)
Input sensitivity (50 W in 8 ohms) 750 mV
Frequency band 2.402 G – 2.480 G
Maximum transmit power 7 dBm ± 2 dBm
Power consumption, standby mode 0.5 W

LINE IN, PHONO INPUT
THD (20 Hz – 20 kHz) <0.05 % at 50 W out
Signal-to-Noise Ratio >82 dB (10 mV in, A-weighted, 1 W out)
Input impedance (R and C) 46 kohms / 100 pF
Input sensitivity 1.6 mV (20 Hz – 50 W out, Volume maximum)
Frequency response 20 Hz – 20 kHz (±0.3 dB) >16 A (1 ohm, 1 ms) Note: The RIAA response is consistent with a pre-emphasis that is rolled off at 50 kHz by a second order filter, such as used in Neumann cutting lathes.
Maximum input signal at 1 kHz >15 mVrms (0.1 % THD)

DIMENSION AND WEIGHT
Gross dimensions (W x H x D) ** 356 x 129 x 329 mm 14 1/8 x 5 1/8 x 13 inches
Net weight 5.8 kg (12.8 lbs)
Shipping weight 7.2 kg (15.9 lbs)
