DB DRIVE 5-CHANNEL 500W CLASS D AMPLIFIER

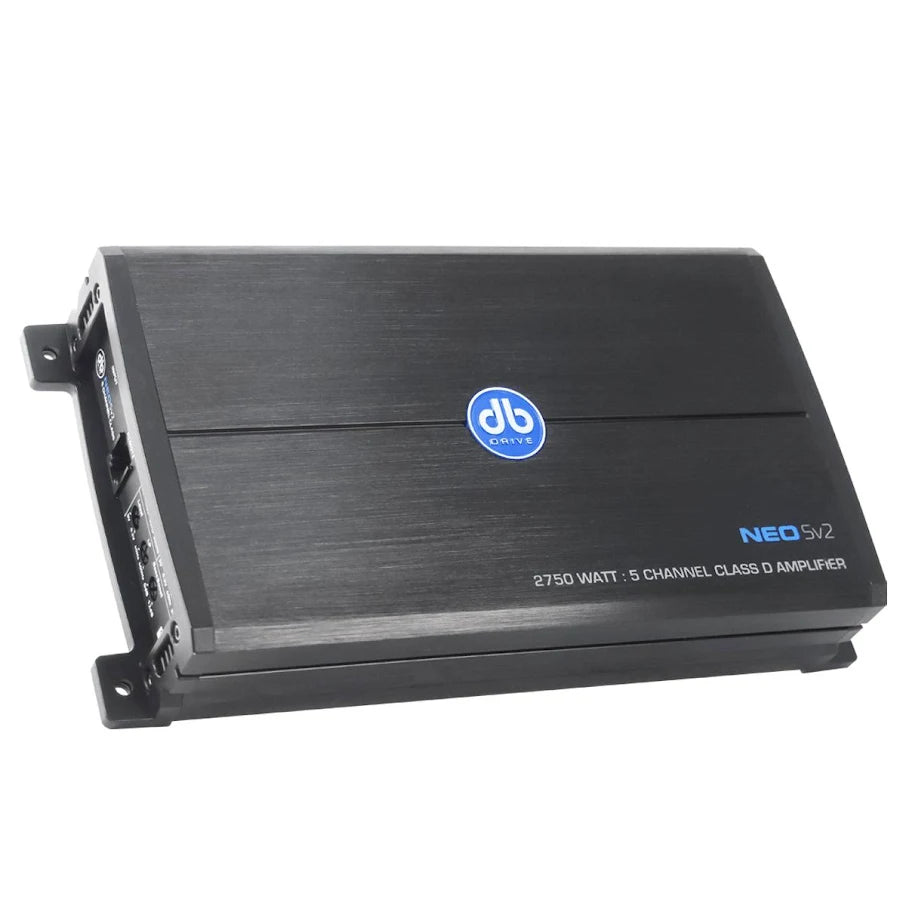

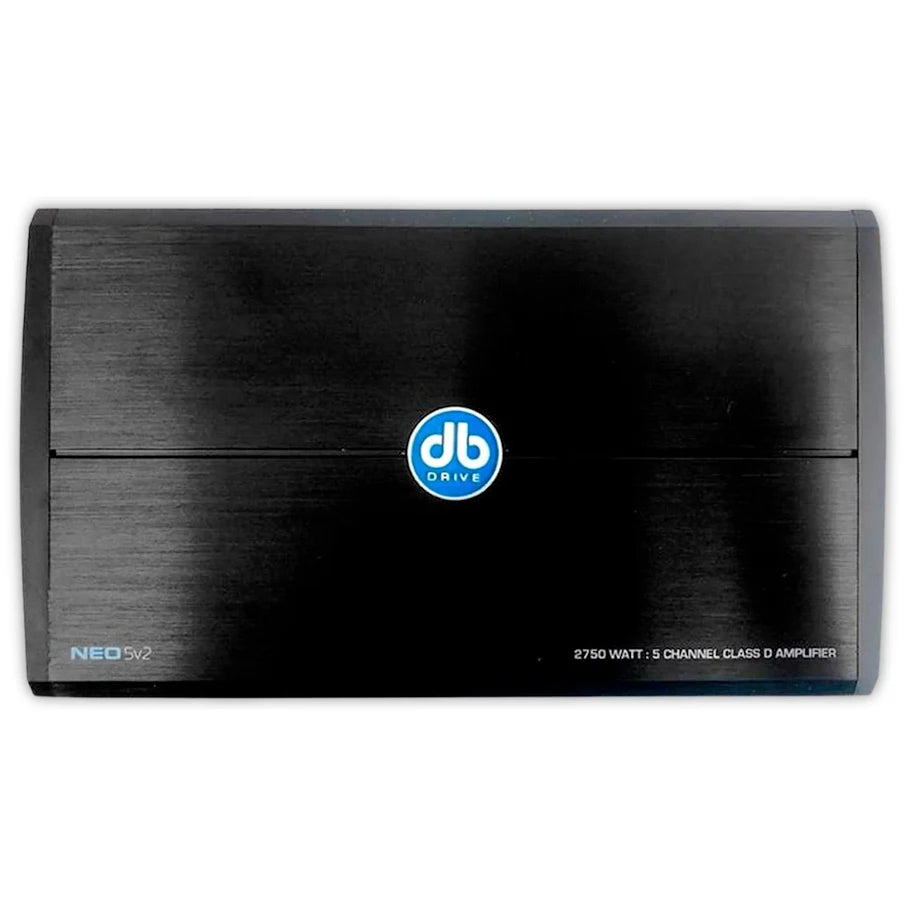

DB Drive NEO5V2 NEO Series 5-Channel Marine Amplifier - 125W RMS x 4 + 500W RMS x 1

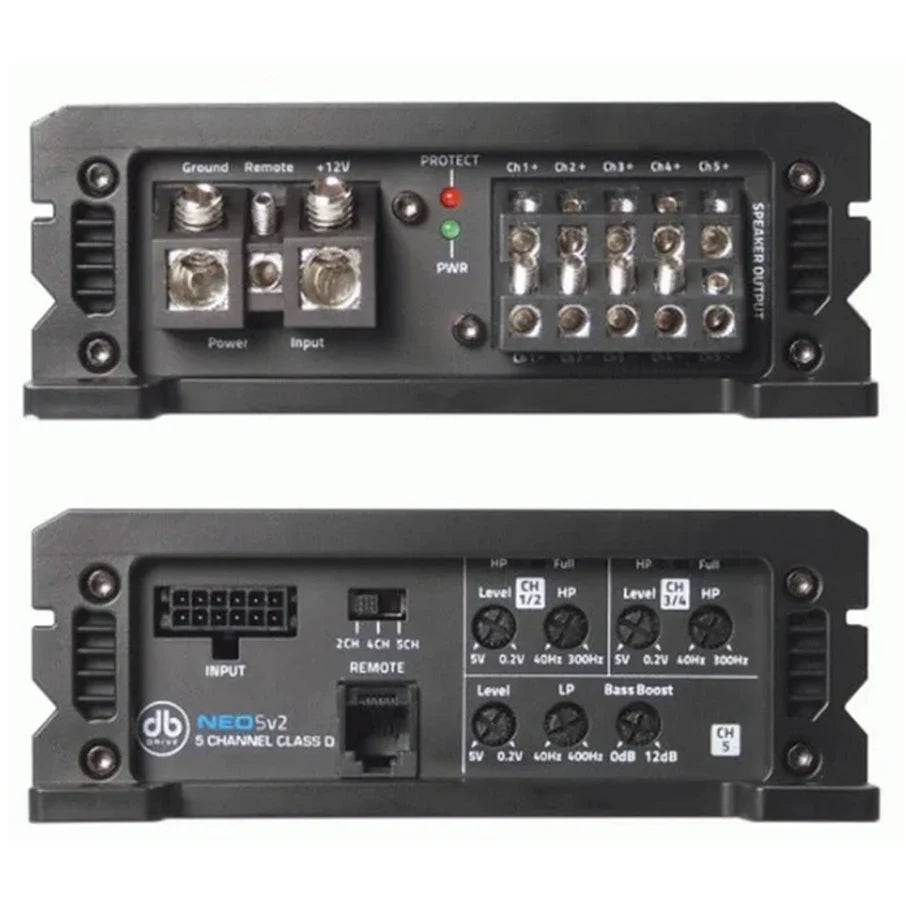

The NEO Amplifiers include a built-in variable crossovers. The crossover features a variable frequency selection for precise low pass filtering for the NEO1.5Kv2. The NEO4v2 and NEO5v2 also feature the same frequency selection with the option or high pass or low pass filtering. For added low frequency performance the amplifiers are equipped with a selectable 6dB-12dB Bass Boost @ 45Hz.

Product Highlights:

• 5 channel Full Range Class D Technology
• 2 ohm Stereo Load capability on Stereo Channels
• 2 ohm Mono load capability on 5th Mono channel
• Amphibious grade conformal coating on PCB
• Audiophile Grade RCA Connecters
• Variable 12dB High/Low-pass crossover filters
• Bridgeable outputs @ 4ohm load
• Double Sided circuit tablet

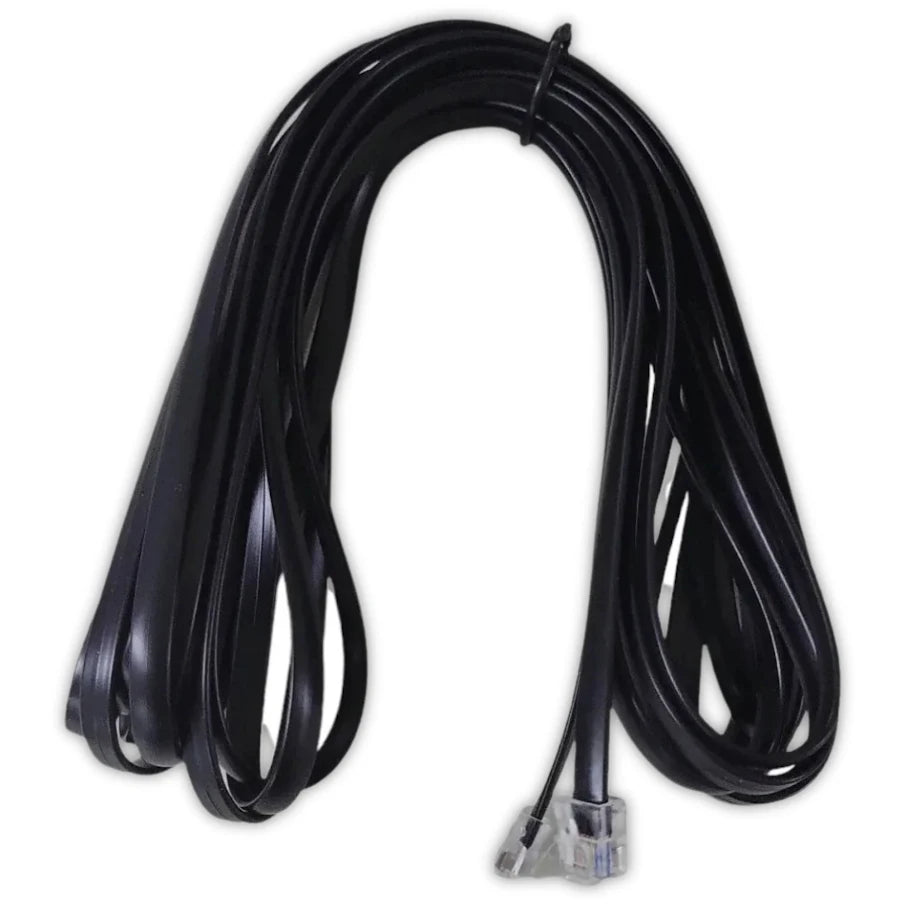

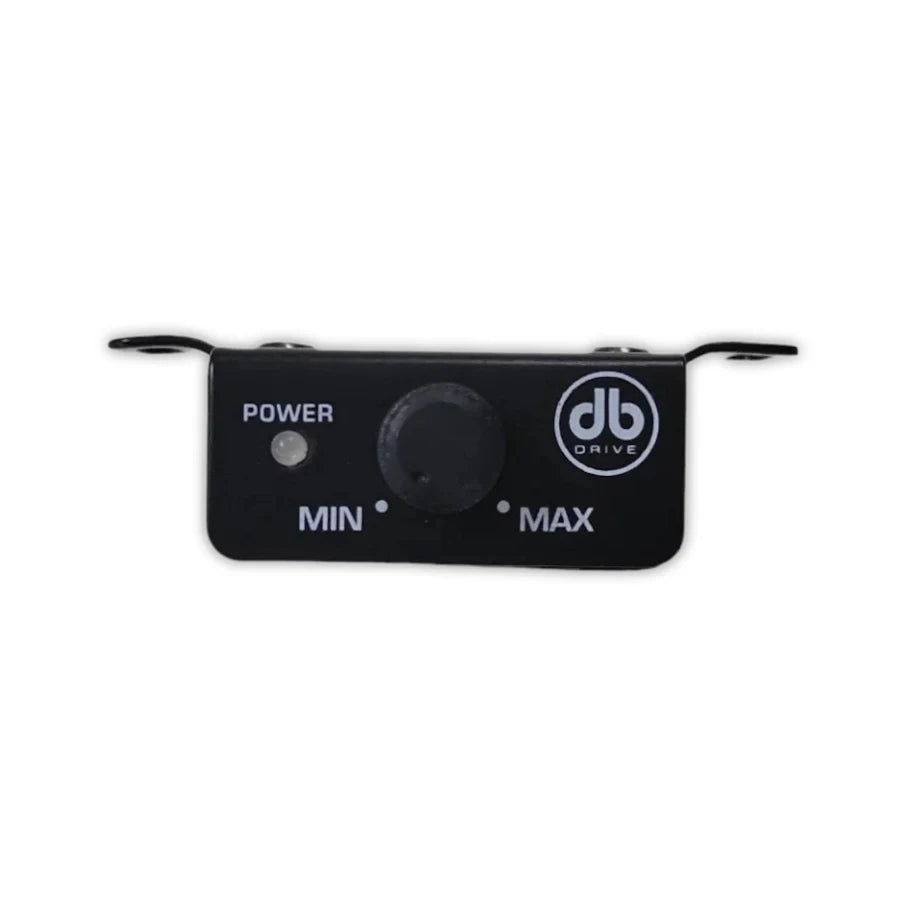

• Bass Remote included
• Compatible with any 4/2ohm loudspeaker

Specifications:

• Rated Power @ 14.4 Volts:
• 4 x 125 Watts @ 4Ω
• 4 x 250 Watts @ 2Ω
• 2 x 250 Watts @ 4Ω Bridged
• 1 x 500 Watts @ 2Ω 5th Ch.
• THD (100Hz @ 1Ω): 0.04%
• Bandwidth (-3 dB): 18Hz ~ 22KHz
• Damping Factor (1KHz @ 4Ω): 100
• S/N ratio (as weighted @ 1 Volt): 99db
• Input Sensitivity: 0.20V ~ 9.0V RMS
• Minimum Load Impedance: 2Ω
• Channel 1-2 filter Range: 40Hz ~ 300Hz
• Channel 3-4 filter Range: 40Hz ~ 300Hz
• Channel 5 filter Range: 40Hz ~ 400Hz

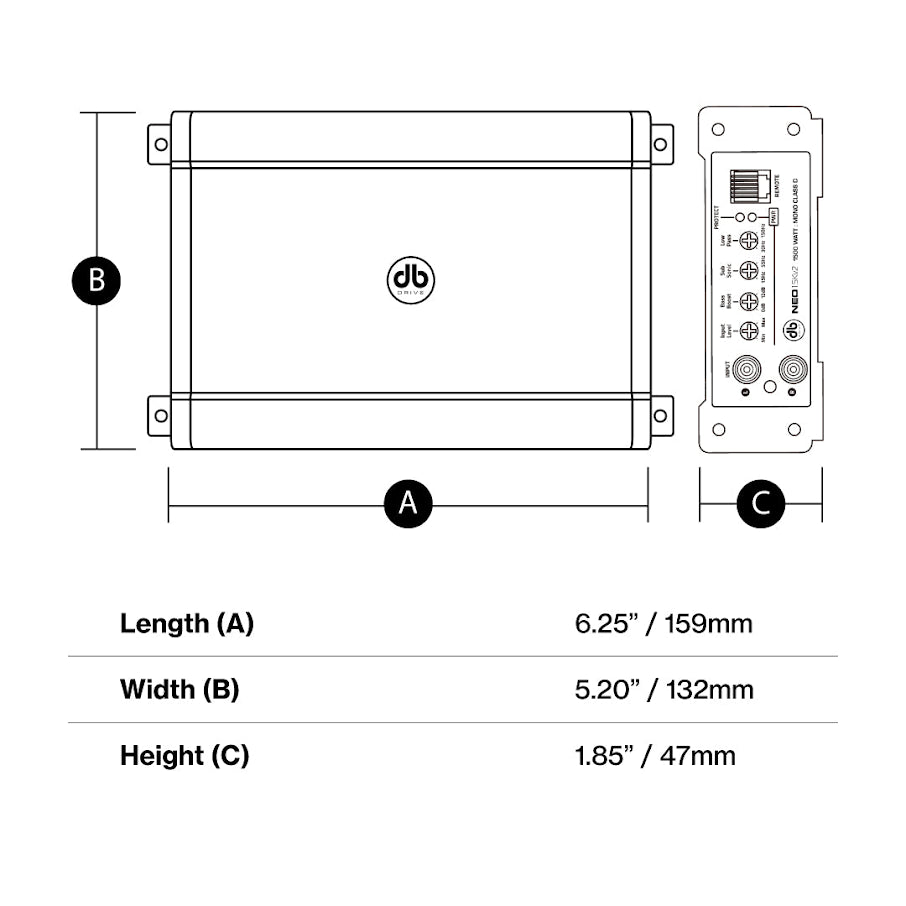

• Dimensions (L x W x H): 6.25" x 5.20" x 1.855" (159 x 132 x 47 mm)
