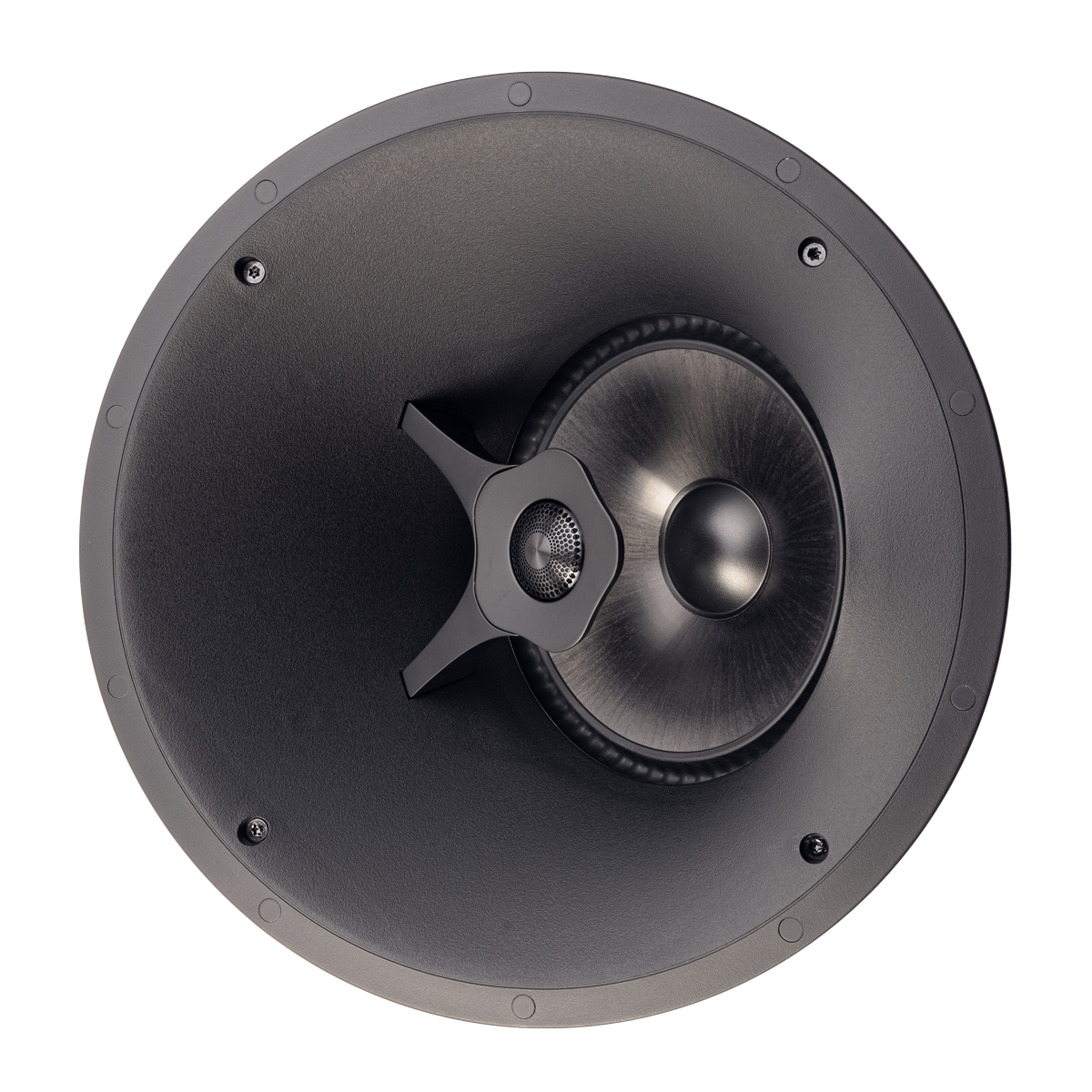

Paradigm Pro P80 Angled Surround Speaker (Sold Each)

The CI PRO Series is manufactured in Canada and takes performance to the next level with patented technology, step-up components, and hallmark Paradigm sound quality.

The Custom Installer’s Smarter Choice

The CI PRO Series is manufactured in Canada and takes performance to the next level with patented technology, step-up components, and hallmark Paradigm sound quality.

Aluminum Magnesium Ceramic (AL-MAC™) Tweeter with Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens

AL-MAC™ is our unique blend of Aluminum, Magnesium, and Ceramic materials; each of which contribute to the end goal of greater accuracy and realism. Their special properties contribute to the final product which is not only strong and lightweight, but embodies a natural anti-resonance to ensure the tweeter doesn’t just sound good “on paper” but truly sounds incredible in the real world.

CARBON-X™ Cones

Paradigm’s exclusive CARBON-X™ Cone combines lightweight stiffness with high consistency for a greater degree of accuracy and smooth, uncolored frequency response. Drivers feature long excursion voice coil motors for greater power handling and reduced power compression.

Advanced Shock-Mount™ System

mechanically decouples the die-cast aluminum baskets from the specially formulate CARBON-X™ ingrained baffles reducing performance-robbing vibrations and resonance between the chassis and the acoustic platform. Without these resonances, all drivers are left free to deliver pure, unaltered sound with no audible distortion.

Patented† Active Ridge Technology (ART™) surrounds

Made in-house and over-moulded directly onto each cone, achieve greater excursion for a 3dB gain in distortion-free output (50% greater) compared to drivers with standard surrounds. † US patents: D654,479S and 8,340,340B2.

DESIGN	2-driver, 2-way in-ceiling, 30°-Angled Guided Soundfield System SHOCK-MOUNT™ System, Nylon Reinforced Baffle
CROSSOVER	2nd-order electro- acoustic at 2.0 kHz
FREQUENCY RESPONSE ON-AXIS	±3 dB from 58 Hz - 22 kHz
FREQUENCY RESPONSE 30° OFF-AXIS	±3 dB from 58 Hz - 18 kHz
HIGH FREQUENCY DRIVER	1” (2.5cm) Aluminum Magnesium Ceramic (AL-MAC™) Tweeter with Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens and Reduced Edge Diffraction (RED™) Technology
MID/BASS FREQUENCY DRIVER	8” (20.3cm) CARBON-X™ Cone with overmolded Active Ridge Technology (ART™) surround, Advanced Shock-Mount™ System, FEA-Optimized Ultra Rigid Cast- Aluminium Baskets
SENSITIVITY ROOM / ANECHOIC	93 dB / 89 dB
LOW FREQUENCY EXTENSION	39 Hz
SUITABLE AMPLIFIER POWER RANGE	15-110 W
MAXIMUM INPUT POWER	80 W
IMPEDANCE	Compatible with 8 ohms
CUT-OUT DIMENSIONS	11-7/16” (29.1cm) dia.
MINIMUM MOUNTING DEPTH (DEPTH REQUIRED IS THE DISTANCE BETWEEN 1/2" DRYWALL, OR SIMILAR MATERIAL.)	5-5/8” (14.3cm)
DIMENSIONS HXWXD (INCLUDES GRILLE).	12-5/8” (diameter) x 6-1/8” (depth) (32.0cm x 15.5cm)
WEIGHT	6.6 lbs (3 kg)
FINISHES	White, paintable grille, black speaker

Specifications are subject to change without notice.

DOWNLOADS

CI PRO SPEC SHEET V2		1.39M
CI PRO DIMENSIONAL DRAWING V2		2.04M
CI ELITE SERIES V2 AND CI PRO SERIES V2 OWNERS MANUAL
