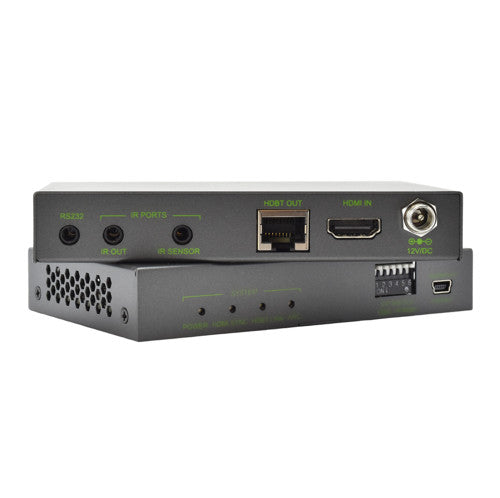

PAV-EX40-UHD Purpose AV 4K HDR HDMI Balun

The PAV-EX40-UHD-KIT is an HDMI extender featuring HDBaseT technology, allowing for the extension of 4K HDMI signals up to 40 Meters. Equipped with Bi-directional POC, IR, and RS232 the PAV-EX40-UHD-KIT is an essential integrator tool for extending HDMI.

Required Functions:

Extend up to 10.2G HDMI Signals, Bi-Directional POC, HDCP 2.X and below, Bi-Directional 12V IR.

Minimum Specifications:

Extend HDMI 40M@4K 70M@1080p, 10.2Gbps HDMI support, HDCP 1.X/2.X Support, Bidirectional POC, Bi-Directional IR, Firmware over Mini USB, CEC Extension

Required Ports:

Locking Barrel Power, HDMI RX, RJ45/HDBT RX (Black), 3.5MM IR RX, 3.5MM IR TX

Included Accessories:

Power Supply, IR Eye, IR Visible Emitter, Velcro Strap, Mounting Brackets

Firmware UX:

Mini USB

Model Numbers

• PAV-EX40-UHD-T - HDBaseT Transmitter w/ IR and RS232
• PAV-EX40-UHD-R - HDBaseT Receiver w/ IR and RS232

Package Contents

• PSU
• X2 IR Target (Eye/Receiver)
• X2 IR Blaster (Emitter)
• X2 Velcro Strip
• Mounting Brackets
• X2 3.5MM TRS (Stereo) to Open Cable
