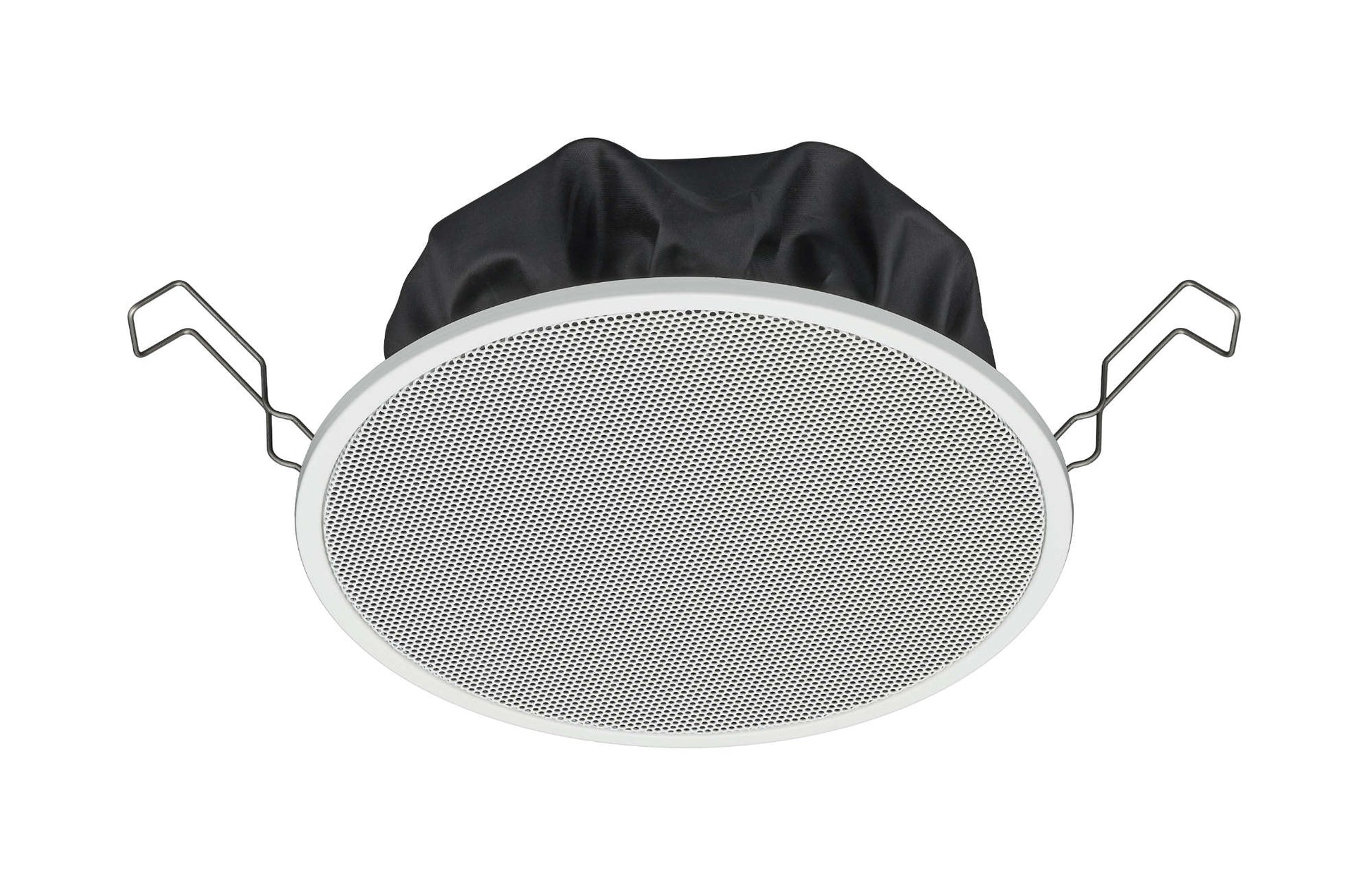

PC-1860 TOA 6W 70V / 100V Ceiling Mount Speaker

$48.32 CAD
$48.32 CAD
Sale Sold out
Shipping calculated at checkout.

The PC-1860 is suitable for announcements and BGM system use in high sound quality. The speaker’s design harmonizes with modern architecture and decor.

  • Flat front panel
  • Quick and easy installation with spring catches
  • Dust cover
  • Snap in cable terminal
  • 6 W rated input
Rated Input
6 W (100 V line), 3 W (70 V line)
Rated Impedance
100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 6.7 kΩ (1.5 W), 13 kΩ (0.8 W)
70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 6.7 kΩ (0.8 W), 13 kΩ (0.4 W)
Sensitivity
94 dB (1 W, 1 m) (500 Hz - 5 kHz, pink noise)
Frequency Response
80 Hz - 20 kHz (peak -20 dB)
Speaker Component
12 cm (5") cone-type
Mounting Hole
Mounting hole: Ø150±3 mm (5.91±0.12")
Ceiling thickness: 5 - 25 mm (0.2" - 0.98")
Speaker Mounting Method
Spring clamp
Cable Requirements
Solid wire: 0.5 - 3 mm² (AWG 20 - 12)
Connection
Push wire connection (Bridging terminal-2 branch type)
Operating Temperature
-10 °C to +50 °C (14 °F to 122 °F)
Finish
Frame: Steel plate, white (RAL 9016 equivalent), paint
Grille: Steel net, white (RAL 9016 equivalent), paint
Dimensions
Ø180 x 70 (D) mm (Ø7.09 x 2.76")
Weight
560 g (1.23 lb)
Included Accessories
Paper pattern
