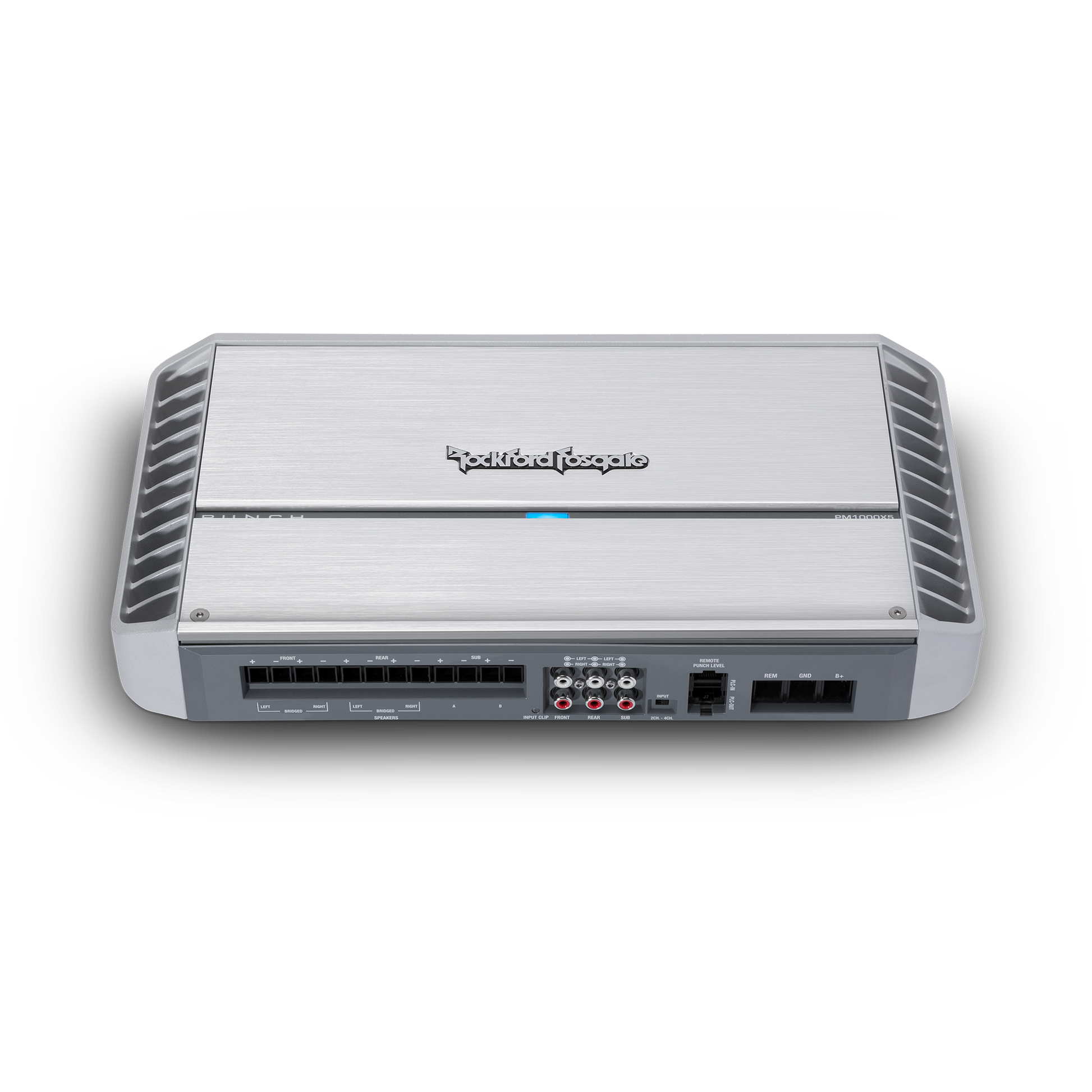

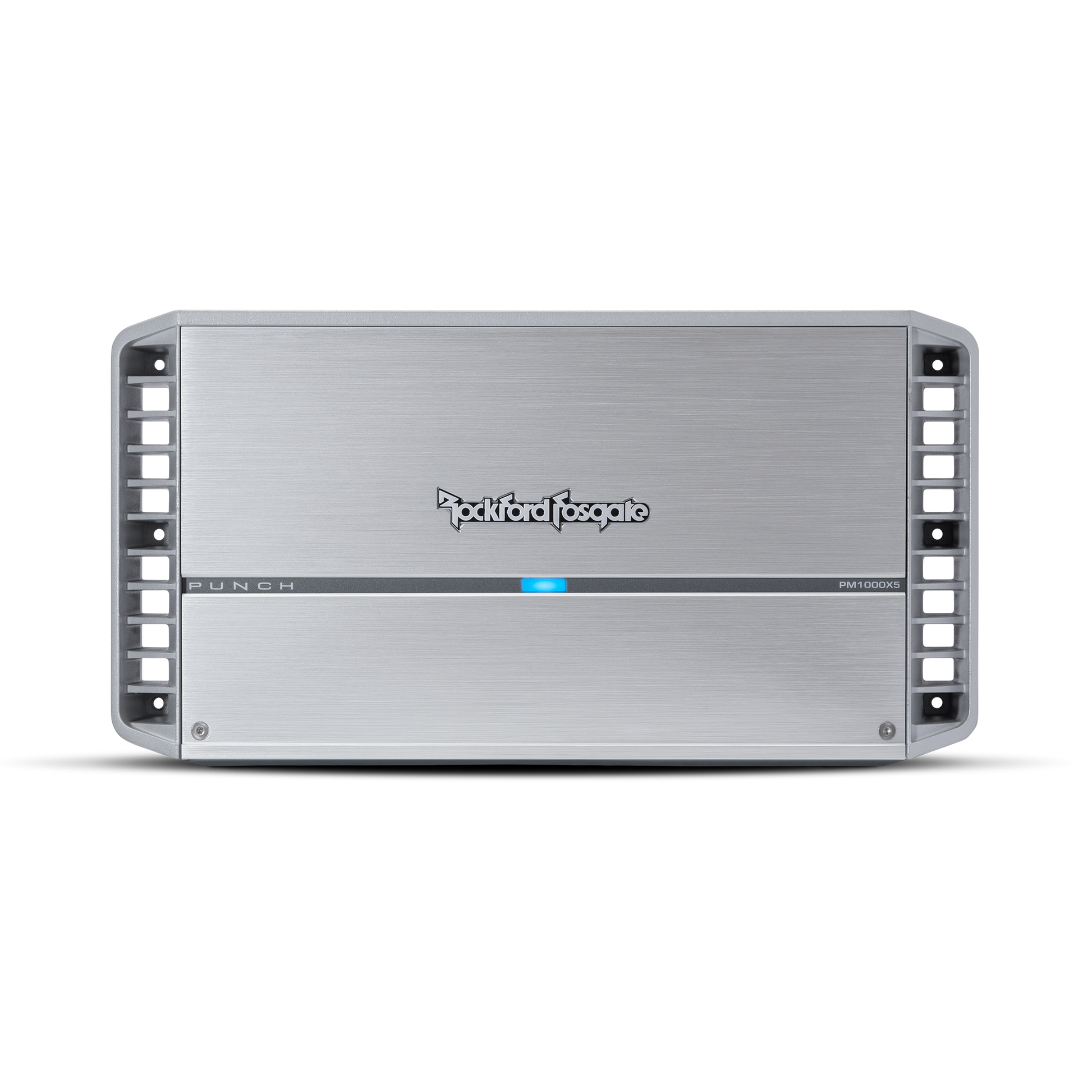

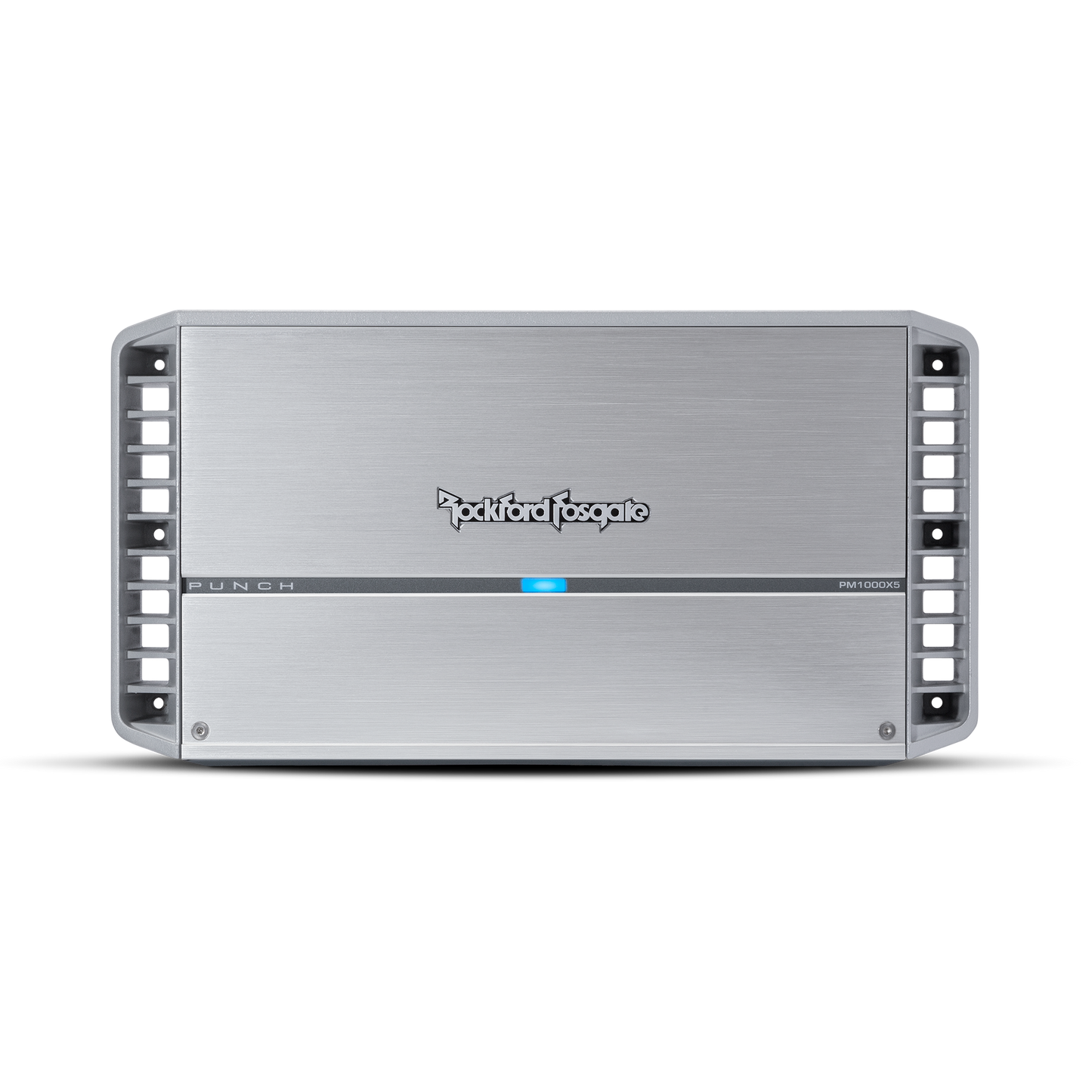

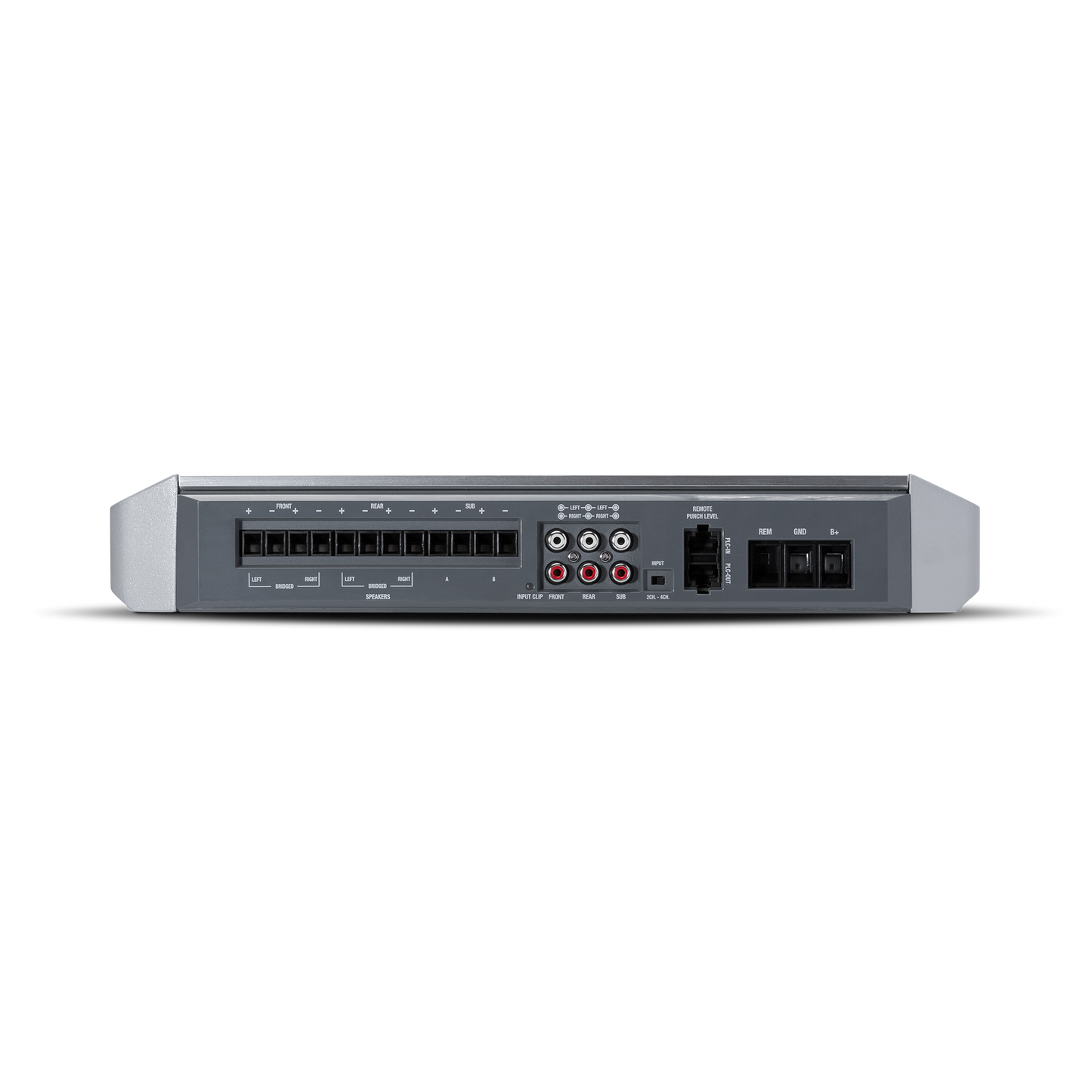

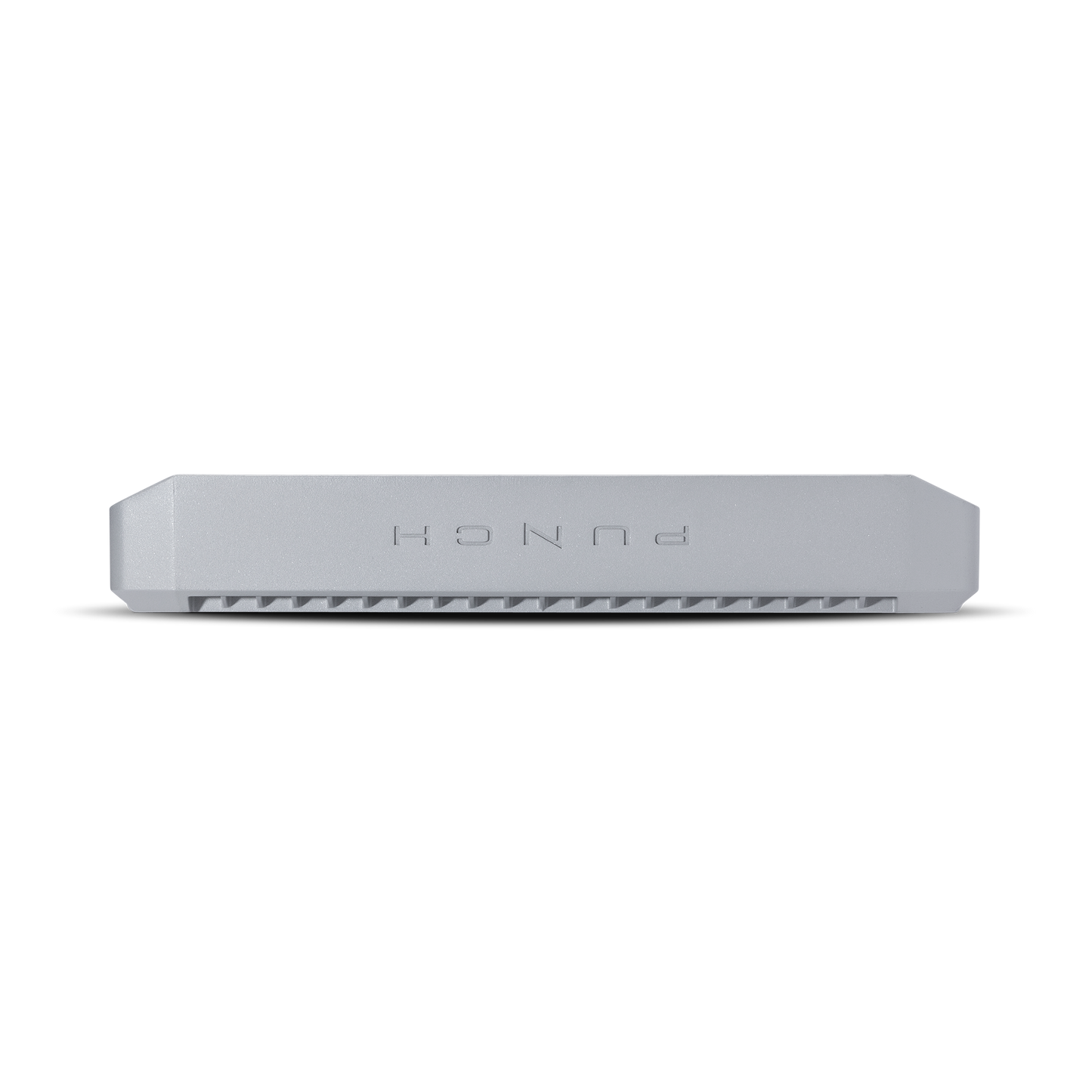

PM1000X5 ROCKFORD 5CH MARINE AMPLIFIER (75Wx4+150Wx1@4OHM/125Wx4+300Wx1@2OHM/500Wx1@1OHM)

Regular price $1,559.99 CAD
Regular price Sale price $1,559.99 CAD
Sale Sold out
Shipping calculated at checkout.

The PM1000X5 is a 1000 Watt 5-channel amplifier with high dynamic power using Class-a/b technology on the front/rear channels, Class-bd for the subwoofer channel, and a conformal coated pc board designed for motorsport and marine applications.  The PM1000X5 1,000 Watt full-range 5-channel is the one-and-only amplifier you will need to run your entire system. Run dash speakers off the front channels, run back speakers off the rear channels and run subwoofer(s) off the 5th channel! Known world-wide for brute power, this amplifier offers a higher level of efficiency along with a tri-stage protection that covers thermal, over-current and short circuits.

  • Marine grade two part epoxy coating on circuit boards
  • Marine grade stainless steel hardware
  • Muted turn on
  • High level input capable with Auto Turn-On circuit
  • Features C.L.E.A.N. Set-up
  • Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)

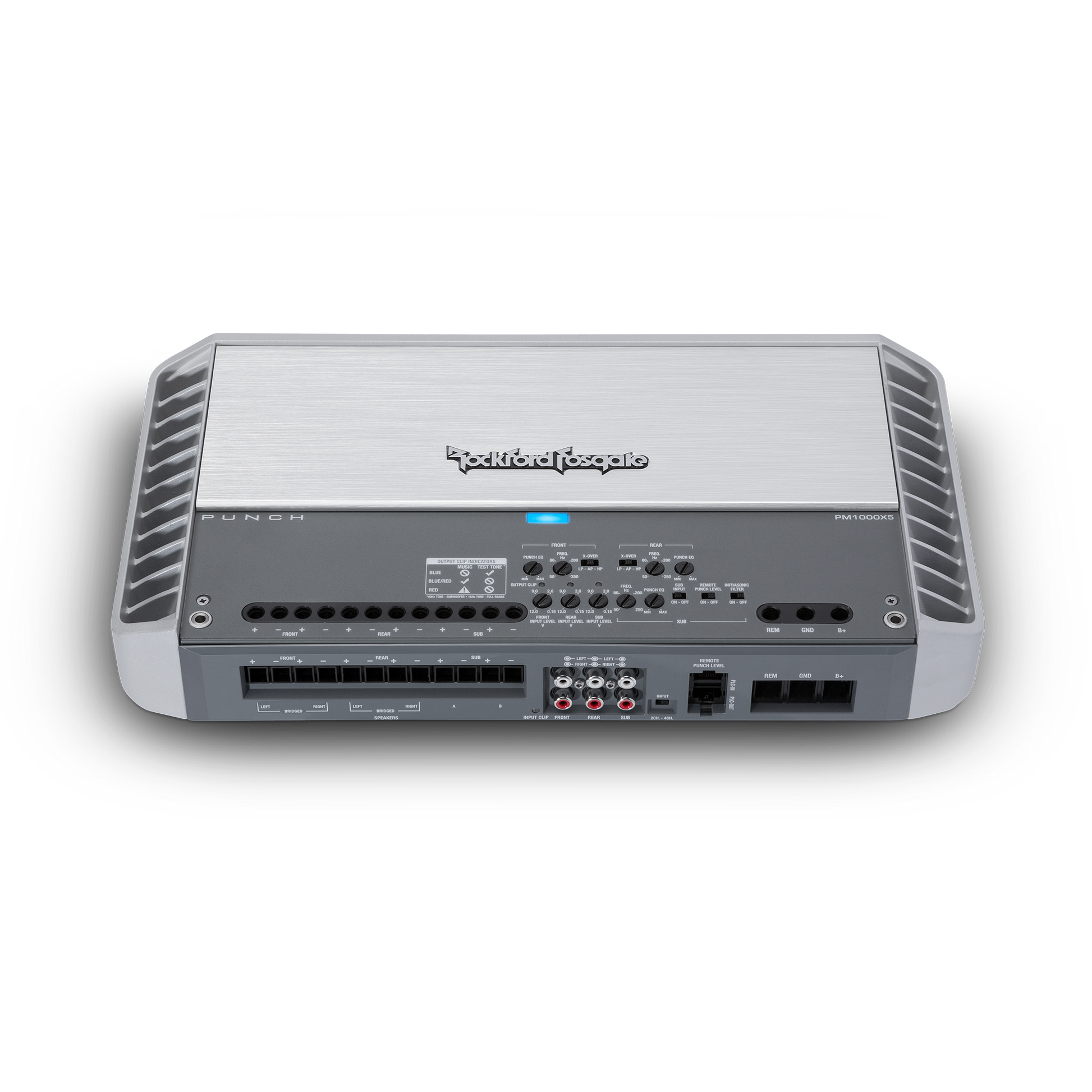

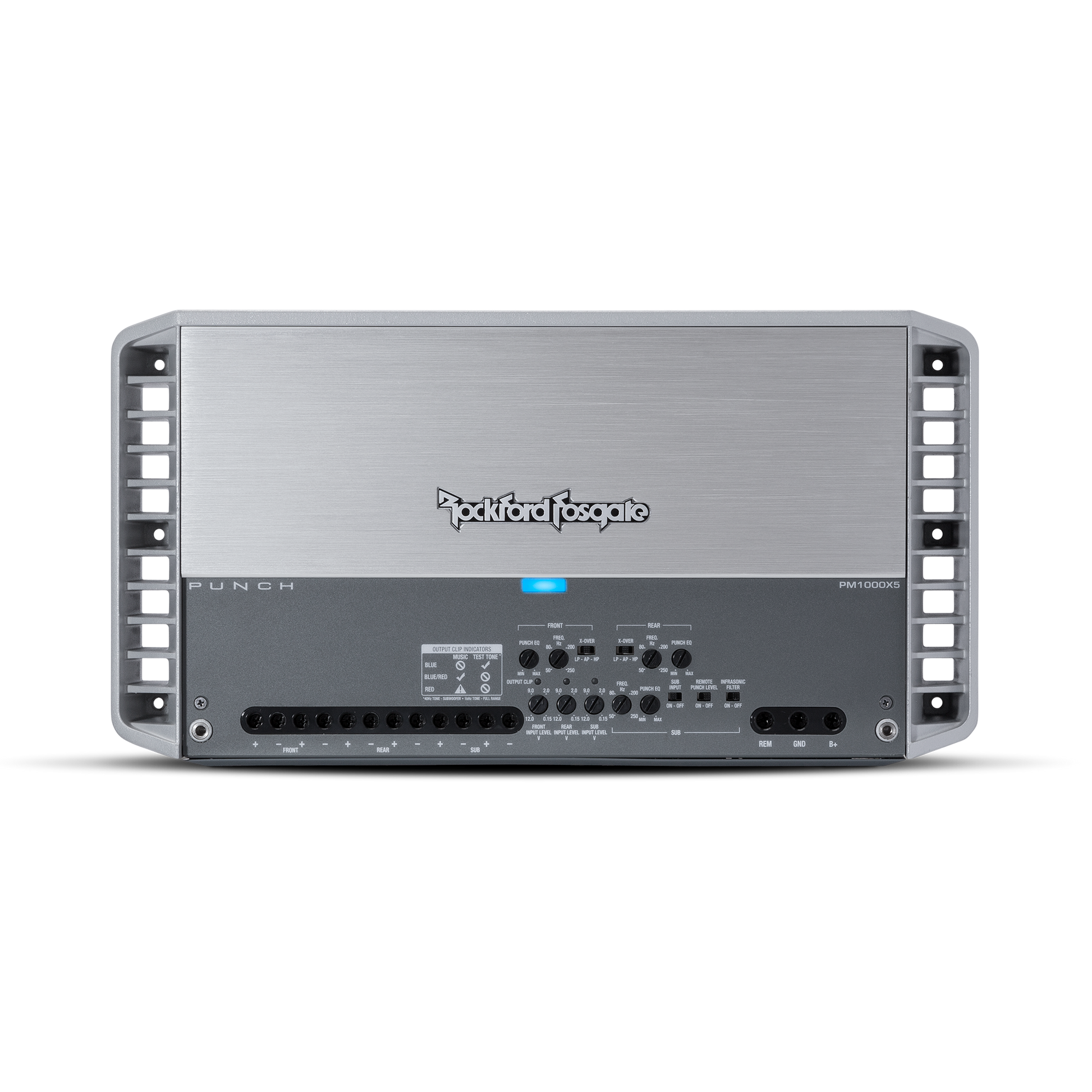

  • Stealth top mounted control panel
  • Over current protection
  • Short circuit protection
  • On-board Punch EQ with +18dB boost @ 45Hz
  • 2-Year Warranty
  • 12dB/octave Butterworth crossover
  • Infrasonic filter
  • Cast aluminum heatsink
  • 2/4 channel input switch
Cta-2006 Compliant

Number of Channels
5
Total Power
(Sum of Rated Power)
1000 Watts
Rated Power
(RMS Continuous Power)
75 Watts x 4 +
150 Watts x 1 @ 4-Ohm

125 Watts x 4 +
300 Watts x 1 @ 2-Ohm

N/A +
500 Watts @ 1-Ohm
Dynamic Power
(PVC/PowerCube®)
115 Watts x 4 +
299 Watts x 1 @ 4-Ohms 0° Res

190 Watts x 4 +
540 Watts x 1 @ 2-Ohms 0° Res

N/A +
863 Watts x 1 @ 1-Ohm 0° Res
Bridgeable
Yes (front/rear channels)
Frequency Response
Front/Rear: 20Hz - 20kHz +/-3dB
Sub: 20Hz - 500Hz +/-3dB
Input Sensitivity
150 mV - 12 V
Circuit Topology Class
Class A/B + Class BD (Sub)
Efficiency (average)
Front/Rear: 66% @ 4-Ohm
Sub Channel: 80% @ 4-Ohm
Total Harmonic Distortion (THD+Noise)
<1.0%
Signal Input
Input Switch: Hi/Low level input
Input Switch: 2/4 channel input
Hi/Low Level: 3 RCA Pair
Sub: front/sub input switch
Signal Output
-
Tone Controls
Sub:
0dB to +18dB @ 45Hz
Crossover Controls
Front: 50Hz - 250Hz High-Pass @ 12dB/Octave
Rear: 50Hz - 250Hz High-Pass @ 12dB/Octave
Sub: 50Hz - 250Hz Low-Pass
Sub: 28Hz infrasonic filter @ 12dB/Octave
Remote Controls
Optional Punch Level Control (PLC2) Ready
Visual Indicators
Power/Protect/Thermal LED
Input Clip LED3
Output Clip LED1,2,3

LED Color Legend:
1BLUE: <0.5% THD
2VIOLET: 1% THD
3RED: 10%+ THD
Power Wire Gauge
4 AWG
Power Input Connector
Block
Speaker Wire Gauge
12 AWG
Speaker Output Connector
Block
Cooling
Convection
Heatsink

Operating Voltage
9 - 16 VDC
Recommended Fuse
(not included)
150 A
Average Current Draw (13.8V Music)
75 A
Max. Current Draw (13.8V Sinewave)
150 A
Suggested Alternator
100 A
Included In The Box

Dimensions (H x W x D)
2.38 x 7.76 x 15.03 (in)
6.05 x 19.71 x 38.18 (cm)
Shipping Weight
15.3 Lbs. (6.93 Kg.)
