HERTZ 8CH ULTRA IMPACT DIGITAL INTERFACE PROCESSOR

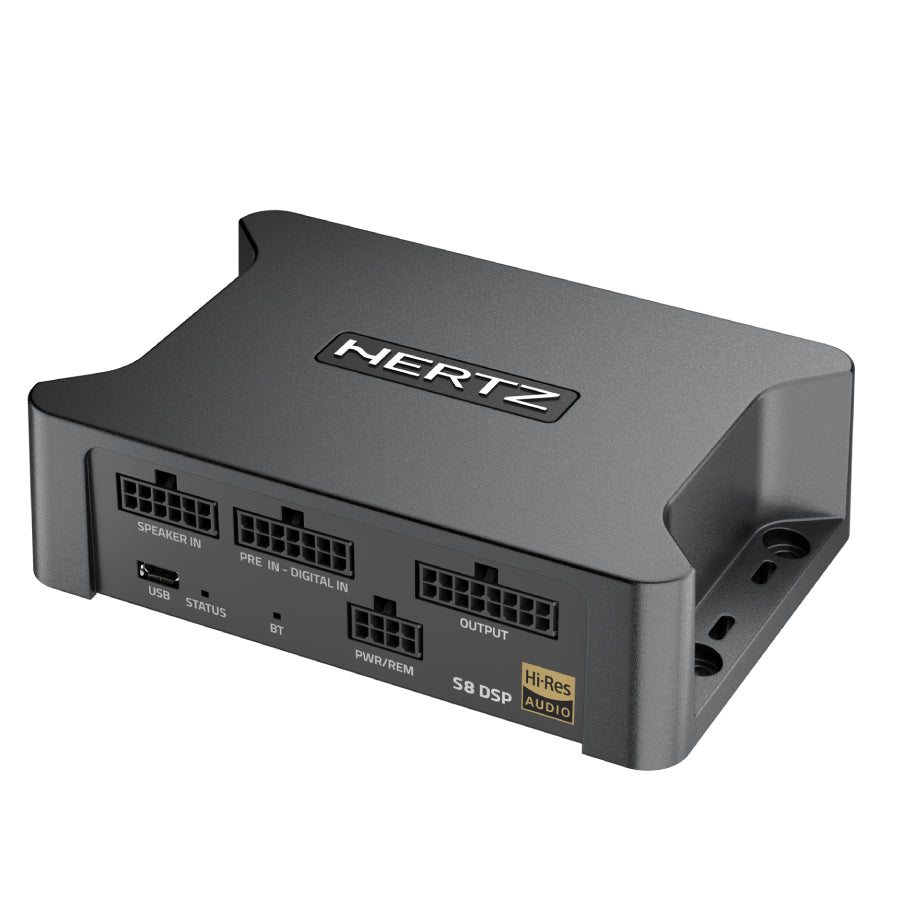

HERTZ S8DSP ULTRA COMPACT DIGITAL INTERFACE PROCESSOR

If you're looking to take your car, motorcycle, or boat audio system to the next level, the HERTZ S8DSP Ultra Compact Digital Interface Processor is the game-changer you've been waiting for. This little powerhouse is designed to seamlessly integrate with your OEM sources and deliver an unbeatable audio experience. Whether you're cruising in a car, hitting the road on a motorcycle, or enjoying the open waters on a boat, the S8DSP ensures that your music sounds crystal clear, no matter where you are.

What Makes the HERTZ S8DSP Stand Out?

The S8DSP is not just another audio processor; it's a refined blend of cutting-edge technology and superior audio quality. With a compact, weatherproof design made from durable materials, it's built to withstand the toughest environments. The device features a 96 kHz / 24-bit resolution, Hi-Res certified by the Japan Audio Society, so you can rest assured that the sound quality will blow you away.

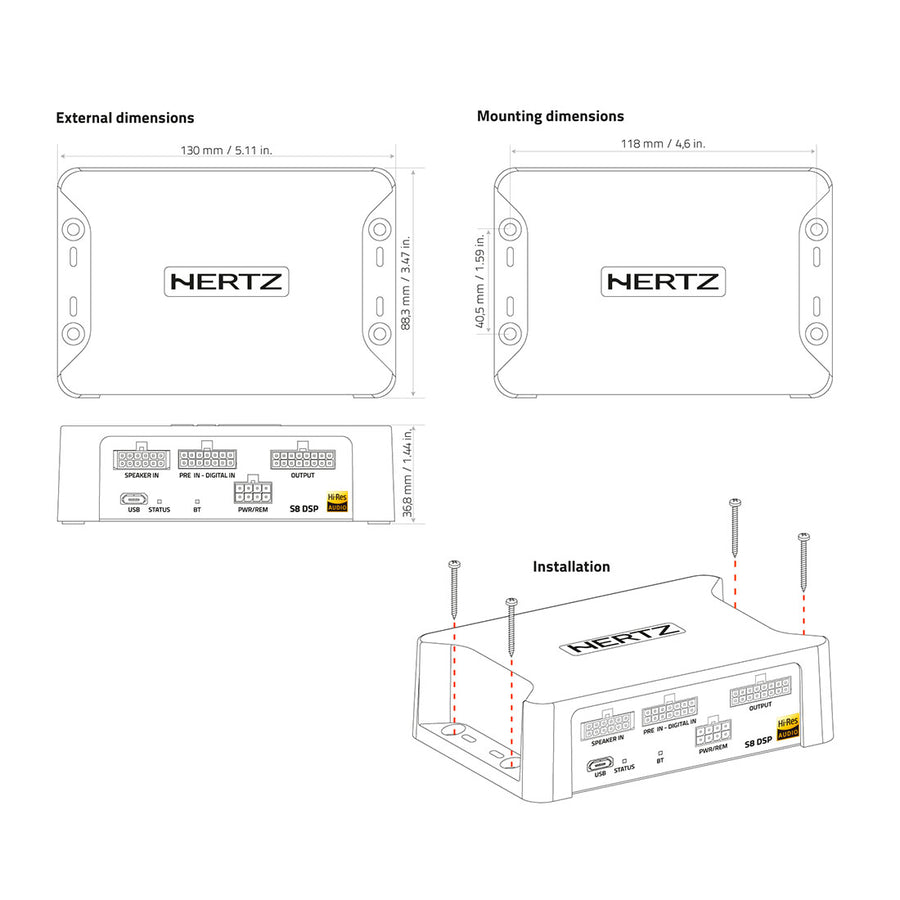

Ultra-Compact and Weatherproof Design for Any Environment

One of the standout features of the HERTZ S8DSP is its small yet powerful design. Its ultra-compact size allows it to be installed virtually anywhere, whether it's in your car, on your motorcycle, or on a boat. The S8DSP is treated with an anti-corrosion PCB, ensuring that it will last for years, even in the harshest weather conditions. You’ll get top-notch sound performance, rain or shine.

Whether you’re cruising on the highway, navigating through the woods, or sailing on the open water, the S8DSP delivers unmatched audio quality. It has three different application setups: Car, Motorcycle, and Free Placement (ideal for boats, vans, and pick-ups). Plus, with pre-configured "Party" and "Ride" sound presets, you’ll always be ready to enjoy music, no matter the environment.

Unleash the Power of Hi-Res Audio

The HERTZ S8DSP boasts Hi-Res audio with a native 96 kHz / 24-bit resolution, delivering a sound experience that’s second to none. Whether you’re listening

General Specifications

• Power Supply
• Nominal Power Supply Voltage / Fuse: 7 ÷ 20
• VDC / 1A
• Pulse Operating Voltage: 5 ÷ 24 VDC
• Idling Current: 0.34 A
• OFF Current (ART = OFF): < 80 µA
• OFF Current (ART = ON): < 80 µA
• Remote IN: 6 ÷ 20 VDC (10 mA)
• Remote OUT: 4 ÷ 20 VDC (150 mA)
• ART - Automatic Remote Turn On/Off from BTL Speaker Outputs (Selectable): 1.5 ÷ 7 VDC
  Input Stage
• Analog Low Level Inputs: 6 Channels (Differential input) (Molex microfit to RCAs)
• Analog High Level Inputs: 6 Channels (Differential input) (Molex microfit to tripped ends) + USS (Universal Speakers Simulator)
• Digital Inputs: Yes (Coaxial SPDIF; up to 24bit 96KHz) (Molex microfit to RCA)
• Input Sensitivity (Low Level): 0.8V – 6V RMS
• Input Sensitivity (High Level): 2.5V – 21V RMS
• Analog Inputs Management: Audio Input Routing Matrix Type
• Analog Inputs EQ: 7 bands paragraphic for each input channel
• ART: Automatic Remote Turn-On/Off with Speaker-In
  Output Stage
• Analog Outputs (RCA): 8 Channels
• Max Output Level (RMS) @ 0.05% THD: 4V
• Analog Outputs Management: DSP controls each output channel: Gain, Crossover, EQ, Delay, Polarity
• Bandwidth: 10Hz – 40KHz (+/-3dB)
• Signal to Noise Ratio (A weighted): 105dBA (Analog Input), 112dBA (Digital Input)
• THD+N (@ 1Vrms out, @ 1KHz): <0.005%
• Crosstalk (Channel Separation) @ 1KHz: >95dBA
  Digital Signal Processor (DSP)
• Sample Rate: 96KHz
• Bit Depth: 24
• Output Equalizer: 15 bands per channel w/ adjustable Q and Frequency
• Equalizer Resolution: 1/10th dB per step (+12dB / -12dB)
• Time Alignment (Distance): 0 ÷ 468.4 cm / 0 ÷ 184.4 inches
• Time Alignment (Time): 0 ÷ 13.5ms
• Time Alignment (Step): 0.08 ms; 2.8 cm / 1.1 inch
• Time Alignment (Fine Set): 0.02 ms; 0.7 cm / 0.27 inch
• Crossovers: AP/HP/LP/BP on all channels
• Crossover Types: Butterworth, Linkwitz-Riley, Bessel (All Channels)
• Crossover Slope: From 6dB/oct. to 30dB/oct. (6dB steps)
• Crossover Steps: 120 steps, 20Hz – 20KHz
• Mute Function: Individually per channel or all channels
• Presets: 4 presets
• Presets Selection: 2 specific wires for controlling 4 presets via external switches
• Input Selection by Wire: One specific wire to select between Analog or Digital input
• Audio Signal Compressor (Output Stage): Yes (Enable/Disable)
• DSP Chipset: Analog Device: ADAU1451

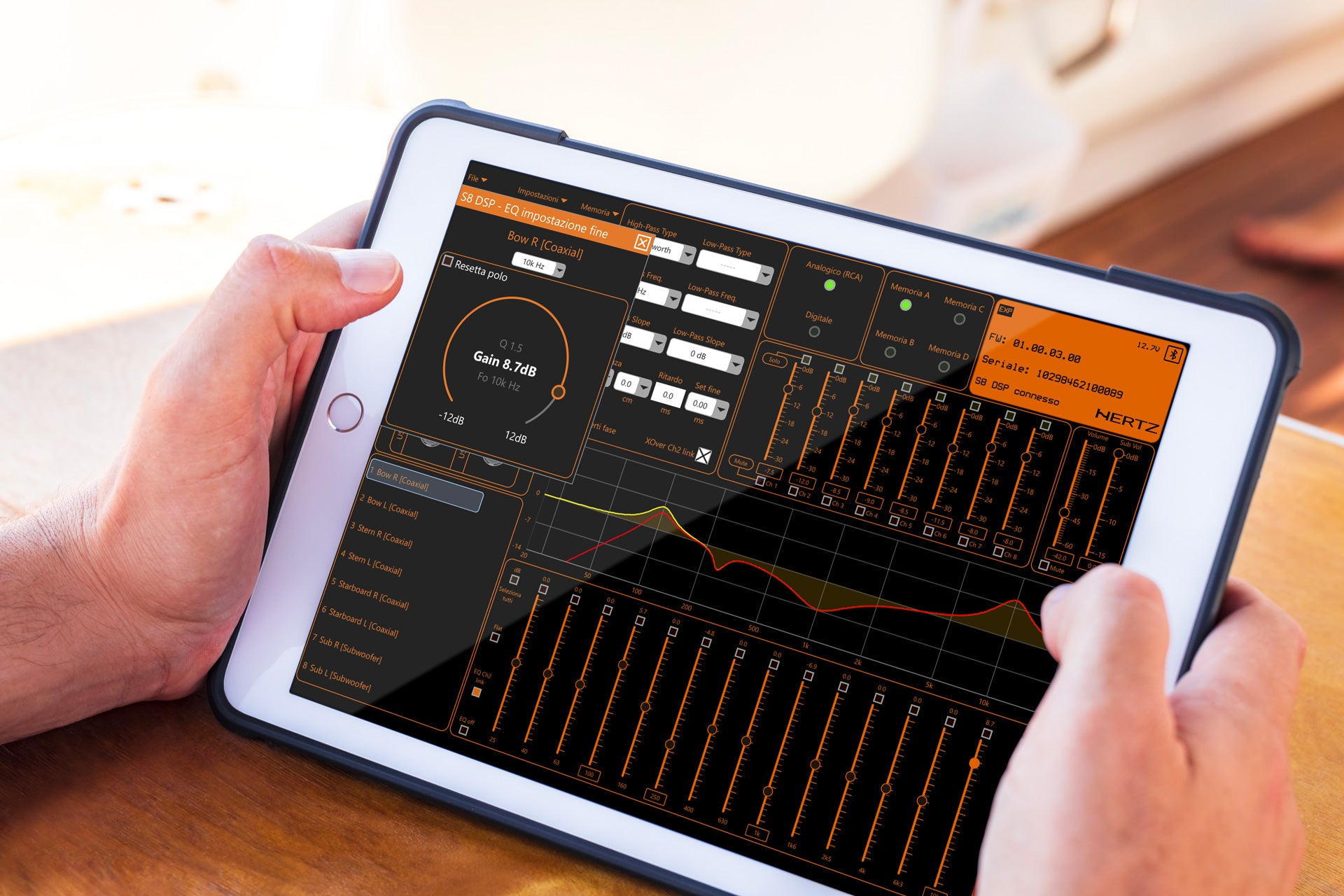

• DSP Management via BT App (iOS/Android)
  Configurator Mode: Allows DSP tuning. Manage every DSP function through your smartphone/tablet/PC/MAC.
  DRC Mode: Turns the BT device into a remote control with a simple graphical interface. Control volume, SUB level, select setups, and upload new setup files.
• Setup File Sharing via BT: Upload a setup file via BT through the BT App in Configurator or DRC mode.
• DSP Management via PC/MAC/iOS/Android
  Microsoft Windows (32/64 bit): Windows 10 (USB and BT BLE), Windows 11 (USB and BT BLE)
  Mac OS: 10.13 High Sierra or later (USB and BT BLE)

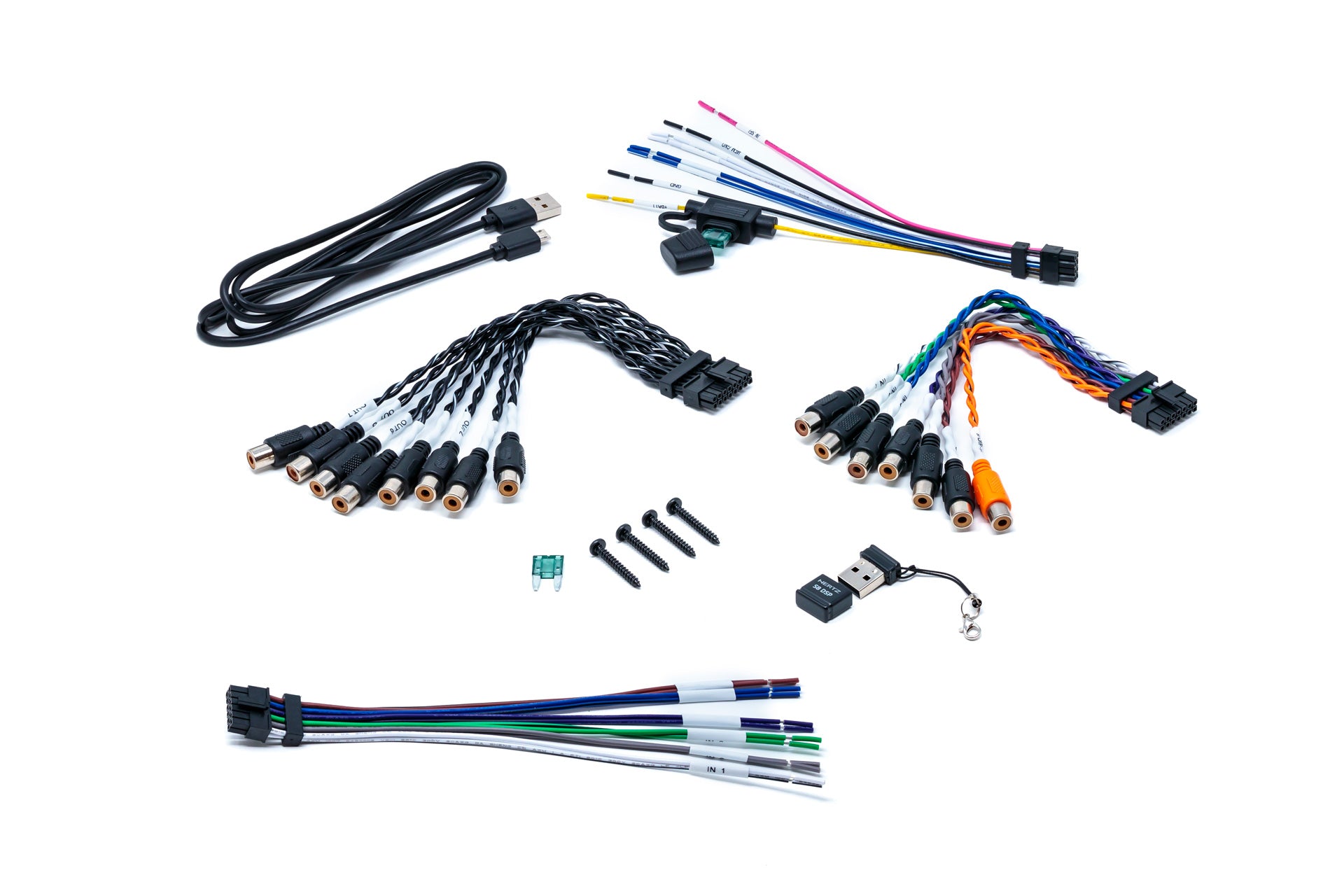

  Packaging Contents
• Cables & Connectors:
• Multipolar cable: Pre-IN/Digital-IN
• Multipolar cable: Speaker IN
• Multipolar cable: PWR/REM
• Multipolar cable: Output
• USB cable (1.8 m)
  Other Items:
• Fuse (1A)
• Self-tapping, cross-head fixing screws (x4)
• USB Memory Dongle Setup
• S8 DSP
• QSG (Quick Start Guide)
• Printed Quick Start Guide
