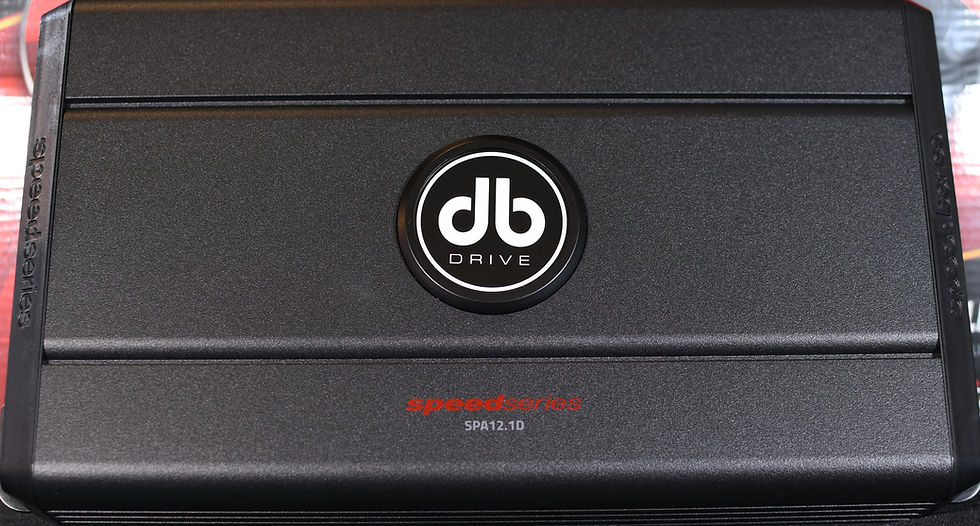

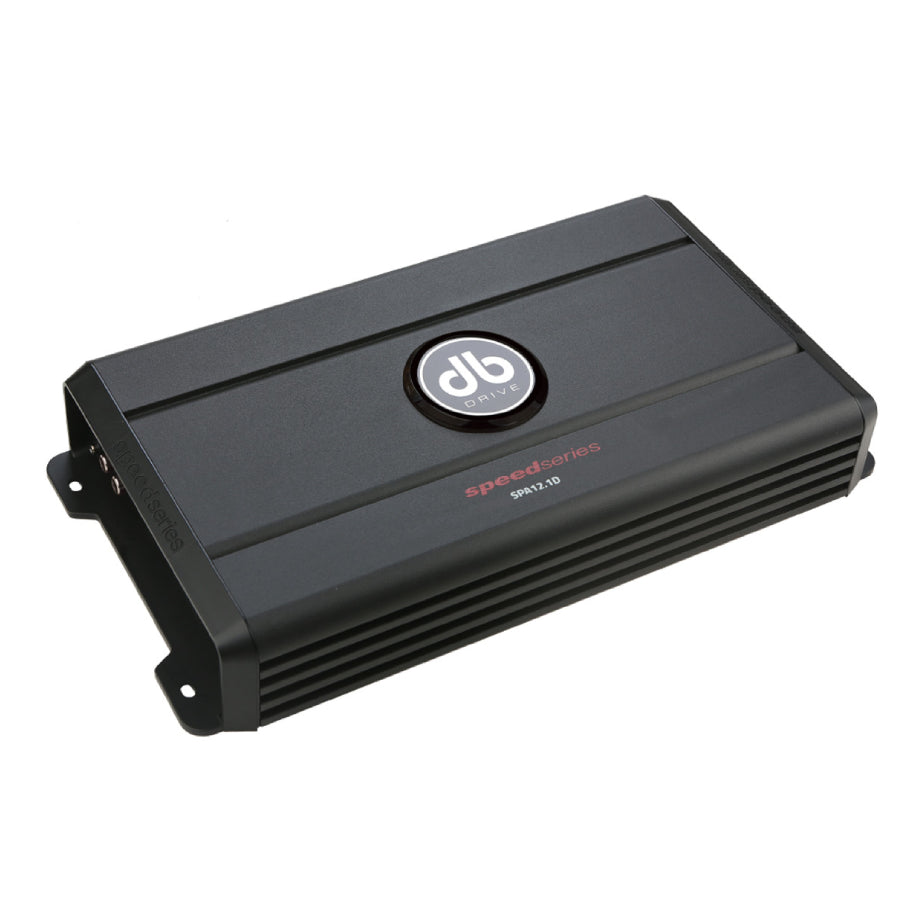

DB DRIVE MONO CHANNEL 1200W CLASS D SUBWOOFER AMPLIFIER

Upgrade your car audio system with the DB Drive SPA12.1D – a powerful mono block amplifier created for exceptional sound quality and performance. This amp will give you excellent bang for your buck.

Features:

• Class D Monoblock
• 1 Ohm Mono Load Capability

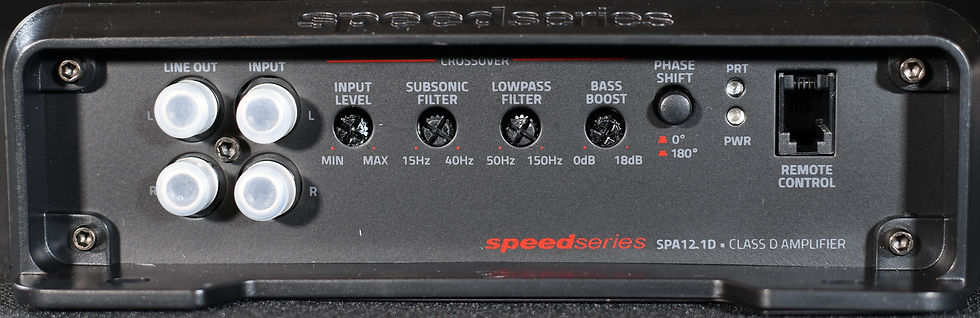

• High Level RCA inputs
• Buffered RCA outputs
• 12dB Slope Variable Low-Pass Crossover Filter
• 24db Slope Variable Sub-Sonic Filter
• Phase Shift Selector

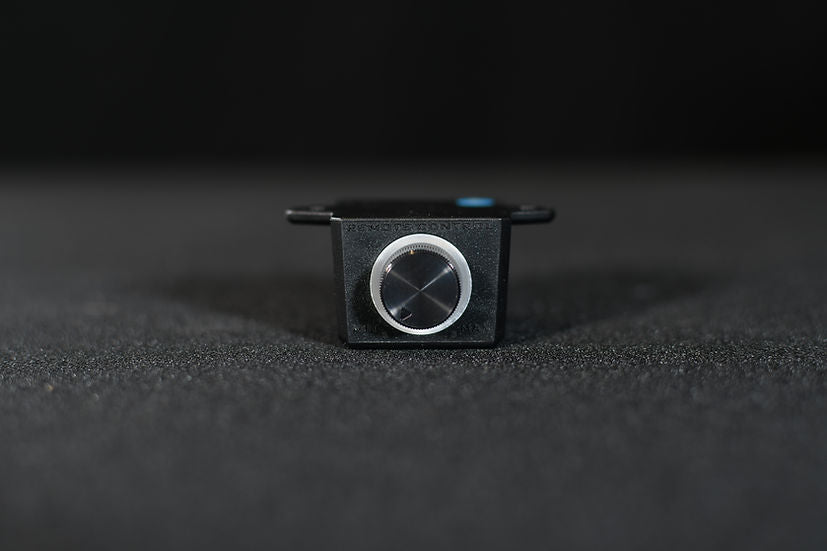

• Remote Dash Bass Control

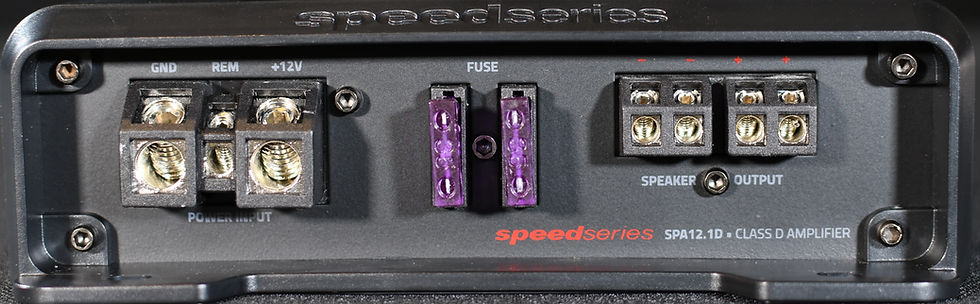

• Large Power Cable Input Connectors
• Double Sided PCB
• Compatible with any 1 Ohm Subwoofer Load

Specs:

• Rated @ 14 Volts:
• 1 x 1200 Watts @ 1 Ohm
• 1 x 600 Watts @ 2 Ohm
• THD (1kHz @ 4 Ohm): 0.04%
• Bandwidth (-3 dB): 18Hz- 250Hz
• Input Sensitivity: .20MV - 5.0V RMS
• Signal to Noise Ratio: 99dB
• Damping Factor (1k Hz @ 4 Ohm): 126

Dimensions:

• Length: 10.82" / 275 mm
• Width: 6.98" / 177.4 mm
• Height: 1.93" / 49 mm
