WDX15G1.4 DB Drive WDX G1 Subwoofer (15" - 1000W Nominal - Dual 4 Ohm)

DB Drive WDX15G1.4 WDX G1 Series 15" 1000W RMS Car Subwoofer - Dual 4 Ohm

Unleash the power of music with the WDX15G1.4, DB Drive's pinnacle of subwoofer engineering. Designed with precision and packed with features, this 15-inch woofer boasts a high-temperature voice coil and a non-pressed paper cone, ensuring durability and exceptional sound quality. The double-stitched foam surround and dual poly-cotton dampeners provide unmatched stability, while the die-cast aluminum vented basket and rubber gasket trim ring guarantee flawless performance. With a massive 135 oz. magnet and large gauge compression terminals, this subwoofer delivers an earth-shattering 2000 watts of peak power. Experience the deep, rich bass and elevate your audio experience to new heights with the WDX G1 series. Transform your sound system and feel the music like never before!

Features:

• 3″ BASV High Temperature Voice coil
• Non-Pressed paper cone
• Double stitched foam surround
• Dual poly-cotton dampeners
• Die-cast aluminum vented basket
• Rubber gasket trim ring
• Large gauge compression terminals
• Protective magnet cover

Specifications:

• Structure: 15″ (38.1cm) Woofer
• Dynamic Power Handling: 2000 Watts
• Nominal Power Handling: 1000 Watts
• Impedance: Dual 4Ω Voice Coil

Thiele-Small Parameters:

• Resonant Frequency (Fs): 36.85Hz
• D.C. Voice Coil Resistance (Re): 3.2Ω x 3.2Ω
• Mechanical Quality Factor (Qms): 3.506
• Electrical Quality Factor (Qes): 0.809
• Total Quality Factor (Qts): 0.657
• Equivalent Air Volume to Cms (Vas): 43.332 L
• Mass of Diaphragm/Coil (Mms): 431.039 g
• Force Factor (Bl): 14.052
• Sound Pressure Level (SPL): 86.2 dB

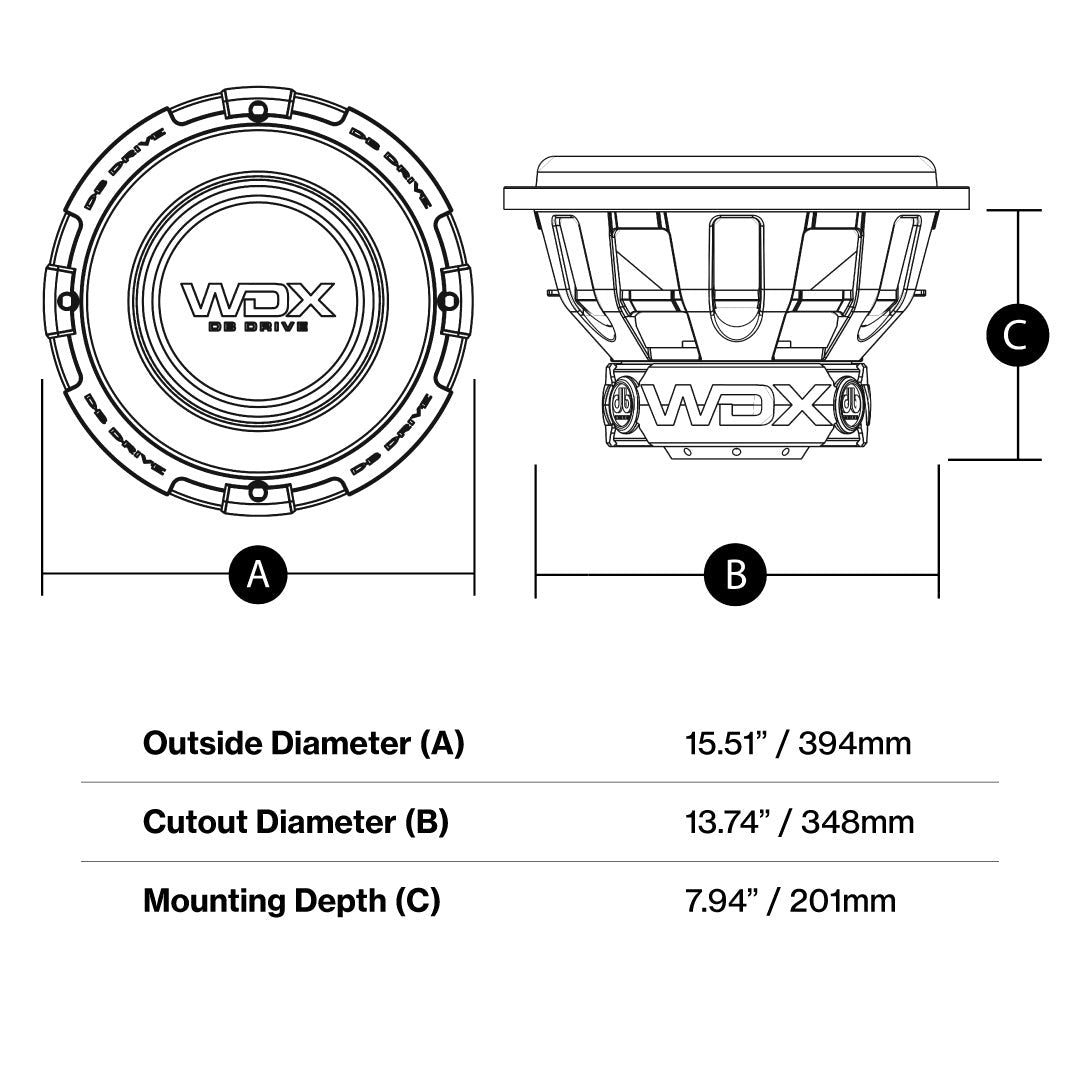

Mounting Information:

• Outside Diameter: 15.51″ (394 mm)
• Cutout Diameter: 13.74″ (349 mm)
• Mounting Depth: 7.94″ (201.8 mm)
