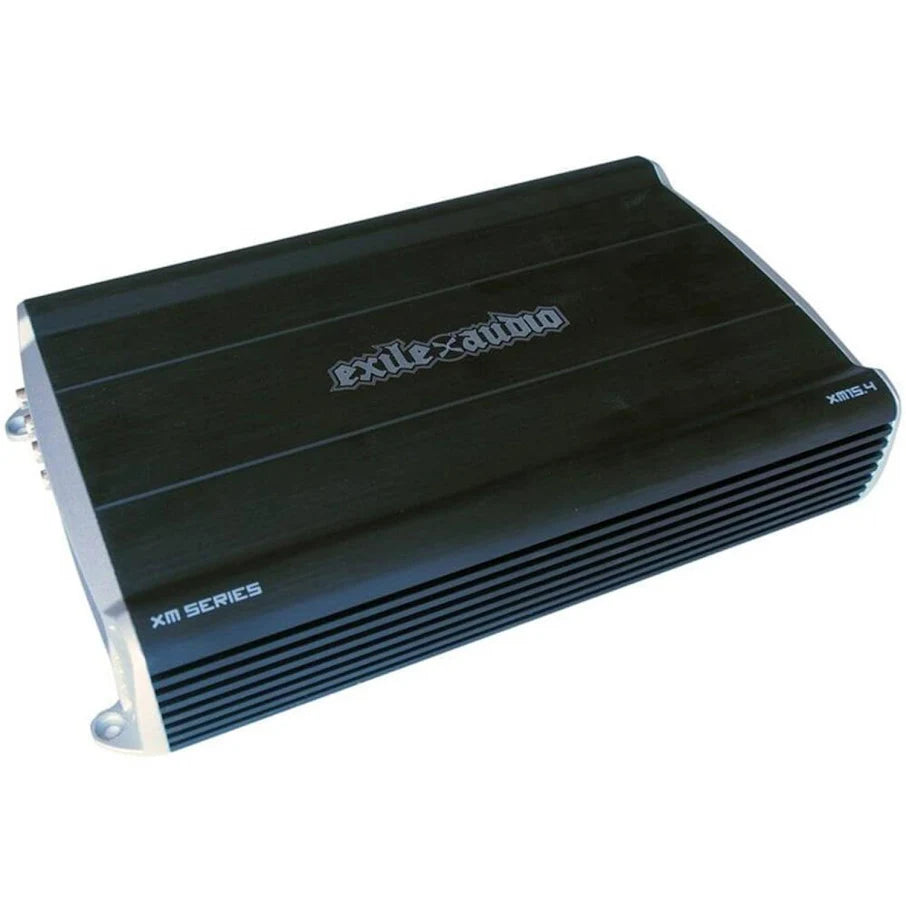

XM154 EXLIE 4-CHANNEL 150W CLASS D AMPLIFIER
Couldn't load pickup availability
XM series amplifiers deliver big power, combined with the build quality, that makes the amplifiers suited for outdoor, marine, or extreme installation. Exile Audio amplifier designs feature a coated 5 layer epoxy circuit board and stainless steel throughout the amplifier. XM series heat sinks feature 9.8 grams of aluminum per millimeter making it second to none in heat dissipation. These amplifiers are built rock solid and packed with features, plus tons of power. Check out all the technical specifications on the tab below, it definitely tells a detailed story.
| Power Ratings | |
|---|---|
| Into 4 ohms | 150w x 4 |
| Into 2 ohms | 225w x 4 |
| Into 4 ohms bridged | 450w x 2 |
| Dimensions | Length: 12.7in (322.6mm) Width: 7.5in (190.5mm) Height: 2.3in (58.4mm) |
| Channels | 4 |
| Amplifier Class | D |
| Fuse Size | 40A x 3 |
| Recommended Power/Ground Wire | 4 AWG |
| Frequency Response | 30 - 200Hz |
| Total Harmonic Distortion | <0.5% |
| Signal to Noise Ratio | 92dB |
| Gain Range | 0.2 - 6V |
| Low Pass Crossover Range | 50 - 250Hz |
| Subsonic Crossover Range | 15 - 250Hz |
| Bass Boost @ 45Hz | 0 to +18dB |
| Operational Efficiency | >85% |
| Damping Factor | >200 |
| Remote Bass Control | Yes |
