YORKVILLE PX1700 2X850W COMMERCIAL POWER AMPLIFIER
Couldn't load pickup availability
PX1700
2-Channel 850 W Power Amplifier
The PX1700 is a two-channel power amplifier that’s ideal for small and medium venues using passive speakers.

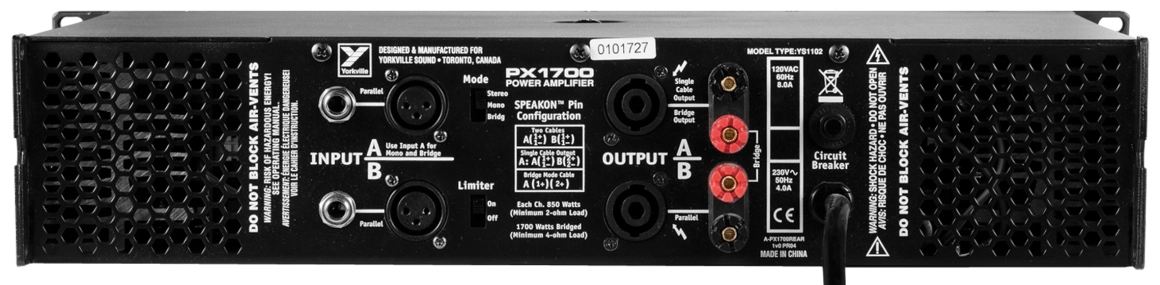

The Class H design delivers 850 watts per channel at 2Ω, and can be bridged to deliver 1700 watts at 4Ω. The rear panel features XLR and 1/4" inputs, as well as binding post and speakON® outputs, for easy integration into virtually any system.
Featuring transparent limiting, advanced protection, and a toroidal transformer to reduce hum and interference, the PX1700 provides exceptional sound and reliability for clubs, concert halls, and houses of worship.
Features
- 2-Channel Class H Design
- 850 W per Channel @ 2Ω
- 1700 W Bridged @ 4Ω
- Balanced XLR and 1/4" TRS Inputs
- Binding Post and speakON® Outputs
- Short Circuit, DC, and Thermal Protection
- Soft Turn-On Circuit to Protect Speakers
- All-Steel Construction
Specifications
| Amplifier class | Class H |
| Continuous Average Power AT 8 Ohms (Watts) | 400 W |
| Continuous Average Power AT 4 Ohms (Watts) | 600 W |
| Continuous Average Power AT 2 Ohm (Watts) | 850 W |
| Continuous Average Power Bridged (Watts) | 1700 W |
| Burst Average Power AT 8 Ohms (Watts) | 600 W |
| Burst Average Power AT 4 Ohms (Watts) | 1000 W |
| Burst Average Power AT 2 Ohms (Watts) | 850 W |
| Burst Average Power Bridged (Watts) | 1700 W |
| Frequency Response (Hz CM +/- 1dB) | 30 Hz - 20 kHz |
| Hum and Noise (un / Aweighted -dB) | -100 dB Unweighted |
| THD -1kHz- 4 OHMS | <0.1% |
| THD - 20Hz-20kHz CM 4 Ohms | <0.1% |
| Damping Factor (30 Hz - 400 Hz AT 8 Ohms) | >300 |
| Crosstalk (1kHz / 20Hz-20kHz) | -75 dB / -60 dB |
| Input Impedance - Bal/Unbal (Ohms) | 30 kΩ / 15 kΩ |
| Input Sensitivity (Vrms) For Full Power Out | 1.4 V |
| Max Voltage Gain (dB) | 31 dB |
| Stereo / Mono / Bridge )S/M/B) | Yes |
| Protection | DC, Load, Thermal |
| Limiter | Peak (Defeatable) |
| High Pass Filter | No |
| Cooling | Fan |
| Cooling Path | Front to Rear |
| Inputs - XLR | Yes (x2) |
| Inputs - 1/4 IN Jacks | 2 |
| Outputs - Speakon 4-pin | 2 |
| Outputs - Binding Post | 2 |
| Power Consumption (typ/max) | 700 W / 1500 W |
| Rack Spaces | 2 |
| Transformer Type | Toroidal |
| Exterior Finish | Black Paint |
| Dimensions (DWH /D fm ears inches) | 16" x 19" x 3.5" (40.6 cm x 48.3 cm x 8.9 cm) |
| Weight (lbs / kg) | 35 lbs / 16 kg |
Specifications subject to change without notice
